High quality stainless steel male Thread Joint rod end bearing SA18T/K
You are here: Home » Products » Rod End Joint Bearing » High quality stainless steel male Thread Joint rod end bearing SA18T/K

High quality stainless steel male Thread Joint rod end bearing SA18T/K

loading

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
A rod end bearing, also known as a heim joint (N. America) or rose joint (U.K. and elsewhere), is a mechanical articulating joint. Such joints are used on the ends of control rods, steering links, tie rods, or anywhere a precision articulating joint is required, and where a clevis end(which requires perfect 90 degree alignment between the attached shaft and the second component) is unsuitable. A ball swivel with an opening through which a bolt or other attaching hardware may pass is pressed into a circular casing with a threaded shaft attached. The threaded portion may be either male or female.

  • SA18T/K

  • YWS

  • rod end bearing ball joint bearing

  • YWS

  • 18mm

  • SA18T/K

  • China

  • steel

  • M18*1.5

Availability:
Inquire

Product Description

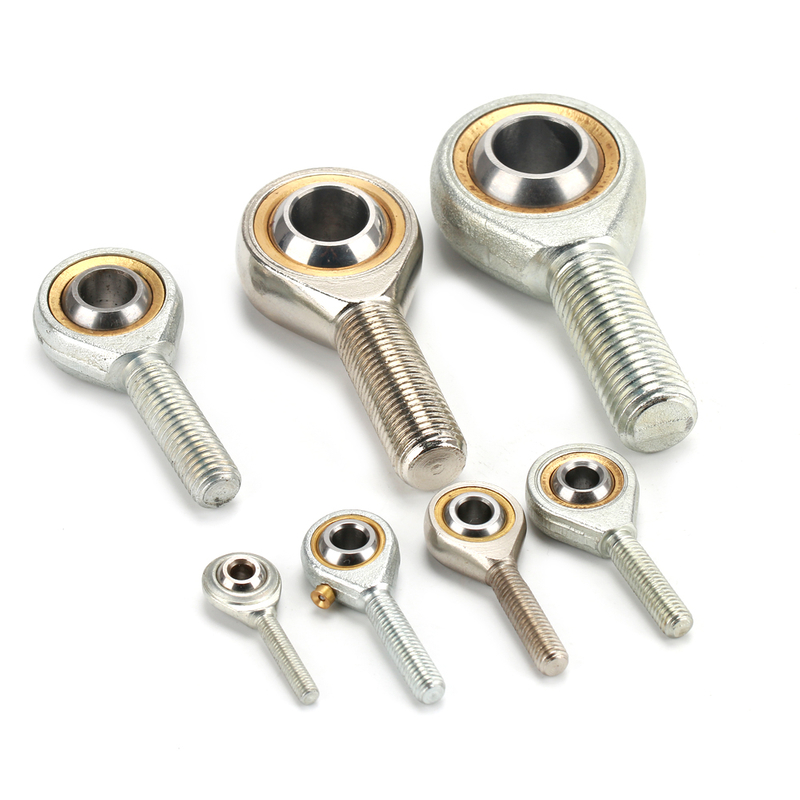

Rod end bearings consist of a plain spherical articulating eye with an external threaded shaft.

These bearings can support a large radial load and a bi-directional axial load at the same time.

The bearing has a spherical inner ring which makes direct contact with the bore surface of the body made of a special bronze alloy.

This offers a smoother rotational and oscillatory motion and can improve wear and loading properties.


Features

  • Self-Lubrication

  • Housing:  carbon steel and white zinc plated

  • Steel Ball:  52100 chrome steel, precision ground hardened and chrome plated

  • Liner:  PTFE-Strong & flexible bronze mesh spread with fluorine resin

  • Race:  Bronze



Dimensions

  • Inside Diameter(Bore): 18mm

  • Outside Diameter(Head): 44mm

  • Thread: M18x1.5(Right Hand)

  • Total Length: 94mm

  • Maximum Angular Misalignment: 15 Degree

  • Center of Ball to Bottom of Shank: 72mm

  • Length Through Bore: 23mm

  • Thread Length: 41mm
