Product Description

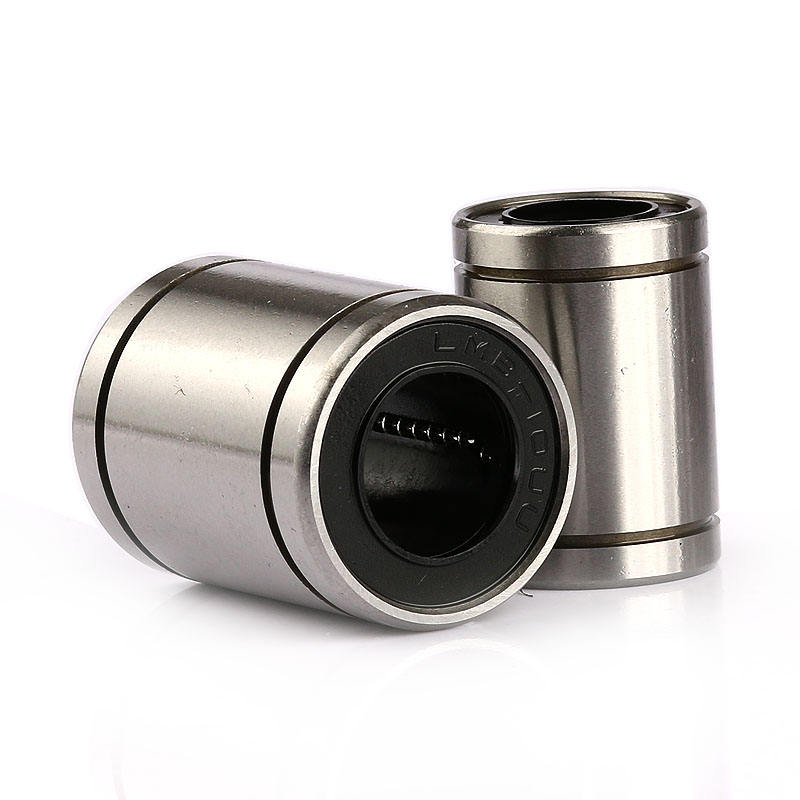

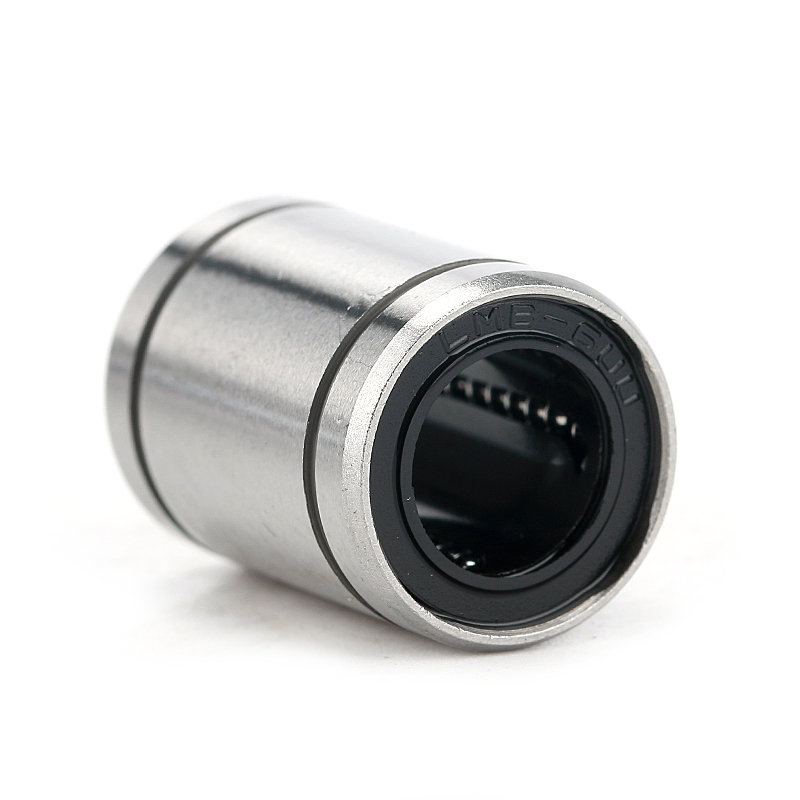

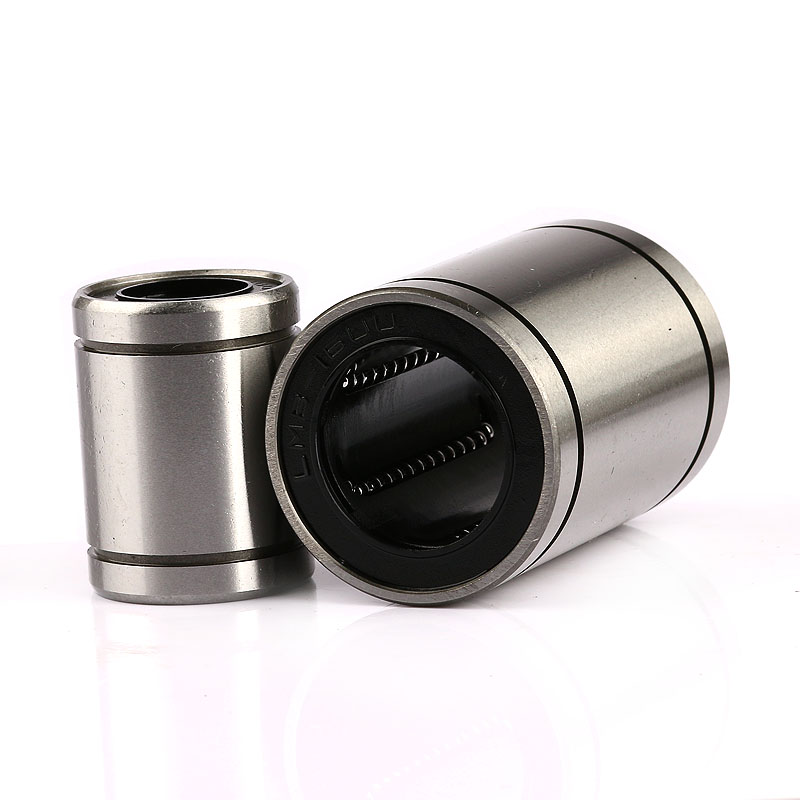

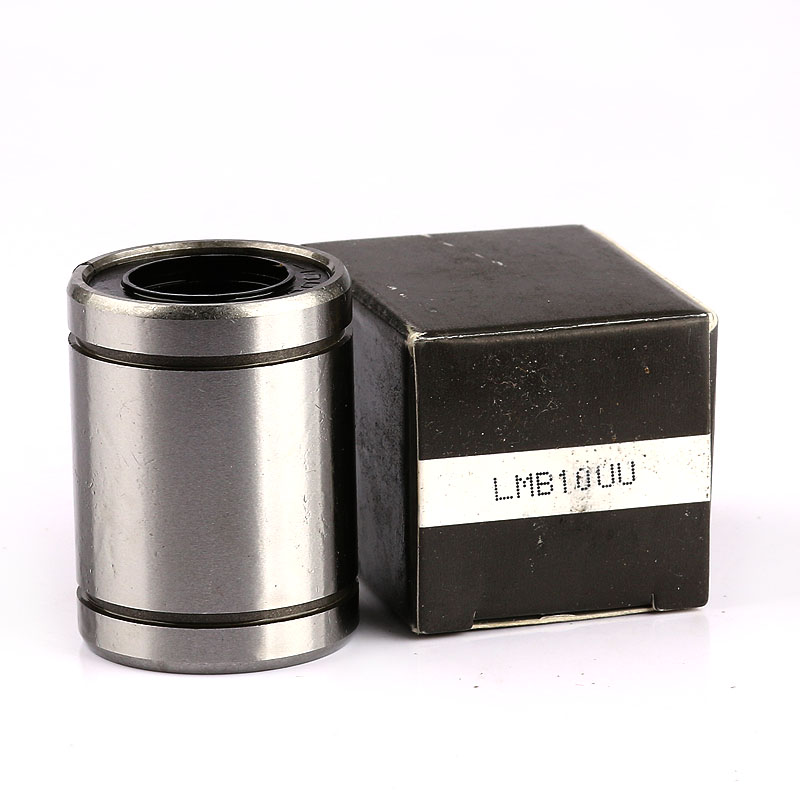

2 inch 50.8mm bore size linear motion bearing bushing SW32 LMB32 UU SW32UU LMB32UU
| ODEL NO. | NUMBER OF BALL ROWS | MAIN DIMENSIONS | ECCEN-TIRICITY (MAX.) | BASIC LOAD RATING | WEIGHT | ||||||||||||
| INSCRIBED CIRCLE DIAMETER | OUTER DIAMETER | LENGTH | OUTER LOCKING GROOVE | W | c (kgf) | Co (kgf) | |||||||||||
| dr | TOLER-ANCE | D | TOLER-ANCE | L | TOLER-ANCE | B | TOLER-ANCE | D1 | |||||||||
| LMB4UU | 4 | 1/4 6.35 | 0 -0.009 | 0.5 12.7 | 0 -0.011 | 0.75 19.05 | 0 -0.20 | 0.511 12.98 | 0 -0.20 | 0.4687 11.906 | 0.039 0.992 | 0.012 | 21 | 27 | 64 | ||
| 0 -0.013 | |||||||||||||||||
| LMB6UU | 4 | 3/8 9.525 | 0.625 15.875 | 0.875 22.225 | 0.6385 16.15 | 0.588 14.935 | 0.039 0.992 | 23 | 32 | 14 | |||||||
| LMB8UU | 4 | 1/2 12.7 | 0.875 22.225 | 1.25 31.75 | 0.9625 24.46 | 0.8209 20.853 | 0.0459 1.168 | 52 | 80 | 40 | |||||||
| LMB10UU | 4 | 5/8 15.875 | 1.125 28.575 | 1.5 38.1 | 1.1039 28.04 | 1.059 26.899 | 0.0559 1.422 | 79 | 120 | 76 | |||||||
| LMB12UU | 5 | 3/4 19.05 | 0 -0.010 | 1.25 31.75 | 0 -0.016 | 1.625 41.275 | 1.1657 29.61 | 1.176 29.87 | 0.0559 1.422 | 0.015 | 88 | 140 | 90 | ||||
| LMB16UU | 5 | 1 25.4 | 1.5625 39.688 | 2.25 57.15 | 0 -0.30 | 1.7547 44.57 | 0 -0.30 | 1.4687 37.306 | 0.0679 1.727 | 100 | 160 | 206 | |||||
| LMB20UU | 6 | 1-1/4 31.75 | 0 -0.012 | 2 50.8 | 0 -0.019 | 2.625 66.675 | 2.0047 50.92 | 1.8859 47.904 | 0.0679 1.727 | 0.020 | 160 | 280 | 370 | ||||
| LMB24UU | 6 | 1-1/2 38.1 | 2.375 60.325 | 3 76.2 | 2.4118 61.26 | 2.2389 56.87 | 0.0859 2.184 | 220 | 410 | 584 | |||||||
| LMB32UU | 6 | 2 50.8 | 3 76.2 | 0 -0.022 | 4 101.6 | 3.1917 81.07 | 2.8379 72.085 | 0.1029 2.616 | 0.025 | 390 | 810 | 600 | |||||
♥1.Your inquiry will be reply within 2 hours.
♥2.Fast delivery,within 7 working days.
♥3.Packing: you will receive a Perfect product with strong outside packing.
♥4.With advanced first-level facilities and testing equipment,to insure no mistake on the dimension of the bearings.
♥5.No M.O.Q, Because we are manufacture.
♥6.24 hours on line,no limited to talk to us.
♥7.Return Policy:We gladly accept returns for item purchased within a 30 day period, provided it is still in the original package, not used nor damaged.
♥8.Warranty Claims :The Warranty covers any Defect of the product for a period of 12 months. It does not cover items that are not correctly installed or over tightened which may cause premature failure. Installation or any other fee's are not refundable.
