25*62*24mm clutch bearing ASNU25 NFS25 One way overrunning clutch bearing ASNU25
You are here: Home » Products » One-way bearings » 25*62*24mm clutch bearing ASNU25 NFS25 One way overrunning clutch bearing ASNU25

25*62*24mm clutch bearing ASNU25 NFS25 One way overrunning clutch bearing ASNU25

loading

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
Availability:
Inquire

Product Description

Product Description

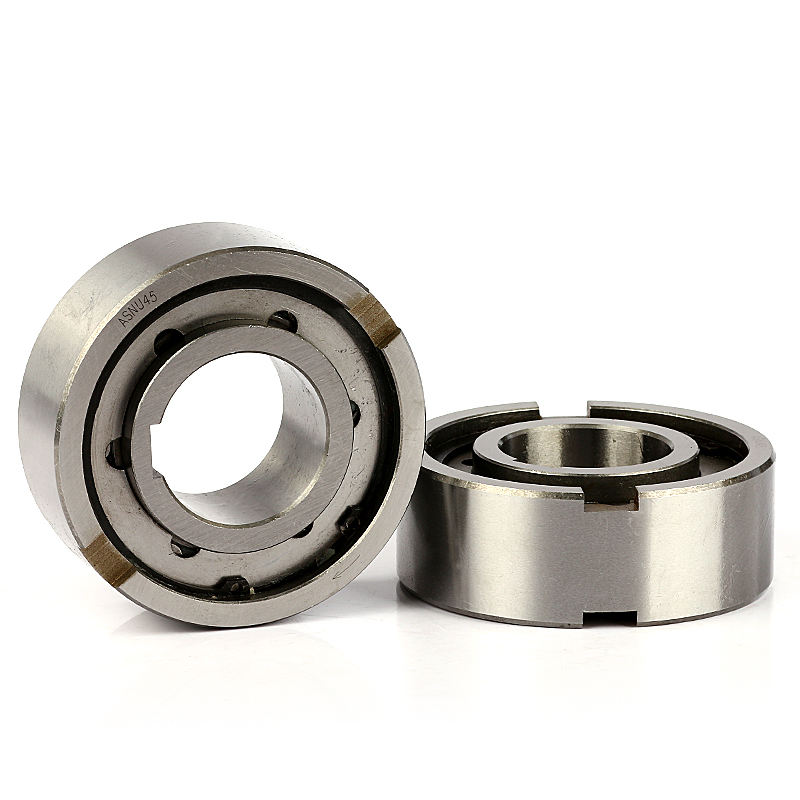

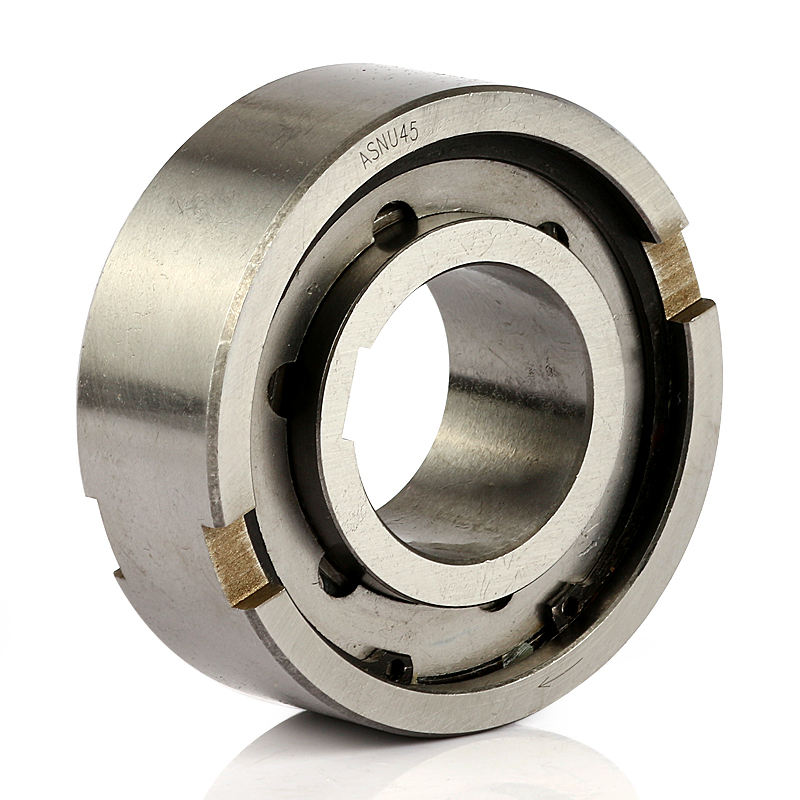

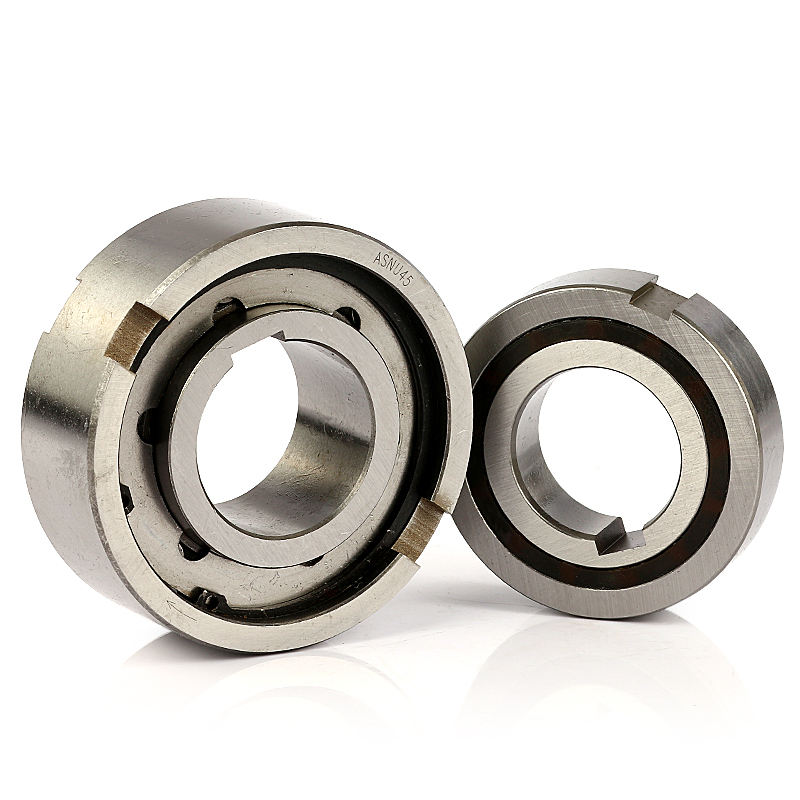

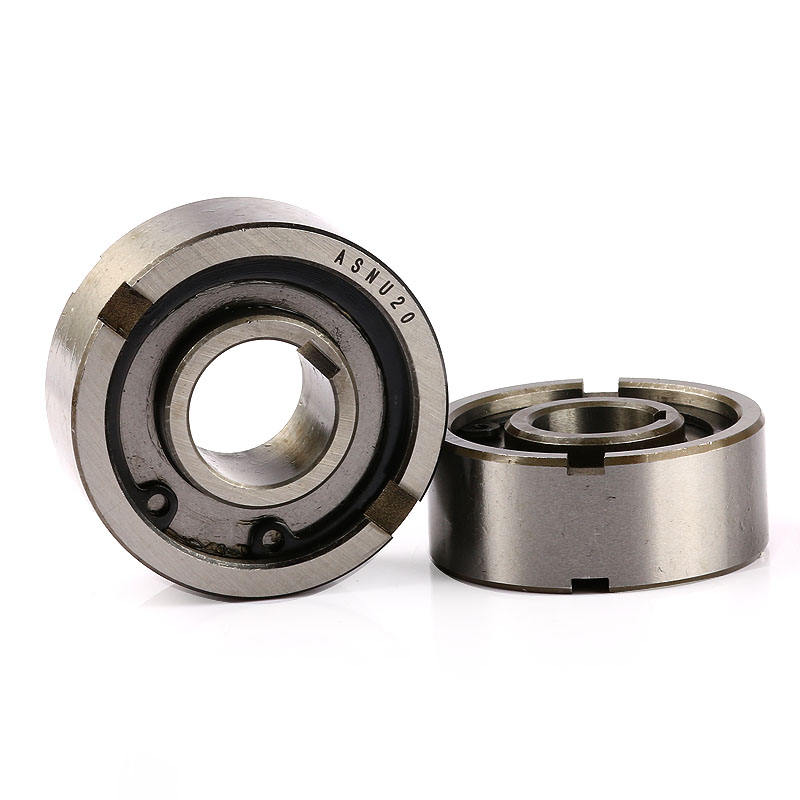

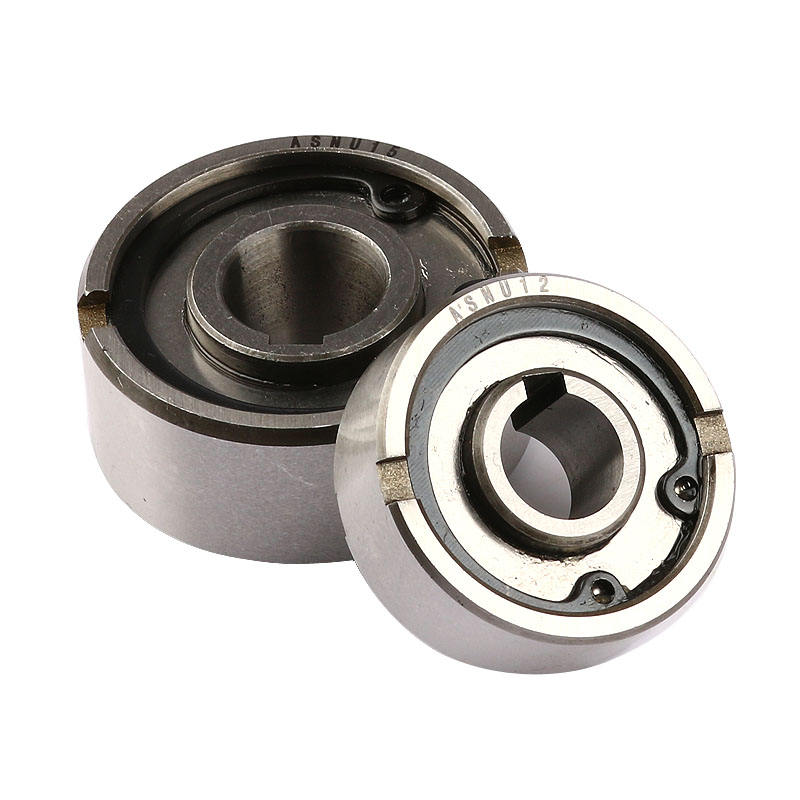

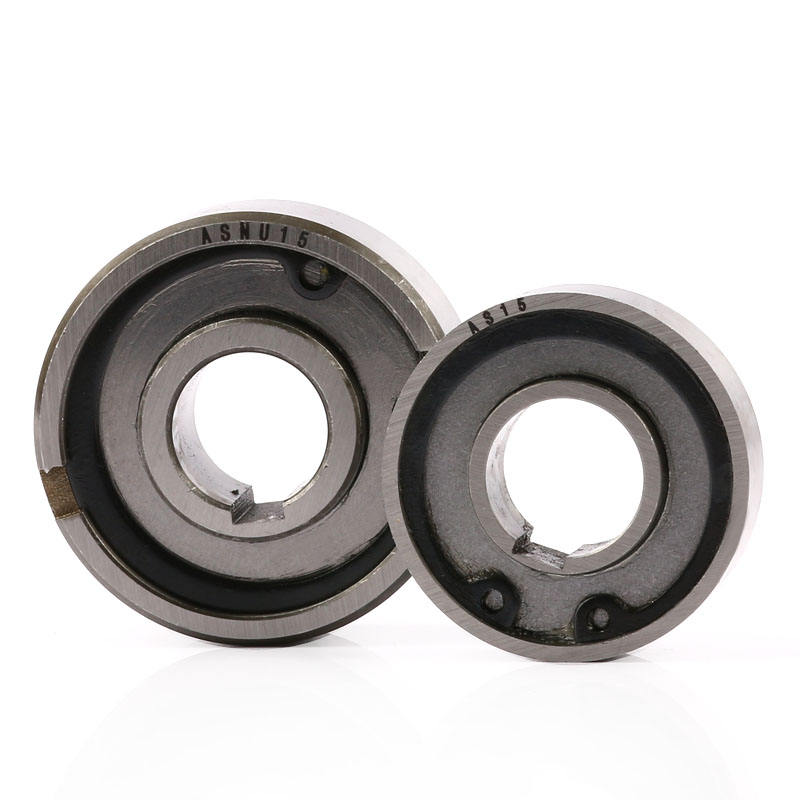

25*62*24mm clutch bearing ASNU25 NFS25 One way overrunning clutch bearing ASNU25
Type ASNU is a roller type freewheel non-bearing supported. Bearings are required to support axial and radial loads. Lubrication and sealing must also be provided by the installation. Nominal outer diameter is the same as a series 63...Ball bearing. A typical arrangement is to install this type alongside a bearing within the same location tolerances, the inner race is keyed to the shaft. The outer race has positive n6 tolerance, to give a press fit in a H7 housing. Additional side notches in the outer race provide for positive torque transmission. If the housing is to K6 tolerance, use of the notches is not necessary, but the housing must be strong enough to not expand after assembly.

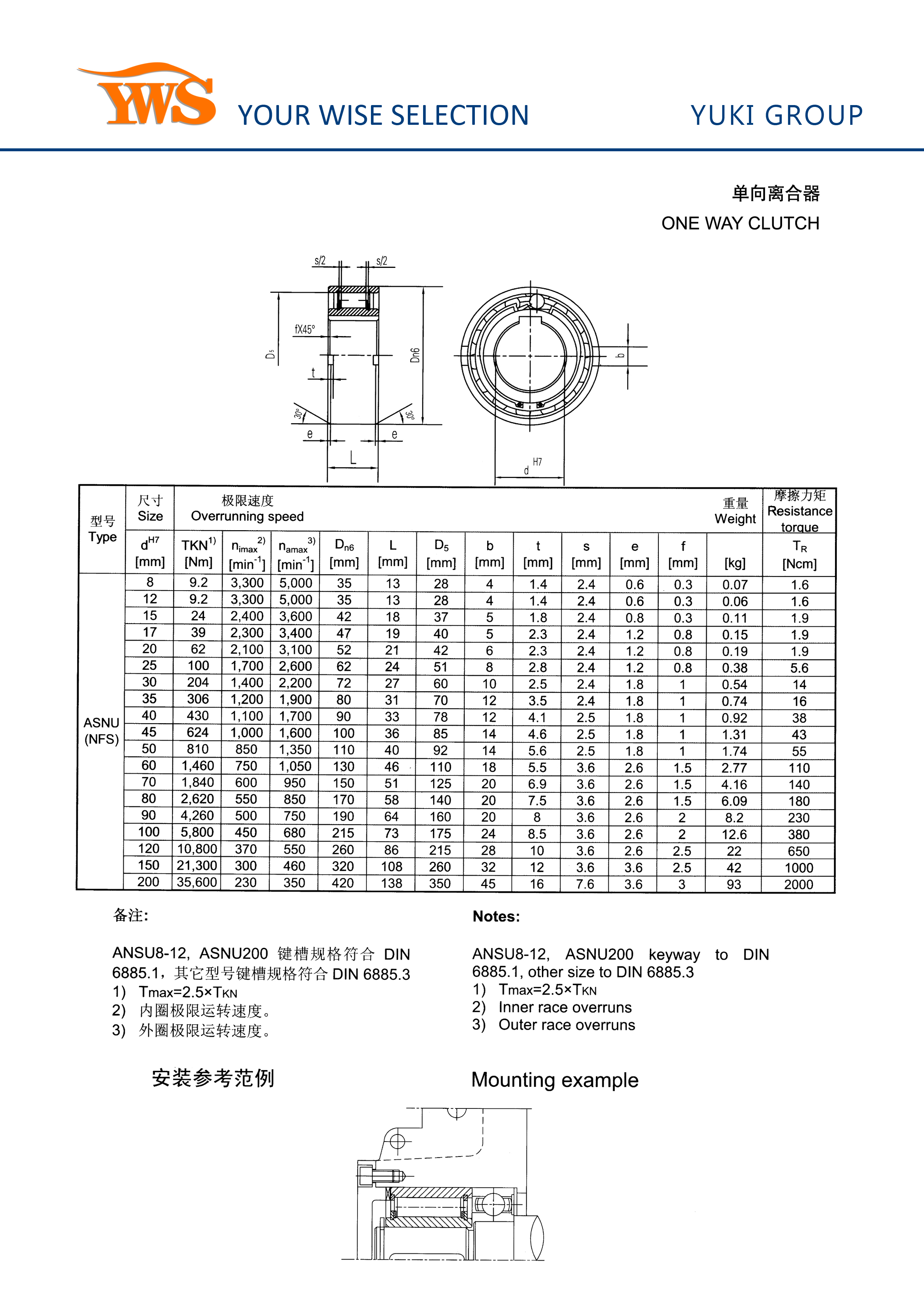

ASNU series Sprag Clutch:
ASNU8 ASNU12 ASNU15 ASNU20 ASNU25 ASNU30

ASNU35 ASNU40 ASNU45 ASNU50 ASNU55 ASNU60

ASNU80 ASNU90 ASNU100 ASNU120 ASNU150 ASNU200
