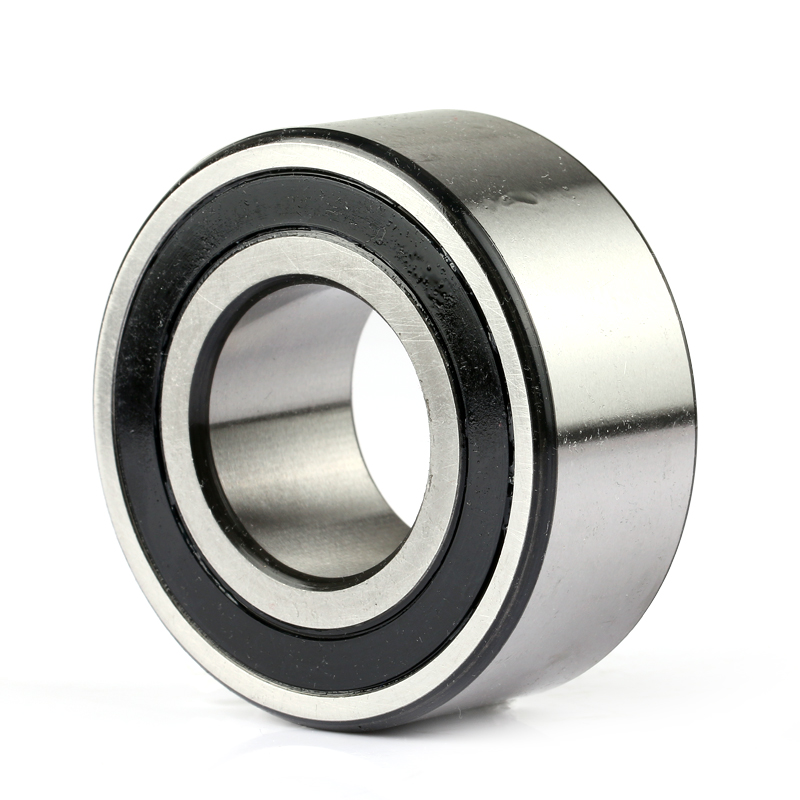

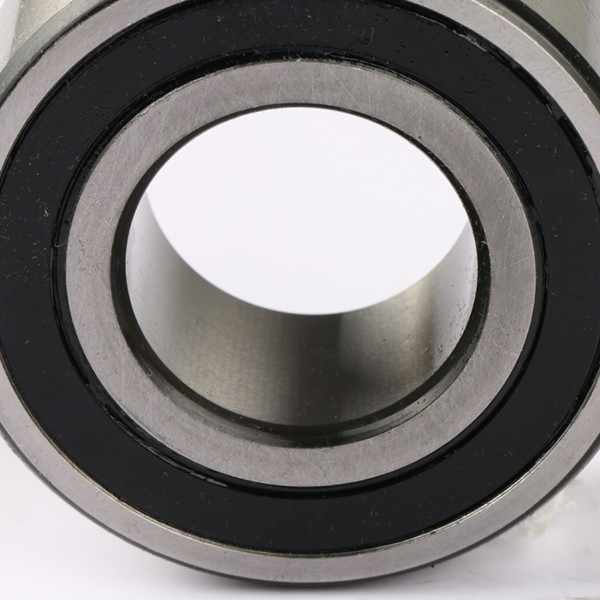

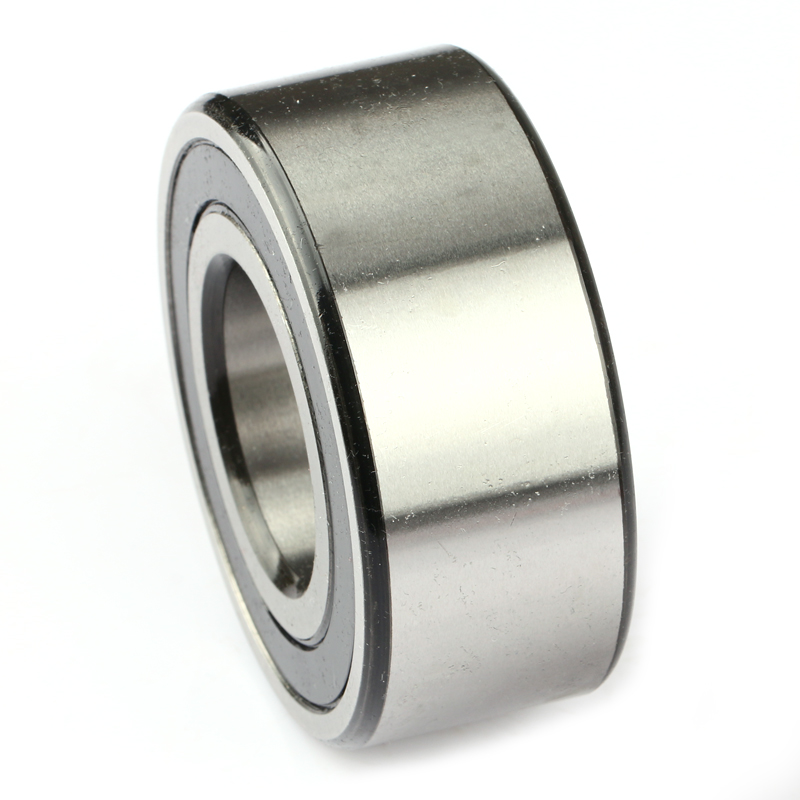

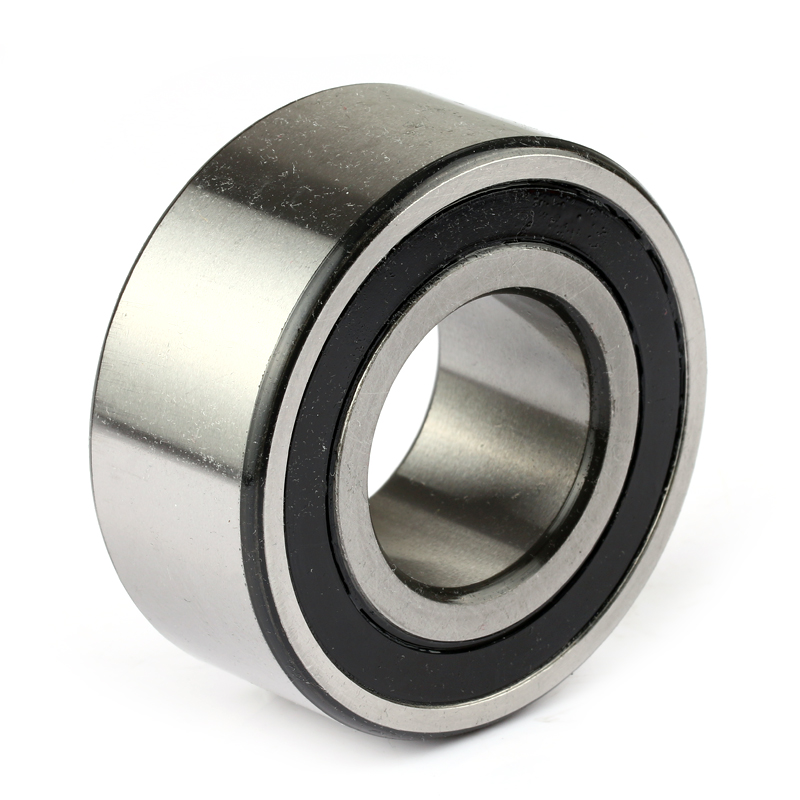

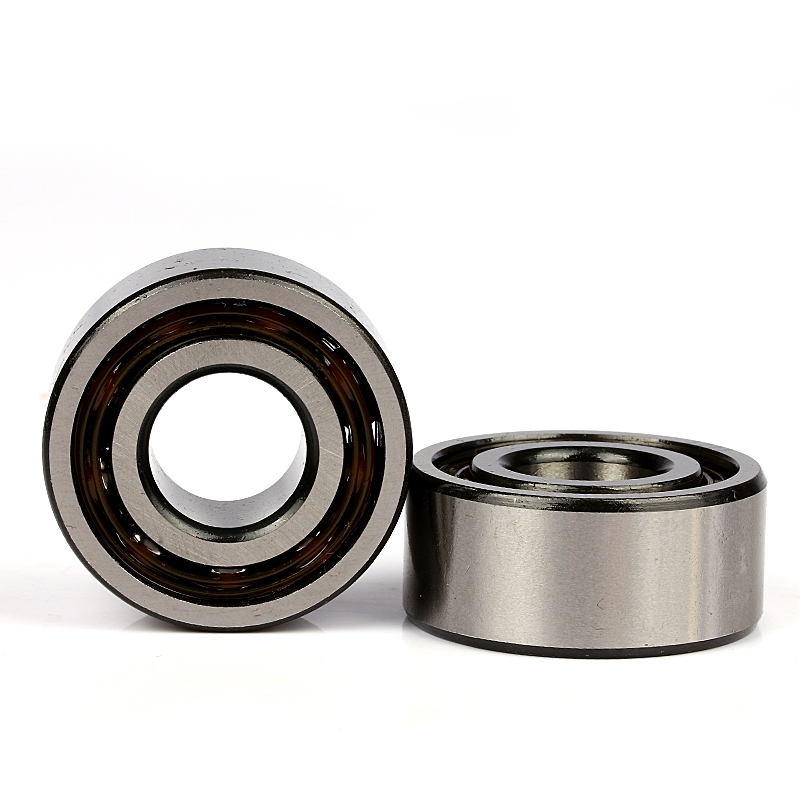

3201 angular contact ball bearing 12×32×15.9mm

product information

Brand Name:YWS

Product Name: Angular Contact Ball Bearing

Material: chrome steel

Model:3201

Inner Diameter (d): 12mm

Outer Diameter (D): 32mm

Thickness (B): 15.9mm

Bearing size:12×32×15.9mm

Weight:0.073kg

Dynamic Load Rating (Cr): 9.7kN

Static Load Rating (Cor): 2.35kN

Service:OEM Service

Tips: Prices and attributes are for reference only, please email or call for details.

product description

Double-row, pre-lubricated, normal accuracy.

Angular Contact Ball Bearings are designed to accommodate combined loads. They accommodate radial as well as axial loads and tilting moments in either direction.

The axial load carrying capacity of angular contact ball bearings increases as the contact angle increases.

With small friction and high-limit speed, Ball Bearings are cost-effective and require little maintenance.

Chromium Steel (GCr15) made with heat treating, provides high and uniform hardness, good wear resistance, and high contact fatigue performance.

Suitable for use in commercial and industrial applications including pumps and compressors, automotive drives, gearboxes, and printing machines, among others.

Product features

Bearings are sealed on BOTH SIDES to keep lubricant in

Chromium Steel long-life bearings, smooth and low noise

ABEC Tolerance 1 (P0), Z1 Noise Level for most general use

Static load rating of 9700 newtons and dynamic load rating of 7150 newtons
