SF4
YWS
8483109000
linear
linear
YWS
4mm
Product Description

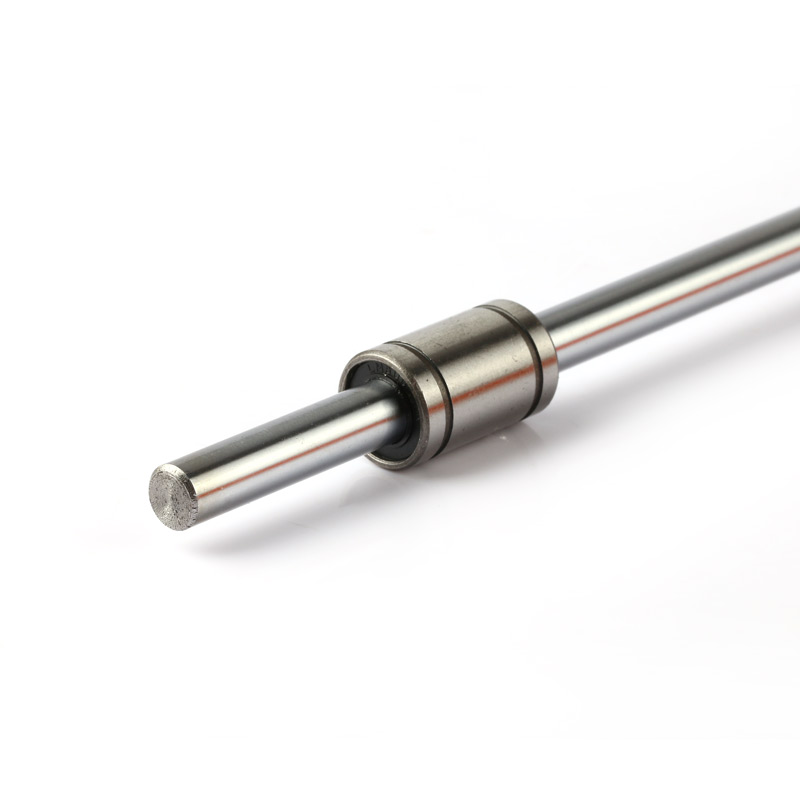

4mm diameter 45# steel or Gcr15 steel linear shaft for lm4uu ball slide units
Goods Description:
| Model Number | WCS SFC Series Solid shaft(Linear rod;Steel bar;Optical axis),hollow shaft as demand |
| Diameter | Metric Diameter : 3mm,4mm,5mm,6mm,8mm,10mm,12mm,16mm......100mm Inch Diameter : 6.35mm,9.525mm,12.7mm,15.875,19.05,25.4mm,31.75mm,38.1mm |
Quality | ISO9001:2008 standard |
| Material | Steel 45#;GCR15;SUS440C |
| Hardness | HRC:58-62 |
| Hardened Layer Thickness | 0.8-3.00mm |
| Precision | G6 |
| Roughness | Within1.5μm |
Roughness(Rmax) | Within 3.0μm(Rmax) |
| Straightness | Not excess 1.5μm of 100mm (Rmax) |
| Thickness of Chrome Plated | 1-2μm,1.5μm on average |
| Performance | Long life and low noise |
| Appearance | Smooth,Anti-corrosion,Hardened,Chrome plate |
| Service | Special requirement onmachining,such as threading,coaxial holes drilled and tapped,radial holes drilled and tapped,reduced shaft diameter etc;We could supply OEM to our customers. |
| Application | Machine centers,Machine tools,Precision machining machines,Heavy cutting machines,Punching machines,Marble cutting machines,Automatic equipments,Grinding machines,High speed transfer equipments,Injection molding machines,Measuring equipments |
Feature:
High Reliability
YWS linear shaft has very stringent quality control standards covering every production process. With proper lubrication and use,trouble-free operation for an extended period of time is possible.
Smooth Operation
The high efficiency of linear shaft is vastly superior to conventional shaft. The torque required is less than 30%. Linear motion can be easily changed from rotary motion.
High Durability
Rigidly selected materials, intensive heat treating and processing techniques, backed by years of experience,have resulted in the most durable linear shaft manufactured.
Package
We can pack by carton box or wooden case
