51318 Thrust Ball Bearing 90×155×50mm

product information:

Structure:thrust ball bearings

Type:Ball, ball bearing

Brand Name:YWS

Internal diameter:90mm

External diameter:155mm

Width:50mm

size:90×155×50mm

weight:4.18kg

Material:Chrome steel/GCr15/Stainless steel/ceramic

Sealing type: You can choose Metal seal Or Rubber seal

Is customized: Yes (Drawings required)

Related accessories: Oil seal,Circlip and housings etc.

Wholesale and freight: To provide you with accurate solutions

Tips: Please contact us for details of the required products.

Product description：

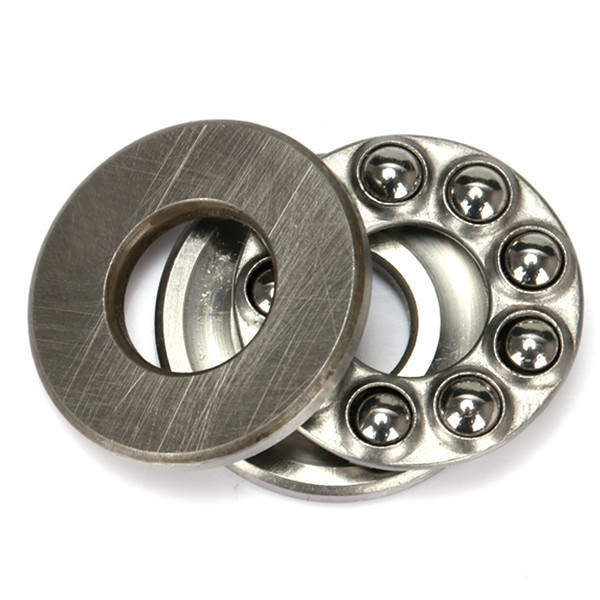

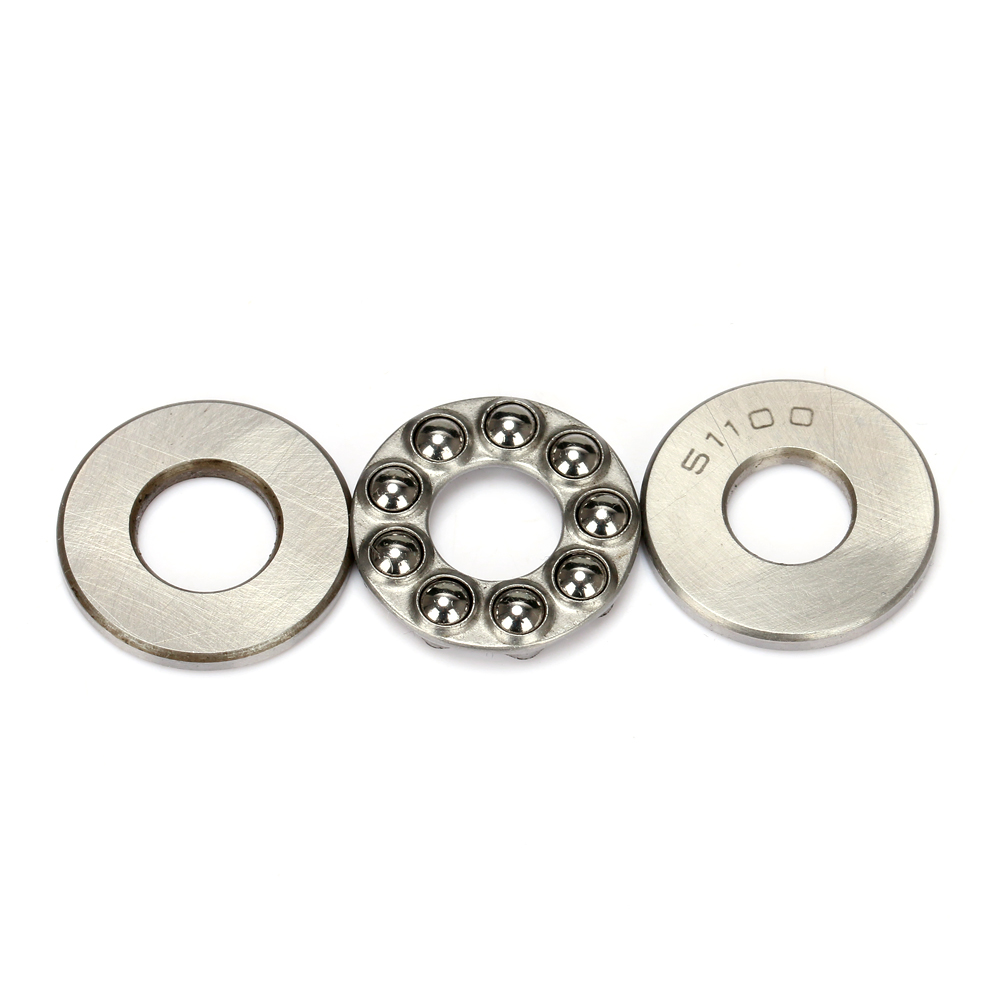

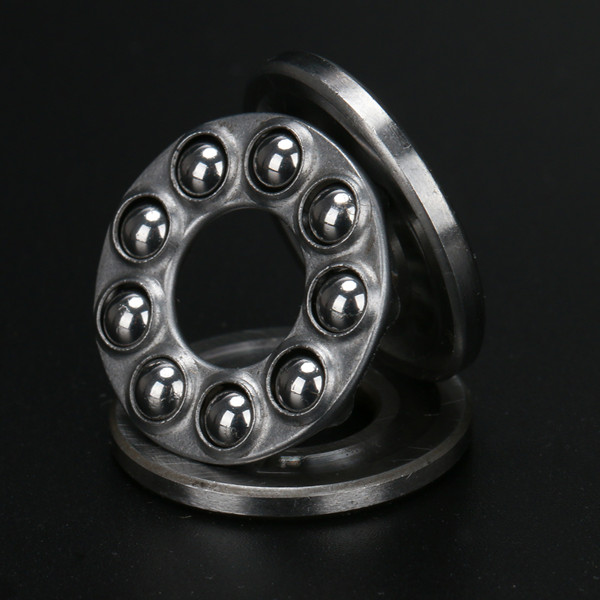

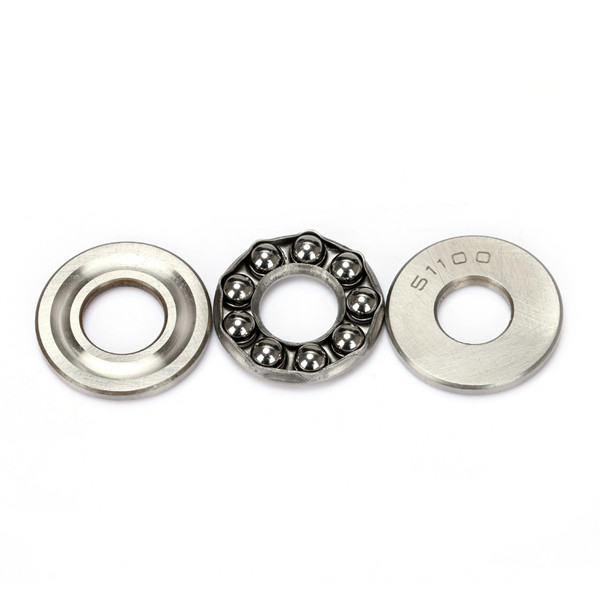

This single-direction, three-piece thrust ball bearing has an Annular Bearing Engineers’ Committee (ABEC)-1 precision rating, grooved races, a 90-degree contact angle, a pressed steel cage, and an open construction. It is suitable for moderate-speed applications that support heavy axial loads in one direction and no radial loads. This deep-groove thrust ball bearing has a three-piece construction with a housing locating washer (ring), a shaft locating washer, and a ball and cage assembly. The washers have grooved raceways that conform to the balls rotating between them, allowing higher speeds and thrust bearing capacity than bearings with flat raceways. The single-row design supports thrust loads in a single direction and tolerates axial deflection, and the open construction allows for the bearing to be lubricated in place. This bearing has a 90-degree contact angle in which the ball and inner and outer raceway contact points are on a plane parallel to the axial load, which enables the bearing to receive high axial force.

This bearing is separable so it mounts more easily than nonseparable bearings because its components can be installed independently. It can be used at operating temperatures from -34 degrees C to 125 C (-30 degrees F to 257 F), and it has an ABEC-1 rating for tight dimensional tolerance, making it useful in applications that require high accuracy and increased operating efficiency. This thrust ball bearing is suitable for applications including machine tool drive shafts, automotive steering gears and clutches, rotary tables, outboard motor propellers, and household appliances.

Product features：

• Thrust Needle roller bearing and cylindrical roller thrust raceway ring in a  cage between in configuration with a needle(roller),a reliable guide cage and gripping a large number of rolling bodies, the same component in the rolling body only has its minor differences.

• Thrust cylinderical roller bearings or thrust bearings can only be supported, a direction axial load bearing,can be used as rigid good and occupies minumum space axial bearing configuration.

• Thrust needle roller bearings and cylinder roller thrust bearing standard cage for stamping steel cage. For the cage with roller sets,works shall be to be guided inside diameter or outside diameter structure.

Advantage of thrust ball bearing

• Sustain radial, acial, or composite load.

• Provide both high-running accuracy &high-speed operation

• Can replace high speed angular contact ball bearings.

 Sincerely welcome to send enquiry to us!!!
