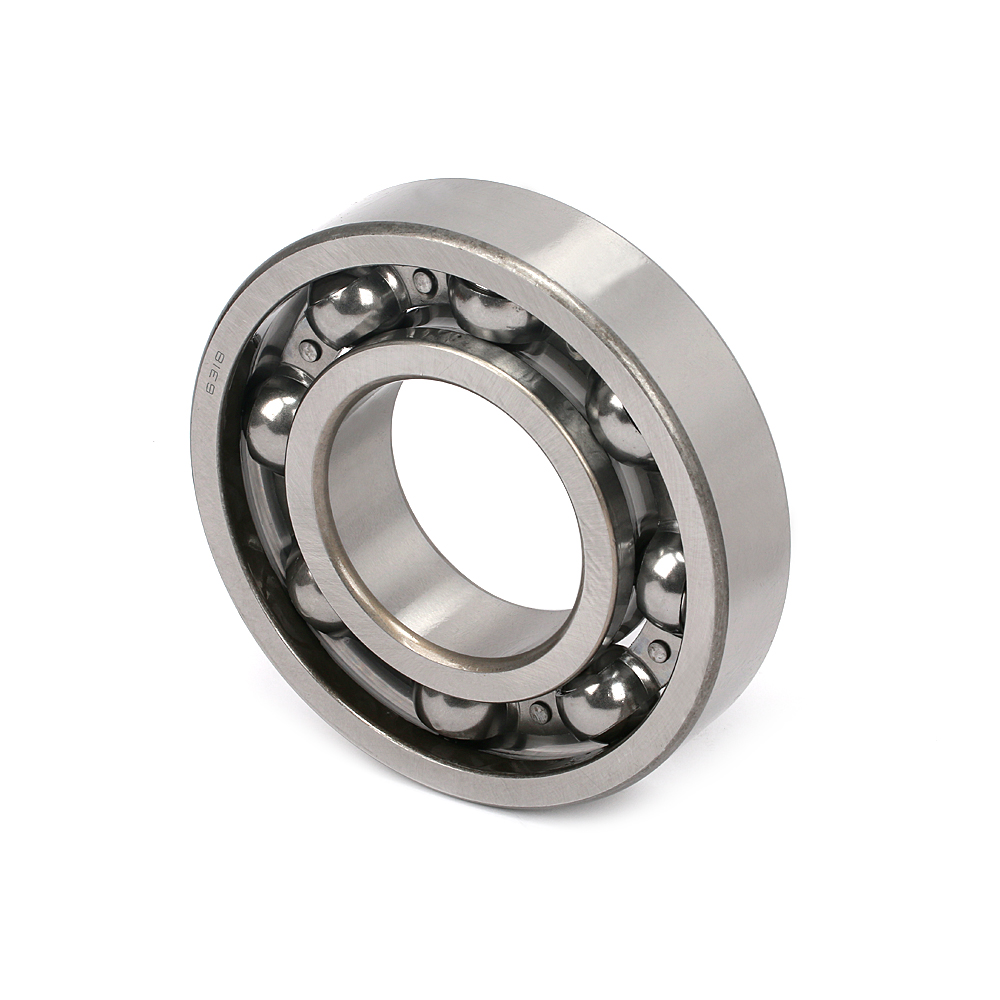

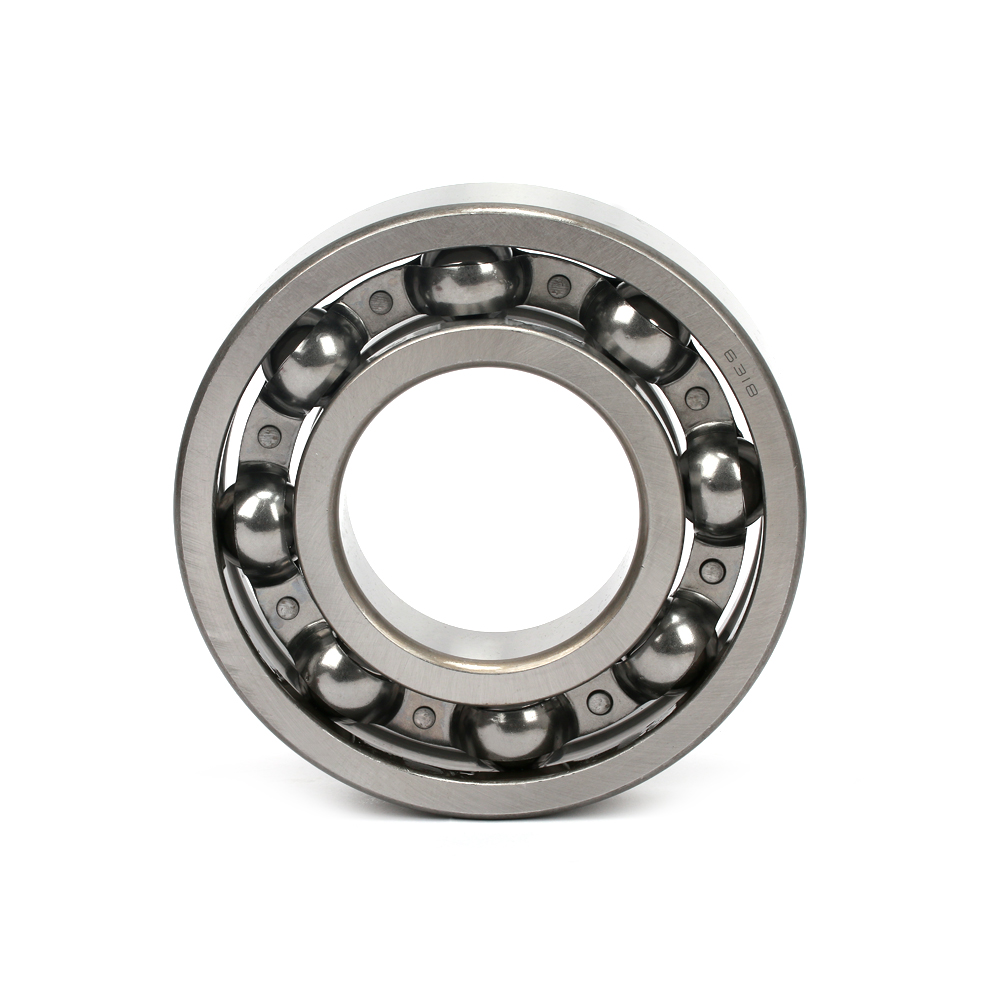

6317C3Z1 High Speed Motor Bearing 85x180x41mm

product information

Brand Name:YWS

Product Name: Deep groove ball bearing

Material: Chrome steel

Model: 6317C3Z1

Outer diameter:180mm

the inside diameter of:85mm

Bearing size:85x180x41mm

Weight:4.284kg

Structure:Deep Groove

Type:ball

Service:OEM Service

Tips: Prices and attributes are for reference only, please email or call for details.

Neutral packing:White plastice bag,outer carton, pallet, tube

Industrial packing, factory packing, or white box

yws brand packing: yws outer carton/pallet ,yws plastic bag

Port：Qingdao/Shenzhen

Packaging & Delivery

Packaging & Delivery

Packaging Details

1.Carton Tubo .

2.Wrapped by oil paper and water-proof belt

3.Wooden pallets or wooden cases of free fumigation

4.According to customer's requirement

Port

qingdao

Lead Time :

Quantity(Pieces)1 - 1000>1000

Est. Time(day)10To be negotiated

product description

Deep groove ball bearings are mainly subjected to radial loads and can also bear both radial and axial loads. When it is only subjected to radial loads, the contact angle is zero. When the deep groove ball bearing has a large radial clearance, it has the performance of an angular contact bearing and can withstand a large axial load. The deep groove ball bearing has a small friction coefficient and a high limit speed.

Product features

Deep groove ball bearings are the most commonly used rolling bearings. Its structure is simple and easy to use. It is mainly used to bear radial load, but when it increases the radial clearance of the bearing, it has certain angular contact ball bearing performance and can withstand combined radial and axial loads. It can also be used to withstand pure axial loads when the rotational speed is high and thrust ball bearings are not suitable. Compared with other types of bearings of the same size as deep groove ball bearings, these bearings have a small coefficient of friction and a high limit speed. However, it is not resistant to impact and is not suitable for heavy loads.

After the deep groove ball bearing is mounted on the shaft, the axial displacement of the shaft or the casing can be restricted within the axial clearance of the bearing, so that the axial positioning can be performed in both directions. In addition, this type of bearing also has a certain ability to adjust the core. When it is inclined 2'~10' with respect to the hole of the housing, it can still work normally, but it has certain influence on the bearing life.
