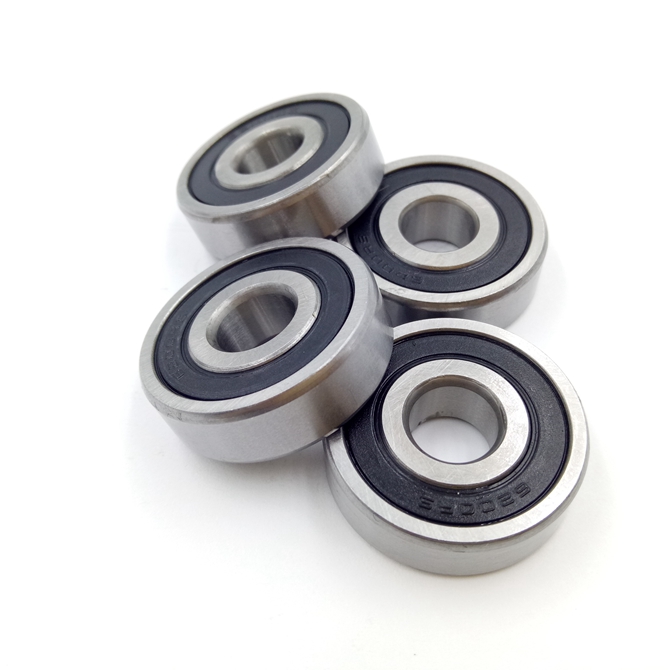

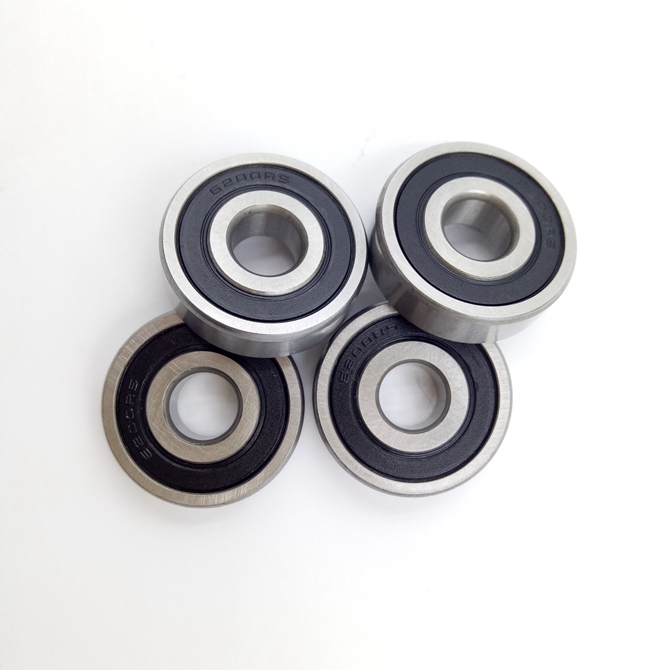

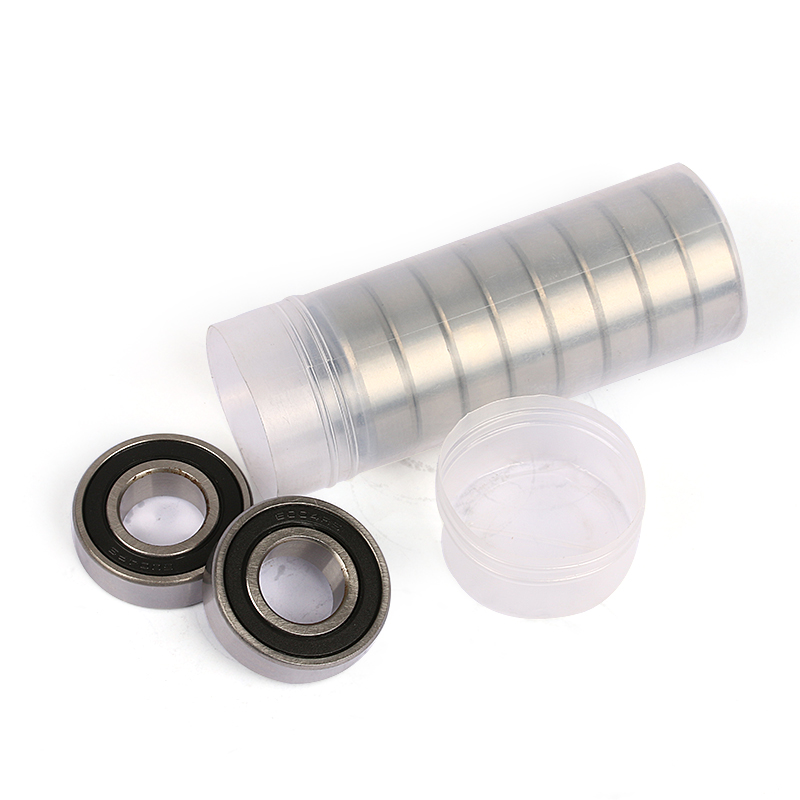

686 2rs
YWS or OEM
OEM Customized Services
Product Description
product information:
Structure:Ceramic bearing
Type:Ball, ball bearing
Brand Name:YWS
Internal diameter:6mm
External diameter:13mm
Width:3.5mm
size:6x13x3.5mm
weight:0.0018kg
Material:Chrome steel/GCr15/Stainless steel/ceramic
Sealing type: You can choose Metal seal Or Rubber seal
Is customized: Yes (Drawings required)
Related accessories: Oil seal,Circlip and housings etc.
Wholesale and freight: To provide you with accurate solutions
Tips: Please contact us for details of the required products.
Product description：
The deep groove ball bearings feature a single row of deep groove geometries for high speed and radial and axial loads. The seals on both sides of the bearing are fixed on the outer ring and extend on the rolling elements to contact the inner ring to prevent the ingress of contaminants such as dirt and dirt. Seals are also made of high quality lubricants that are used throughout the manufacturing process to extend the life of the bearing and make it maintenance free. This deep groove double seal ball bearing is suitable for applications involving both radial and axial combined loads and high running accuracy and stiffness at high speeds. These applications include clutches, drives, gearboxes, compressors, pumps, turbines, and printing and textile machines.
Product features：
Deep-groove geometry for high speeds and supporting both radial and axial loads
Single-row bearing for supporting radial loads
Seals on both sides of the bearing to keep lubricant in and contaminants out
6800 series | ||||||||||
Type | Boundary dimensions(mm) | Basic load ratings(N) | Limiting speeds(rpm ) | Weight(g) | ||||||
Inner Diameter | Outer Diameter | Width | dyn. | stat. | Grease | Oil | RS | |||
Open | Close | |||||||||
Cr (N) | Cor (N) | Open Z L | ||||||||
684 | 4 | 9 | 2.5 | 4 | 539 | 189 | 47000 | 55000 | / | 0.67 |
685 | 5 | 11 | 3 | 5 | 775 | 317 | 41000 | 49000 | / | 1.1 |
686 | 6 | 13 | 3.5 | 5 | 1080 | 438 | 37000 | 44000 | / | 1.9 |
687 | 7 | 14 | 3.5 | 5 | 1170 | 511 | 35000 | 42000 | / | 2.1 |
688 | 8 | 16 | 4 | 5 | 1600 | 714 | 33000 | 39000 | / | 3.1 |
689 | 9 | 17 | 4 | 5 | 1600 | 734 | 31000 | 37000 | / | 3.2 |
6800 | 10 | 19 | 5 | 5 | 1590 | 760 | 30000 | 36000 | 22000 | 5 |
6800 | 10 | 19 | 7 | 1590 | 760 | 29000 | 34000 | 20000 | 7 | |
6801 | 12 | 21 | 5 | 5 | 1900 | 1000 | 25000 | 30000 | 18000 | 6 |
6802 | 15 | 24 | 5 | 5 | 1960 | 1260 | 24000 | 29000 | 15000 | 7 |
6803 | 17 | 26 | 5 | 5 | 2130 | 1360 | 22000 | 26000 | 13000 | 8 |
6804 | 20 | 32 | 7 | 7 | 3470 | 2240 | 19000 | 23000 | 11000 | 19 |
6805 | 25 | 37 | 7 | 7 | 3660 | 2640 | 16000 | 19000 | 8000 | 22 |
6806 | 30 | 42 | 7 | 7 | 4020 | 3120 | 13000 | 16000 | 8600 | 26 |
6807 | 35 | 47 | 7 | 7 | 4310 | 3610 | 11000 | 14000 | 7400 | 29 |
6808 | 40 | 52 | 7 | 7 | 4420 | 3890 | 10000 | 12000 | 6500 | 33 |
6809 | 45 | 58 | 7 | 7 | 4590 | 4320 | 9000 | 10000 | 5700 | 40 |
6810 | 50 | 65 | 7 | 7 | 6600 | 6080 | 9400 | 9000 | 5000 | 52 |
