Auto door system linear guide rai SGR15,SGR15N,SGR20,SGR20N,SGR25,SGR30,SGR35,SGR50
You are here: Home » Products » Linear Bearings » Auto door system linear guide rai SGR15,SGR15N,SGR20,SGR20N,SGR25,SGR30,SGR35,SGR50

Auto door system linear guide rai SGR15,SGR15N,SGR20,SGR20N,SGR25,SGR30,SGR35,SGR50

loading

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
Aluminium linear guide
linear shaft
cnc linear guide rail
  • SGR25

  • SGR15 SGR20 SGR25 SGR35 SGR50

  • OEM

  • SGR15 SGR20 SGR25 SGR35 SGR50

  • C,H,P

  • China

  • Aluminum

  • 44mm~200mm

  • CNC machine,3D printer

Availability:

Product Description

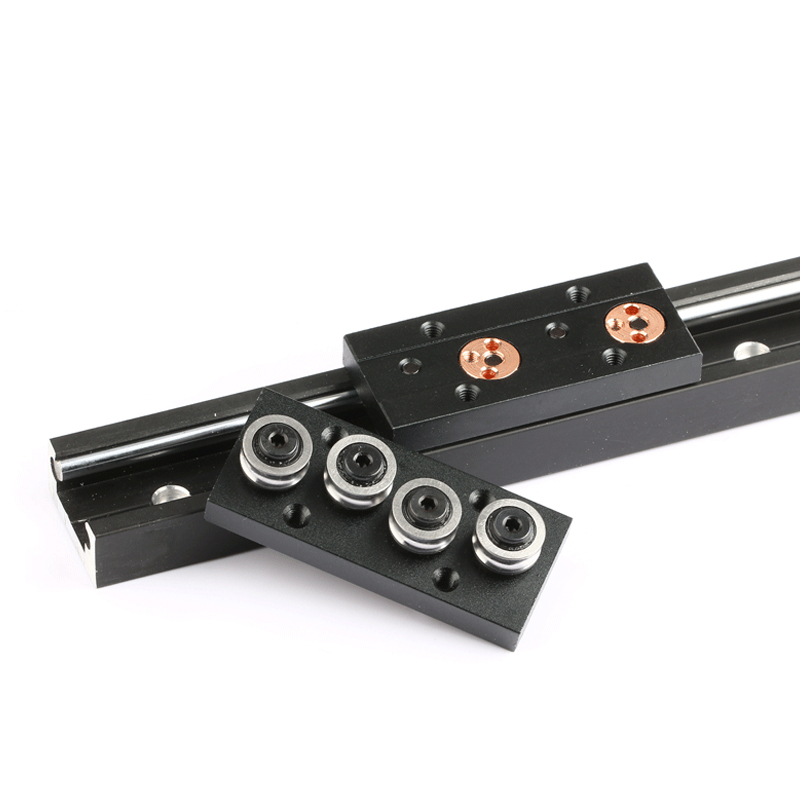

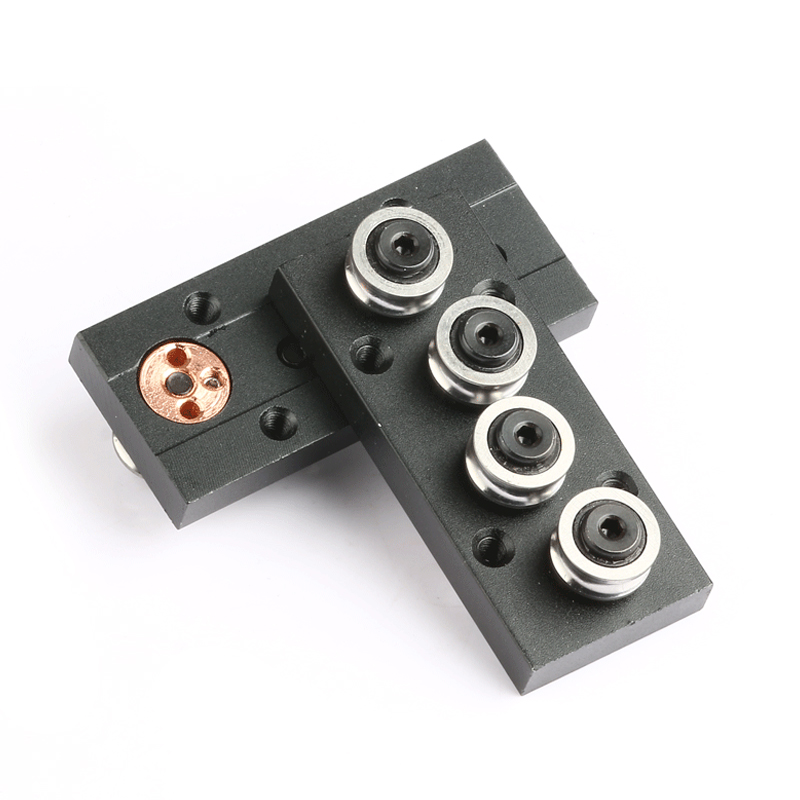

Auto door system linear guide rai SGR15,SGR15N,SGR20,SGR20N,SGR25,SGR30,SGR35,SGR50


1.Adjustable pressure:"zero" interval standard


2.Lower sensitive style of dust


3.Grind surface to install rail


4.We can change the length of round linear guide according to your requirements.


5.Quality quarante for accuracy and repetition


6.Guide rail or slide board and wheel can added according to the needs of customers


7.Higher speed noise volume


8.Higher speed target





Material: basically made of high quality aluminum alloy with oxidation treatment on surface, the optical axis is with chrome plated treatment on surface.





Built-in Double Axis Linear Guideway Model NO.As Below:


(1) SGR10    SGB10-3UU


(2) SGR15    SGB15-3UU / SGB15-4UU / SGB15-5UU


(3) SGR15N  SGB15N-3UU / SGB15N-4UU / SGB15N-5UU


(4) SGR20     SGB20-3UU / SGB20-4UU / SGB20-5UU


(5) SGR20N   SGB20N-3UU / SGB20N-4UU / SGB20N-5UU


(6) SGR25     SGB25-3UU / SGB25-4UU / SGB25-5UU


(7) SGR35     SGB35-3UU / SGB35-4UU / SGB35-5UU





External Double Axis Linear Guideway Model NO.As Below:


(1) LGD6      LGB6-60L-4UU


(2) LGD8      LGB8-70L-4UU / LGB8-100L-4UU


(3) LGD12    LGB12-60L-2UU / LGB12-100L-4UU / LGB12-100L-6UU / LGB12-140L-4UU /


                       LGB12-140L-6UU / LGB12-160L-8UU


(4) LGD16    LGB16-150L-4UU / LGB16-150L-6UU / LGB16-180L-4UU / LGB16-180L-6UU
