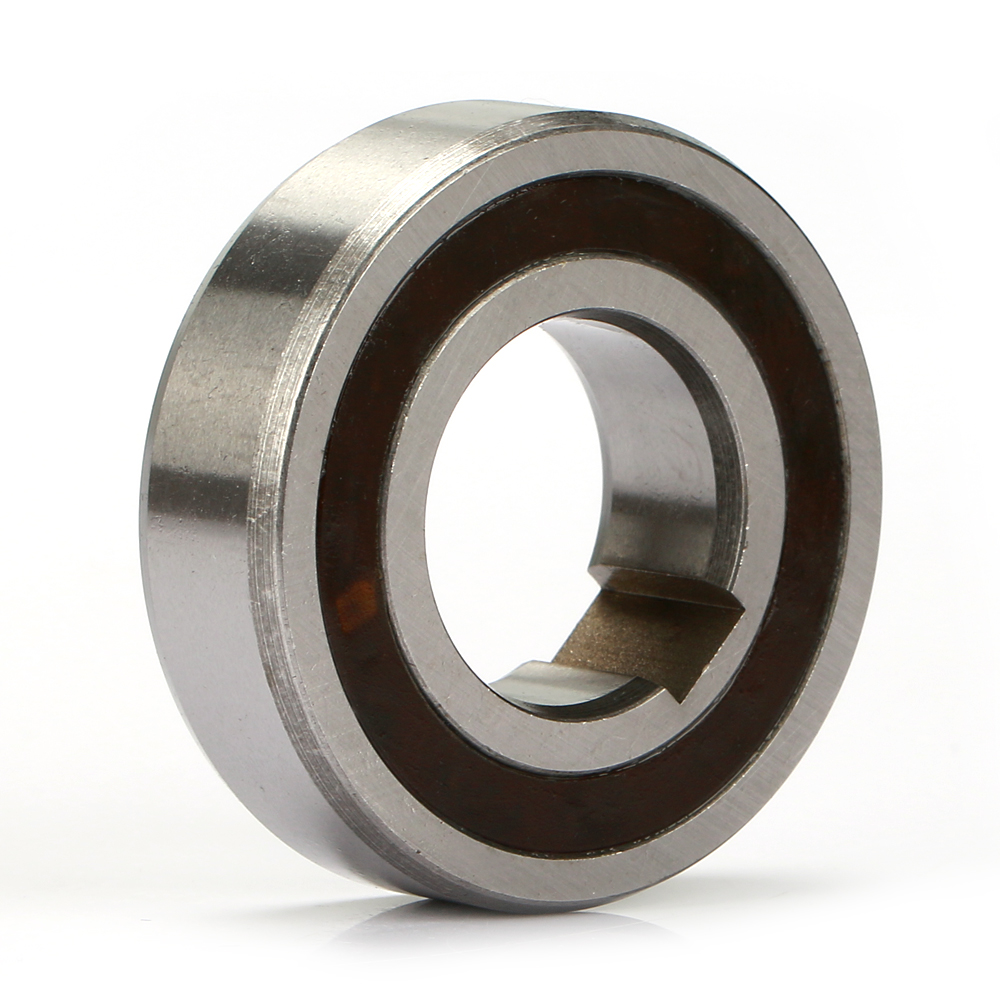

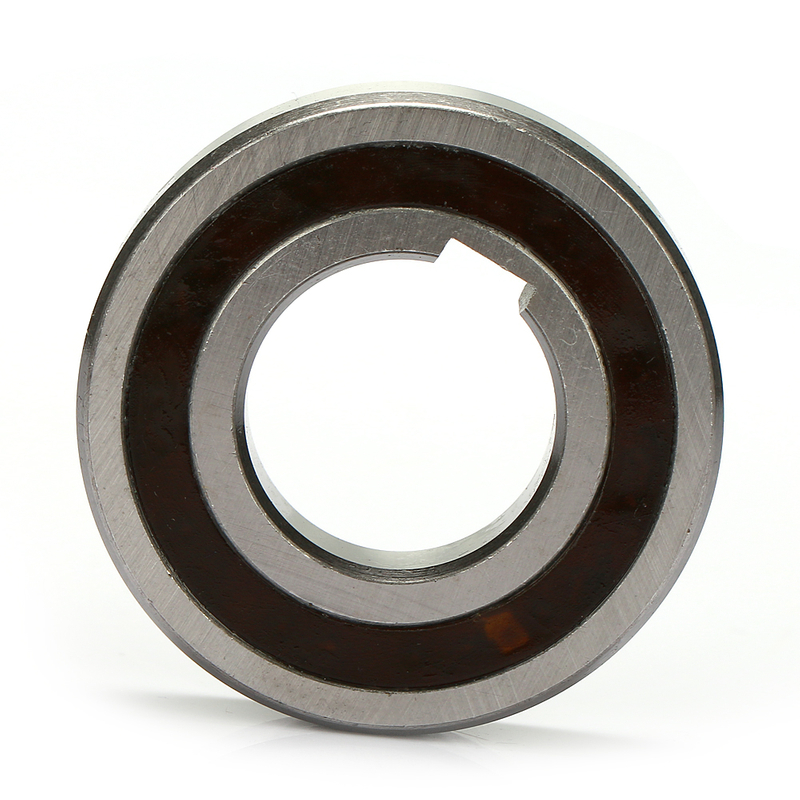

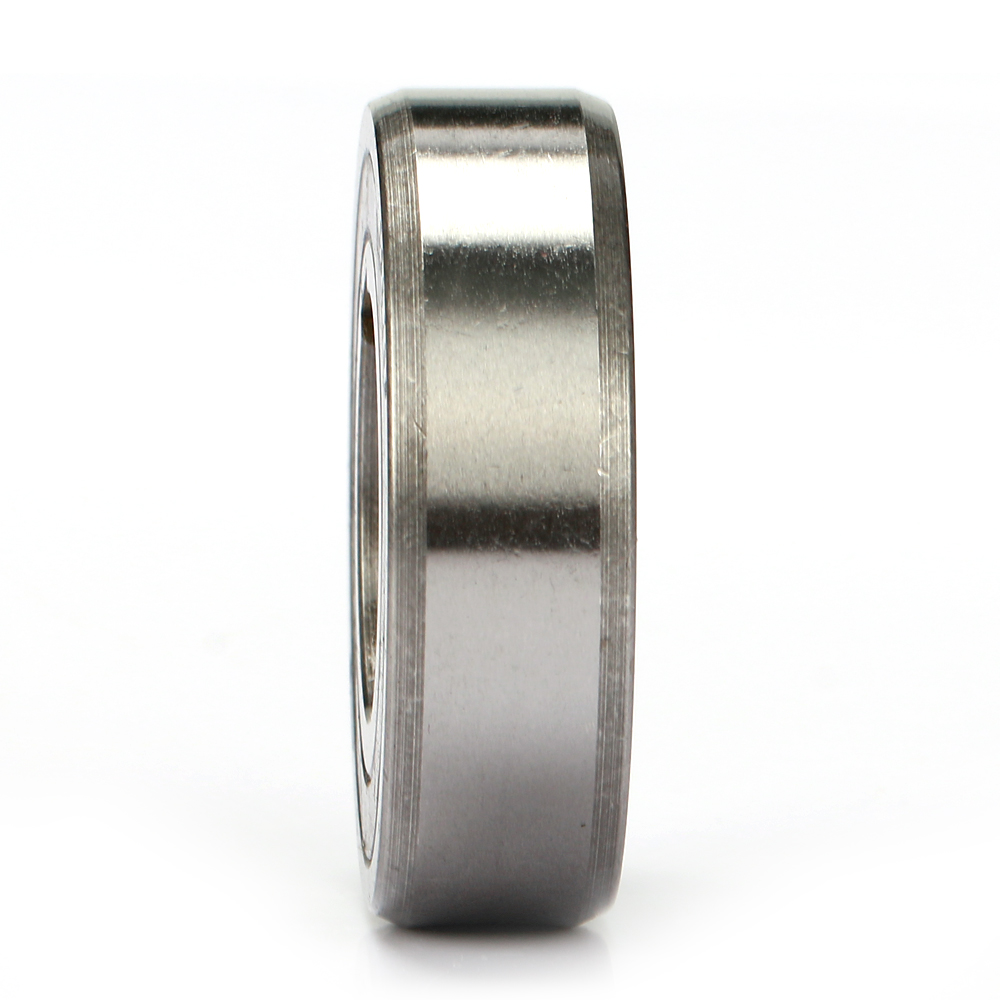

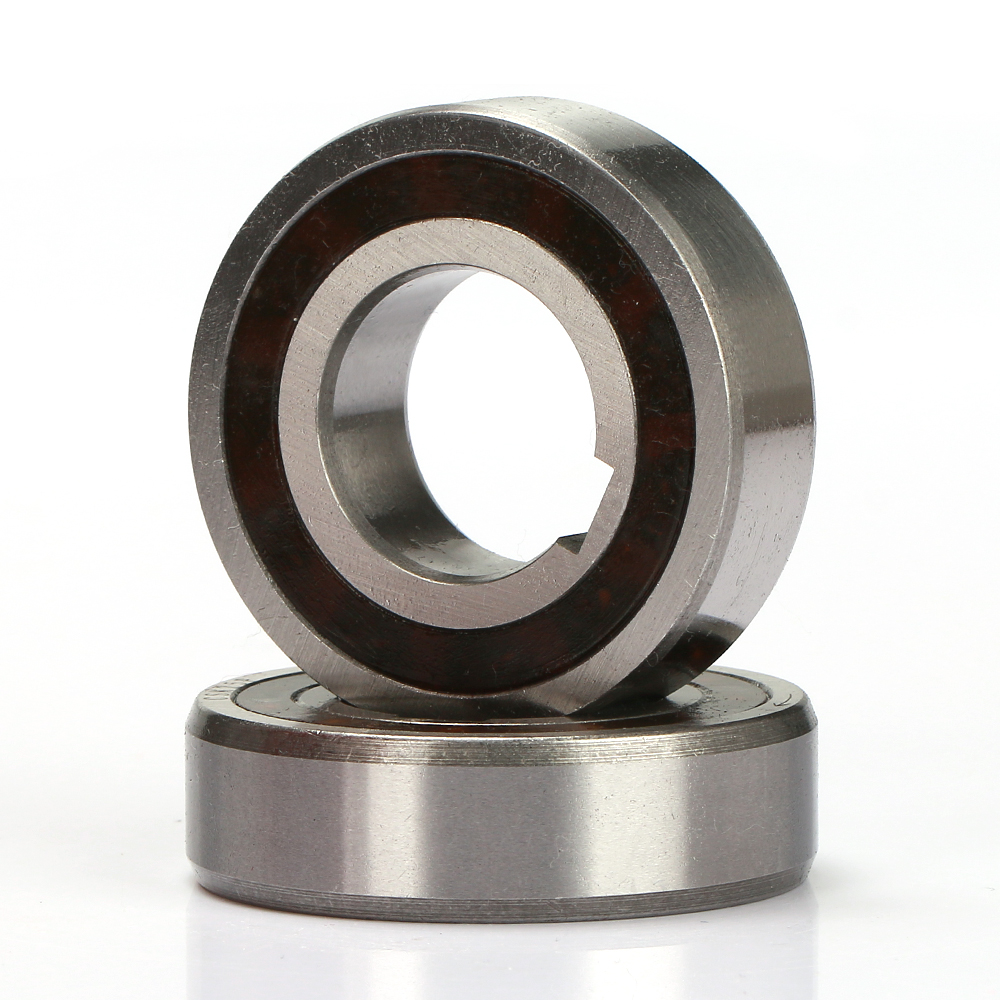

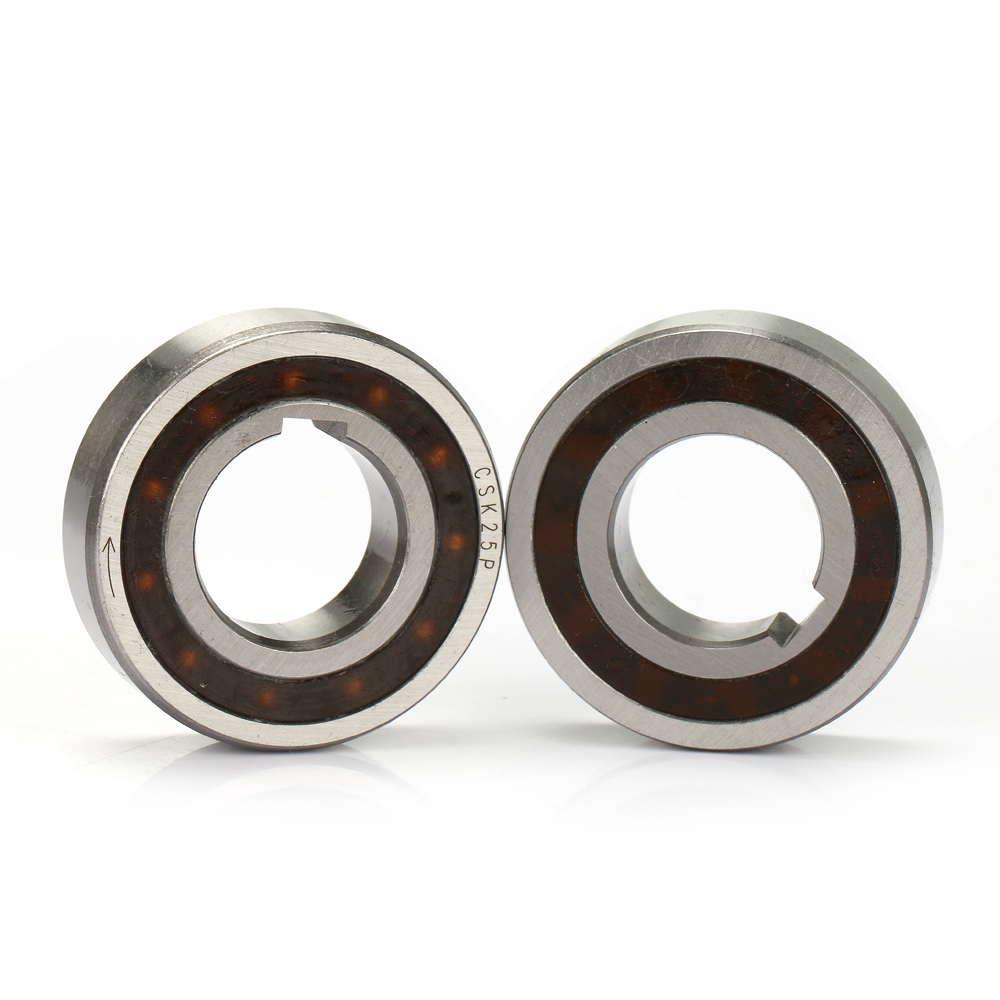

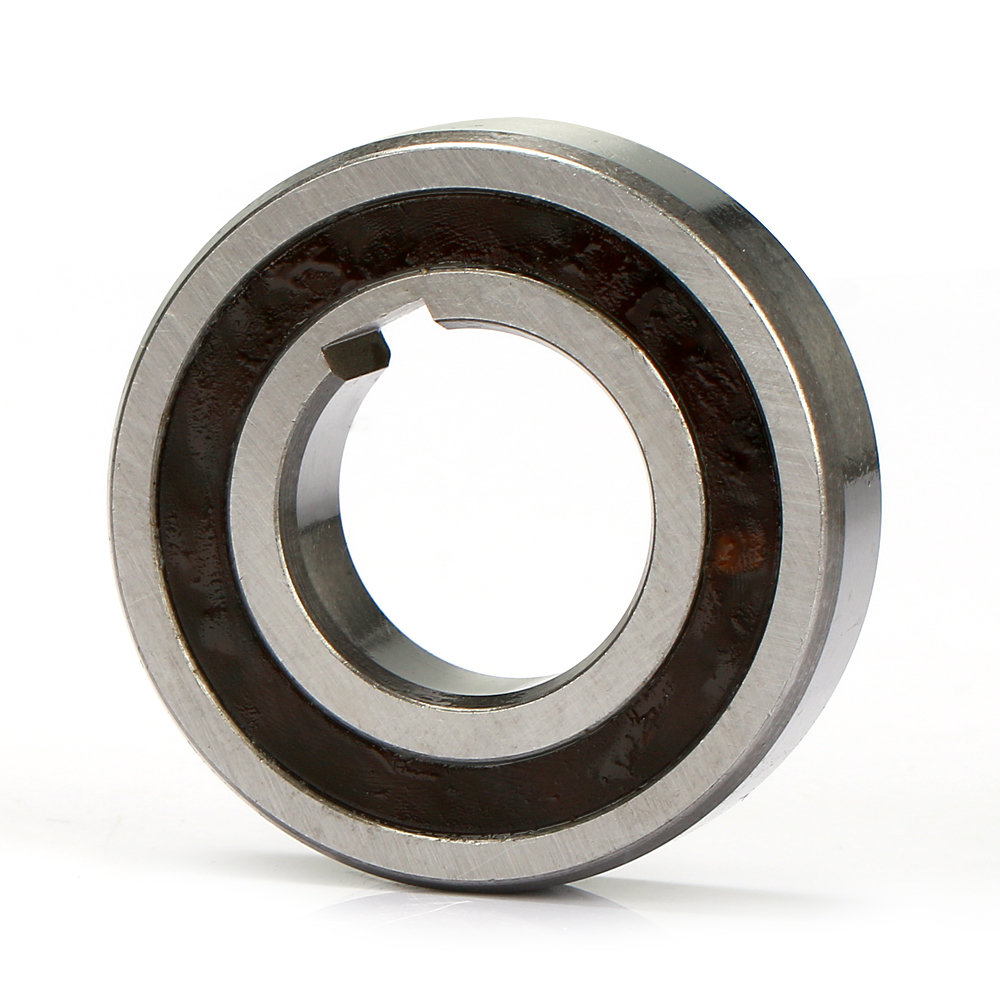

CSK25PP CSK25P one way clutch bearing with keyway

Description

    Types CSK...P, CSK...2RS, CSK...PP are sprag type free wheels integrated into 62.. series ball bearing (except size 40). They are bearing supported, delivered grease lubricated and protected against dust of more than 0.3mm. The use of additional "nylon" type seals is recommended especially when the working temperature exceeds 50.

    Oil bath lubrication is also possible if the original grease is first flushed out using a suitable solvent.

    In addition to the basic CSK model, type CSK...P, CSK...2RS featuresa a keyway on the inner race. For this reason it can be  keyed to a shaft to K6 tolerance. The outer race must still be pressed into a rigid housing to N6 tolerance.

    CSK...PP features a keyway on both the inner and outer race. The recommended mounting tolerances are K6 on the shaft and K6 on a rigid housing. A H6 tolerance on the shaft or H6 in the housing are also acceptable for a slight fit assembly.

    Operating temperature range: -40℃-+100℃. Peaks up to +120℃ are acceptable for short periods

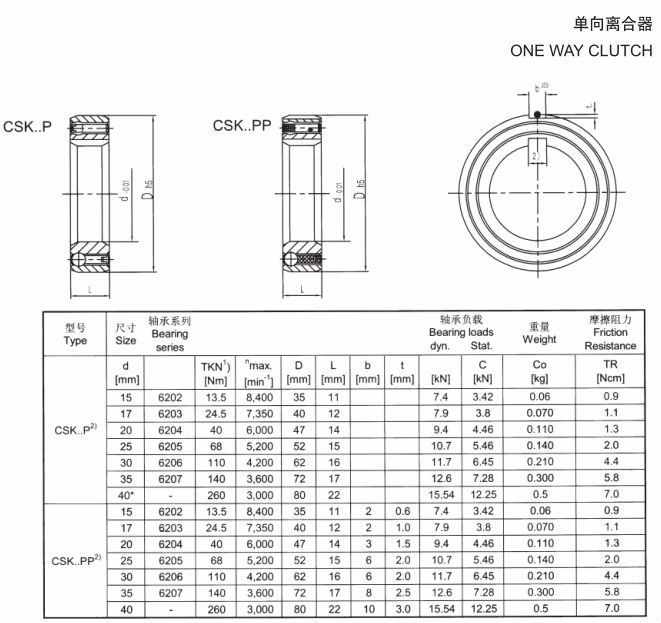

CSK...P/PP domension
