AS20
YWS or OEM
OEM Customized Services
Product Details

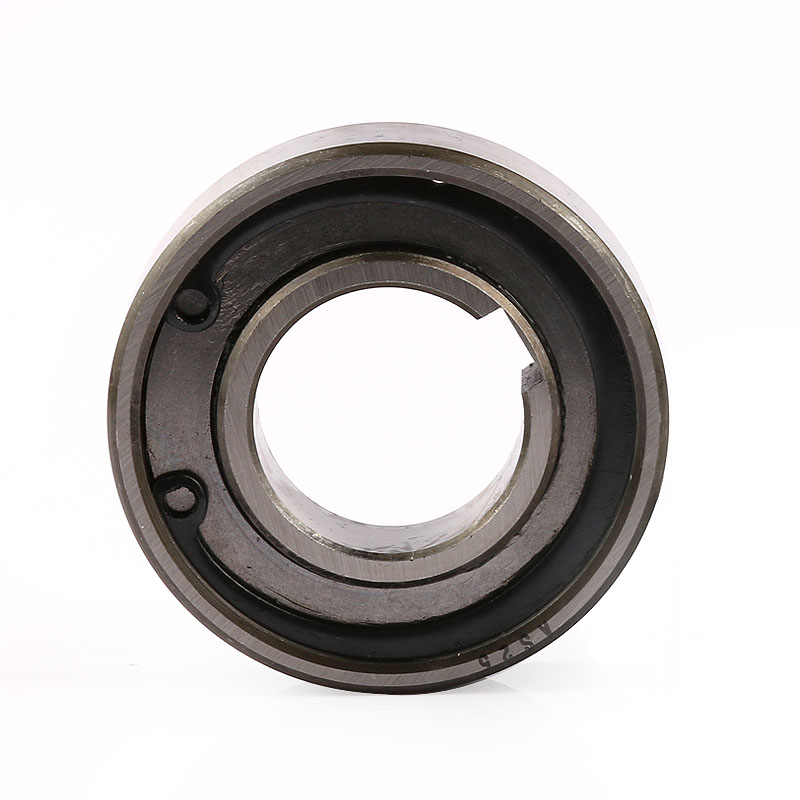

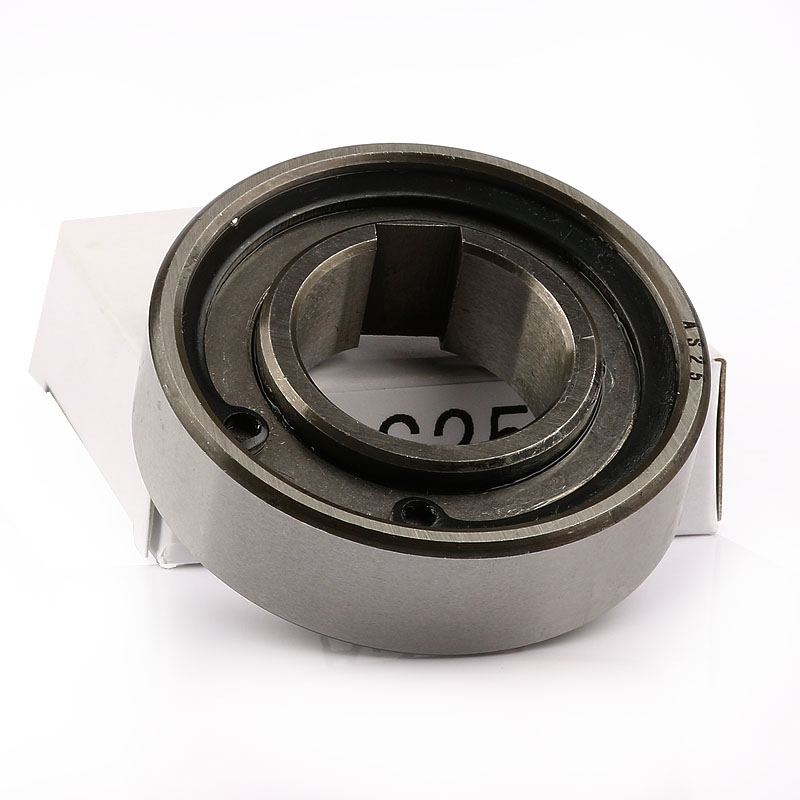

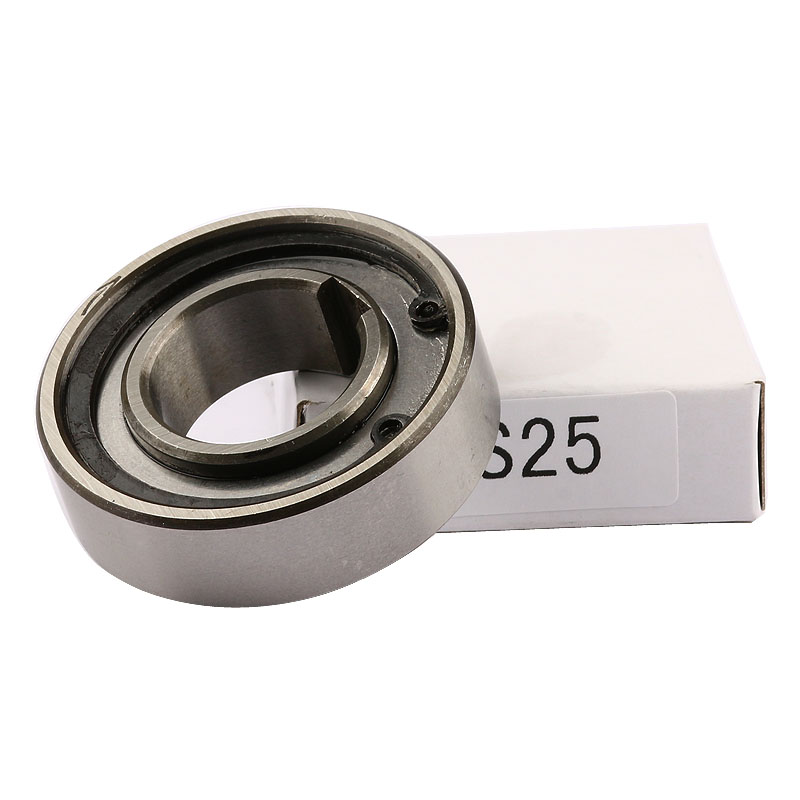

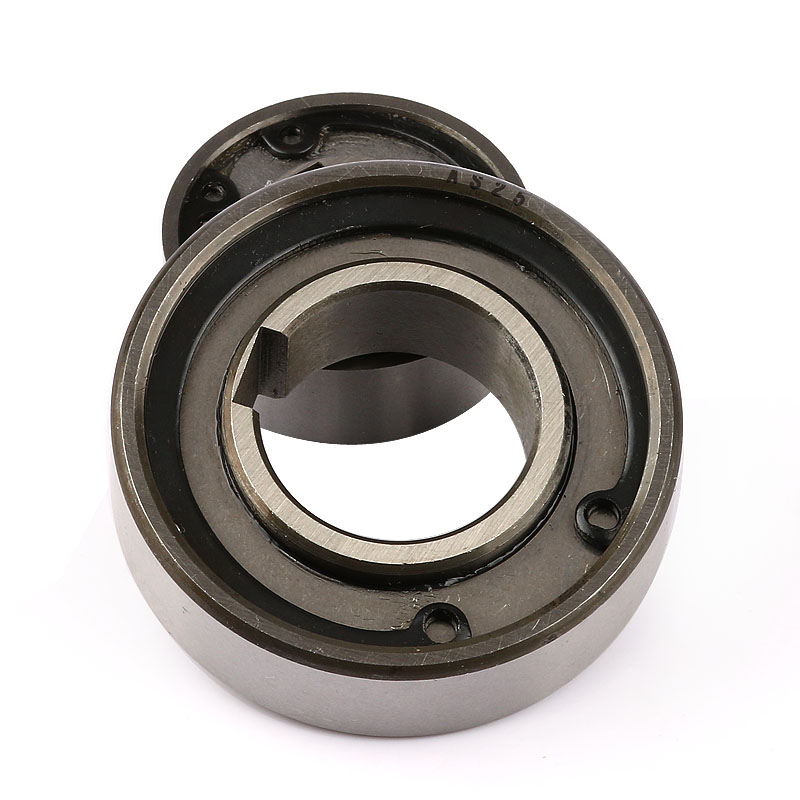

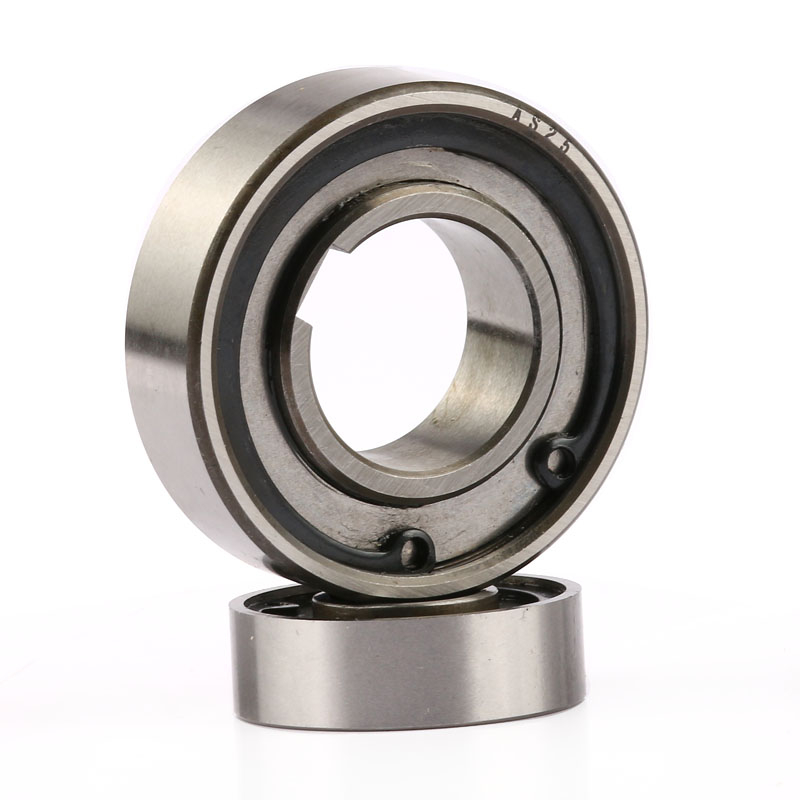

AS20 stieber structure roller ramps type clutch bearing
product information:
AS20 One Way Clutch Bearing One Clutch AS20 = NSS20 AS20 is a one-way clutch that is used for Overrunning, Indexing and Backstopping, this type is non-bearing supported, this is exactly the same size as any 6204 ball bearing, you will need one of the 6204 beairngs to support it, One way Bearing Sprag/Clutch Freewheel and also called as Backstops. AS20 is used in any application that requires one direction rotation, such as mining, hydraulic, textile, printing and washing machines, conveyor systems that carry products to a higher level should not be reversed because of gravity during any power shortage.
The AS(roller ramps) or TSS(cams) models and sizes:
| Models AS(NSS/TSS) | Torque(N.m) | Speed[r/min] | Sizes[mm] | Weight[Kg] | ||||
| inner race | outer race | D | L | d | bxt | |||
| [n6] | [H7] | |||||||
| ROLA0619 AS06 | 2.1 | 2200 | 3300 | 19 | 6 | 6 | no | 0.01 |
| ROLA0822 AS08 | 5 | 1900 | 2900 | 22 | 9 | 8 | no | 0.02 |
| ROLA1030 AS10 | 6.8 | 1750 | 2600 | 30 | 9 | 10 | 3x1.4 | 0.03 |
| ROLA1232 AS12 | 28 | 1600 | 2400 | 32 | 10 | 12 | 4x1.8 | 0.04 |
| ROLA1535 AS15 | 42 | 1400 | 2150 | 35 | 11 | 15 | 5x1.2 | 0.05 |
| ROLA1740 AS17 | 60 | 1300 | 2000 | 40 | 12 | 17 | 5x1.2 | 0.1 |
| ROLA2047 AS20 | 89 | 1100 | 1650 | 47 | 14 | 20 | 6x1.6 | 0.12 |
| ROLA2552 AS25 | 150 | 950 | 1450 | 52 | 15 | 25 | 8x2.0 | 0.14 |
| ROLA3062 AS30 | 180 | 800 | 1200 | 62 | 16 | 30 | 8x2.0 | 0.22 |
| ROLA3572 AS35 | 220 | 650 | 1000 | 72 | 17 | 35 | 10x2.4 | 0.31 |
| ROLA4080 AS40 | 270 | 600 | 900 | 80 | 22 | 40 | 12x2.2 | 0.39 |
| ROLA4585 AS45 | 275 | 500 | 800 | 85 | 19 | 45 | 14x3.8 | 0.44 |
| ROLA5090 AS50 | 290 | 475 | 750 | 90 | 20 | 50 | 14x3.8 | 0.49 |
| ROLA55100 AS55 | 308 | 400 | 650 | 100 | 21 | 55 | 16x4.3 | 0.66 |
| ROLA60110 AS60 | 508 | 350 | 550 | 110 | 22 | 60 | 18x4.4 | 0.81 |
| ROLA80140 AS80 | 1063 | 300 | 450 | 140 | 26 | 80 | 22x5.4 | 1.41 |
The AS(roller ramps) or TSS(cams) clutch description:
| Type AS is a roller type freewheel non bearings supported. |
| Bearings are required to support axial and radial loads. Lubrication and sealing must also be provided by the installation. |
| Nominal outside dimensions are the same as series 62 ball bearings. |
| A typical arrangement is to install this type alongside a series 62 bearing, within the same location tolerance. |
| The inner race is keyed to the shaft(except 6mm bore). |
| The outer race has a positive R6 tolerance to give a press fit in a H7 housing. |
| The outer housing must be strong enough to not expand after assembly. |
| The desigh can accept an axial misalignment of inner and outer race of +_S/2. |
