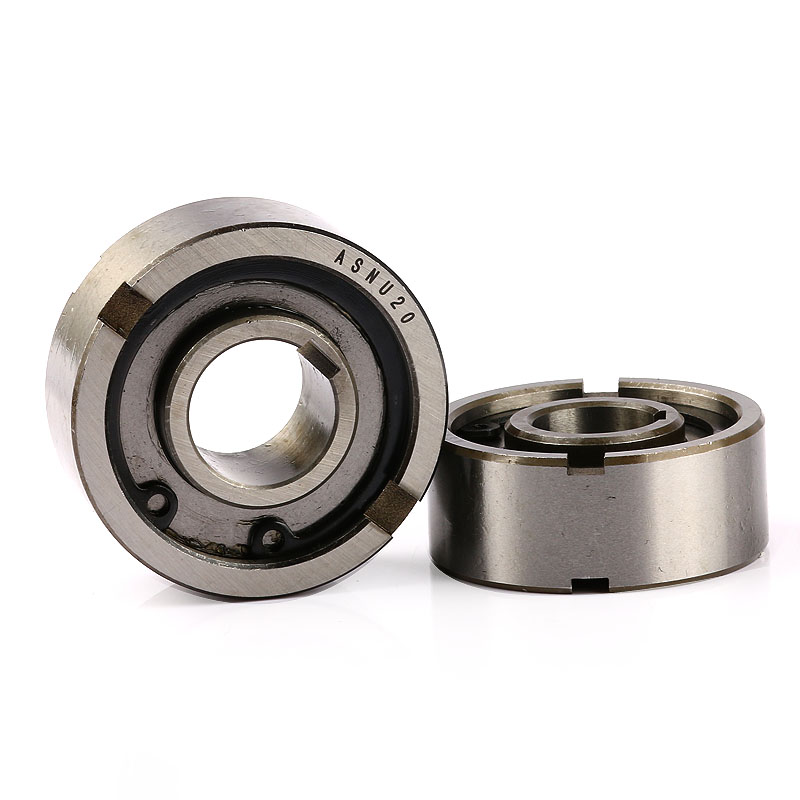

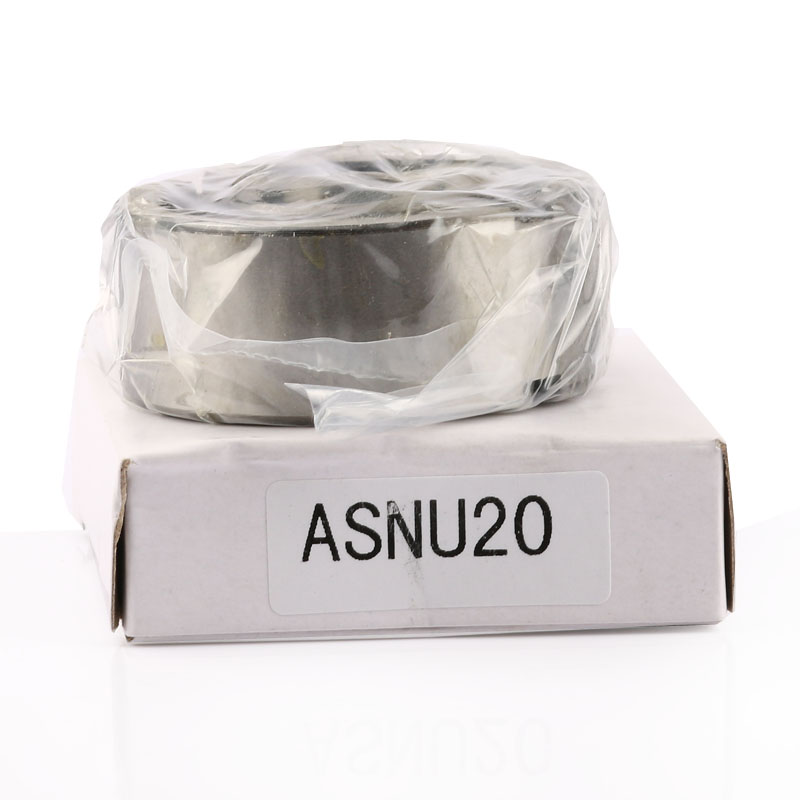

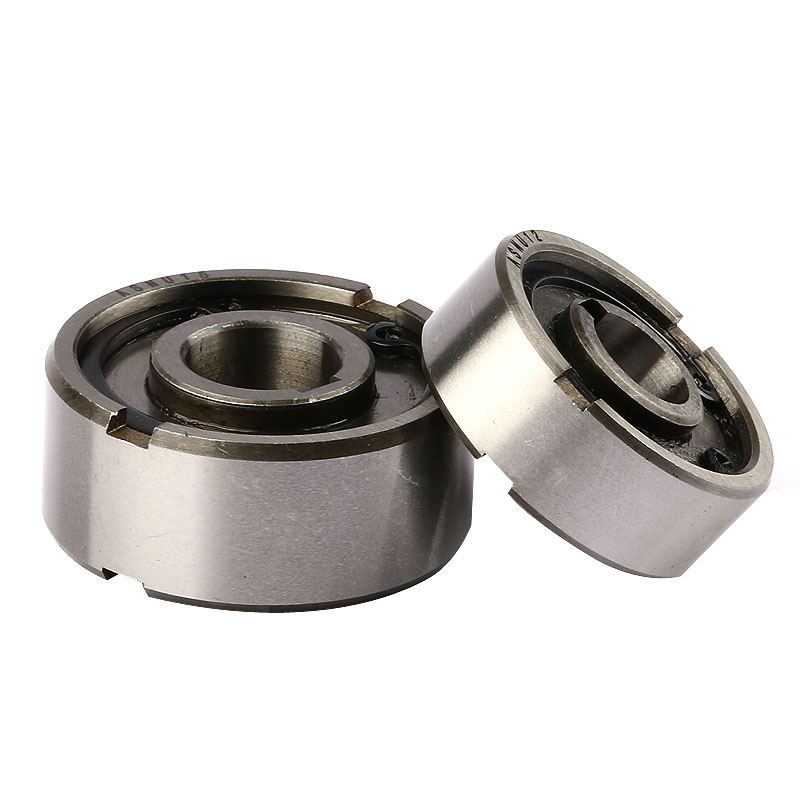

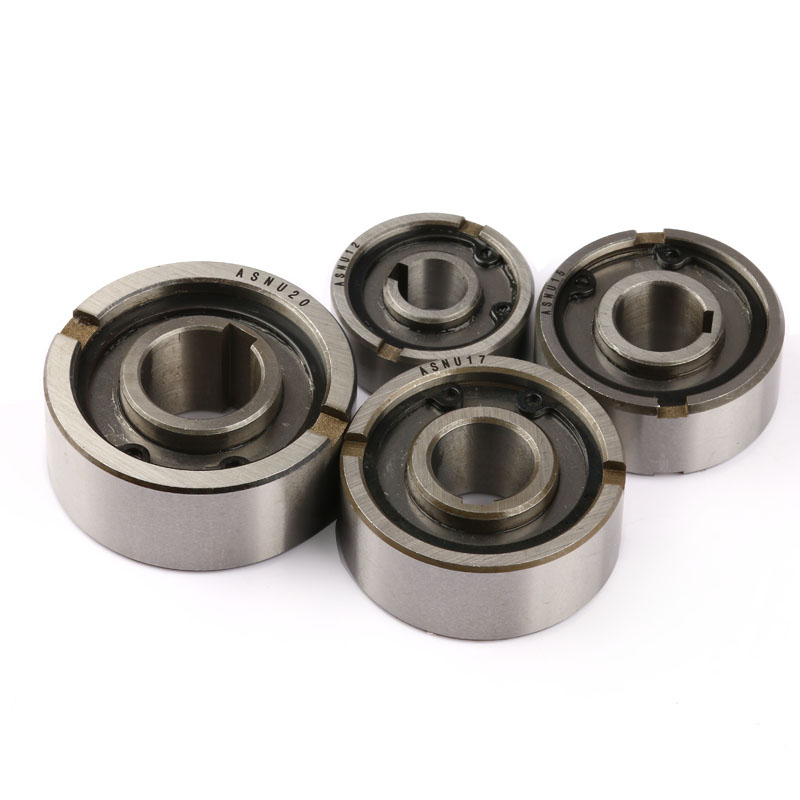

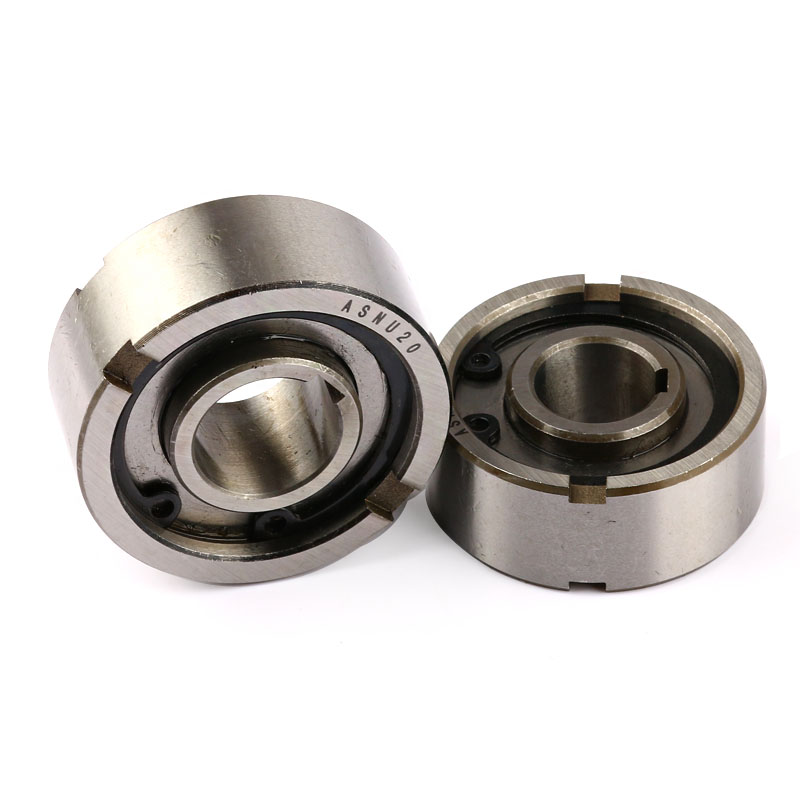

ASNU20 roller type one way freewheel clutch bearing

ASNU20 roller type one way freewheel clutch bearing

product information:

Structure:clutch bearing

Type:clutch bearing

Brand Name:YWS

Internal diameter:20mm

External diameter:52mm

Width:21mm

size:20X52X21mm

Lubrication Type: Oil

Torque Capacity(lb.ft.): 58

Maximum Inner Race Overrunning Speed (rpm): 2100

Maximum Outer Race Overrunning Speed(rpm): 3100

Resistance After Run-in (lb.in.): 1.68

Material:Chrome steel/GCr15/Stainless steel/ceramic

Sealing type: You can choose Metal seal Or Rubber seal

Is customized: Yes (Drawings required)

Related accessories: Oil seal,Circlip and housings etc.

Wholesale and freight: To provide you with accurate solutions

Tips: Please contact us for details of the required products.

Product description：

ASNU20 One Way Clutch One Clutch ASNU20 = NFS20 ASNU20 is a one-way clutch. One way Sprag/Clutch Freewheel and also called as Backstops. ASNU20 is used in any applications that requires one direction rotation, such as mining, hydraulic, textile, printing and washing machines, conveyor systems that carry products to a higher level should not be reversed because of gravity during any power shortage.

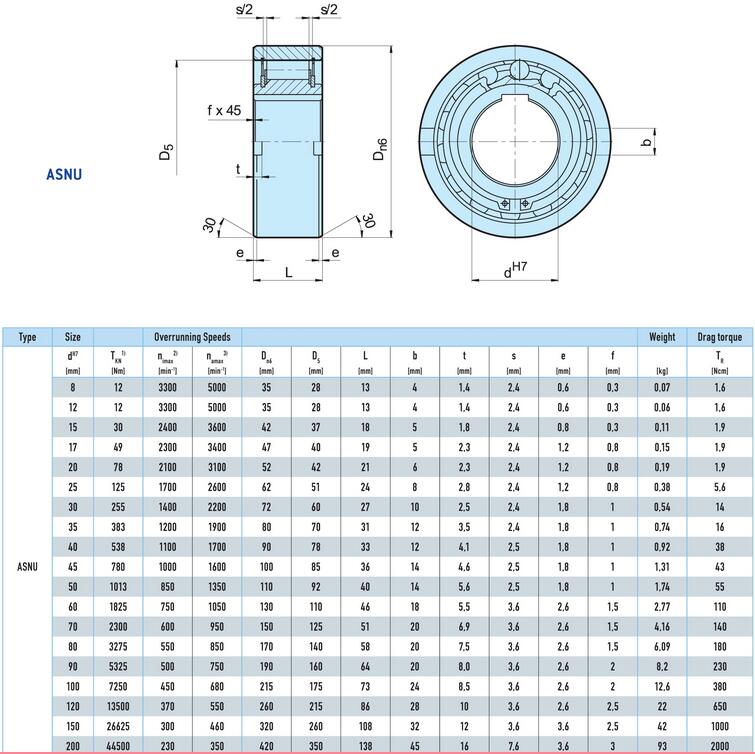

The ASNU series roller type one way freewheel clutch bearing catalogue:

The roller type ASNU series clutch bearing description:

Type ASNU is a roller type freewheel non bearing supported. Bearings are required to support axial and radial loads. Lubrication and sealing must also be provided by the installation.

Nominal outside diameter is the same as a series 63 ball bearing.

A typical arrangement is to install this type alongside a bearing within the same location tolerance.

The inner race is keyed to the shaft. The outer race has a positive N6 tolerance, to give a press fit in a H7 housing. Additional side notches in the outer race provide for positive torque transmission.

If the housing is to K6 tolerance, use of the notches is not necessary, but the housing must be strong enough to not expand after assembly.

The design can accept an axial mis-alignment of inner and outer race of +-S/2.
