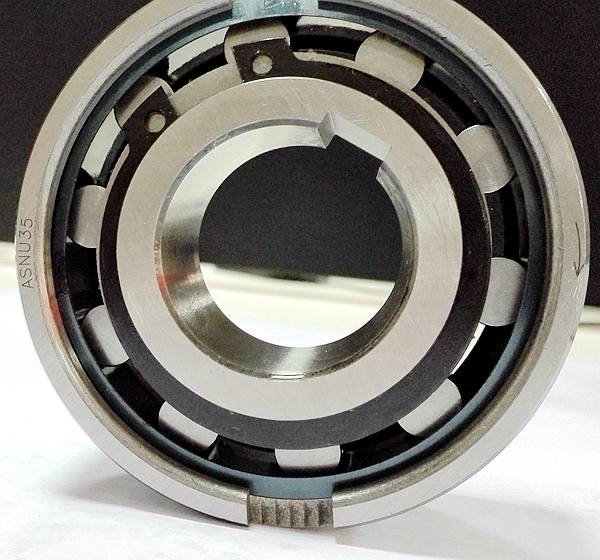

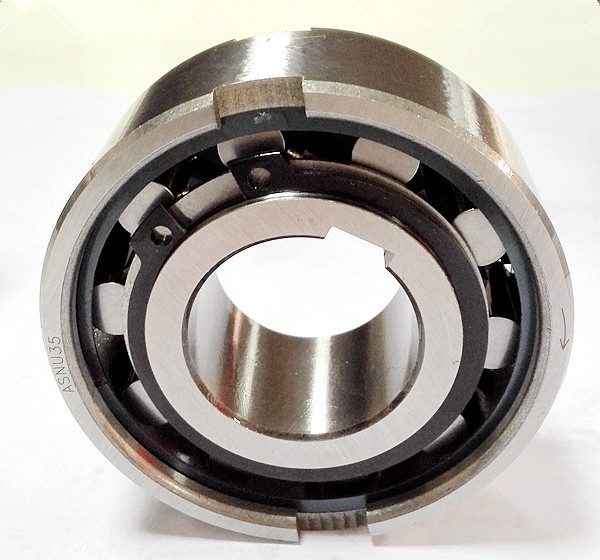

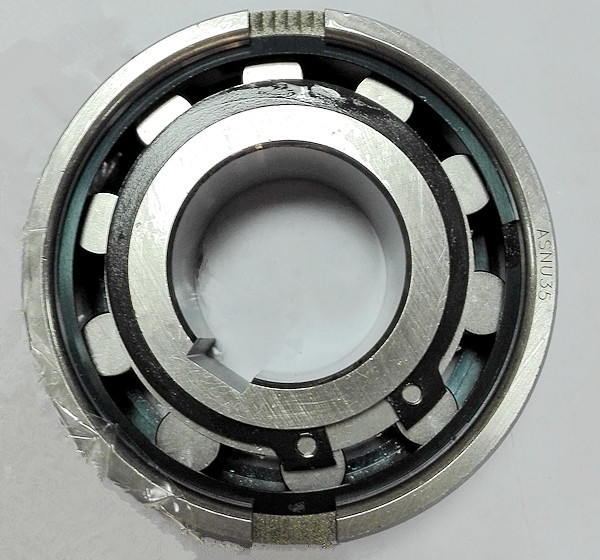

ASNU35 one way roller type freewheel clutch bearing

ASNU35 one way roller type freewheel clutch bearing

product information:

Structure:Angular Contact

Type:angular contact ball bearing

Brand Name:YWS

Internal diameter:35mm

External diameter:80mm

Width:31mm

size:35X80X31mm

Torque: 306 TKN

Max Torque: 765 TKN

Inner Race Overrun: 1,200 RPM

Outer Race Overrun: 1,900 RPM

Material:Chrome steel/GCr15/Stainless steel/ceramic

Sealing type: You can choose Metal seal Or Rubber seal

Is customized: Yes (Drawings required)

Related accessories: Oil seal,Circlip and housings etc.

Wholesale and freight: To provide you with accurate solutions

Tips: Please contact us for details of the required products.

Product description：

ASNU35 One Way Clutch One Clutch ASNU35 = NFS35 ASNU35 is a one-way clutch. One way Sprag/Clutch Freewheel and also called as Backstops. ASNU35 is used in any applications that requires one direction rotation, such as mining, hydraulic, textile, printing and washing machines, conveyor systems that carry products to a higher level should not be reversed because of gravity during any power shortage.

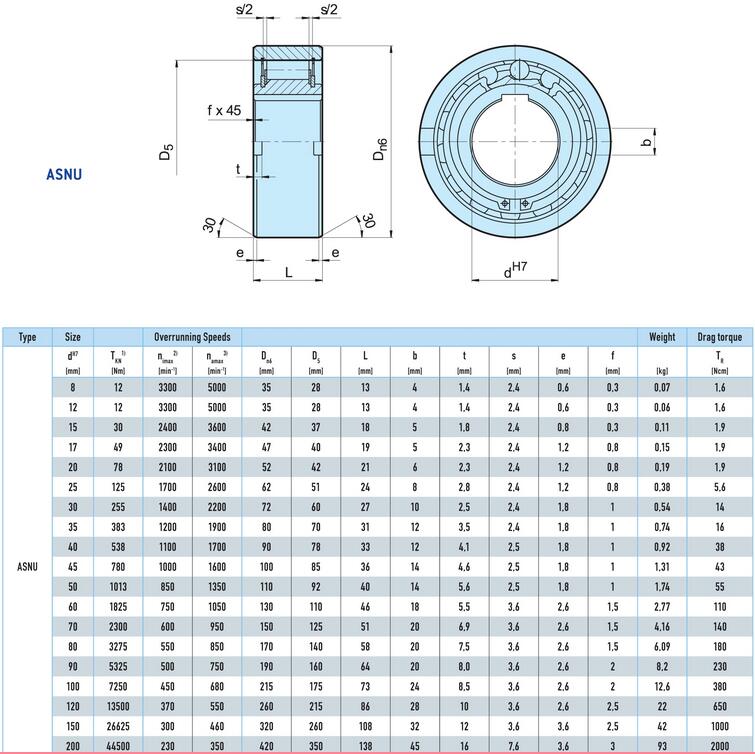

The ASNU series roller type one way clutch bearing catalogue:

The ASNU series roller type one way freewheel clutch bearing description:

Type ASNU is a roller type freewheel non bearing supported. Bearings are required to support axial and radial loads. Lubrication and sealing must also be provided by the installation.

Nominal outside diameter is the same as a series 63 ball bearing.

A typical arrangement is to install this type alongside a bearing within the same location tolerance.

The inner race is keyed to the shaft. The outer race has a positive N6 tolerance, to give a press fit in a H7 housing. Additional side notches in the outer race provide for positive torque transmission.

If the housing is to K6 tolerance, use of the notches is not necessary, but the housing must be strong enough to not expand after assembly.

The design can accept an axial mis-alignment of inner and outer race of +-S/2.
