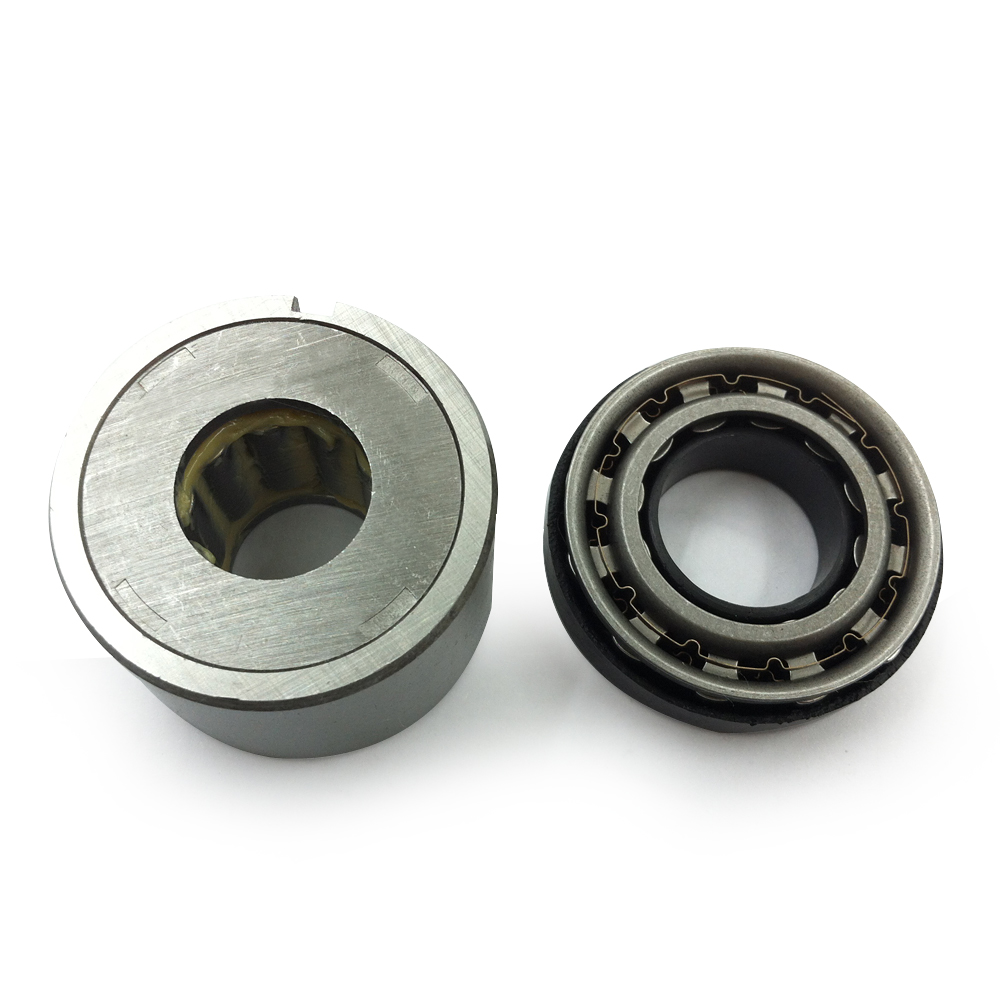

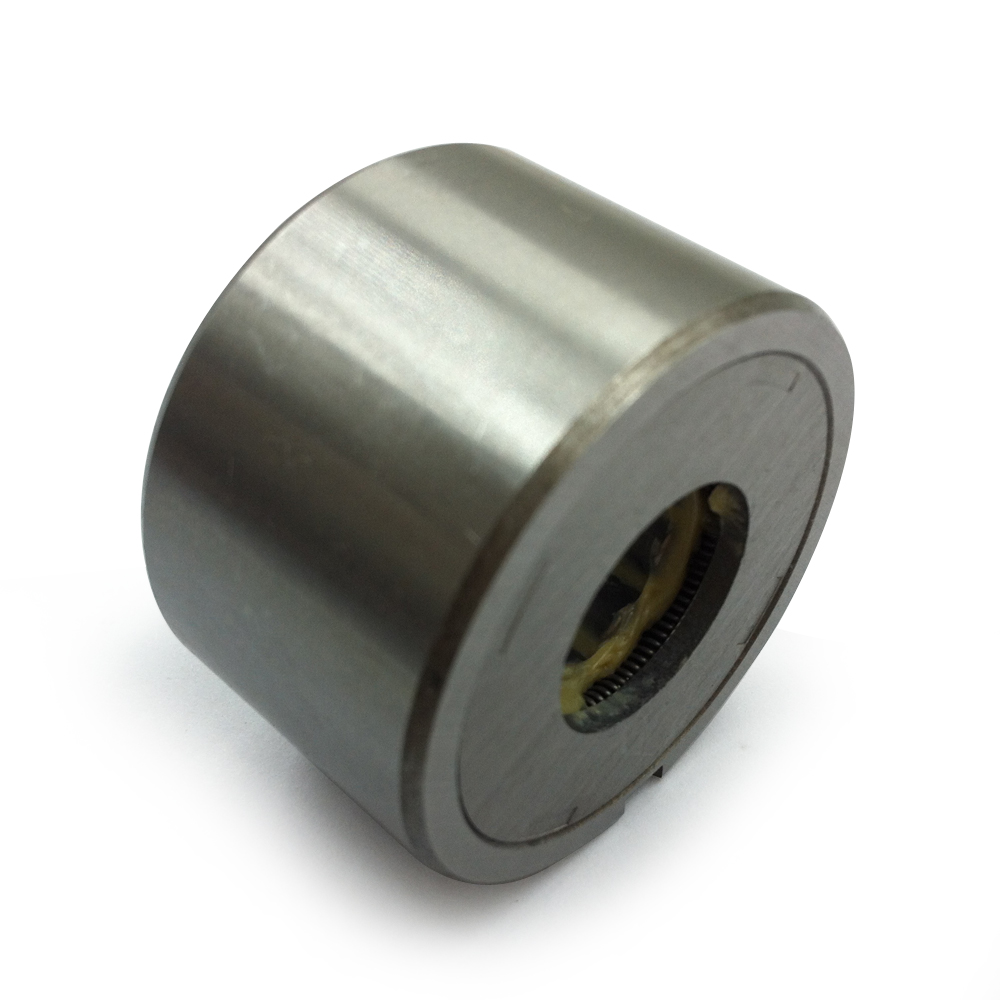

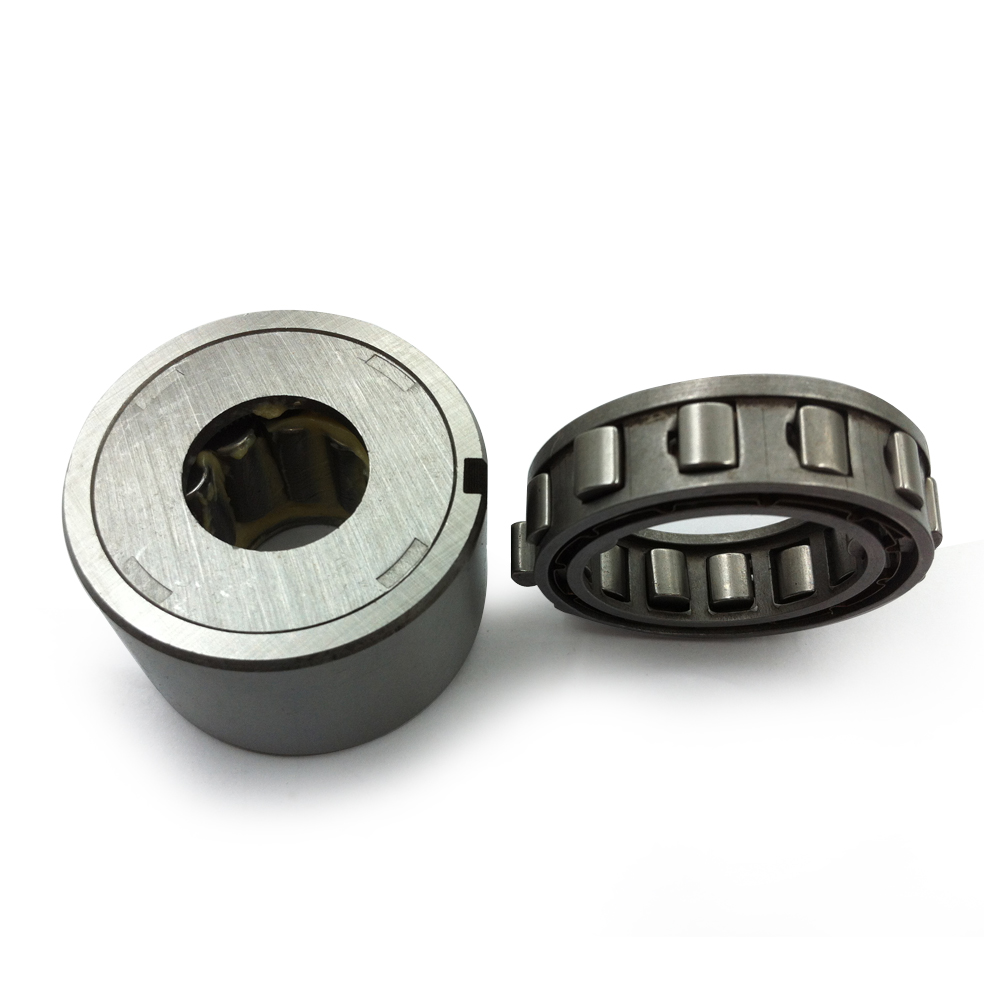

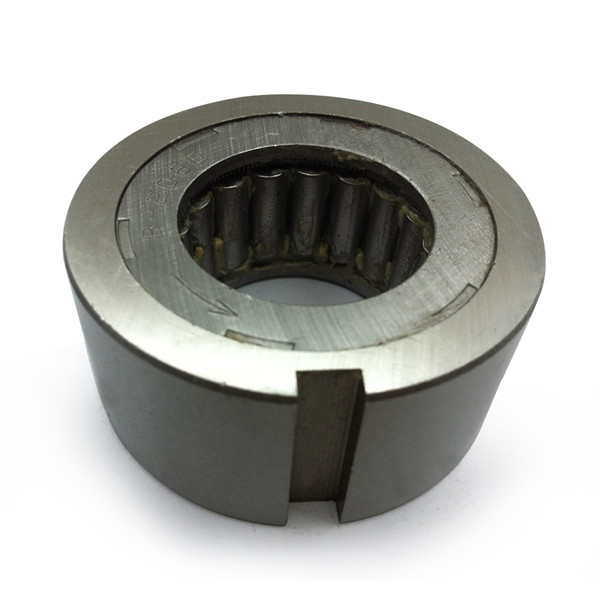

B203 cam clutches 200 series one way clutch bearing
product information:
Structure:one way clutch bearing
Type:one way clutch bearing
Brand Name:YWS
Shaft size：16.51mm
Outer race h7: 40mm
Thickness: 25mm
weight：0.23kg
Key way: 4×2.5
Overrunning Speed (r/min)
inner race(r/min): 2400
outer race(r/min): 500
Drag torque(N.m):39.2
Material:Chrome steel/GCr15/Stainless steel/ceramic
Sealing type: You can choose Metal seal Or Rubber seal
Is customized: Yes (Drawings required)
Related accessories: Oil seal,Circlip and housings etc.
Wholesale and freight: To provide you with accurate solutions
The 200 series one way cam clutches bearing models and sizes:
| Models | Torque(N.m) | Speed[r/min] | Sizes[mm] | Weight[Kg] | JIS bearing | ||||
| inner race | outer race | D | L | d | bxt | ||||
| [n6] | [H7] | ||||||||
| B203 | 39.2 | 2400 | 500 | 40 | 25 | 16.51 | 4X2.5 | 0.23 | 6203 |
| B204 | 58.8 | 2400 | 500 | 47 | 25 | 18.796 | 5X3 | 0.34 | 6204 |
| B205 | 98 | 1800 | 400 | 52 | 25 | 23.622 | 5X3 | 0.45 | 6205 |
| B206 | 235 | 1800 | 350 | 62 | 28 | 32.766 | 7X4 | 0.68 | 6206 |
| B207 | 372 | 1800 | 300 | 72 | 28 | 42.088 | 7X4 | 0.8 | 6207 |
| B208 | 549 | 1800 | 200 | 80 | 32 | 46.761 | 10X4.5 | 0.91 | 6208 |
| B209 | 549 | 1800 | 200 | 85 | 32 | 46.761 | 10X4.5 | 0.95 | 6209 |
| B210 | 784 | 1200 | 200 | 90 | 32 | 56.109 | 10X4.5 | 1 | 6210 |
| B211 | 784 | 1200 | 200 | 100 | 32 | 56.109 | 10X4.5 | 1.4 | 6211 |
| B212 | 1230 | 1200 | 180 | 110 | 42 | 70.029 | 10X4.5 | 1.8 | 6212 |
| B213 | 1230 | 1200 | 180 | 120 | 42 | 70.029 | 10X4.5 | 2.3 | 6213 |
| B214 | 1390 | 1000 | 180 | 125 | 42 | 79.356 | 12X4.5 | 2.4 | 6214 |
The cam clutches 200 series one way clutch bearing installation and use:
| 1. 200 series cam clutch belongs to shaft instalation type. So the shaft for clutch installation should be rigidified after grinding. |
| Make it reach to Rc56~60. The rigidified depth will be 1.5mm. The grinding should reach to 1.5S(16micro-inch) of smooth finish. |
| The taper of the shaft should not be more than 0.01mm in every 50mm. |
| 2.When install clutch, please install bearings at both sides in order to make concentric between the shaft and outer ring of clutch |
| and bear radial load and axial load which may act to outer ring and shaft possibly. |
| 3.Install clutch onto shaft in accordance with rotary mode indicated by arrow direction of clutch along with clutch plate. Don't use |
| hammering mode in order to avoid leading impact at the clutch. |
| 4.The clutch possesses same outer diameter with bearings listed in above table. |
| 5.For indexing product, it is suggested to use lubricating oil. |
| 6.The concentricity between casing and shaft should be within 0.05mm. |
| 7.The section plane of key should be in conformity with JIS B1301-1959. |
