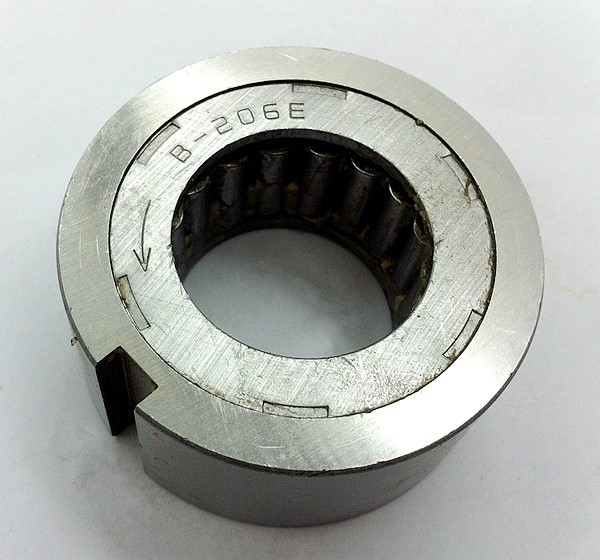

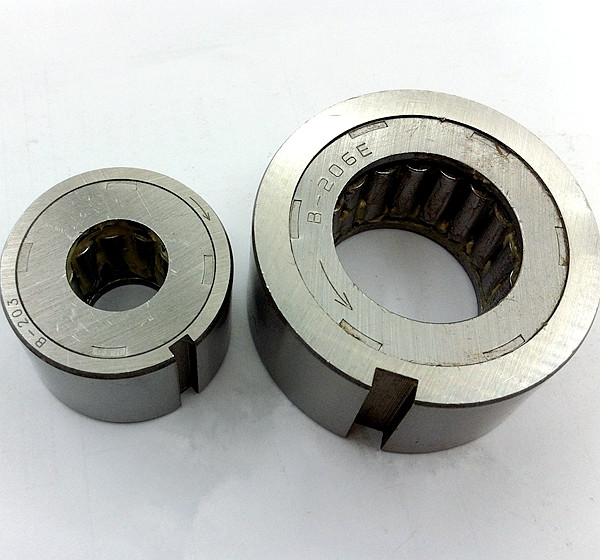

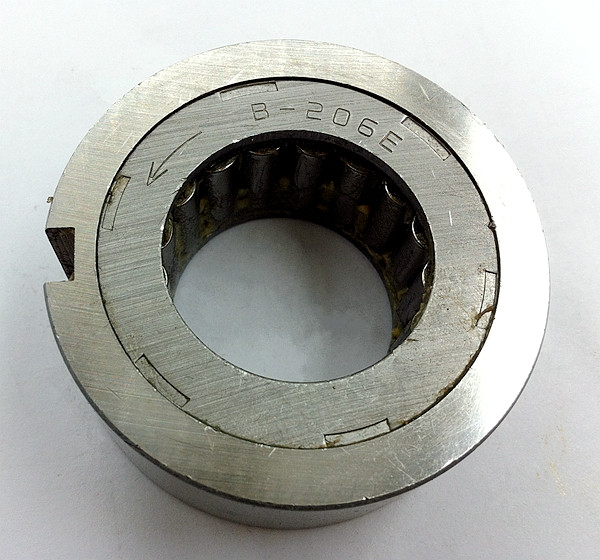

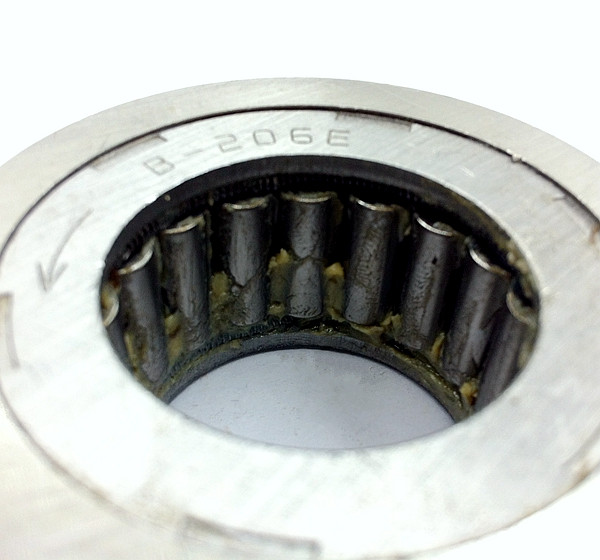

B206E
YWS or OEM
OEM Customized Services
Product Details
product information:
Structure:one way clutch bearing
Type:one way clutch bearing
Brand Name:YWS
Shaft size：32.766mm
Outer race h7: 62mm
Thickness: 28mm
weight：0.68kg
Key way: 7.0×4.0
Overrunning Speed (r/min)
inner race(r/min): 1800
outer race(r/min): 350
Drag torque(N.m):235
Material:Chrome steel/GCr15/Stainless steel/ceramic
Sealing type: You can choose Metal seal Or Rubber seal
Is customized: Yes (Drawings required)
Related accessories: Oil seal,Circlip and housings etc.
Wholesale and freight: To provide you with accurate solutions
Cam clutch MZ series is a type sprag freewheel supported by double bearings used for overrunning speed between 600-1500rmin, torque 180-8000 N.m, even highest torque more than 70000N.m. It allows roation in package machine, derrick machine, metallurgy machine, etc.
Product Feature：
1. Outer race surface ground finish
2. Outer race surface centering groove finish
(refer to the use's manual)
The 200 series cam clutches one way bearing models and sizes:
| Models | Torque(N.m) | Speed[r/min] | Sizes[mm] | Weight[Kg] | JIS bearing | ||||
| inner race | outer race | D | L | d | bxt | ||||
| [n6] | [H7] | ||||||||
| B203 | 39.2 | 2400 | 500 | 40 | 25 | 16.51 | 4X2.5 | 0.23 | 6203 |
| B204 | 58.8 | 2400 | 500 | 47 | 25 | 18.796 | 5X3 | 0.34 | 6204 |
| B205 | 98 | 1800 | 400 | 52 | 25 | 23.622 | 5X3 | 0.45 | 6205 |
| B206 | 235 | 1800 | 350 | 62 | 28 | 32.766 | 7X4 | 0.68 | 6206 |
| B207 | 372 | 1800 | 300 | 72 | 28 | 42.088 | 7X4 | 0.8 | 6207 |
| B208 | 549 | 1800 | 200 | 80 | 32 | 46.761 | 10X4.5 | 0.91 | 6208 |
| B209 | 549 | 1800 | 200 | 85 | 32 | 46.761 | 10X4.5 | 0.95 | 6209 |
| B210 | 784 | 1200 | 200 | 90 | 32 | 56.109 | 10X4.5 | 1 | 6210 |
| B211 | 784 | 1200 | 200 | 100 | 32 | 56.109 | 10X4.5 | 1.4 | 6211 |
| B212 | 1230 | 1200 | 180 | 110 | 42 | 70.029 | 10X4.5 | 1.8 | 6212 |
| B213 | 1230 | 1200 | 180 | 120 | 42 | 70.029 | 10X4.5 | 2.3 | 6213 |
| B214 | 1390 | 1000 | 180 | 125 | 42 | 79.356 | 12X4.5 | 2.4 | 6214 |
The 200 series cam clutches one way bearing installation and use introduction:
| 1. 200 series cam clutch belongs to shaft instalation type. So the shaft for clutch installation should be rigidified after grinding. |
| Make it reach to Rc56~60. The rigidified depth will be 1.5mm. The grinding should reach to 1.5S(16micro-inch) of smooth finish. |
| The taper of the shaft should not be more than 0.01mm in every 50mm. |
| 2.When install clutch, please install bearings at both sides in order to make concentric between the shaft and outer ring of clutch |
| and bear radial load and axial load which may act to outer ring and shaft possibly. |
| 3.Install clutch onto shaft in accordance with rotary mode indicated by arrow direction of clutch along with clutch plate. Don't use |
| hammering mode in order to avoid leading impact at the clutch. |
| 4.The clutch possesses same outer diameter with bearings listed in above table. |
| 5.For indexing product, it is suggested to use lubricating oil. |
| 6.The concentricity between casing and shaft should be within 0.05mm. |
| 7.The section plane of key should be in conformity with JIS B1301-1959. |
