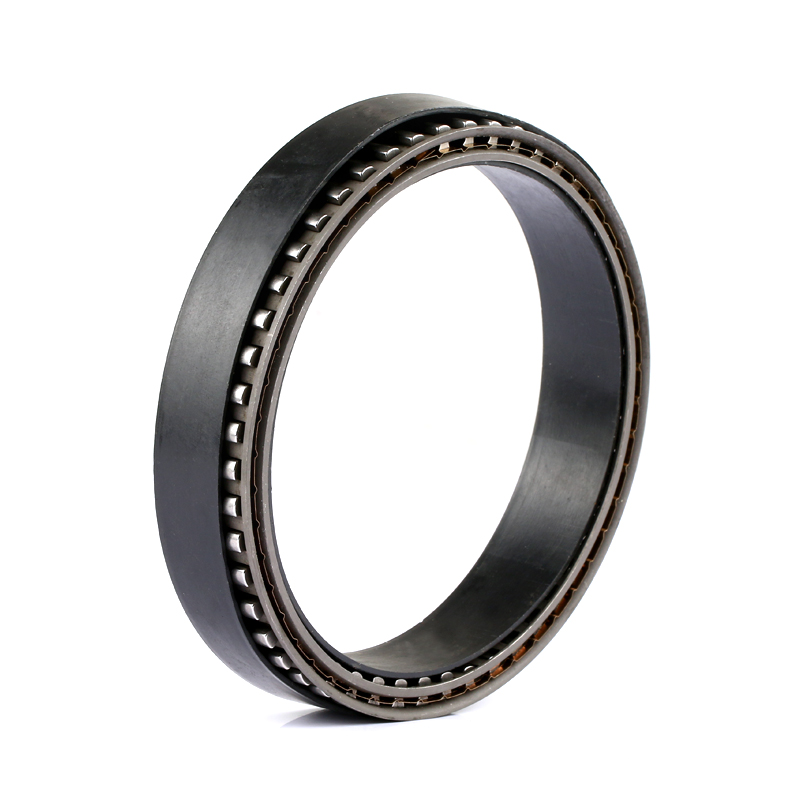

BWX series cam type one way clutch bearing BWX134008A

BWX series cam type one way clutch bearing BWX134008A

product information:

Model number: BWX134008A

Internal diameter:85.776mm

External diameter:104.775mm

Width:25.4mm

Size: 85.776mm x 104.775mm X 25.4mm

Type: Clutch One Way Bearing

Coatings: steel

Material:Chrome steel/GCr15/Stainless steel/ceramic

Row: Single row

Surface roughness: Ra 0.2

Torque capacity: Standard

Is customized: Yes (Drawings required)

Wholesale and freight: To provide you with accurate solutions

Product description：

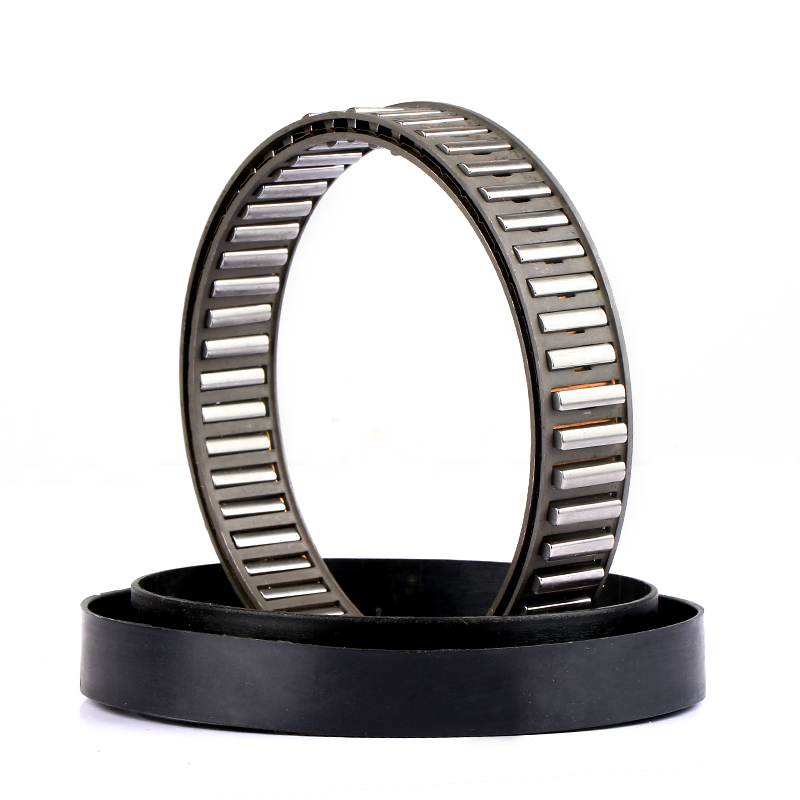

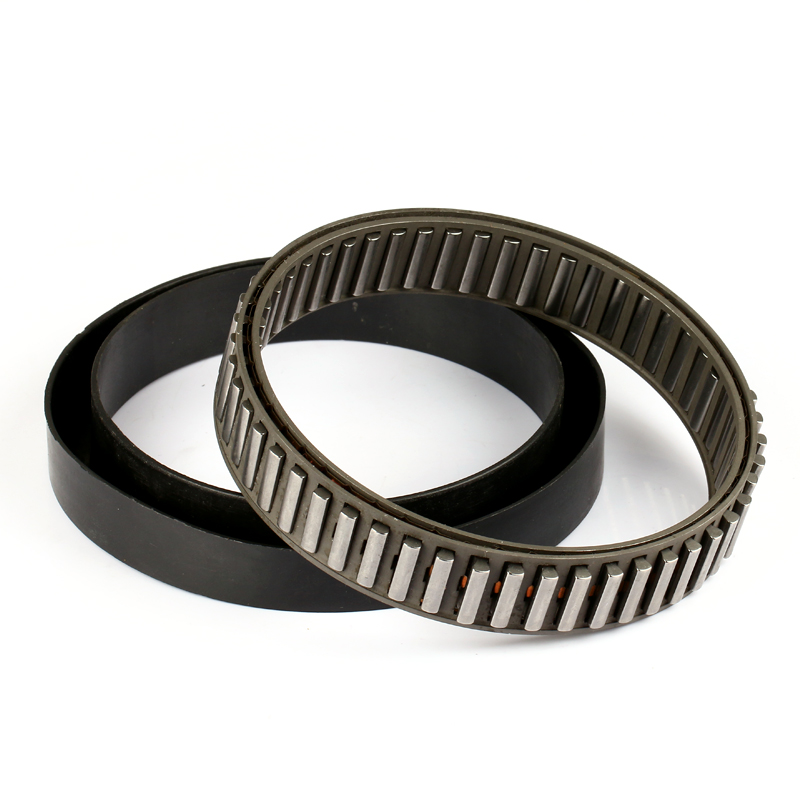

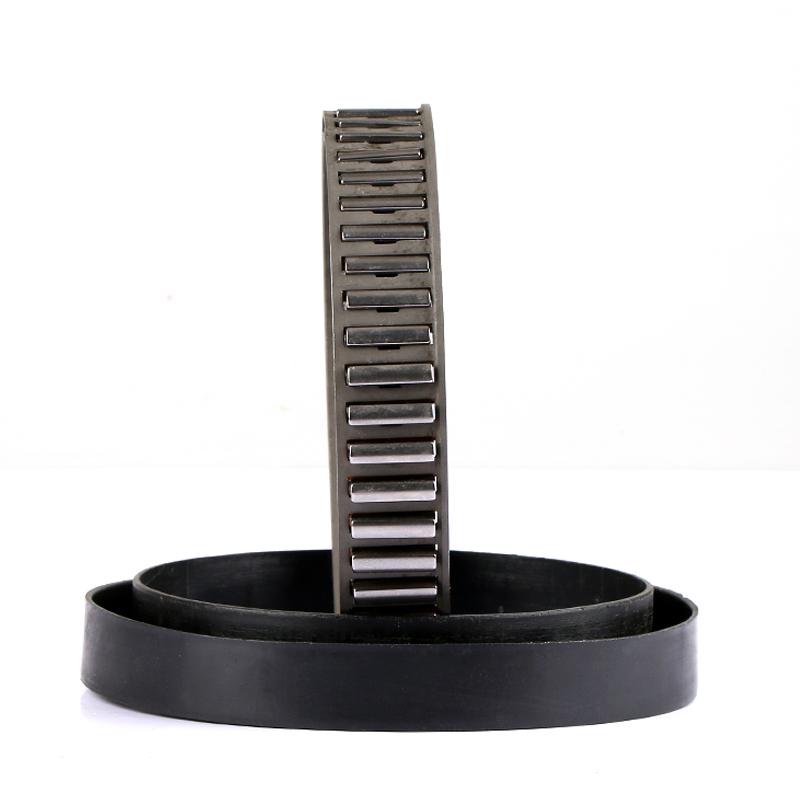

One-way clutch bearings have no inner and outer rings.It is kept by a double cage. When it is selected, it should be matched with the inner and outer rings designed by the customer. At the same time, the rolling bearing should be attached to bear the axial and radial diameters. Since the curvature of the contract is larger than that of the roller and the load is large, it has a larger torque capacity than the roller clutch of the same size, and the wearer is made of wear-resistant material, and because of its special structure. The contact surface between the crucible and the inner and outer rings also changes accordingly, and the service life is greatly extended!

product features：

1. The frictional resistance is small, the power consumption is small, the mechanical efficiency is high, and it is easy to start.

2, the size is standardized, interchangeable, easy to install and disassemble, easy to maintain.

3. Compact structure, light weight and smaller axial size.

4. High precision, high speed, low wear and long service life.

5, can bear radial and thrust combined load at the same time;

6, in a large load-speed range, unique design can obtain excellent performance;

7. Bearing performance is relatively insensitive to fluctuations in load, speed and operating speed.
