TSS 55
YWS or OEM
OEM Customized Services
Product Details

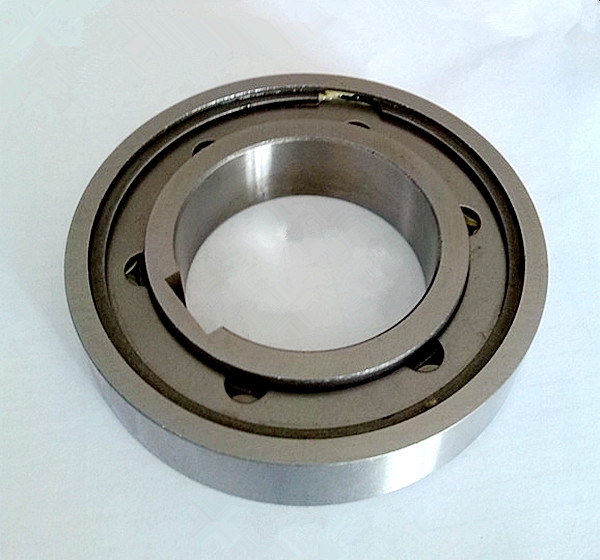

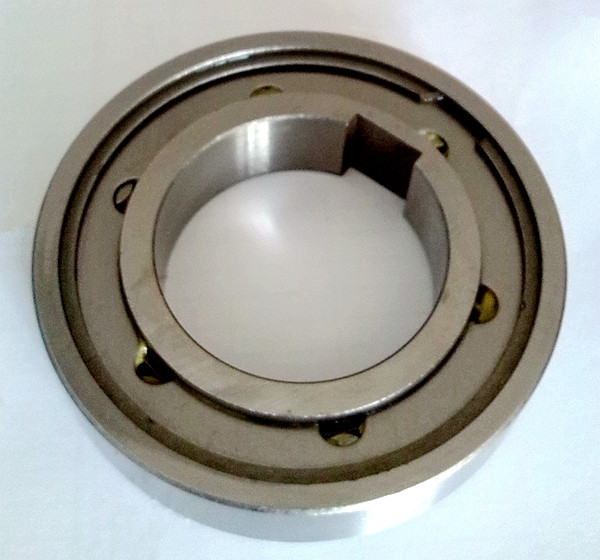

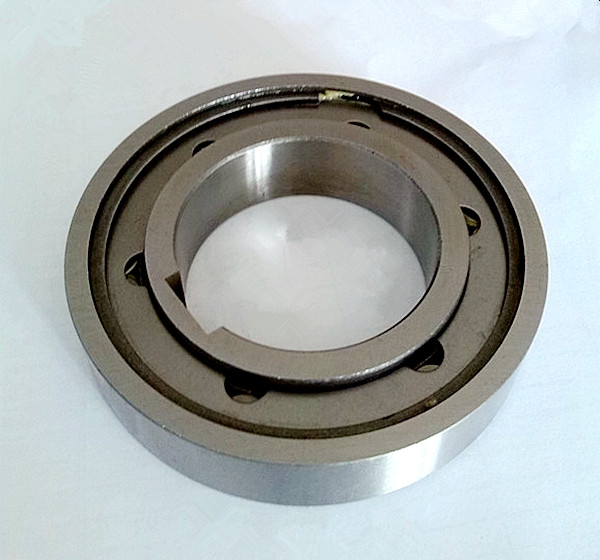

TSS 55 tsubaki structure cams type freewheel clutch bearing
product information:
Structure:Deep Groove
Type:clutch bearing
Brand Name:YWS
Internal diameter:55mm
External diameter:100mm
Width:21mm
size:55x100x21mm
Weight:0.66kg
Material:Chrome steel/GCr15/Stainless steel/ceramic
Sealing type: You can choose Metal seal Or Rubber seal
Is customized: Yes (Drawings required)
Related accessories: Oil seal,Circlip and housings etc.
Wholesale and freight: To provide you with accurate solutions
Tips: Please contact us for details of the required products.
The TSS/AS cams or roller ramps type freewheel clutch bearing models and sizes:
| Models AS(NSS/TSS) | Torque(N.m) | Speed[r/min] | Sizes[mm] | Weight[Kg] | ||||
| inner race | outer race | D | L | d | bxt | |||
| [n6] | [H7] | |||||||
| ROLA0619 AS06 | 2.1 | 2200 | 3300 | 19 | 6 | 6 | no | 0.01 |
| ROLA0822 AS08 | 5 | 1900 | 2900 | 22 | 9 | 8 | no | 0.02 |
| ROLA1030 AS10 | 6.8 | 1750 | 2600 | 30 | 9 | 10 | 3x1.4 | 0.03 |
| ROLA1232 AS12 | 28 | 1600 | 2400 | 32 | 10 | 12 | 4x1.8 | 0.04 |
| ROLA1535 AS15 | 42 | 1400 | 2150 | 35 | 11 | 15 | 5x1.2 | 0.05 |
| ROLA1740 AS17 | 60 | 1300 | 2000 | 40 | 12 | 17 | 5x1.2 | 0.1 |
| ROLA2047 AS20 | 89 | 1100 | 1650 | 47 | 14 | 20 | 6x1.6 | 0.12 |
| ROLA2552 AS25 | 150 | 950 | 1450 | 52 | 15 | 25 | 8x2.0 | 0.14 |
| ROLA3062 AS30 | 180 | 800 | 1200 | 62 | 16 | 30 | 8x2.0 | 0.22 |
| ROLA3572 AS35 | 220 | 650 | 1000 | 72 | 17 | 35 | 10x2.4 | 0.31 |
| ROLA4080 AS40 | 270 | 600 | 900 | 80 | 22 | 40 | 12x2.2 | 0.39 |
| ROLA4585 AS45 | 275 | 500 | 800 | 85 | 19 | 45 | 14x3.8 | 0.44 |
| ROLA5090 AS50 | 290 | 475 | 750 | 90 | 20 | 50 | 14x3.8 | 0.49 |
| ROLA55100 AS55 | 308 | 400 | 650 | 100 | 21 | 55 | 16x4.3 | 0.66 |
| ROLA60110 AS60 | 508 | 350 | 550 | 110 | 22 | 60 | 18x4.4 | 0.81 |
| ROLA80140 AS80 | 1063 | 300 | 450 | 140 | 26 | 80 | 22x5.4 | 1.41 |
The TSS/AS series freewheel clutch description:
Type AS is a roller type freewheel non bearings supported.
Bearings are required to support axial and radial loads. Lubrication and sealing must also be provided by the installation.
Nominal outside dimensions are the same as series 62 ball bearings.
A typical arrangement is to install this type alongside a series 62 bearing, within the same location tolerance.
The inner race is keyed to the shaft(except 6mm bore).
The outer race has a positive R6 tolerance to give a press fit in a H7 housing.
The outer housing must be strong enough to not expand after assembly.
The desigh can accept an axial misalignment of inner and outer race of +_S/2.
