BR60HT
YWS or OEM
OEM Customized Services
Product Details

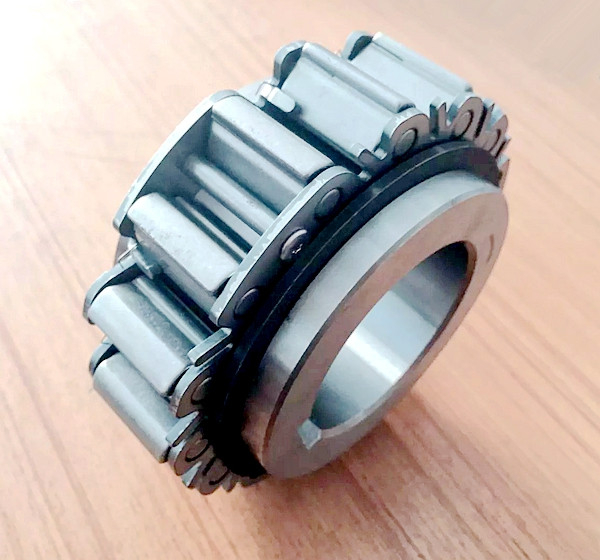

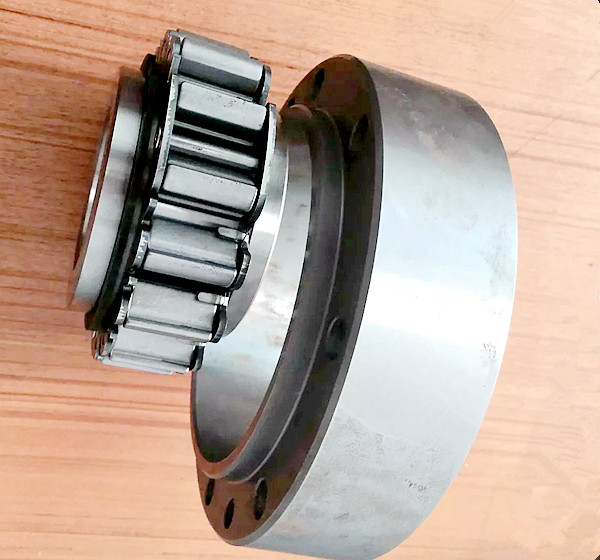

Tsubaki backstop cam clutches BR-HT series BR60HT
product description:

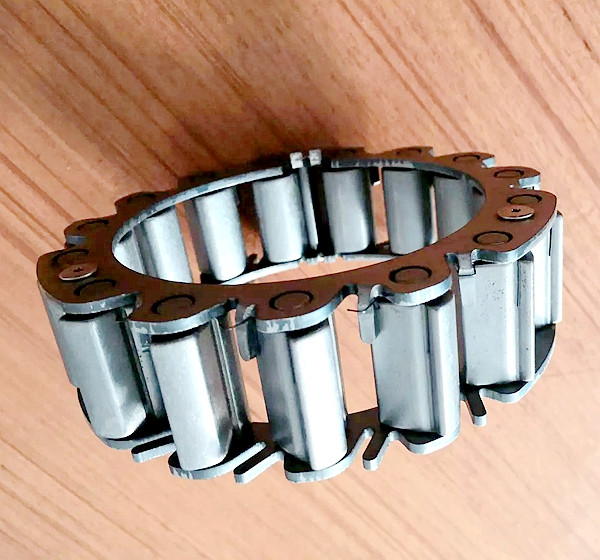

One-way clutch bearings have no inner and outer rings.It is kept by a double cage. When it is selected, it should be matched with the inner and outer rings designed by the customer. At the same time, the rolling bearing should be attached to bear the axial and radial diameters. Since the curvature of the contract is larger than that of the roller and the load is large, it has a larger torque capacity than the roller clutch of the same size, and the wearer is made of wear-resistant material, and because of its special structure. The contact surface between the crucible and the inner and outer rings also changes accordingly, and the service life is greatly extended!
The Tsubaki backstop cam clutches BR-HT series description:
| BR-HT Cam Clutch is High Torque version of existing BR series. |
| BR-HT is mainly used in backstop application for the inner race high-speed overrunning. |
| Prevention of reverse rotation for inclined conveyor and bucket elevator are typical application examples. |
| BR-HT assures not only the immediate backstop function under the high torque, but also the long service life by the |
| “Lift-Off” design. |
| In addition installation on the high speed shaft with low torque enables selection of more compact models with |
| resulting lower cost. |
| We can offer the most appropriate model from wide range of size according to your needs. |

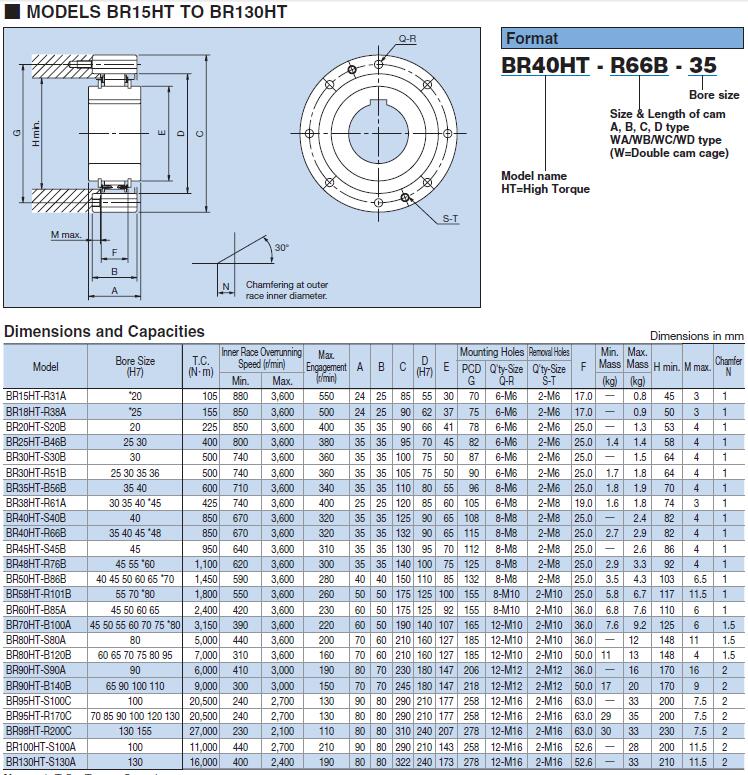

The Tsubaki backstop cam clutches BR-HT series models and sizes:
Sincerely welcome to send enquiry to us!!!
