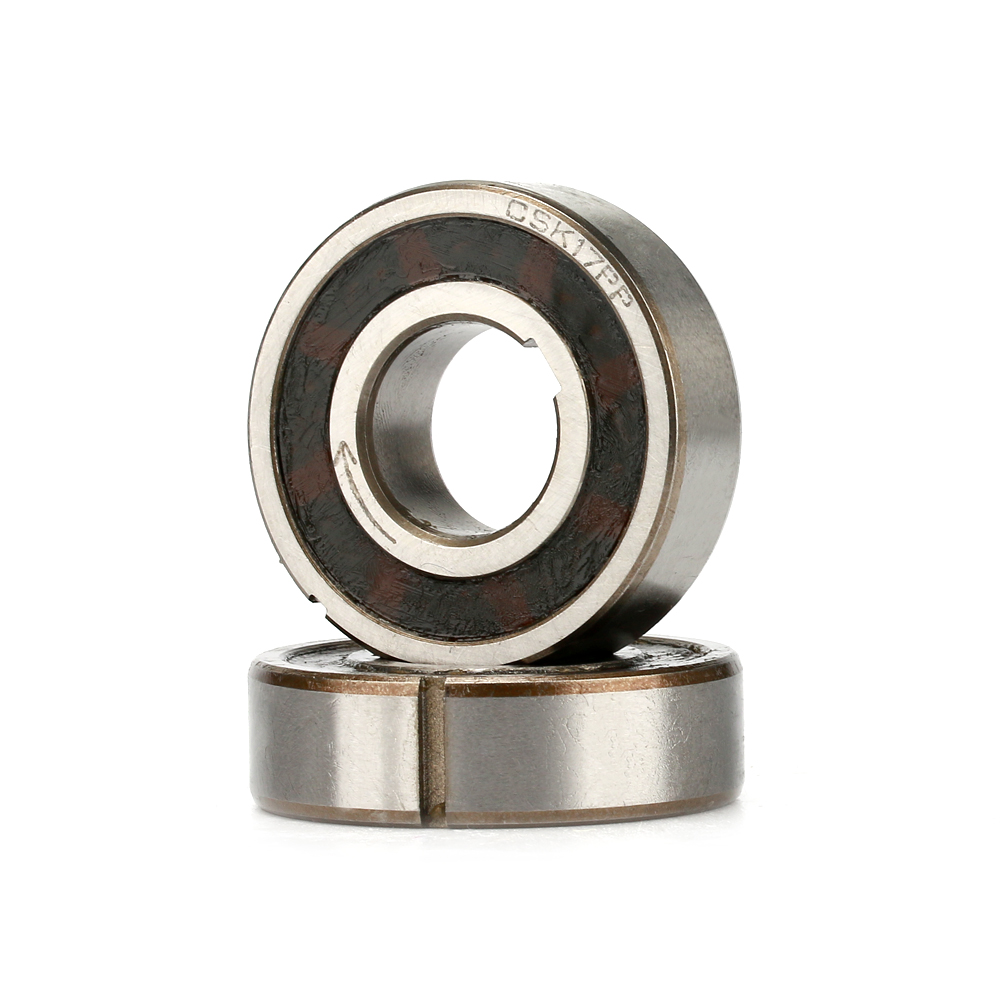

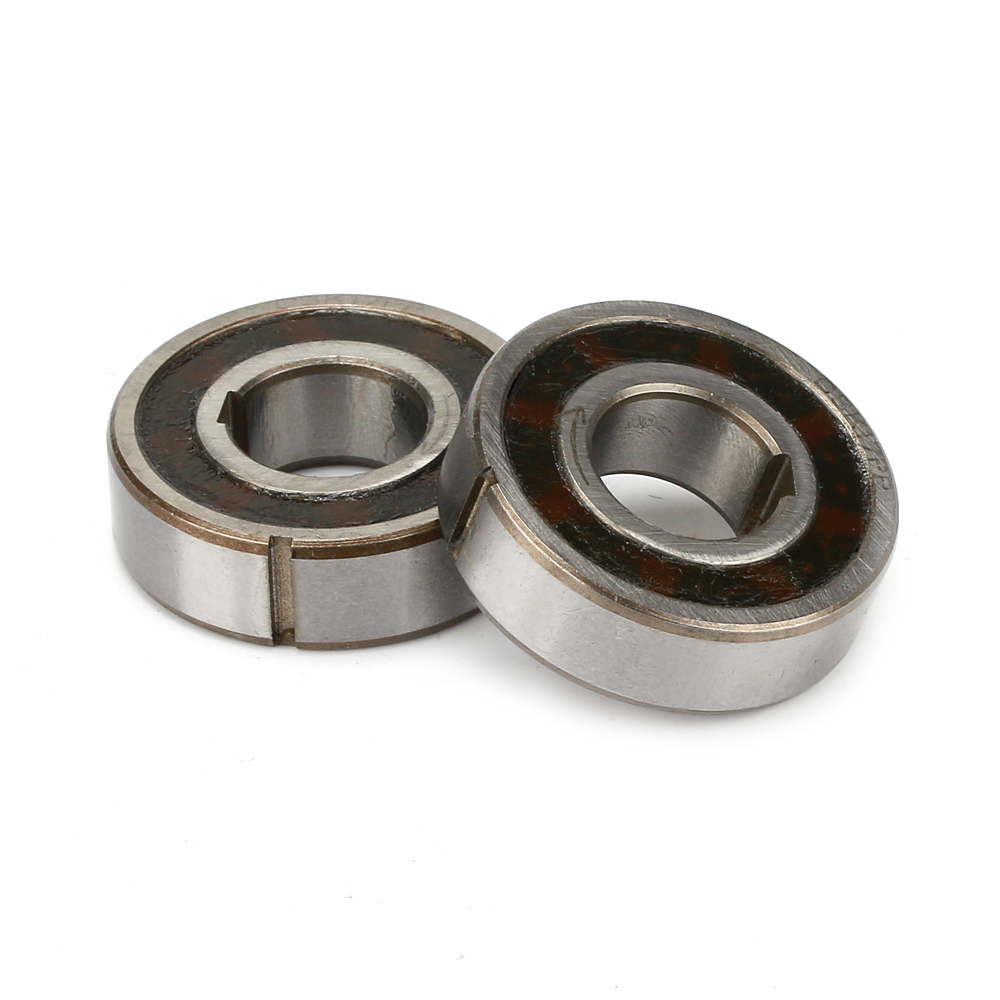

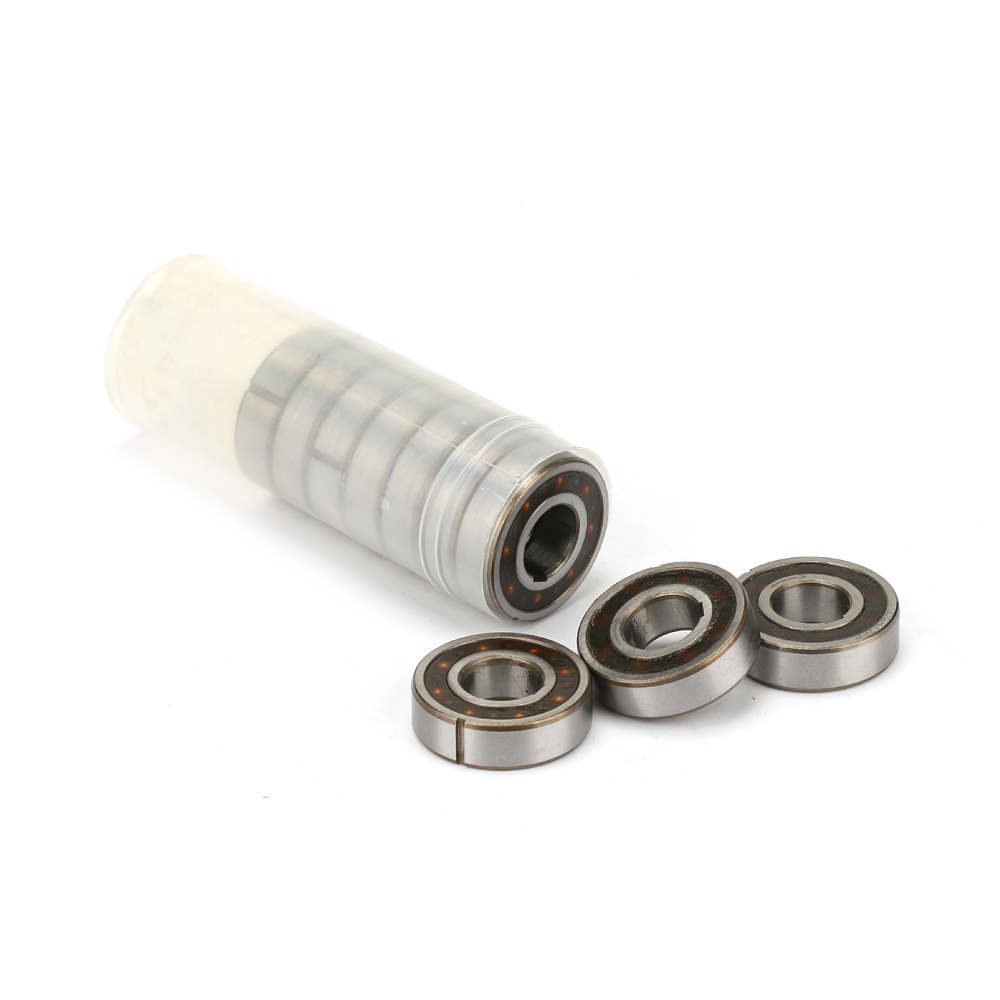

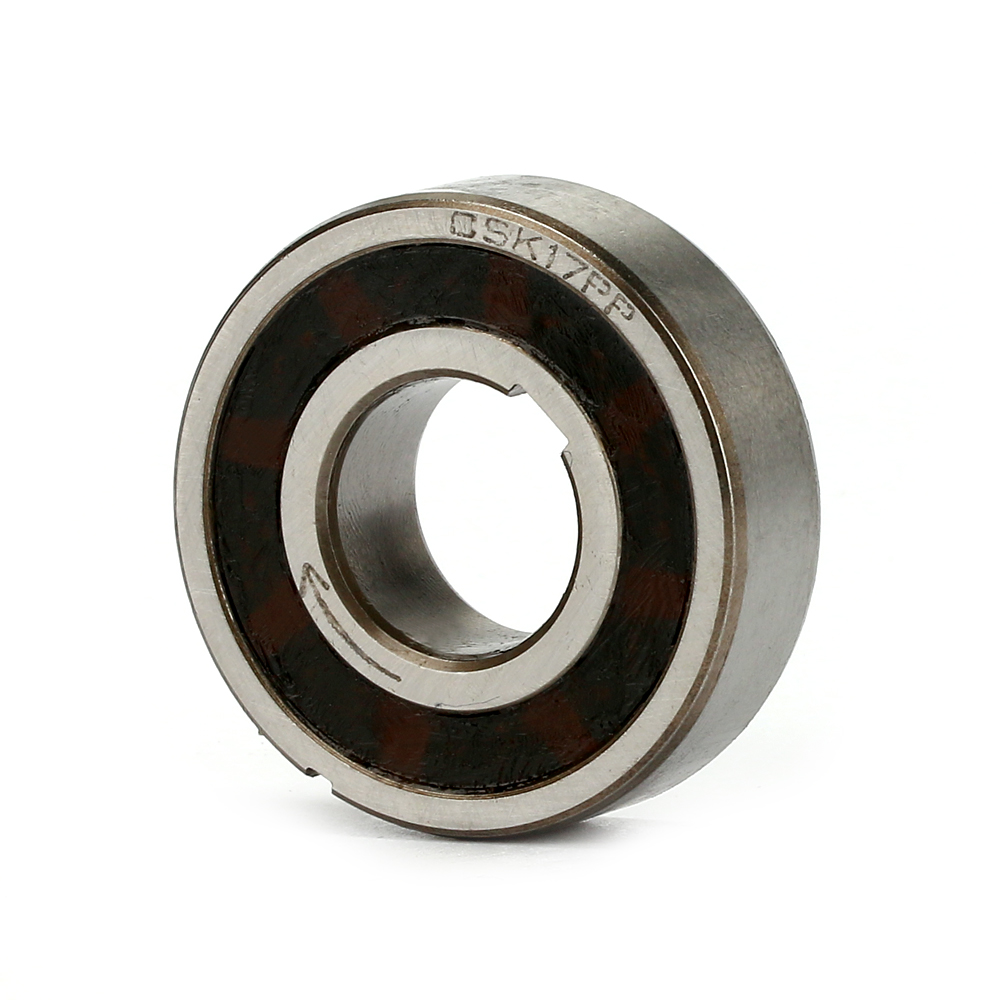

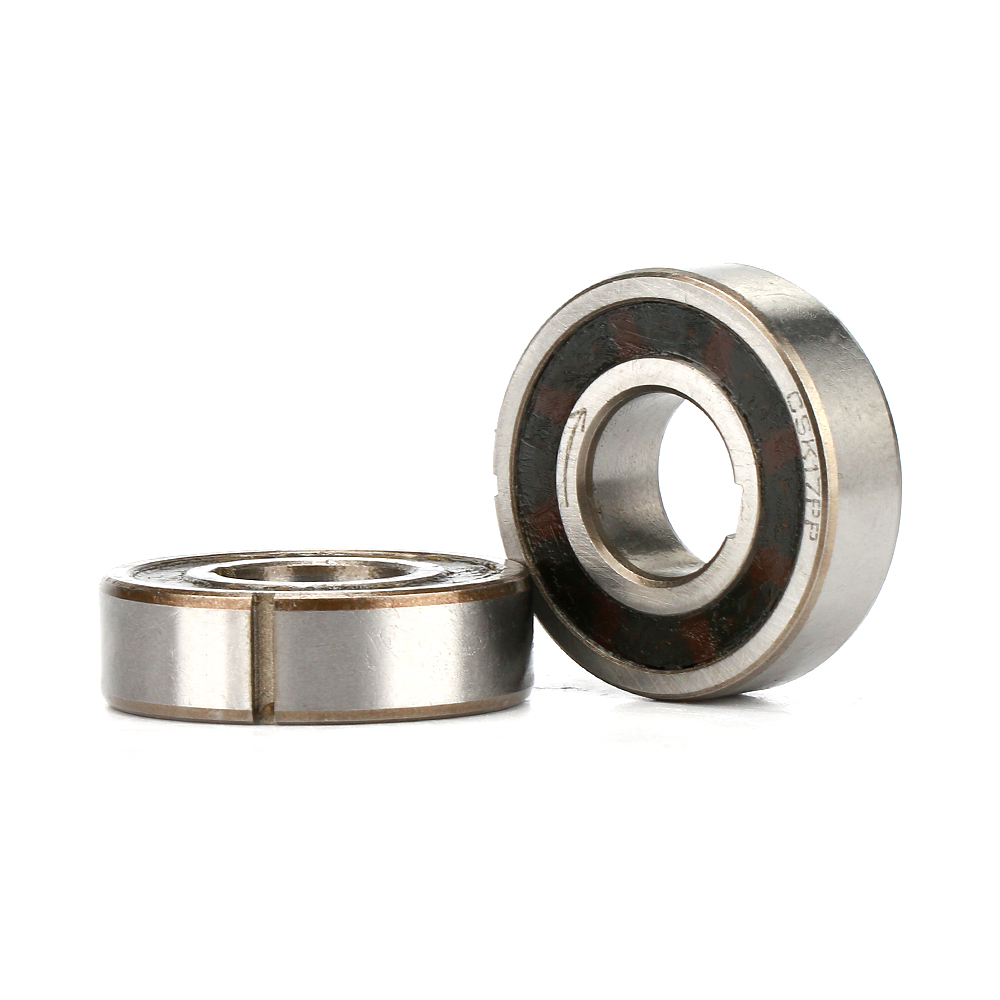

shaft 17 mm bore size one way cluth bearing CSK17PP

product information:

Structure:self aligning ball bearing

Type:self aligning ball bearing

Brand Name:YWS

Internal diameter:17mm

External diameter:40mm

Width:12mm

size:17x40x12mm

Material:Chrome steel/GCr15/Stainless steel

Is customized: Yes (Drawings required)

Wholesale and freight: To provide you with accurate solutions

Tips: Please contact us for details of the required products.

Product description：

One-way (clutch) Bearing The CSK series is a one-way (clutch) bearing. One way Bearing Sprag/Clutch Freewheel and also called as Backstops. The one-way bearings are used in any application that requires one direction rotation, such as mining, hydraulic, textile, printing and washing machines, conveyor systems that carry products to a higher level should not be reversed because of gravity during any power shortage.

Product features：

Single-row ball bearing supports integrated sprag clutch

Chrome steel for durability and resistance to deformity under heavy loads

CN (normal)radial internal clearance for applications that do not involve thermal expansion or atypical precision

Metal shields on both sides of the bearing keep the lubricant in and contaminants out

Steel cage evenly spaces rollers for reduced friction, vibration, and noise

Specification of  shaft 17 mm bore size one way cluth bearing CSK17PP

Category axis of shaft 17 mm bore size one way cluth bearing CSK17PP

Type CSK is sprag bype freesheel integrated into a 62 series ball bearing(except sizes 8 and 40).It is bearing supported,delivered grease lubricated and protected against dust of more than 0.3mm .The use of additional "nylos"type seals is recommeded especially when the working teperature ecceeds 50oC. Oil bath lubrication is also possible if the original grease is first flushed out using a suitable solvent. Torque transmission is ensured by a press fit assembly into a rigid outer housing with N6 tolerance.and onto a shaft with n6 tolerance. The initial bearings radial clearance is set at C5,and is reduced if using the press fit as apecified. One race may be glued. If both races are to be glued performance will be reduced or a    C3 bearing clearance will be necessary. Operating temperature range:-40oC to +130oC ,peaks up to +150oC are acceptable for short periods. Csk 2rs is 5mm wider but is equipped with lipi seals to be water splash resistant.
