Product Description

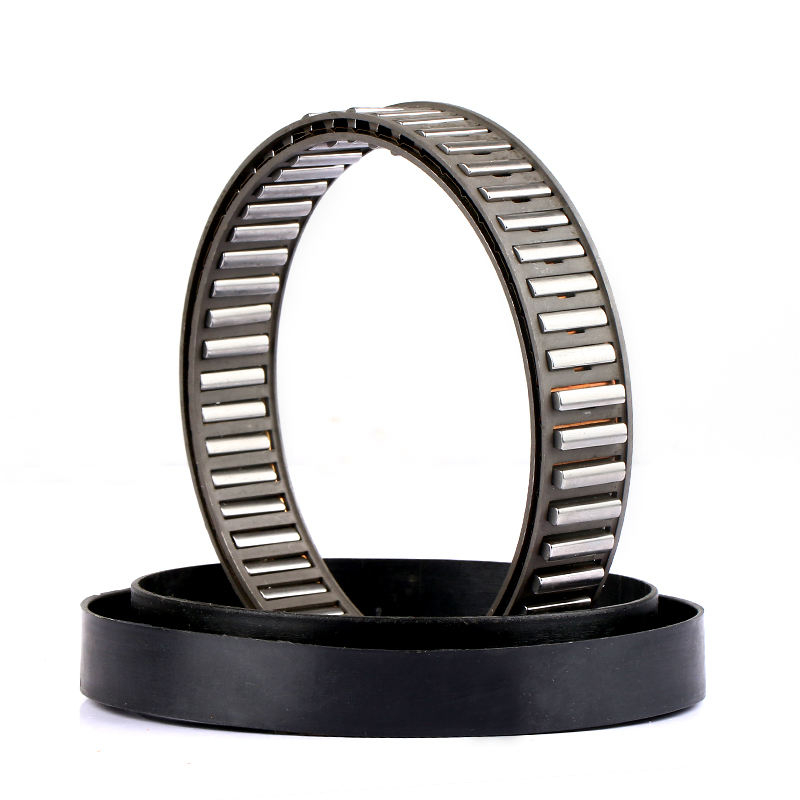

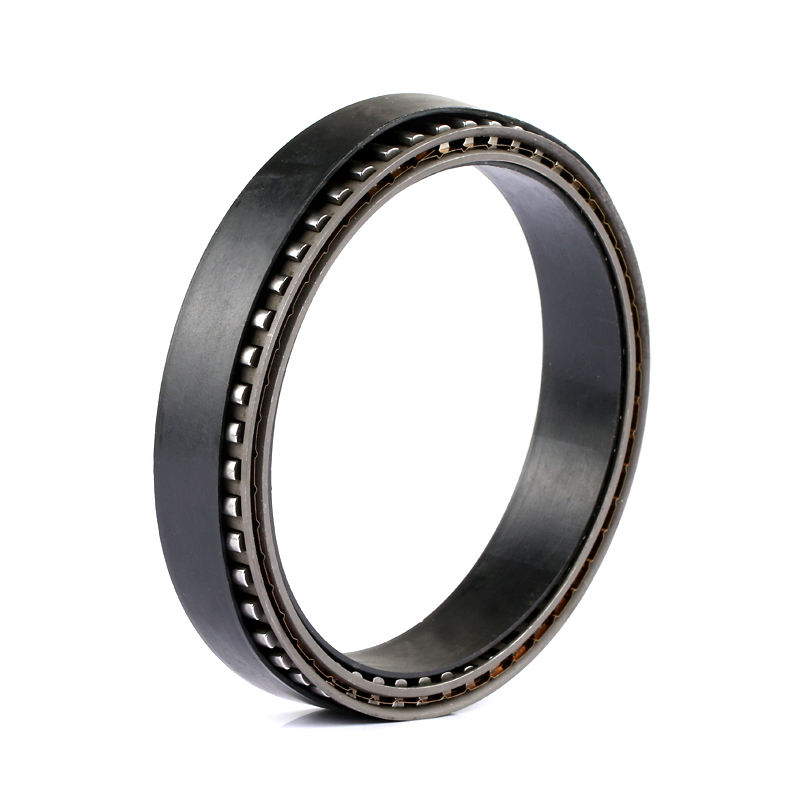

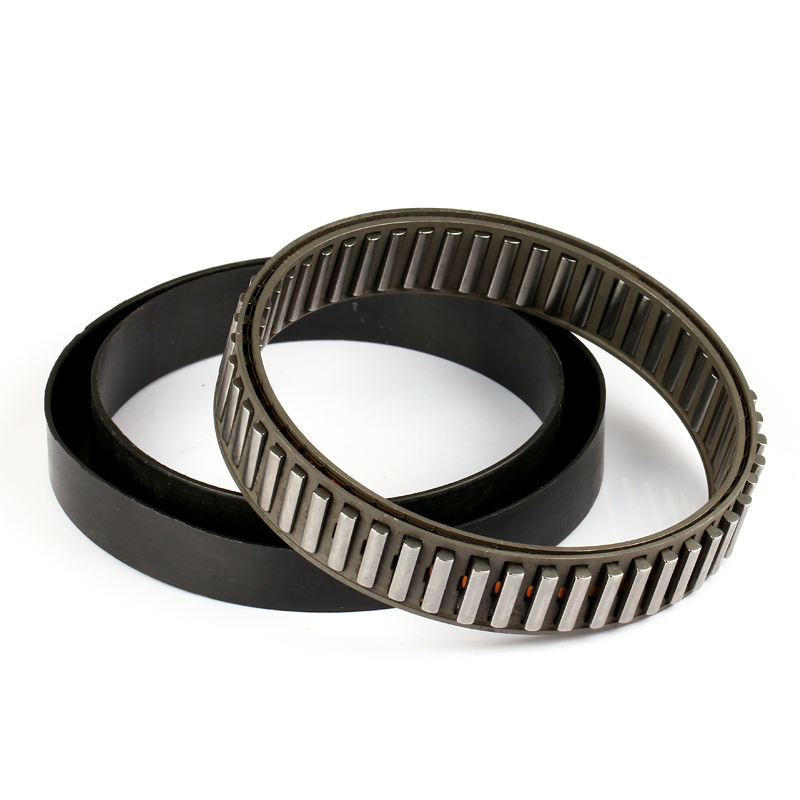

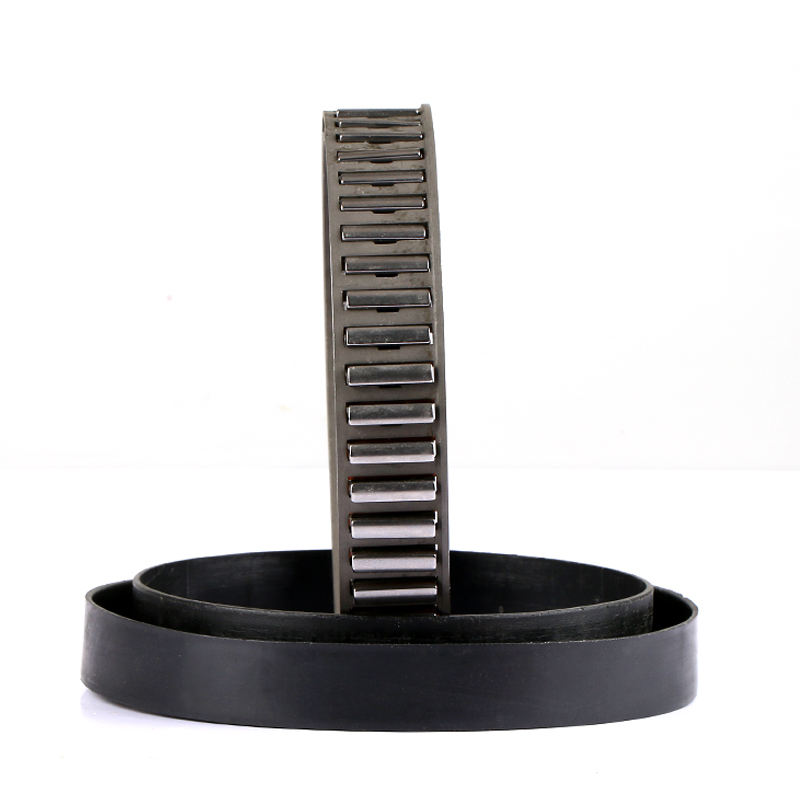

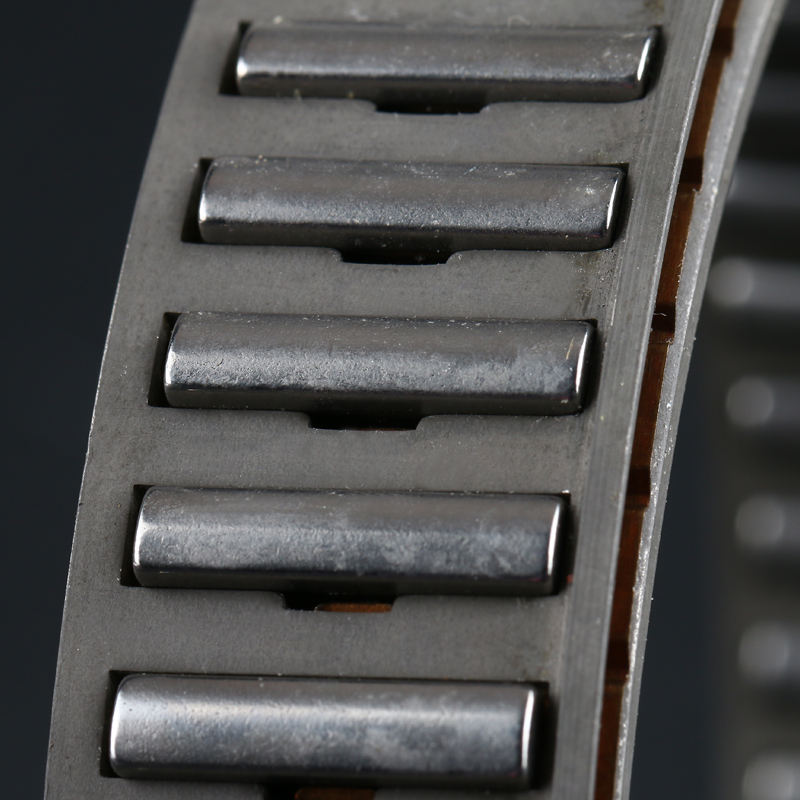

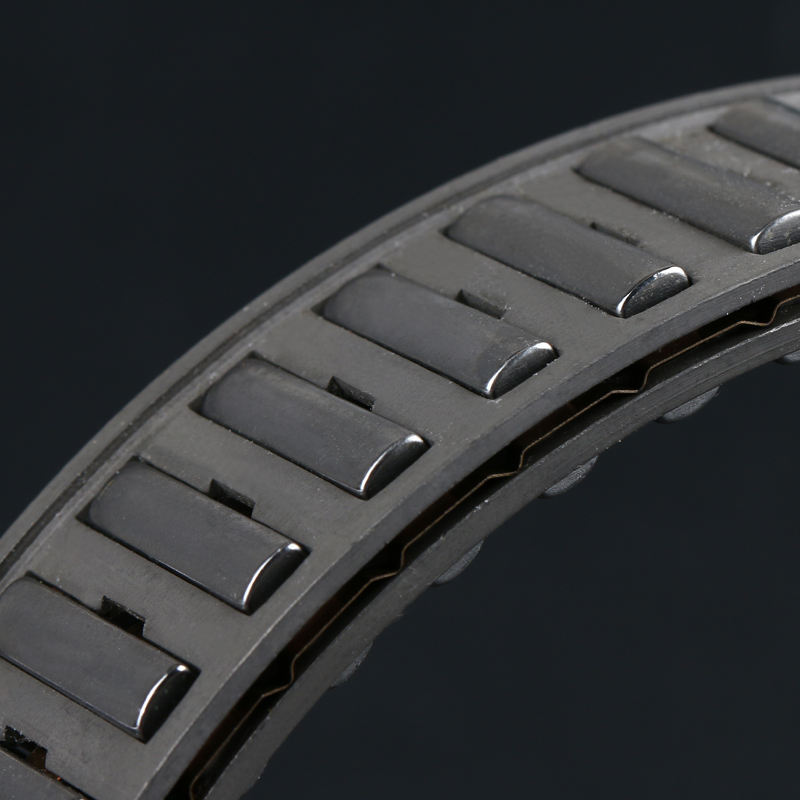

DC series cage Sprag Clutch One Way Bearing DC3809A DC3809A-N
| size | Overrunning speeds | Øa | Øc | Sprag space | emin | Ø dmin | Ø bmax | No.of clips | No.of sprags | Weight | ||
| + 0,008 | ± 0,013 | |||||||||||
| - 0,005 | ||||||||||||
TKN1 [Nm] | nimax [min-1] | Namax [min-1] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [kg] | |||
| DC2222G | 63 | 8600 | 4300 | 22.225 | 38.885 | 8.33 | 10 | 50 | 15 | - | 12 | 0.03 |
| DC2776 | 119 | 6900 | 3400 | 27.762 | 44.422 | 8.33 | 13.5 | 58 | 18 | - | 14 | 0.055 |
| DC3034 | 124 | 6300 | 3100 | 30.34 | 47 | 8.33 | 13.5 | 62 | 20 | - | 14 | 0.06 |
| DC3175(3C) | 159 | 6000 | 3000 | 31.75 | 48.41 | 8.33 | 13.5 | 63 | 24 | 3 | 16 | 0.06 |
| DC3809A | 275 | 5000 | 2500 | 38.092 | 54.752 | 8.33 | 16 | 71 | 29 | - | 18 | 0.085 |
| DC4127(3C) | 224 | 4600 | 2300 | 41.275 | 57.935 | 8.33 | 13.5 | 75 | 32 | 3 | 18 | 0.09 |
| DC4445A | 363 | 4300 | 2100 | 44.45 | 61.11 | 8.33 | 16 | 79 | 34 | - | 20 | 0.095 |
| DC4972(4C) | 306 | 3800 | 1900 | 49.721 | 66.381 | 8.33 | 13.5 | 86 | 38 | 4 | 22 | 0.1 |
| DC5476A | 525 | 3500 | 1700 | 54.765 | 71.425 | 8.33 | 16 | 92 | 42 | - | 24 | 0.11 |
| DC5476A(4C) | 525 | 3500 | 1700 | 54.765 | 71.425 | 8.33 | 16 | 92 | 42 | 4 | 24 | 0.13 |
| DC5476B(4C) | 769 | 3500 | 1700 | 54.765 | 71.425 | 8.33 | 21 | 92 | 42 | 4 | 24 | 0.18 |
| DC5476C(4C) | 990 | 3500 | 1700 | 54.765 | 71.425 | 8.33 | 25.4 | 92 | 42 | 4 | 24 | 0.2 |
| DC5776A | 604 | 3300 | 1600 | 57.76 | 74.42 | 8.33 | 16 | 98 | 44 | - | 26 | 0.11 |
| DC6334B | 806 | 3000 | 1500 | 63.34 | 80 | 8.33 | 21 | 104 | 50 | - | 26 | 0.175 |
| DC7221(5C) | 675 | 2600 | 1300 | 72.217 | 88.877 | 8.33 | 13.5 | 115 | 56 | 5 | 30 | 0.14 |
| DC7221B | 1279 | 2600 | 1300 | 72.217 | 88.877 | 8.33 | 21 | 115 | 56 | - | 30 | 0.185 |
| DC7221B(5C) | 1279 | 2600 | 1300 | 72.217 | 88.877 | 8.33 | 21 | 115 | 56 | 5 | 30 | 0.21 |
| DC7969C(5C) | 2038 | 2400 | 1200 | 79.698 | 96.358 | 8.33 | 25.4 | 124 | 61 | 5 | 34 | 0.28 |
| DC8334C | 2055 | 2300 | 1100 | 83.34 | 100 | 8.33 | 25.4 | 132 | 65 | - | 34 | 0.27 |
| DC8729A | 1250 | 2200 | 1100 | 87.29 | 103.96 | 8.33 | 16 | 134 | 67 | - | 34 | 0.165 |
| DC10323A(3C)* | 1612 | 1800 | 900 | 103.231 ** | 119.891 | 8.33 | 16 | 155 | 80 | 3 | 40 | 0.205 |
| DC12334C* | 4800 | 1500 | 750 | 123.34 | 140 | 8.33 | 25.4 | 184 | 96 | - | 50 | 0.4 |
| ** | ||||||||||||
| DC12388C(11C) | 4875 | 1500 | 750 | 123.881 | 142.88 | 9.5 | 25.4 | 196 | 96 | 11 | 44 | 0.4 |
♥1.Your inquiry will be reply within 2 hours.
♥2.Fast delivery,within 7 working days.
♥3.Packing: you will receive a Perfect product with strong outside packing.
♥4.With advanced first-level facilities and testing equipment,to insure no mistake on the dimension of the bearings.
♥5.No M.O.Q, Because we are manufacture.
♥6.24 hours on line,no limited to talk to us.
♥7.Return Policy:We gladly accept returns for item purchased within a 30 day period, provided it is still in the original package, not used nor damaged.
♥8.Warranty Claims :The Warranty covers any Defect of the product for a period of 12 months. It does not cover items that are not correctly installed or over tightened which may cause premature failure. Installation or any other fee's are not refundable.
