1620
YWS or OEM
OEM Customized Services
Product Details

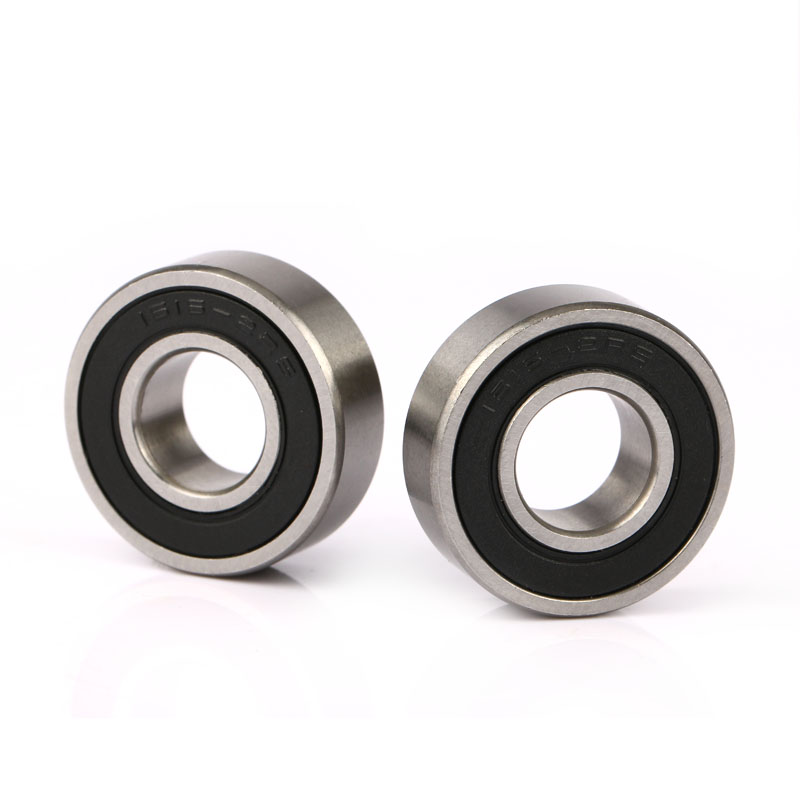

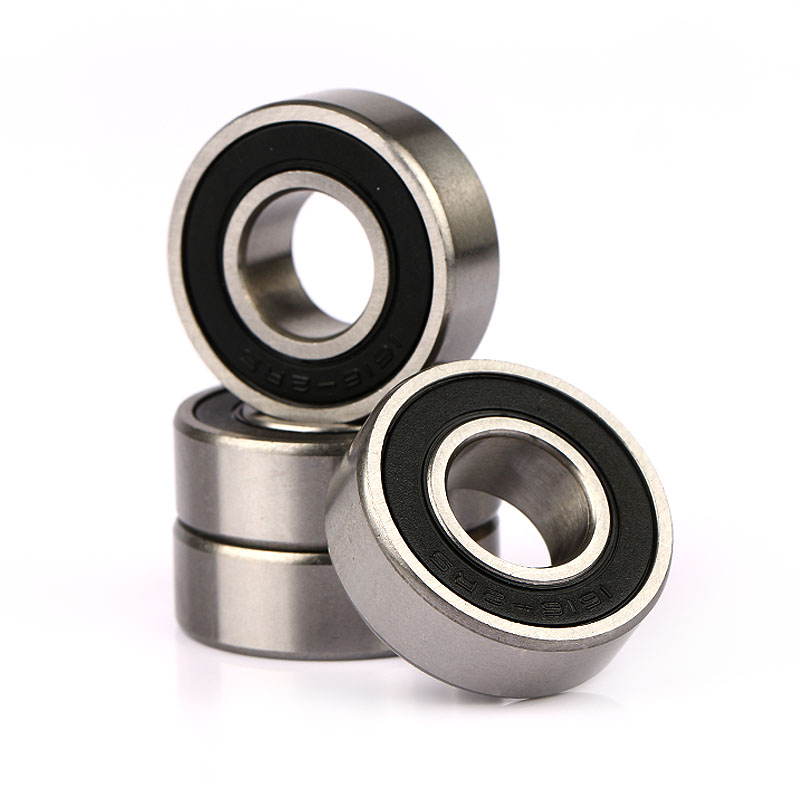

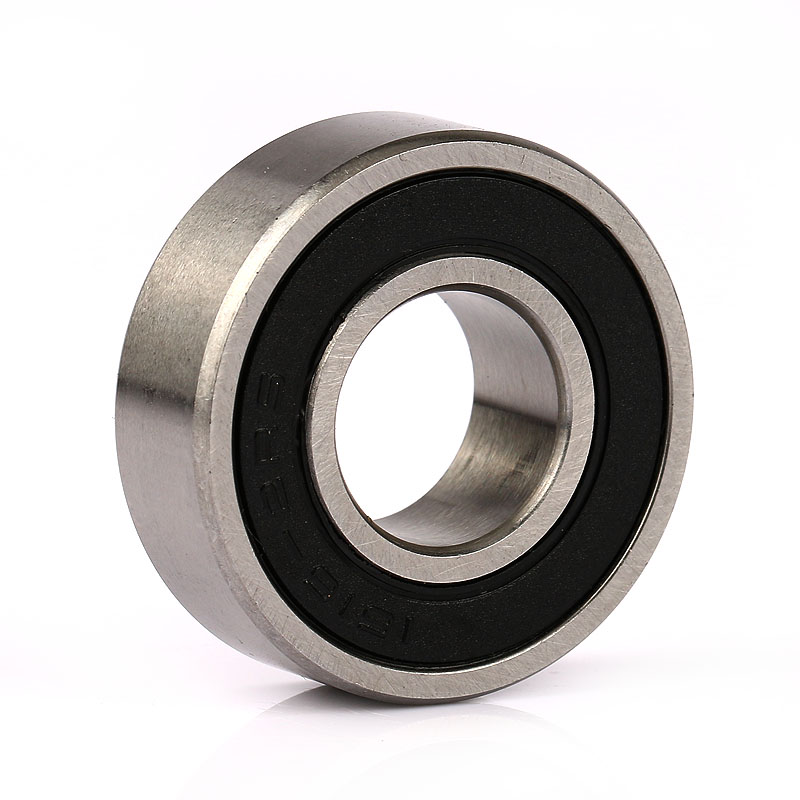

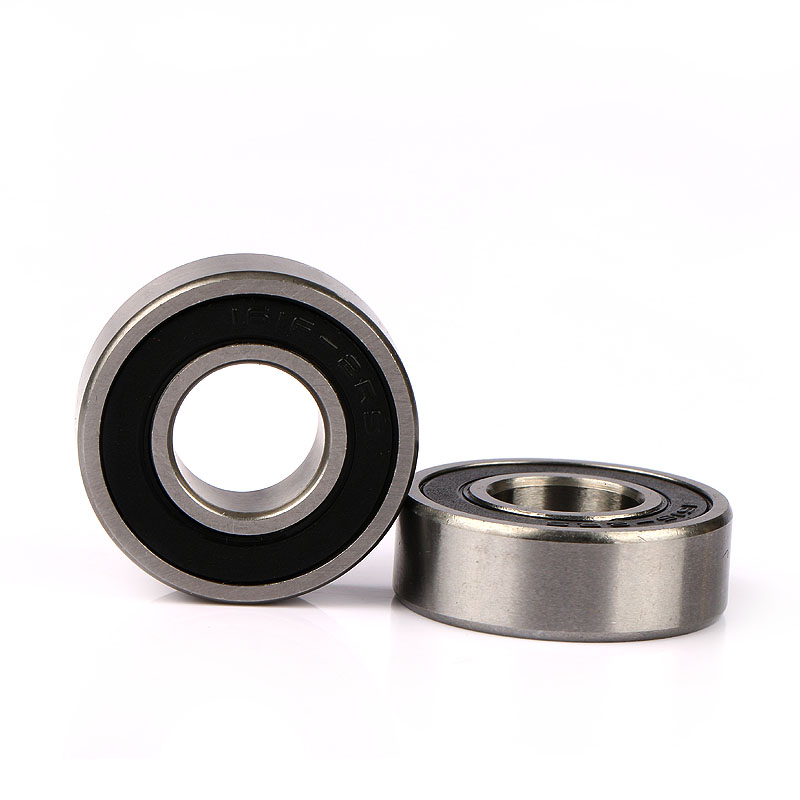

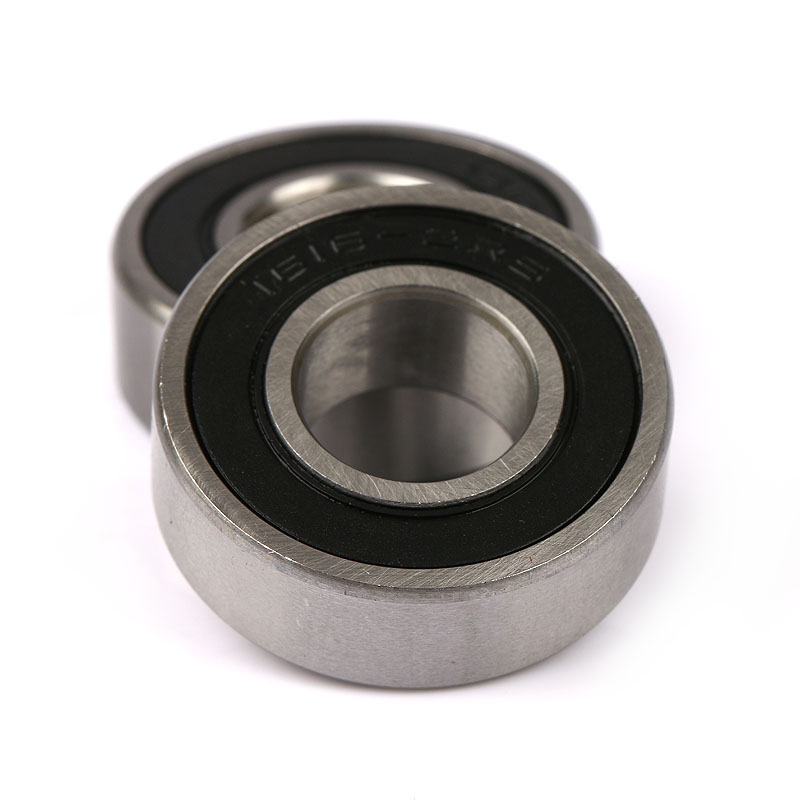

1600 series inch size deep groove ball bearing 1620 1621 1622
product information:
Structure:Deep Groove
Type:Ball, ball bearing
Brand Name:YWS
Internal diameter:11.112mm
External diameter:34.925mm
Width:11.112mm
size:11.112×34.925×11.112mm
Dynamic Load Rating (Cr): 1.69kN
Static Load Rating (Cor): 0.8kN
Weight:0.052kg
Material:Chrome steel/GCr15/Stainless steel/ceramic
Sealing type: You can choose Metal seal Or Rubber seal
Is customized: Yes (Drawings required)
Related accessories: Oil seal,Circlip and housings etc.
Wholesale and freight: To provide you with accurate solutions
Product description：
Single-row, pre-lubricated, normal accuracy.
Deep Groove Ball Bearings are one of the most widely used rolling bearings. They are used to accommodate radial and axial loads in both directions.
With small friction and high-limit speed, Ball Bearings are cost-effective and require little maintenance.
Chromium Steel (GCr15) made with heat treating, provides high and uniform hardness, good wear resistance, and high contact fatigue performance.
Suitable for all kinds of industrial equipment, micro motor, small rotary motor, office equipment and so on.
Product features：
1620-2rs bearings are sealed on BOTH SIDES to keep lubricant in
Chromium Steel long-life bearings, smooth and low noise
ABEC Tolerance 1 (P0), Z1 Noise Level for most general use
Static load rating of 800 newtons and dynamic load rating of 1690 newtons
| No. | Dimensions (Inch) | Wgt. (lbs.) | Interchange | ||||
| d | D | B | |||||
| 1601 | 0.1875 | 0.6875 | 0.25 | 0.025 | BR-01 | 21103-00 | 1601 NS |
| 1602 | 0.25 | 0.6875 | 0.25 | 0.025 | BR-02 | 21104-00 | 1602 NS |
| 1603 | 0.3125 | 0.875 | 0.2812 | 0.033 | BR-03 | 21405-00 | 1603 NS |
| 1604 | 0.375 | 0.875 | 0.2812 | 0.04 | BR-04 | 21406-00 | 1604 NS |
| 1605 | 0.3125 | 0.9062 | 0.3125 | 0.034 | BR-05 | 21505-00 | 1605 NS |
| 1606 | 0.375 | 0.9062 | 0.3125 | 0.035 | BR-06 | 21506-00 | 1606 NS |
| 1607 | 0.4375 | 0.9062 | 0.3125 | 0.06 | BR-07 | 21507-00 | 1607 NS |
| 1614 | 0.375 | 1.125 | 0.375 | 0.077 | BR-14 | 21806-00 | 1614 NS |
| 1615 | 0.4375 | 1.125 | 0.375 | 0.071 | BR-15 | 21807-00 | 1615 NS |
| 1616 | 0.5 | 1.125 | 0.375 | 0.066 | BR-16 | 21808-00 | 1616 NS |
| 1620 | 0.4375 | 1.375 | 0.4375 | 0.11 | BR-20 | 22207-00 | 1620 NS |
| 1621 | 0.5 | 1.375 | 0.4375 | 0.106 | BR-21 | 22208-00 | 1621 NS |
| 1622 | 0.5625 | 1.375 | 0.4375 | 0.101 | BR-22 | 22209-00 | 1622 NS |
| 1623 | 0.625 | 1.375 | 0.4375 | 0.088 | BR-23 | 22210-00 | 1623 NS |
| 1628 | 0.625 | 1.625 | 0.5 | 0.159 | BR-28 | 22610-00 | 1628 NS |
| 1630 | 0.75 | 1.625 | 0.5 | 0.143 | BR-30 | 22612-00 | 1630 NS |
| 1633 | 0.625 | 1.75 | 0.5 | 0.203 | BR-33 | 22810-00 | 1633 NS |
| 1635 | 0.75 | 1.75 | 0.5 | 0.187 | BR-35 | 22812-00 | 1635 NS |
| 1638 | 0.75 | 2 | 0.5625 | 0.265 | BR-38 | 23212-00 | 1638 NS |
| 1640 | 0.875 | 2 | 0.5625 | 0.247 | BR-40 | 23214-00 | 1640 NS |
| 1641 | 1 | 2 | 0.5625 | 0.221 | BR-41 | 23216-00 | 1641 NS |
| 1652 | 1.125 | 2.5 | 0.625 | 0.463 | BR-52 | 24018-00 | 1652 NS |
| 1654 | 1.25 | 2.5 | 0.625 | 0.419 | BR-54 | 24020-00 | 1654 NS |
| 1657 | 1.25 | 2.5625 | 0.6875 | 0.474 | - | 24120-00 | 1657 NS |
| 1658 | 1.3125 | 2.5625 | 0.6875 | 0.441 | - | 24121-00 | 1658 NS |
Sincerely welcome to send enquiry to us!!!
