s6804 2rs
YWS or OEM
OEM Customized Services
Product Details

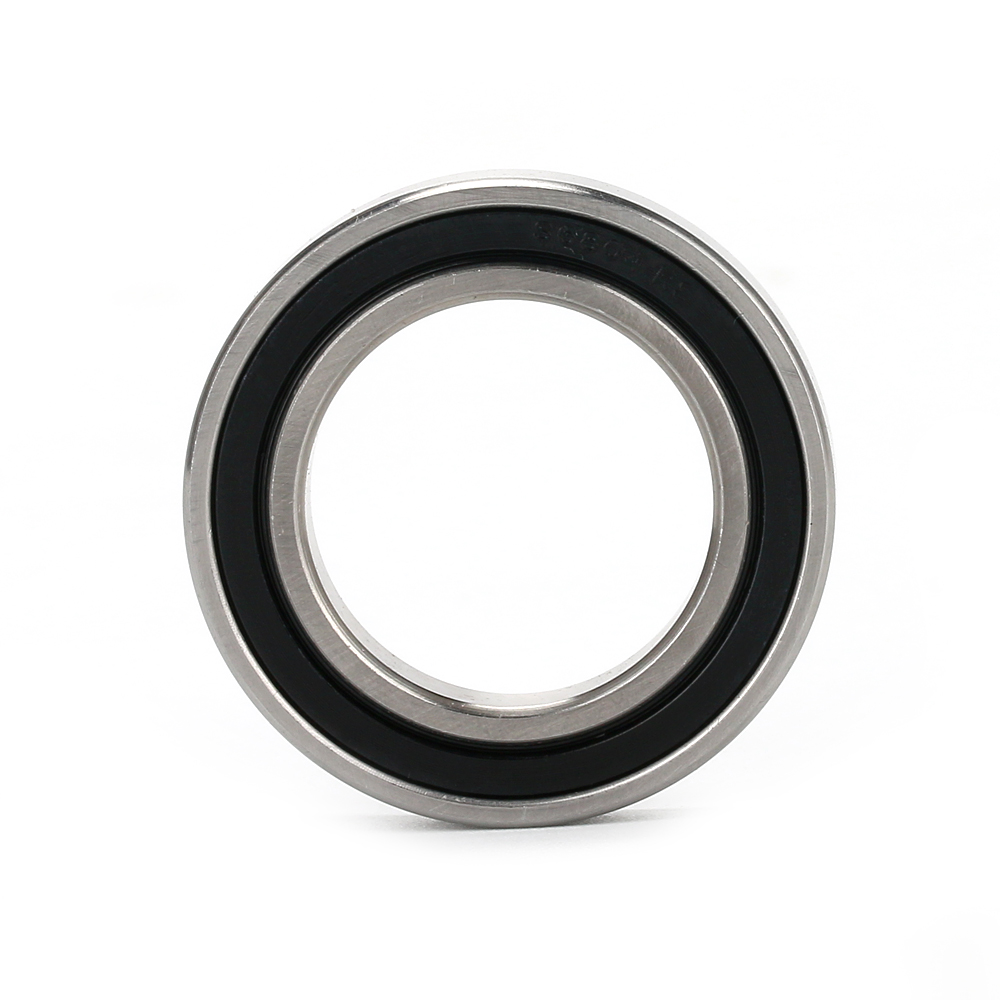

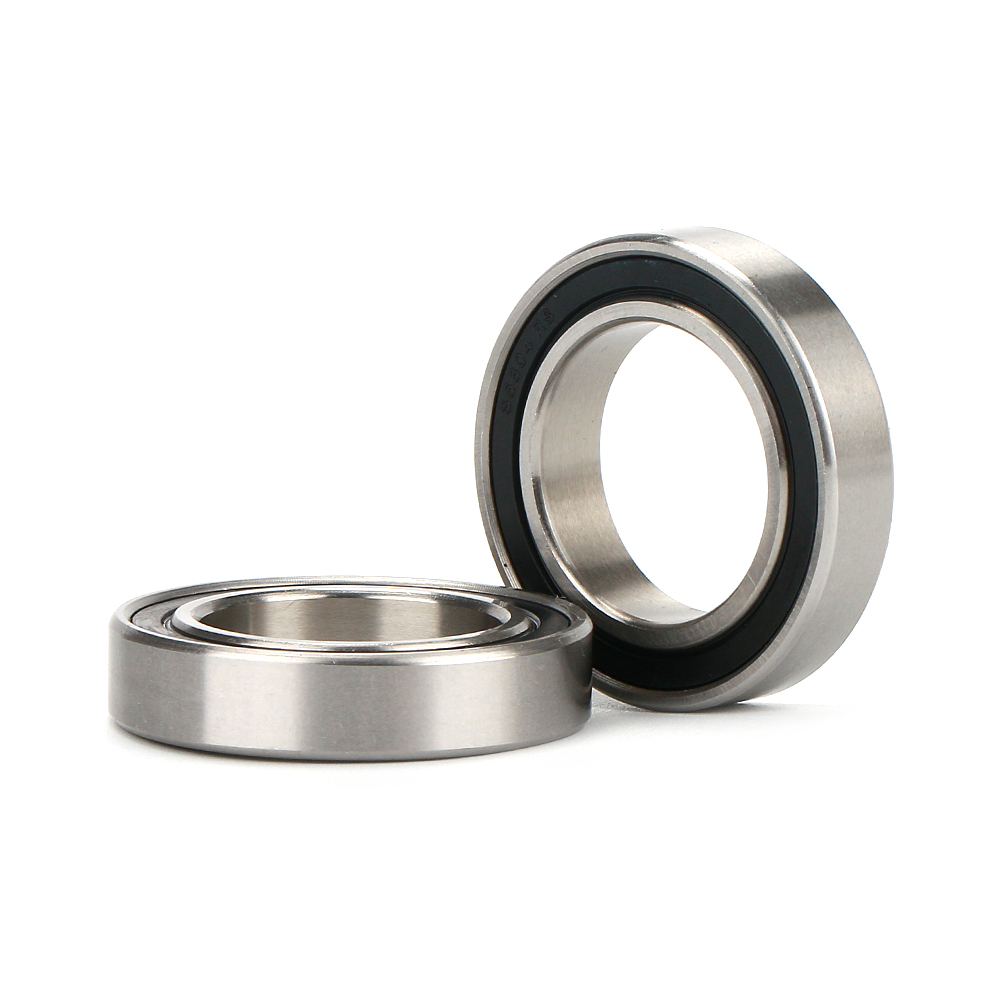

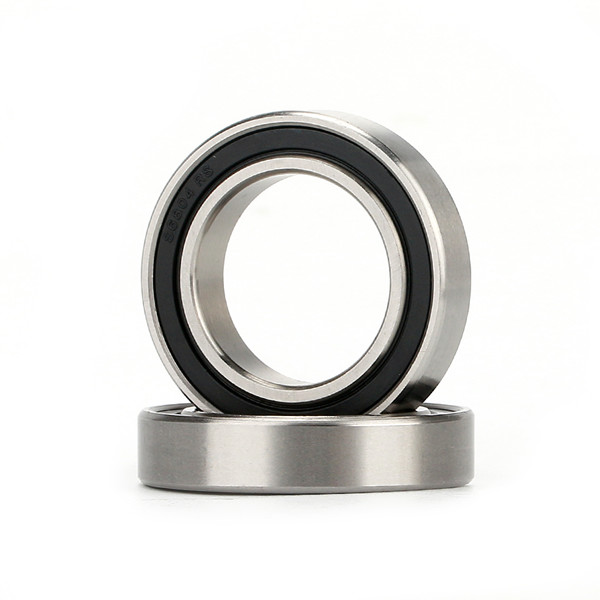

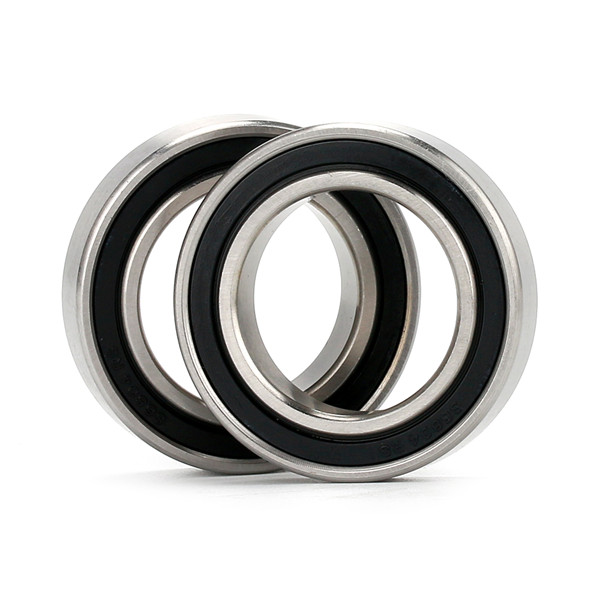

20X32X7mm deep groove ball bearing S6804 2RS
product information:
Internal diameter:20mm
External diameter:32mm
Width:7mm
Load Rating(Cor):2230 N
Load Rating(Cr):3480 N
Weight:0.019kg
Material:Chrome steel/GCr15/Stainless steel/ceramic
Sealing type: You can choose Metal seal Or Rubber seal
Is customized: Yes (Drawings required)
Related accessories: Oil seal,Circlip and housings etc.
Wholesale and freight: To provide you with accurate solutions
Product description：
S6804-2RS bearing is closed with rubber seals to protect the bearing from dust or any possible contamination, S6804-2RS bearing is sealed and self lubricated,the quality is set to EMQ (ABEC-5 quality) to ensure a high speed, S6804-2RS bearing is lubricated with grease.
The Application:
6804 bearing is mainly used for compressor, eye drops, mechanical shaft, non-metallic materials testing machine, forging, casting machinery, packaging mould, wind leaf, emergency, electronic appliances, automotive lamp equipment, such as production line.
The 6800 series deep groove ball bearing models and sizes:
| Models | ID mm | OD mm | Width mm/open | Width mm/closed | Rsmin mm | Cr N | Cor N | Weight (kg) |
| 684 | 4 | 9 | 2.5 | 4 | 0.1 | 480 | 170 | 0.001 |
| 685 | 5 | 11 | 3 | 5 | 0.15 | 770 | 320 | 0.0019 |
| 686 | 6 | 13 | 3.5 | 5 | 0.15 | 1080 | 440 | 0.0027 |
| 687 | 7 | 14 | 3.5 | 5 | 0.15 | 1170 | 510 | 0.003 |
| 688 | 8 | 16 | 4 | 5 | 0.2 | 1250 | 590 | 0.0038 |
| 689 | 9 | 17 | 4 | 5 | 0.2 | 1330 | 660 | 0.004 |
| 6800 | 10 | 19 | 5 | 5 | 0.3 | 1590 | 750 | 0.005 |
| 6801 | 12 | 21 | 5 | 5 | 0.3 | 1910 | 1040 | 0.006 |
| 6802 | 15 | 24 | 5 | 5 | 0.3 | 2070 | 1250 | 0.007 |
| 6803 | 17 | 26 | 5 | 5 | 0.3 | 2130 | 1360 | 0.008 |
| 6804 | 20 | 32 | 7 | 7 | 0.3 | 3480 | 2230 | 0.019 |
| 6805 | 25 | 37 | 7 | 7 | 0.3 | 3680 | 2630 | 0.022 |
| 6806 | 30 | 42 | 7 | 7 | 0.3 | 4000 | 3150 | 0.026 |
| 6807 | 35 | 47 | 7 | 7 | 0.3 | 4270 | 3600 | 0.029 |
| 6808 | 40 | 52 | 7 | 7 | 0.3 | 4410 | 3890 | 0.033 |
| 6809 | 45 | 58 | 7 | 7 | 0.3 | 4590 | 4330 | 0.04 |
| 6810 | 50 | 65 | 7 | 7 | 0.3 | 6610 | 6080 | 0.052 |
| 6811 | 55 | 72 | 9 | 9 | 0.3 | 8530 | 8080 | 0.083 |
| 6812 | 60 | 78 | 10 | 10 | 0.3 | 9200 | 8760 | 0.106 |
| 6813 | 65 | 85 | 10 | 10 | 0.6 | 10510 | 9420 | 0.125 |
| 6814 | 70 | 90 | 10 | 10 | 0.6 | 10890 | 10090 | 0.135 |
| 6815 | 75 | 95 | 10 | 10 | 0.6 | 11230 | 10760 | 0.145 |
| 6816 | 80 | 100 | 10 | 10 | 0.6 | 11320 | 11080 | 0.155 |
| 6817 | 85 | 110 | 13 | 13 | 1 | 17599 | 18300 | 0.265 |
| 6818 | 90 | 115 | 13 | 13 | 1 | 17853 | 18961 | 0.28 |
| 6819 | 95 | 120 | 13 | 13 | 1 | 18089 | 19616 | 0.298 |
| 6820 | 100 | 125 | 13 | 13 | 1 | 18340 | 20266 | 0.311 |
| 6821 | 105 | 130 | 13 | 13 | 1 | 18912 | 20924 | 0.325 |
| 6822 | 110 | 140 | 16 | 16 | 1 | 28100 | 30700 | 0.51 |
| 6824 | 120 | 150 | 16 | 16 | 1 | 28900 | 32900 | 0.549 |
| 6826 | 130 | 165 | 18 | 18 | 1.1 | 37900 | 42900 | 0.79 |
| 6828 | 140 | 175 | 18 | 18 | 1.1 | 65500 | 81000 | 0.99 |
| 6830 | 150 | 190 | 20 | 20 | 1.1 | 68900 | 85000 | 1.5 |
| 6832 | 160 | 200 | 20 | 20 | 1.1 | 70400 | 88200 | 1.7 |
| 6834 | 170 | 215 | 22 | 22 | 1.1 | 74800 | 90800 | 1.9 |
| 6836 | 180 | 225 | 22 | 22 | 1.1 | 78400 | 99400 | 2 |
| 6838 | 190 | 240 | 24 | 24 | 1.5 | 109500 | 140100 | 2.03 |
| 6840 | 200 | 250 | 24 | 24 | 1.5 | 114400 | 141100 | 3.38 |
| 6844 | 220 | 270 | 24 | 24 | 1.5 | 146700 | 146500 | 2.79 |
| 6848 | 240 | 300 | 28 | 28 | 2 | 158000 | 194000 | 4.5 |
| 6852 | 260 | 320 | 28 | 28 | 2 | 159300 | 205800 | 4.85 |
| 6856 | 280 | 350 | 33 | 33 | 2 | 160500 | 216900 | 7.6 |
| 6860 | 300 | 380 | 38 | 38 | 2.1 | 162000 | 222000 | 11 |
| 6864 | 320 | 400 | 38 | 38 | 2.1 | 168000 | 235000 | 12 |
| 6872 | 360 | 440 | 38 | 38 | 2.1 | 182000 | 285000 | 12.2 |
| 6876 | 380 | 480 | 46 | 46 | 2.1 | 235000 | 348000 | 20.5 |
| 6880 | 400 | 500 | 46 | 46 | 2.1 | 247000 | 405000 | 21.7 |
| 6884 | 420 | 520 | 46 | 46 | 3 | 251000 | 425000 | 22 |
| 6888 | 440 | 540 | 46 | 46 | 3 | 255000 | 432000 | 24 |
| 6892 | 460 | 580 | 56 | 56 | 3 | 322000 | 538000 | 33.5 |
