6805 2rs
YWS or OEM
OEM Customized Services
Product Details

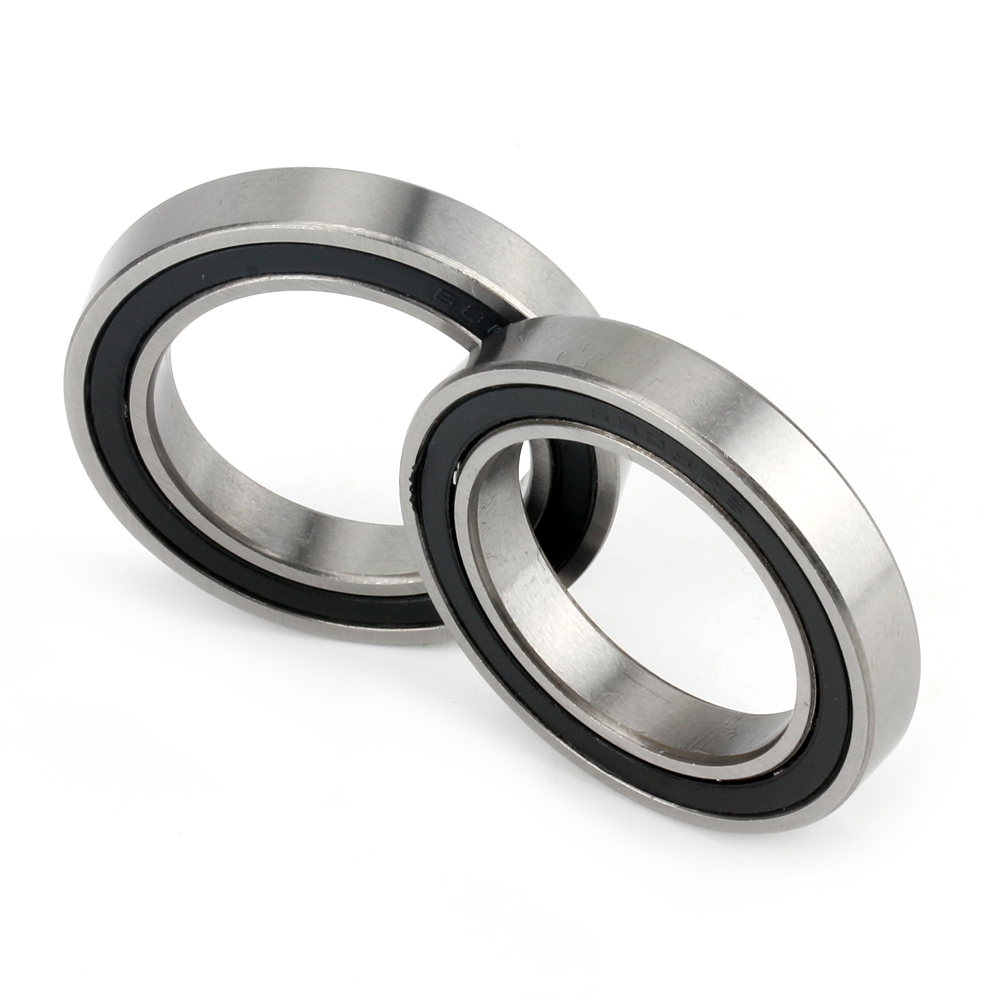

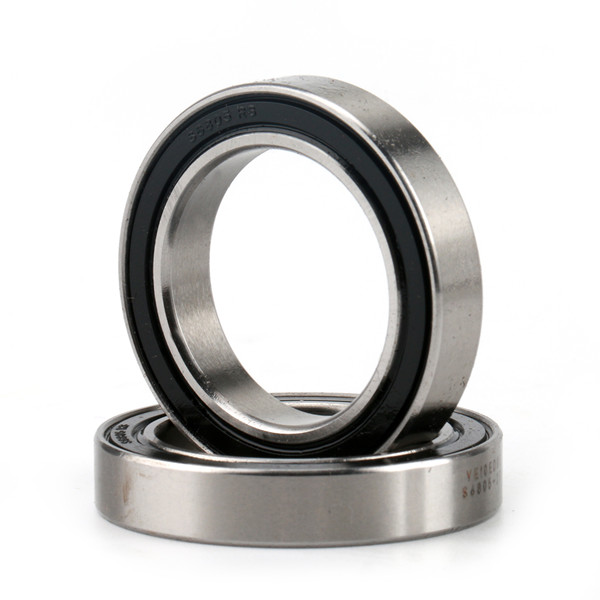

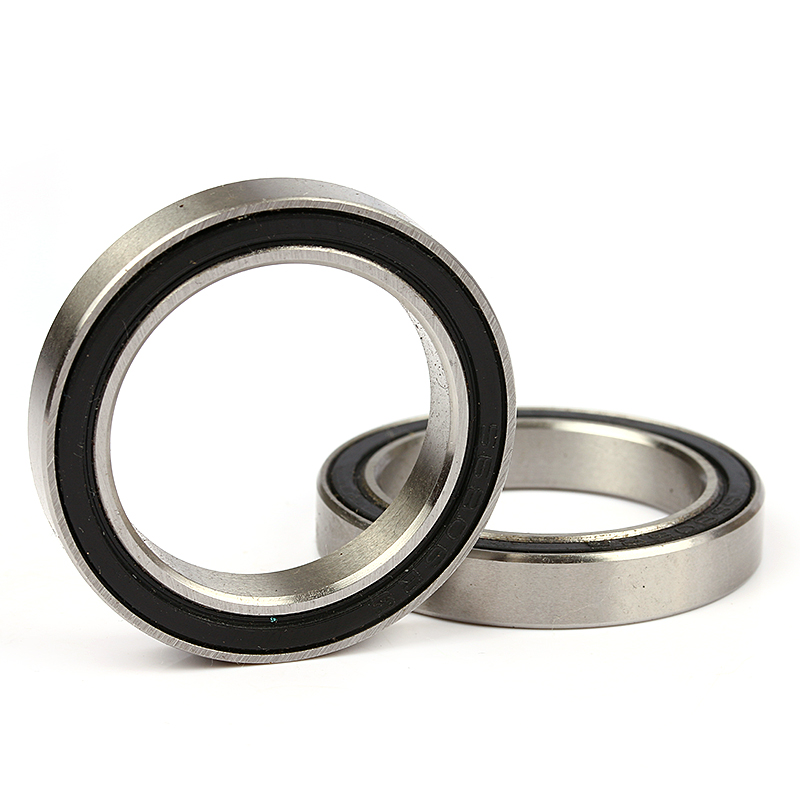

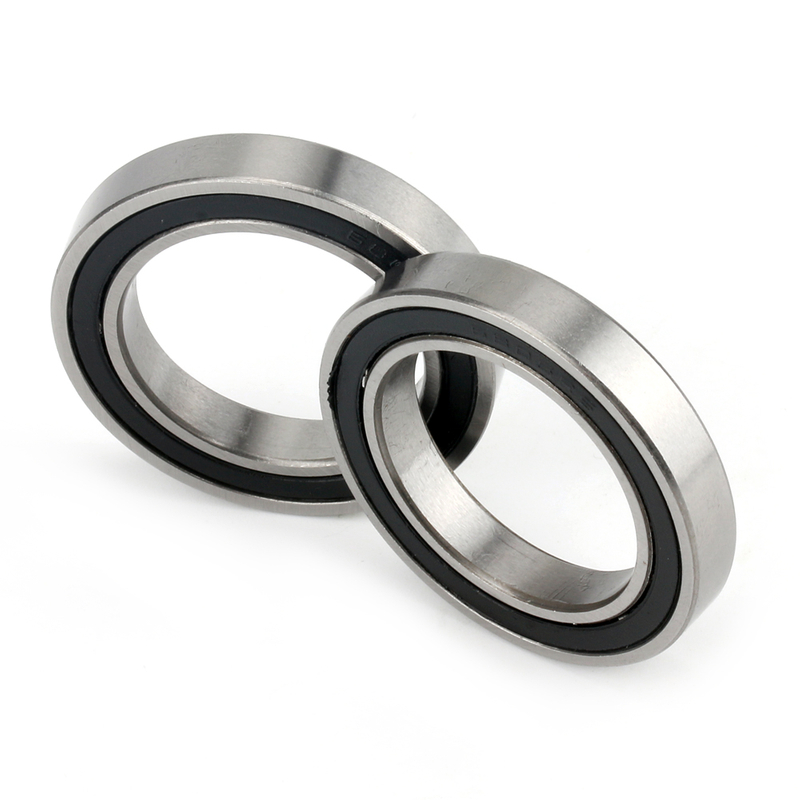

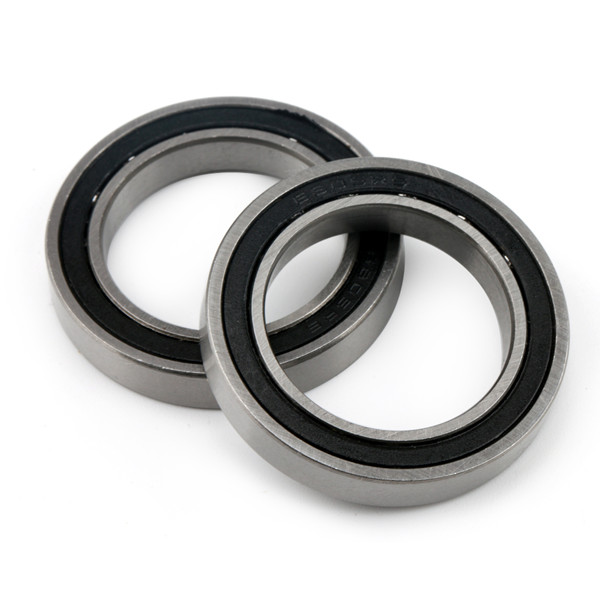

25X37X7mm deep groove ball bearing 6805
product information:
Internal diameter:25mm
External diameter:37mm
Width:7mm
Load Rating(Cor):2630 N
Load Rating(Cr):3680 N
Weight:0.022kg
Material:ceramic, plastic,stainless steel ,chrome,carbon
Sealing type: You can choose Metal seal Or Rubber seal
Is customized: Yes (Drawings required)
Related accessories: Oil seal,Circlip and housings etc.
Wholesale and freight: To provide you with accurate solutions
Product features：
These bearings are made of high quality steel for low noise and long service life.
They are rubber sealed to avoid contaminants entering and save lubricant.
Bearings have a 25mm inner diameter, a 37mm outer diameter, and a 7mm thickness.
These are great for small hobby 25mm shaft/rod projects.
The Application:
The 6805 bearing is mainly used in car: front wheel, rear wheel, transmission, differential pinion shaft. Machine tool spindle, building machinery, large agricultural machinery, railway vehicle gear speed reducer, rolling mill roll neck and reduction gear, etc.
The 6800 series deep groove ball bearing models and sizes:
| Models | ID mm | OD mm | Width mm/open | Width mm/closed | Rsmin mm | Cr N | Cor N | Weight (kg) |
| 684 | 4 | 9 | 2.5 | 4 | 0.1 | 480 | 170 | 0.001 |
| 685 | 5 | 11 | 3 | 5 | 0.15 | 770 | 320 | 0.0019 |
| 686 | 6 | 13 | 3.5 | 5 | 0.15 | 1080 | 440 | 0.0027 |
| 687 | 7 | 14 | 3.5 | 5 | 0.15 | 1170 | 510 | 0.003 |
| 688 | 8 | 16 | 4 | 5 | 0.2 | 1250 | 590 | 0.0038 |
| 689 | 9 | 17 | 4 | 5 | 0.2 | 1330 | 660 | 0.004 |
| 6800 | 10 | 19 | 5 | 5 | 0.3 | 1590 | 750 | 0.005 |
| 6801 | 12 | 21 | 5 | 5 | 0.3 | 1910 | 1040 | 0.006 |
| 6802 | 15 | 24 | 5 | 5 | 0.3 | 2070 | 1250 | 0.007 |
| 6803 | 17 | 26 | 5 | 5 | 0.3 | 2130 | 1360 | 0.008 |
| 6804 | 20 | 32 | 7 | 7 | 0.3 | 3480 | 2230 | 0.019 |
| 6805 | 25 | 37 | 7 | 7 | 0.3 | 3680 | 2630 | 0.022 |
| 6806 | 30 | 42 | 7 | 7 | 0.3 | 4000 | 3150 | 0.026 |
| 6807 | 35 | 47 | 7 | 7 | 0.3 | 4270 | 3600 | 0.029 |
| 6808 | 40 | 52 | 7 | 7 | 0.3 | 4410 | 3890 | 0.033 |
| 6809 | 45 | 58 | 7 | 7 | 0.3 | 4590 | 4330 | 0.04 |
| 6810 | 50 | 65 | 7 | 7 | 0.3 | 6610 | 6080 | 0.052 |
| 6811 | 55 | 72 | 9 | 9 | 0.3 | 8530 | 8080 | 0.083 |
| 6812 | 60 | 78 | 10 | 10 | 0.3 | 9200 | 8760 | 0.106 |
| 6813 | 65 | 85 | 10 | 10 | 0.6 | 10510 | 9420 | 0.125 |
| 6814 | 70 | 90 | 10 | 10 | 0.6 | 10890 | 10090 | 0.135 |
| 6815 | 75 | 95 | 10 | 10 | 0.6 | 11230 | 10760 | 0.145 |
| 6816 | 80 | 100 | 10 | 10 | 0.6 | 11320 | 11080 | 0.155 |
| 6817 | 85 | 110 | 13 | 13 | 1 | 17599 | 18300 | 0.265 |
| 6818 | 90 | 115 | 13 | 13 | 1 | 17853 | 18961 | 0.28 |
| 6819 | 95 | 120 | 13 | 13 | 1 | 18089 | 19616 | 0.298 |
| 6820 | 100 | 125 | 13 | 13 | 1 | 18340 | 20266 | 0.311 |
| 6821 | 105 | 130 | 13 | 13 | 1 | 18912 | 20924 | 0.325 |
| 6822 | 110 | 140 | 16 | 16 | 1 | 28100 | 30700 | 0.51 |
| 6824 | 120 | 150 | 16 | 16 | 1 | 28900 | 32900 | 0.549 |
| 6826 | 130 | 165 | 18 | 18 | 1.1 | 37900 | 42900 | 0.79 |
| 6828 | 140 | 175 | 18 | 18 | 1.1 | 65500 | 81000 | 0.99 |
| 6830 | 150 | 190 | 20 | 20 | 1.1 | 68900 | 85000 | 1.5 |
| 6832 | 160 | 200 | 20 | 20 | 1.1 | 70400 | 88200 | 1.7 |
| 6834 | 170 | 215 | 22 | 22 | 1.1 | 74800 | 90800 | 1.9 |
| 6836 | 180 | 225 | 22 | 22 | 1.1 | 78400 | 99400 | 2 |
| 6838 | 190 | 240 | 24 | 24 | 1.5 | 109500 | 140100 | 2.03 |
| 6840 | 200 | 250 | 24 | 24 | 1.5 | 114400 | 141100 | 3.38 |
| 6844 | 220 | 270 | 24 | 24 | 1.5 | 146700 | 146500 | 2.79 |
| 6848 | 240 | 300 | 28 | 28 | 2 | 158000 | 194000 | 4.5 |
| 6852 | 260 | 320 | 28 | 28 | 2 | 159300 | 205800 | 4.85 |
| 6856 | 280 | 350 | 33 | 33 | 2 | 160500 | 216900 | 7.6 |
| 6860 | 300 | 380 | 38 | 38 | 2.1 | 162000 | 222000 | 11 |
| 6864 | 320 | 400 | 38 | 38 | 2.1 | 168000 | 235000 | 12 |
| 6872 | 360 | 440 | 38 | 38 | 2.1 | 182000 | 285000 | 12.2 |
| 6876 | 380 | 480 | 46 | 46 | 2.1 | 235000 | 348000 | 20.5 |
| 6880 | 400 | 500 | 46 | 46 | 2.1 | 247000 | 405000 | 21.7 |
| 6884 | 420 | 520 | 46 | 46 | 3 | 251000 | 425000 | 22 |
| 6888 | 440 | 540 | 46 | 46 | 3 | 255000 | 432000 | 24 |
| 6892 | 460 | 580 | 56 | 56 | 3 | 322000 | 538000 | 33.5 |
