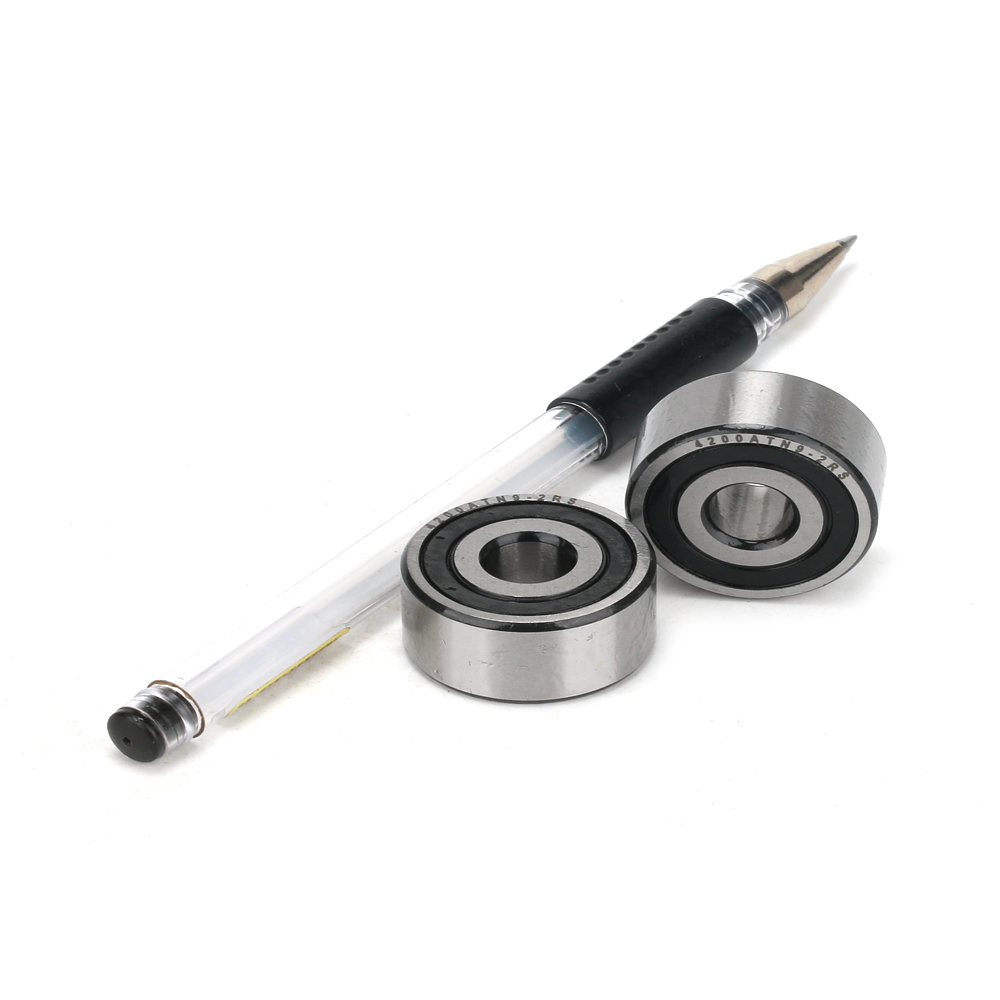

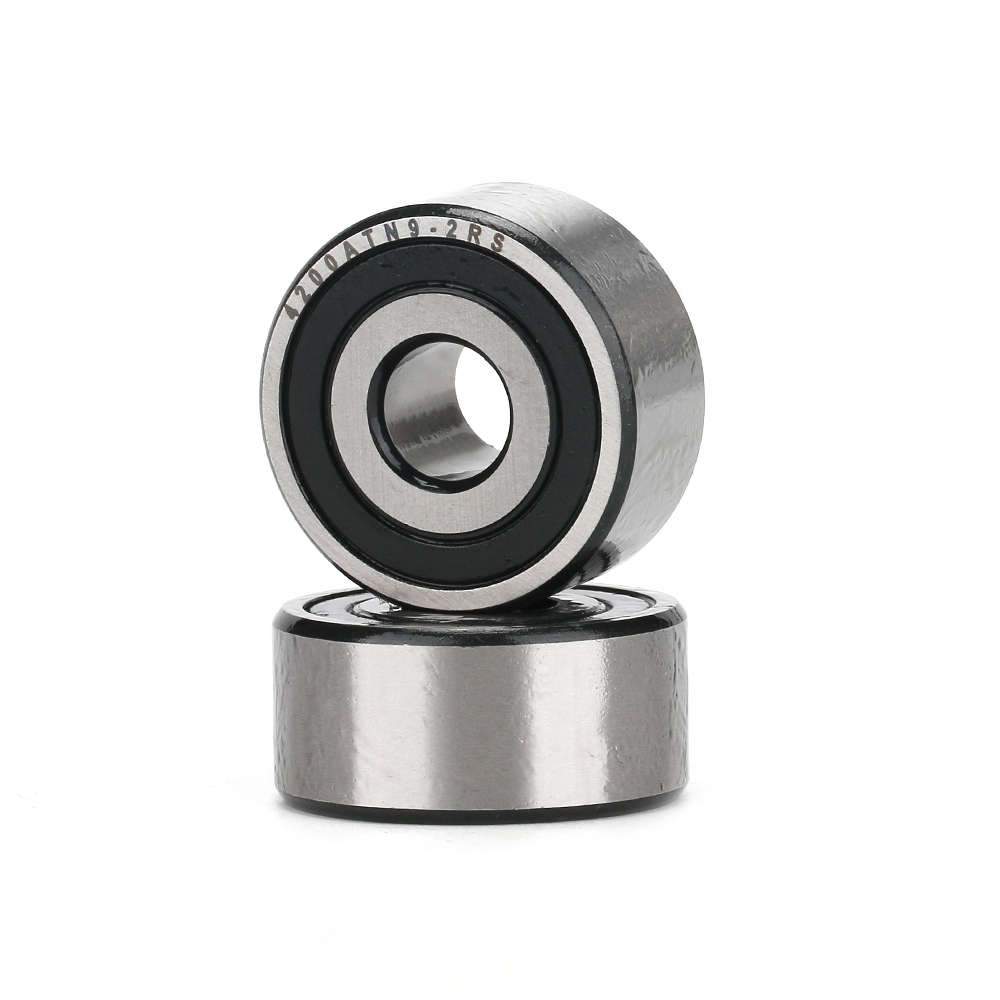

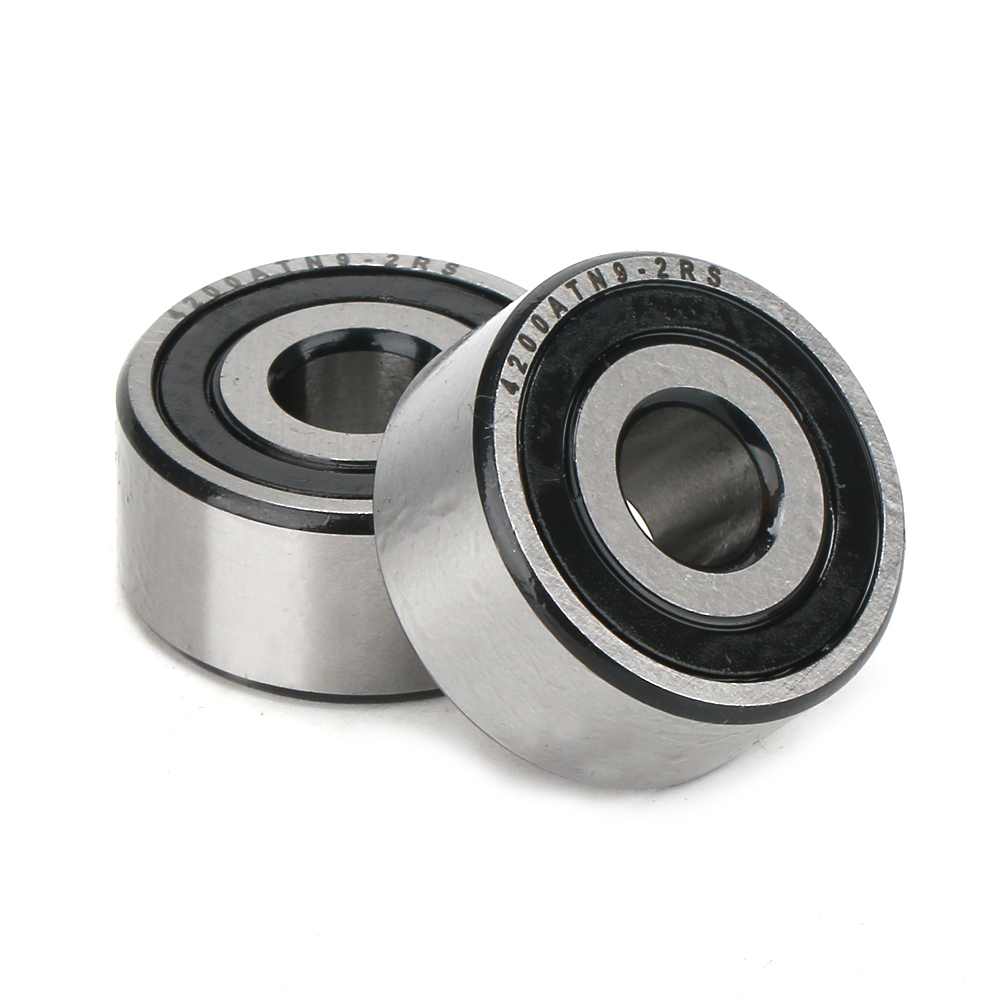

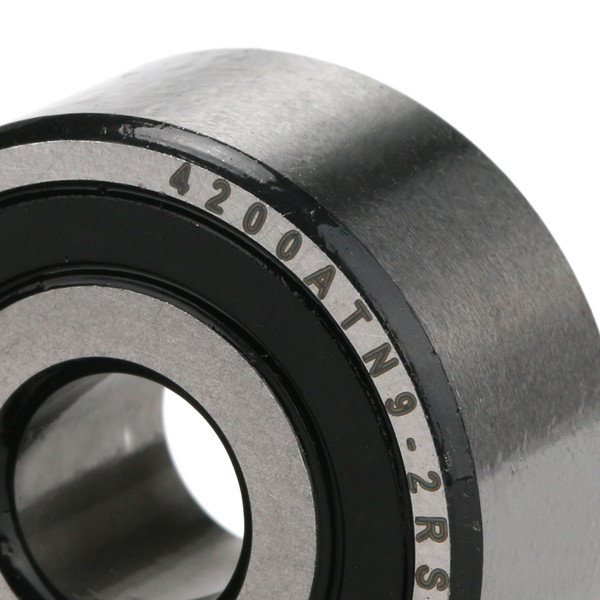

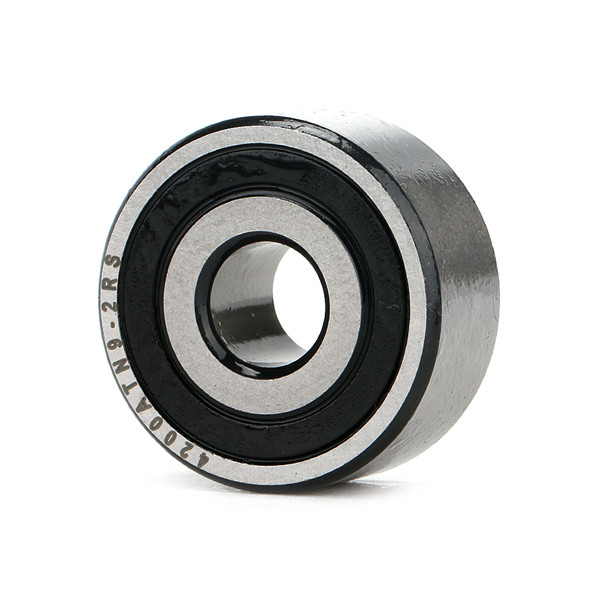

4200ATN9 double row ball bearing 10X30X14mm

4200ATN9 double row ball bearing 10X30X14mm

product information:

Structure:Deep Groove

Type:Ball, ball bearing

Brand Name:YWS

Internal diameter:10mm

External diameter:30mm

Width:14mm

size:10X30X14mm

Weight:0.049kg

Material:Chrome steel/GCr15/Stainless steel/ceramic

Sealing type: You can choose Metal seal Or Rubber seal

Is customized: Yes (Drawings required)

Related accessories: Oil seal,Circlip and housings etc.

Wholesale and freight: To provide you with accurate solutions

Product description：

Bore Diameter String:10 Millimeters  |  Outside Diameter:30 Millimeters  |  Item Width String:14 Millimeters

This 4200 series double-row deep groove ball bearing is an open bearing, and has a reinforced polyamide cage and normal clearance rating. It is suitable for applications that support high speeds, radial loads, and thrust loads in both directions. The 4200 series has a smaller cross-section than the 4300 series, making it suitable for smaller spaces, lighter loads, and higher speeds. Because it has two rows of rolling elements, this bearing provides a higher load carrying capacity than a single-row ball bearing. This bearing is made of low-alloy, through-hardened carbon chromium steel for durability and resistance to deformity under heavy loads, and has deep inner and outer races that conform to the balls that run in them, allowing higher speeds and creating lower friction than comparable-sized roller bearings. 0 Its open design facilitates lubricating the bearing in place and dissipating heat. This bearing has an injection molded snap-type cage made of polyamide 66 to prevent the balls from coming into contact with each other during use, reducing friction, vibration, and noise. This cage type can be used at operating temperatures up to 120 degrees C (250 degrees F). The bearing has a normal radial internal clearance designation, making it suitable for applications where the load and speeds do not result in thermal expansion. This clearance provides latitude for self-realignment and compensates for static and dynamic alignment errors. Additionally, the bearing is manufactured to normal tolerances in accordance with International Organization for Standardization (ISO) 492:2002 specifications. This deep-groove ball bearing is for use in commercial and industrial applications including generators, pumps, original equipment or replacement parts in motors, office automation, farm equipment, and conveyor rollers.

Product features：

Double-row, deep-groove ball bearing for applications supporting high speeds, radial loads, and thrust loads in both directions

Deep raceways keep balls stable for use with high speed applications

Open configuration for lubrication applied in place

Polyamide 66 plastic cage evenly spaces balls for reduced friction, vibration, and noise

Normal radial internal clearance for applications where thermal expansion is not a factor

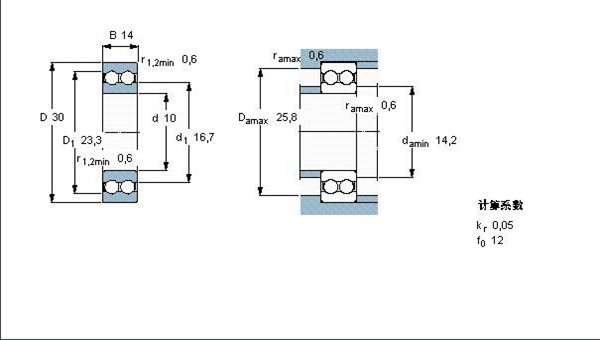

The 4200ATN9 bearing size drawing:
