6000 deep groove ball bearing 10X26X8mm

6000 deep groove ball bearing 10X26X8mm

product information:

Structure:Deep Groove

Type:Ball, ball bearing

Brand Name:YWS

Internal diameter:10mm

External diameter:26mm

Width:8mm

size:10X26X8mm

Load Rating(Cro):1780 N

Load Rating(Cr):4160 N

Weight:0.019kg

Material:Chrome steel/GCr15/Stainless steel/ceramic

Sealing type: You can choose Metal seal Or Rubber seal

Is customized: Yes (Drawings required)

Related accessories: Oil seal,Circlip and housings etc.

Wholesale and freight: To provide you with accurate solutions

Product description：

This 6000 10x26x8-millimeter sealed ball bearing has deep groove geometry for high speeds and supporting both radial and axial loads. The bearing is made of chrome steel for durability and resistance to deformity under heavy loads, and it has rubber seals on both sides of the bearing to keep lubricant in and contaminants out. It comes pre-lubricated from the manufacturer so that no additional lubrication is required. This deep-groove sealed ball bearing is suitable for use in applications that involve combined radial and axial loads and a need for high running accuracy at high rotational speeds. Such applications include clutches, drives, gearboxes, compressors, pumps, turbines, and printing and textile machines, among others.

Product features：

Deep groove geometry for high speeds and supporting both radial and axial loads

Chrome steel for durability and resistance to deformity under heavy loads

Rubber seals on both sides of the bearing to keep lubricant in and contaminants out

Lubricated at manufacturer for no additional lubrication required

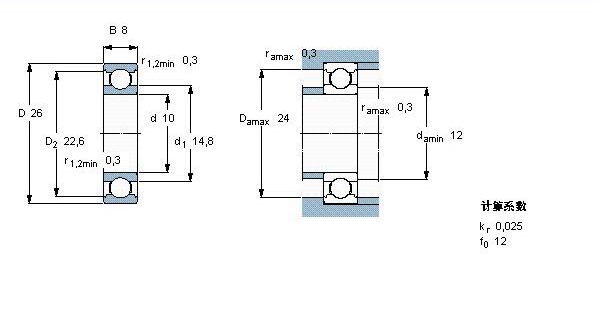

The 6000 bearing size drawing:

The Application:

The 6000 bearing is mainly used for loose material, gold floor drain, wall materials, ultrasonic processing, extraction equipment, gantry machine tool processing, test article, milling machine, nondestructive testing instrument, equipment, such as automotive etc.

The 6000 series deep groove ball bearing models and sizes:

Models	ID mm	OD mm	Width mm	Rsmin mm	Cr N	Cor N	Weight (kg)
603	3	9	3	0.2	486	223	0.0014
604	4	12	4	0.2	960	350	0.0023
605	5	14	5	0.2	1070	420	0.0037
606	6	17	6	0.3	1960	730	0.0069
607	7	19	6	0.3	2800	1060	0.0082
608	8	22	7	0.3	3290	1360	0.0129
609	9	24	7	0.3	3330	1410	0.016
6000	10	26	8	0.3	4160	1780	0.019
6001	12	28	8	0.3	5110	2380	0.022
6002	15	32	9	0.3	5590	2840	0.03
6003	17	35	10	0.3	6000	3250	0.039
6004	20	42	12	0.6	9390	5020	0.069
6005	25	47	12	0.6	10060	5860	0.08
6006	30	55	13	1	11900	7460	0.116
6007	35	62	14	1	16210	10420	0.155
6008	40	68	15	1	17030	11700	0.192
6009	45	75	16	1	21080	14780	0.245
6010	50	80	16	1	22000	16260	0.261
6011	55	90	18	1.1	31500	18400	0.384
6012	60	95	18	1.1	30000	23000	0.426
6013	65	100	18	1.1	32000	25000	0.428
6014	70	110	20	1.1	38000	31000	0.62
6015	75	115	20	1.1	38000	31000	0.63
6016	80	125	22	1.1	47500	40000	0.86
6017	85	130	22	1.1	47500	40000	0.935
6018	90	140	24	1.5	63800	59000	1.38
6019	95	145	24	1.5	66700	62300	1.5
6020	100	150	24	1.5	72500	70000	1.63
6022	110	170	28	2	80000	78900	2.35
6024	120	180	28	2	81000	81000	2.62
6026	130	200	33	2	96800	100000	3.55
6028	140	210	33	2	123700	130000	4.21
6030	150	225	35	2.1	132000	125000	4.9
6032	160	245	38	2.1	145000	138000	5.89
6034	170	260	42	2.1	170000	170000	6.5
6036	180	280	46	2.1	188000	198000	8.51
6038	190	290	46	2.1	188000	200000	8.86
6040	200	310	51	2.1	205000	225000	11.64
6044	220	340	56	3	252000	268000	18
6048	240	360	56	3	270000	292000	20
6052	260	400	65	4	292000	372000	28.2
6056	280	420	65	4	305000	408000	32.1
