6004 zz
YWS or OEM
OEM Customized Services
Product Details

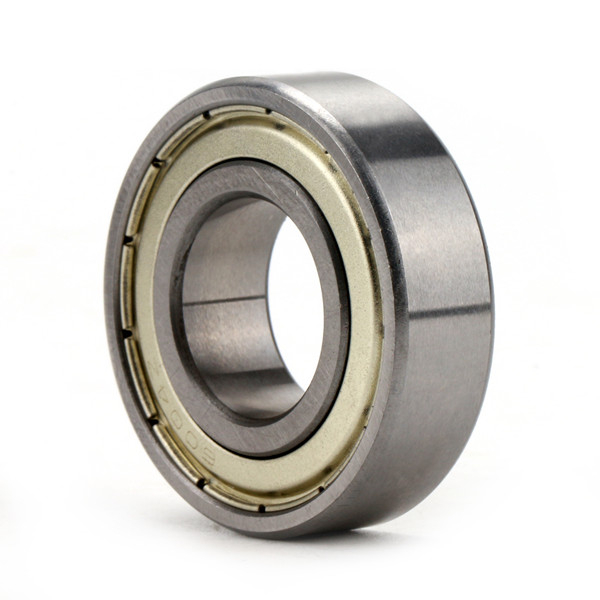

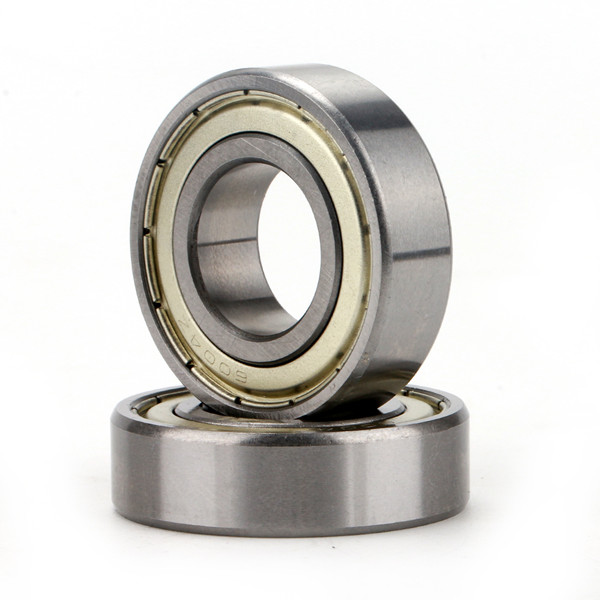

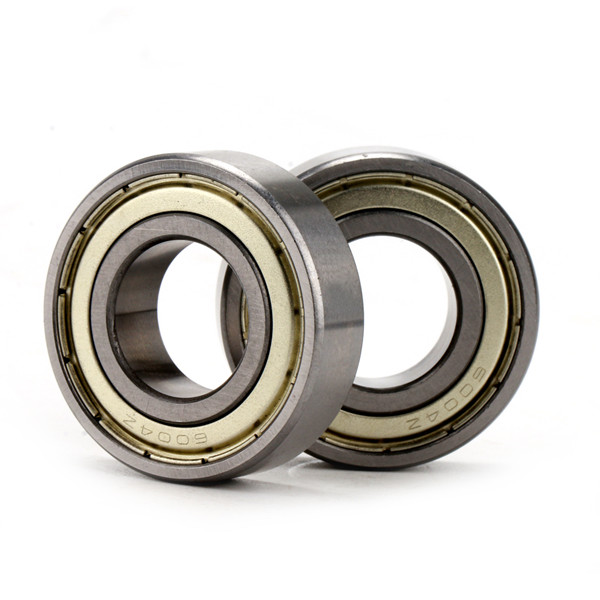

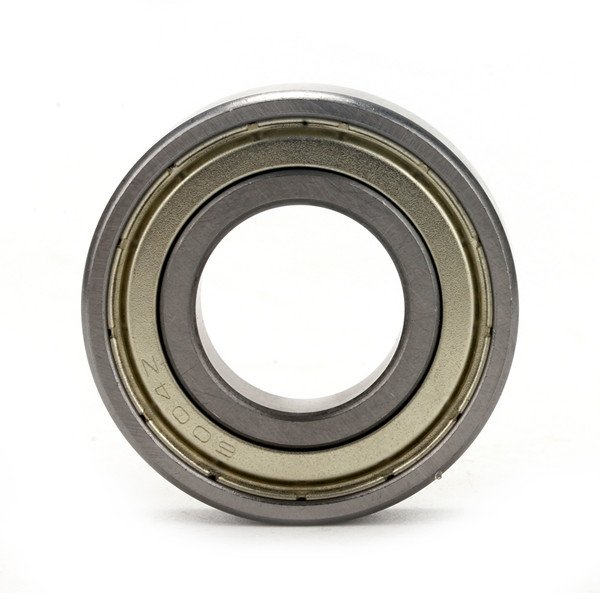

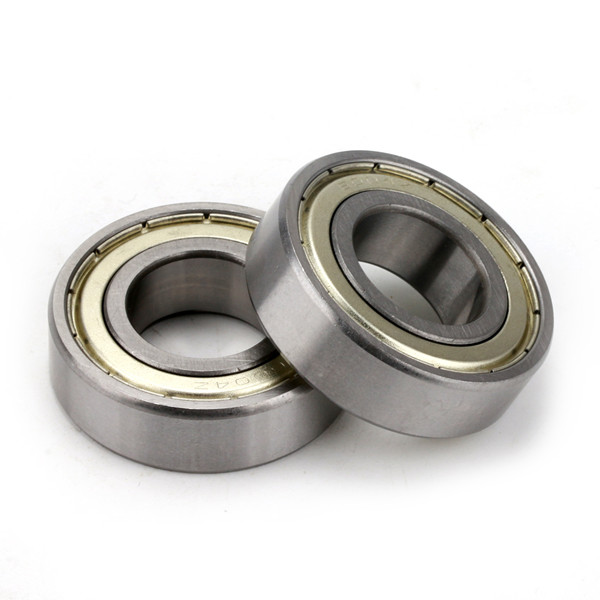

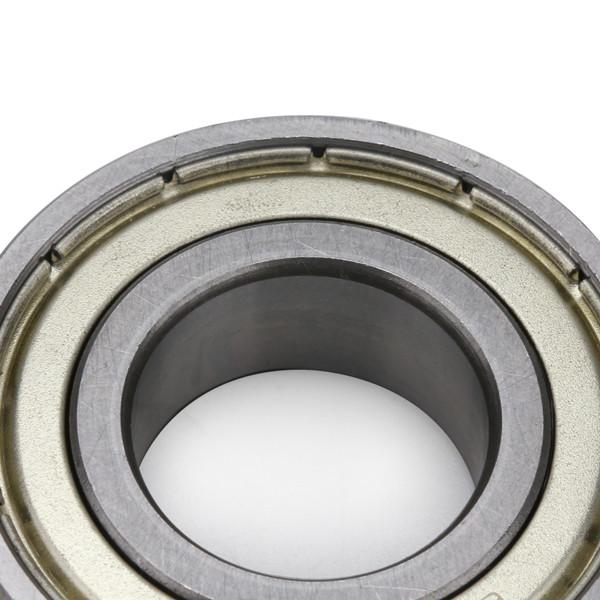

6004 zz deep groove ball bearing 20X42X12mm
product information:
Structure:Deep Groove
Type:Ball, ball bearing
Brand Name:YWS
Internal diameter:20mm
External diameter:42mm
Width:12mm
size:20X42X12mm
weight：0.069kg
Load Rating(Cor):5020 N
Load Rating(Cr):9390 N
Material:Chrome steel/GCr15/Stainless steel/ceramic
Sealing type: You can choose Metal seal Or Rubber seal
Is customized: Yes (Drawings required)
Related accessories: Oil seal,Circlip and housings etc.
Wholesale and freight: To provide you with accurate solutions
Product description：
Single-row, pre-lubricated, normal accuracy.
Deep Groove Ball Bearings are one of the most widely used rolling bearings. They are used to accommodate radial and axial loads in both directions.
With small friction and high-limit speed, Ball Bearings are cost-effective and require little maintenance.
Chromium Steel (GCr15) made with heat treating, provides high and uniform hardness, good wear resistance, and high contact fatigue performance.
Suitable for all kinds of industrial equipment, micro motor, small rotary motor, office equipment and so on.
The Application:
The 6004 bearing can be used for transmission, instruments and meters, electric machinery, household electrical appliances, internal combustion engines, transportation vehicles, agricultural machinery, construction machinery, engineering machinery, etc.
The 6000 series deep groove ball bearing models and sizes:
| Models | ID mm | OD mm | Width mm | Rsmin mm | Cr N | Cor N | Weight (kg) |
| 603 | 3 | 9 | 3 | 0.2 | 486 | 223 | 0.0014 |
| 604 | 4 | 12 | 4 | 0.2 | 960 | 350 | 0.0023 |
| 605 | 5 | 14 | 5 | 0.2 | 1070 | 420 | 0.0037 |
| 606 | 6 | 17 | 6 | 0.3 | 1960 | 730 | 0.0069 |
| 607 | 7 | 19 | 6 | 0.3 | 2800 | 1060 | 0.0082 |
| 608 | 8 | 22 | 7 | 0.3 | 3290 | 1360 | 0.0129 |
| 609 | 9 | 24 | 7 | 0.3 | 3330 | 1410 | 0.016 |
| 6000 | 10 | 26 | 8 | 0.3 | 4160 | 1780 | 0.019 |
| 6001 | 12 | 28 | 8 | 0.3 | 5110 | 2380 | 0.022 |
| 6002 | 15 | 32 | 9 | 0.3 | 5590 | 2840 | 0.03 |
| 6003 | 17 | 35 | 10 | 0.3 | 6000 | 3250 | 0.039 |
| 6004 | 20 | 42 | 12 | 0.6 | 9390 | 5020 | 0.069 |
| 6005 | 25 | 47 | 12 | 0.6 | 10060 | 5860 | 0.08 |
| 6006 | 30 | 55 | 13 | 1 | 11900 | 7460 | 0.116 |
| 6007 | 35 | 62 | 14 | 1 | 16210 | 10420 | 0.155 |
| 6008 | 40 | 68 | 15 | 1 | 17030 | 11700 | 0.192 |
| 6009 | 45 | 75 | 16 | 1 | 21080 | 14780 | 0.245 |
| 6010 | 50 | 80 | 16 | 1 | 22000 | 16260 | 0.261 |
| 6011 | 55 | 90 | 18 | 1.1 | 31500 | 18400 | 0.384 |
| 6012 | 60 | 95 | 18 | 1.1 | 30000 | 23000 | 0.426 |
| 6013 | 65 | 100 | 18 | 1.1 | 32000 | 25000 | 0.428 |
| 6014 | 70 | 110 | 20 | 1.1 | 38000 | 31000 | 0.62 |
| 6015 | 75 | 115 | 20 | 1.1 | 38000 | 31000 | 0.63 |
| 6016 | 80 | 125 | 22 | 1.1 | 47500 | 40000 | 0.86 |
| 6017 | 85 | 130 | 22 | 1.1 | 47500 | 40000 | 0.935 |
| 6018 | 90 | 140 | 24 | 1.5 | 63800 | 59000 | 1.38 |
| 6019 | 95 | 145 | 24 | 1.5 | 66700 | 62300 | 1.5 |
| 6020 | 100 | 150 | 24 | 1.5 | 72500 | 70000 | 1.63 |
| 6022 | 110 | 170 | 28 | 2 | 80000 | 78900 | 2.35 |
| 6024 | 120 | 180 | 28 | 2 | 81000 | 81000 | 2.62 |
| 6026 | 130 | 200 | 33 | 2 | 96800 | 100000 | 3.55 |
| 6028 | 140 | 210 | 33 | 2 | 123700 | 130000 | 4.21 |
| 6030 | 150 | 225 | 35 | 2.1 | 132000 | 125000 | 4.9 |
| 6032 | 160 | 245 | 38 | 2.1 | 145000 | 138000 | 5.89 |
| 6034 | 170 | 260 | 42 | 2.1 | 170000 | 170000 | 6.5 |
| 6036 | 180 | 280 | 46 | 2.1 | 188000 | 198000 | 8.51 |
| 6038 | 190 | 290 | 46 | 2.1 | 188000 | 200000 | 8.86 |
| 6040 | 200 | 310 | 51 | 2.1 | 205000 | 225000 | 11.64 |
| 6044 | 220 | 340 | 56 | 3 | 252000 | 268000 | 18 |
| 6048 | 240 | 360 | 56 | 3 | 270000 | 292000 | 20 |
| 6052 | 260 | 400 | 65 | 4 | 292000 | 372000 | 28.2 |
| 6056 | 280 | 420 | 65 | 4 | 305000 | 408000 | 32.1 |
Sincerely welcome you to send enquiry to us!!!
