608 ZZ
YWS or OEM
OEM Customized Services
Product Details

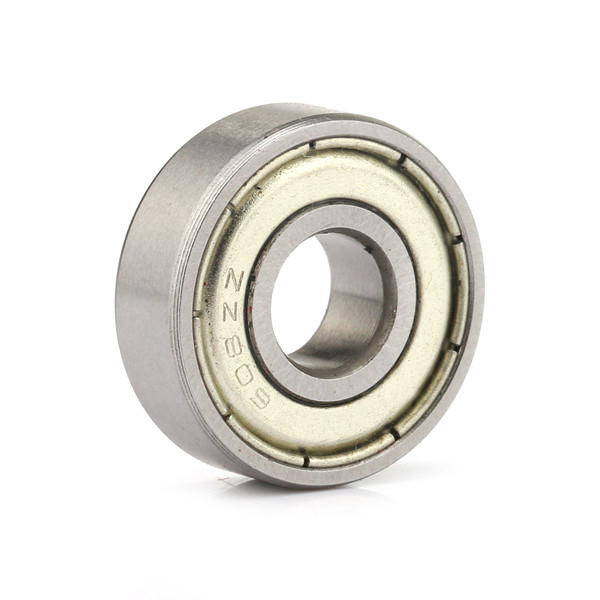

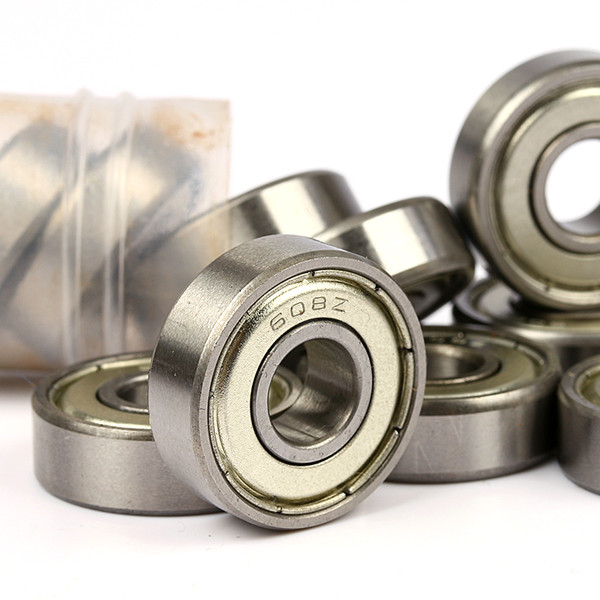

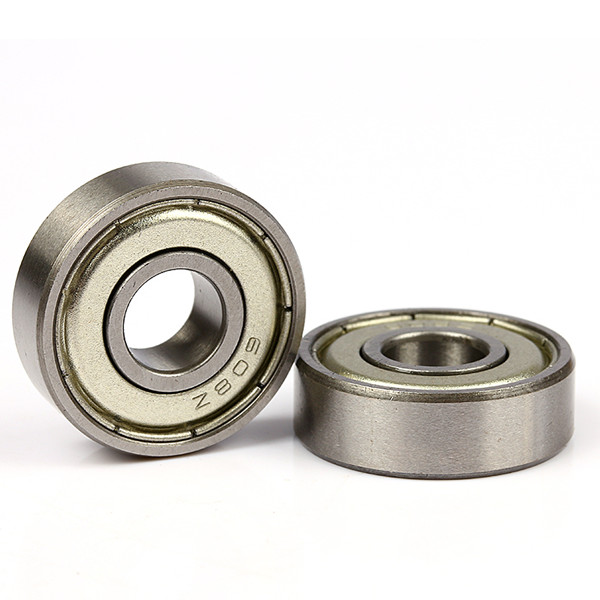

608 zz deep groove ball bearing 8X22X7mm
product information:
Internal diameter:8mm
External diameter:22mm
Width:7mm
Load Rating(Cor):1360 N
Load Rating(Cr):3290 N
Steel ball: 7pcs
Ball diameter:3.969mm
Weight:0.129kg
Material: Carbon steel, Chrome steel, Stainless steel, Plastic, etc.
Product features:
Single-row bearing for supporting radial loads
Shields on both sides of the bearing to keep lubricant in and contaminants out
Carbon steel for durability and resistance to deformity under heavy loads
34,000 rpm limit with grease lubrication
Dimensions suitable for use in such applications as skateboards, inline skates, and scooters
Product description：
This 608ZZ shielded 8x22x7 miniature ball bearing is a single-row bearing for supporting radial loads. The bearing is made of carbon steel for durability and resistance to deformity under heavy loads, and is shielded to keep lubricant in and contaminants out.
it has a revolutions per minute (RPM) limit of 34,000 with grease lubrication. The dimensions of this bearing make it suitable for use in skateboards, inline skates, and scooters, among others.
Other 6000 series bearing models and sizes:
| Models | ID mm | OD mm | Width mm | Rsmin mm | Cr N | Cor N | Weight (kg) |
| 603 | 3 | 9 | 3 | 0.2 | 486 | 223 | 0.0014 |
| 604 | 4 | 12 | 4 | 0.2 | 960 | 350 | 0.0023 |
| 605 | 5 | 14 | 5 | 0.2 | 1070 | 420 | 0.0037 |
| 606 | 6 | 17 | 6 | 0.3 | 1960 | 730 | 0.0069 |
| 607 | 7 | 19 | 6 | 0.3 | 2800 | 1060 | 0.0082 |
| 608 | 8 | 22 | 7 | 0.3 | 3290 | 1360 | 0.0129 |
| 609 | 9 | 24 | 7 | 0.3 | 3330 | 1410 | 0.016 |
| 6000 | 10 | 26 | 8 | 0.3 | 4160 | 1780 | 0.019 |
| 6001 | 12 | 28 | 8 | 0.3 | 5110 | 2380 | 0.022 |
| 6002 | 15 | 32 | 9 | 0.3 | 5590 | 2840 | 0.03 |
| 6003 | 17 | 35 | 10 | 0.3 | 6000 | 3250 | 0.039 |
| 6004 | 20 | 42 | 12 | 0.6 | 9390 | 5020 | 0.069 |
| 6005 | 25 | 47 | 12 | 0.6 | 10060 | 5860 | 0.08 |
| 6006 | 30 | 55 | 13 | 1 | 11900 | 7460 | 0.116 |
| 6007 | 35 | 62 | 14 | 1 | 16210 | 10420 | 0.155 |
| 6008 | 40 | 68 | 15 | 1 | 17030 | 11700 | 0.192 |
| 6009 | 45 | 75 | 16 | 1 | 21080 | 14780 | 0.245 |
| 6010 | 50 | 80 | 16 | 1 | 22000 | 16260 | 0.261 |
| 6011 | 55 | 90 | 18 | 1.1 | 31500 | 18400 | 0.384 |
| 6012 | 60 | 95 | 18 | 1.1 | 30000 | 23000 | 0.426 |
| 6013 | 65 | 100 | 18 | 1.1 | 32000 | 25000 | 0.428 |
| 6014 | 70 | 110 | 20 | 1.1 | 38000 | 31000 | 0.62 |
| 6015 | 75 | 115 | 20 | 1.1 | 38000 | 31000 | 0.63 |
| 6016 | 80 | 125 | 22 | 1.1 | 47500 | 40000 | 0.86 |
| 6017 | 85 | 130 | 22 | 1.1 | 47500 | 40000 | 0.935 |
| 6018 | 90 | 140 | 24 | 1.5 | 63800 | 59000 | 1.38 |
| 6019 | 95 | 145 | 24 | 1.5 | 66700 | 62300 | 1.5 |
| 6020 | 100 | 150 | 24 | 1.5 | 72500 | 70000 | 1.63 |
| 6022 | 110 | 170 | 28 | 2 | 80000 | 78900 | 2.35 |
| 6024 | 120 | 180 | 28 | 2 | 81000 | 81000 | 2.62 |
| 6026 | 130 | 200 | 33 | 2 | 96800 | 100000 | 3.55 |
| 6028 | 140 | 210 | 33 | 2 | 123700 | 130000 | 4.21 |
| 6030 | 150 | 225 | 35 | 2.1 | 132000 | 125000 | 4.9 |
| 6032 | 160 | 245 | 38 | 2.1 | 145000 | 138000 | 5.89 |
| 6034 | 170 | 260 | 42 | 2.1 | 170000 | 170000 | 6.5 |
| 6036 | 180 | 280 | 46 | 2.1 | 188000 | 198000 | 8.51 |
| 6038 | 190 | 290 | 46 | 2.1 | 188000 | 200000 | 8.86 |
| 6040 | 200 | 310 | 51 | 2.1 | 205000 | 225000 | 11.64 |
| 6044 | 220 | 340 | 56 | 3 | 252000 | 268000 | 18 |
| 6048 | 240 | 360 | 56 | 3 | 270000 | 292000 | 20 |
| 6052 | 260 | 400 | 65 | 4 | 292000 | 372000 | 28.2 |
| 6056 | 280 | 420 | 65 | 4 | 305000 | 408000 | 32.1 |
