Product Details

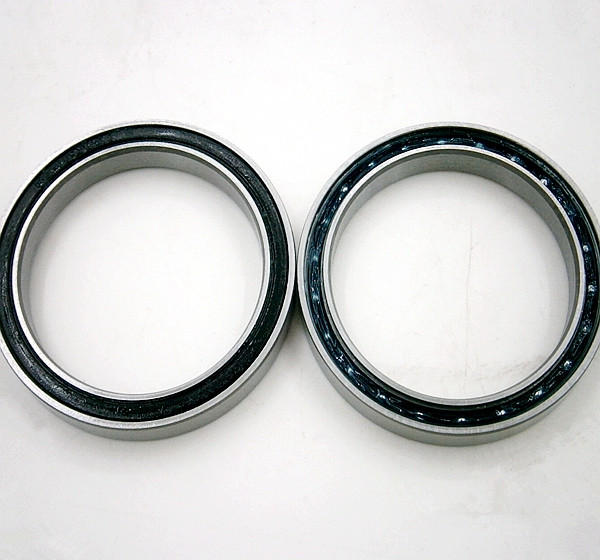

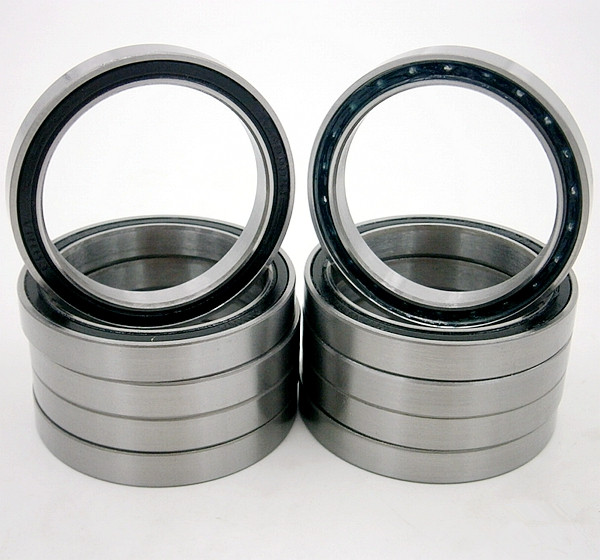

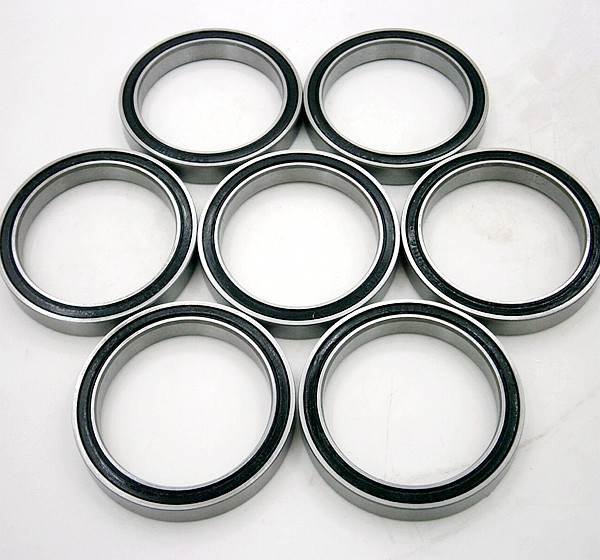

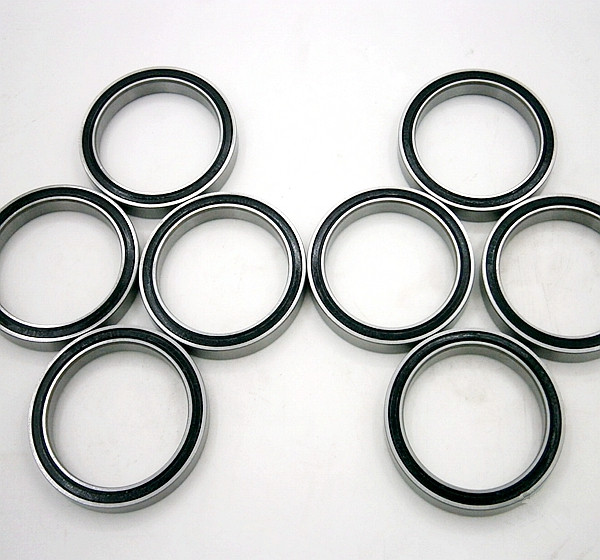

6816 deep groove ball bearing 80X100X10mm
Data Sheet
Internal diameter:80mm
External diameter:100mm
Width:10mm
Load Rating(Cor):11080 N
Load Rating(Cr):11320 N
Weight:0.155kg
The Application: the 6816 bearing is mainly used in hydraulic oil cylinder, forging machine tools, engineering machinery, automation equipment, woodworking machinery, machine tool spindle, deceleration machine, large agricultural machinery, mechanical equipment, electrical appliances, printing machinery, woodworking machinery, cranes, industrial supplies.

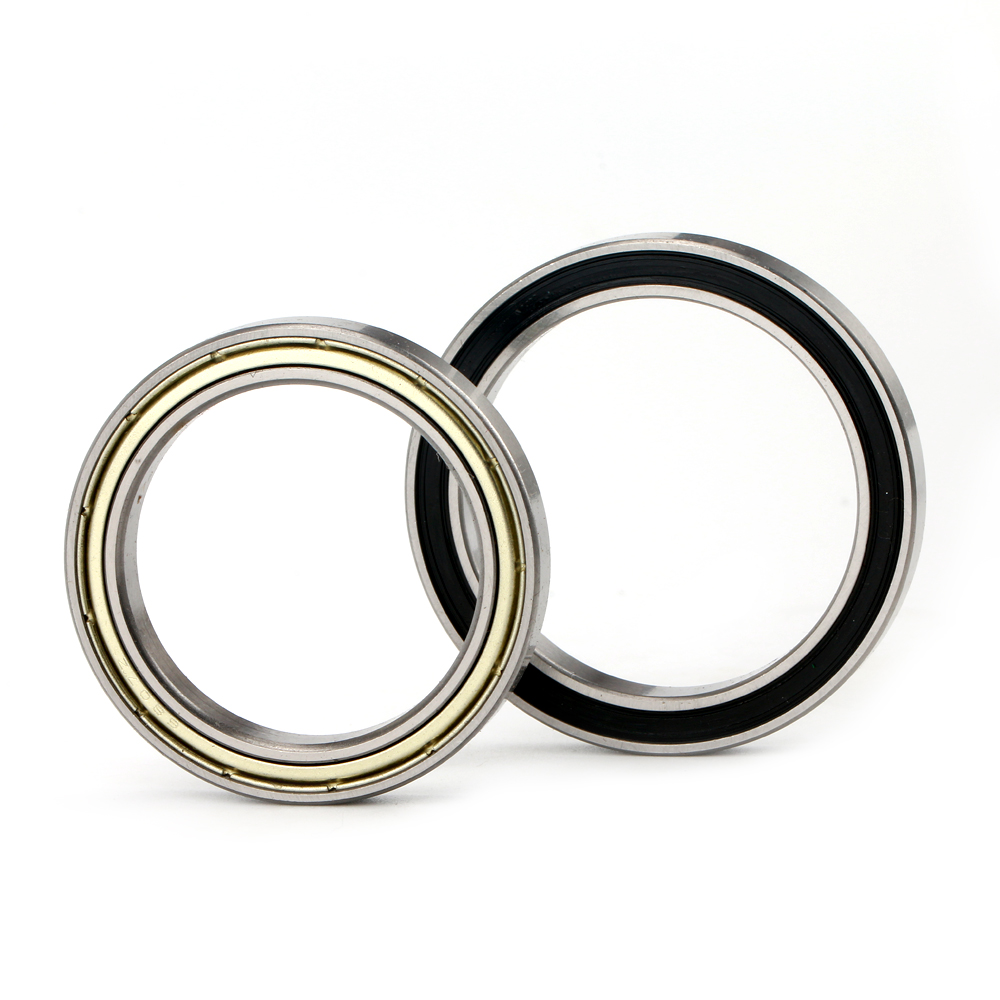

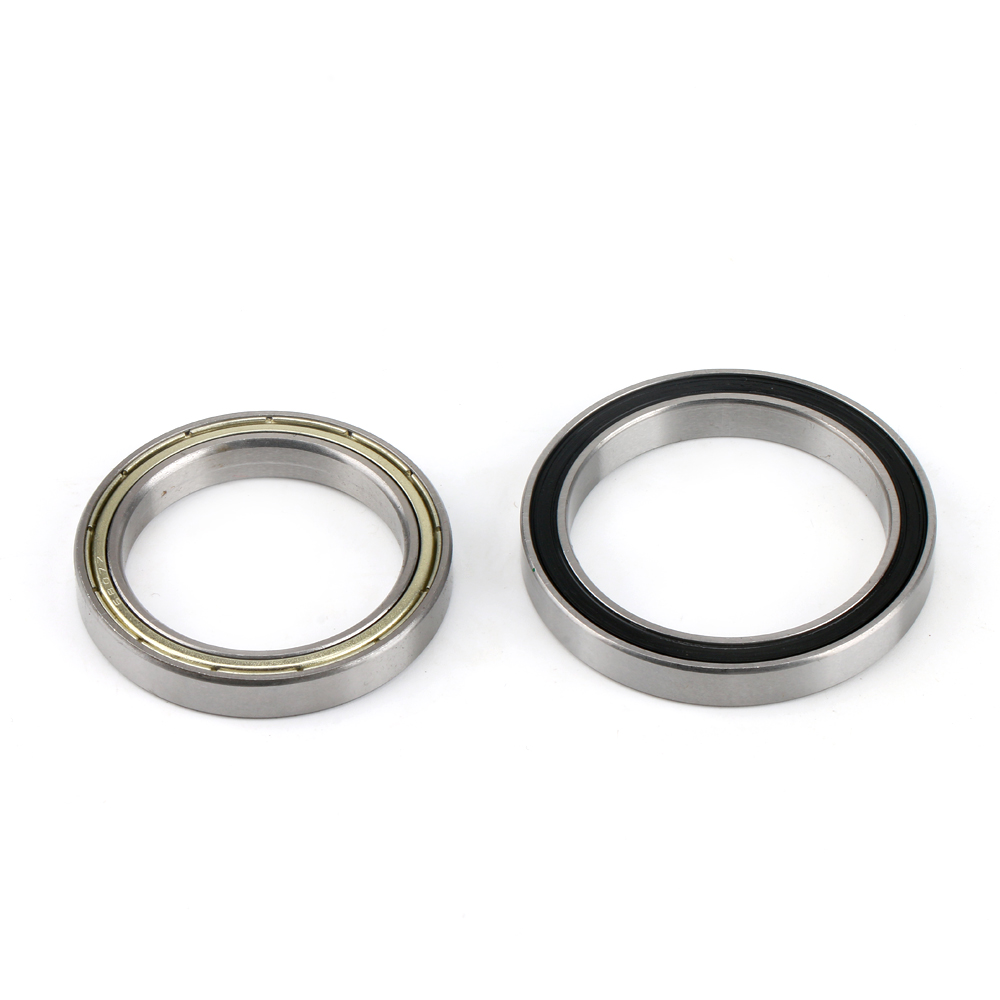

The 6800 series deep groove ball bearing models and sizes:
| Models | ID mm | OD mm | Width mm/open | Width mm/closed | Rsmin mm | Cr N | Cor N | Weight (kg) |
| 684 | 4 | 9 | 2.5 | 4 | 0.1 | 480 | 170 | 0.001 |
| 685 | 5 | 11 | 3 | 5 | 0.15 | 770 | 320 | 0.0019 |
| 686 | 6 | 13 | 3.5 | 5 | 0.15 | 1080 | 440 | 0.0027 |
| 687 | 7 | 14 | 3.5 | 5 | 0.15 | 1170 | 510 | 0.003 |
| 688 | 8 | 16 | 4 | 5 | 0.2 | 1250 | 590 | 0.0038 |
| 689 | 9 | 17 | 4 | 5 | 0.2 | 1330 | 660 | 0.004 |
| 6800 | 10 | 19 | 5 | 5 | 0.3 | 1590 | 750 | 0.005 |
| 6801 | 12 | 21 | 5 | 5 | 0.3 | 1910 | 1040 | 0.006 |
| 6802 | 15 | 24 | 5 | 5 | 0.3 | 2070 | 1250 | 0.007 |
| 6803 | 17 | 26 | 5 | 5 | 0.3 | 2130 | 1360 | 0.008 |
| 6804 | 20 | 32 | 7 | 7 | 0.3 | 3480 | 2230 | 0.019 |
| 6805 | 25 | 37 | 7 | 7 | 0.3 | 3680 | 2630 | 0.022 |
| 6806 | 30 | 42 | 7 | 7 | 0.3 | 4000 | 3150 | 0.026 |
| 6807 | 35 | 47 | 7 | 7 | 0.3 | 4270 | 3600 | 0.029 |
| 6808 | 40 | 52 | 7 | 7 | 0.3 | 4410 | 3890 | 0.033 |
| 6809 | 45 | 58 | 7 | 7 | 0.3 | 4590 | 4330 | 0.04 |
| 6810 | 50 | 65 | 7 | 7 | 0.3 | 6610 | 6080 | 0.052 |
| 6811 | 55 | 72 | 9 | 9 | 0.3 | 8530 | 8080 | 0.083 |
| 6812 | 60 | 78 | 10 | 10 | 0.3 | 9200 | 8760 | 0.106 |
| 6813 | 65 | 85 | 10 | 10 | 0.6 | 10510 | 9420 | 0.125 |
| 6814 | 70 | 90 | 10 | 10 | 0.6 | 10890 | 10090 | 0.135 |
| 6815 | 75 | 95 | 10 | 10 | 0.6 | 11230 | 10760 | 0.145 |
| 6816 | 80 | 100 | 10 | 10 | 0.6 | 11320 | 11080 | 0.155 |
| 6817 | 85 | 110 | 13 | 13 | 1 | 17599 | 18300 | 0.265 |
| 6818 | 90 | 115 | 13 | 13 | 1 | 17853 | 18961 | 0.28 |
| 6819 | 95 | 120 | 13 | 13 | 1 | 18089 | 19616 | 0.298 |
| 6820 | 100 | 125 | 13 | 13 | 1 | 18340 | 20266 | 0.311 |
| 6821 | 105 | 130 | 13 | 13 | 1 | 18912 | 20924 | 0.325 |
| 6822 | 110 | 140 | 16 | 16 | 1 | 28100 | 30700 | 0.51 |
| 6824 | 120 | 150 | 16 | 16 | 1 | 28900 | 32900 | 0.549 |
| 6826 | 130 | 165 | 18 | 18 | 1.1 | 37900 | 42900 | 0.79 |
| 6828 | 140 | 175 | 18 | 18 | 1.1 | 65500 | 81000 | 0.99 |
| 6830 | 150 | 190 | 20 | 20 | 1.1 | 68900 | 85000 | 1.5 |
| 6832 | 160 | 200 | 20 | 20 | 1.1 | 70400 | 88200 | 1.7 |
| 6834 | 170 | 215 | 22 | 22 | 1.1 | 74800 | 90800 | 1.9 |
| 6836 | 180 | 225 | 22 | 22 | 1.1 | 78400 | 99400 | 2 |
| 6838 | 190 | 240 | 24 | 24 | 1.5 | 109500 | 140100 | 2.03 |
| 6840 | 200 | 250 | 24 | 24 | 1.5 | 114400 | 141100 | 3.38 |
| 6844 | 220 | 270 | 24 | 24 | 1.5 | 146700 | 146500 | 2.79 |
| 6848 | 240 | 300 | 28 | 28 | 2 | 158000 | 194000 | 4.5 |
| 6852 | 260 | 320 | 28 | 28 | 2 | 159300 | 205800 | 4.85 |
| 6856 | 280 | 350 | 33 | 33 | 2 | 160500 | 216900 | 7.6 |
| 6860 | 300 | 380 | 38 | 38 | 2.1 | 162000 | 222000 | 11 |
| 6864 | 320 | 400 | 38 | 38 | 2.1 | 168000 | 235000 | 12 |
| 6872 | 360 | 440 | 38 | 38 | 2.1 | 182000 | 285000 | 12.2 |
| 6876 | 380 | 480 | 46 | 46 | 2.1 | 235000 | 348000 | 20.5 |
| 6880 | 400 | 500 | 46 | 46 | 2.1 | 247000 | 405000 | 21.7 |
| 6884 | 420 | 520 | 46 | 46 | 3 | 251000 | 425000 | 22 |
| 6888 | 440 | 540 | 46 | 46 | 3 | 255000 | 432000 | 24 |
| 6892 | 460 | 580 | 56 | 56 | 3 | 322000 | 538000 | 33.5 |
