685-2rs 685zz
YWS OEM
ball bearing
YWS OEM
5mm
11mm
ABEC3 ABEC5 ABEC7
ZZ 2rs open
single
china
chrome steel stainless steel hybrid ceramic
steel nylon
3D printer
C0 C3
Product Details

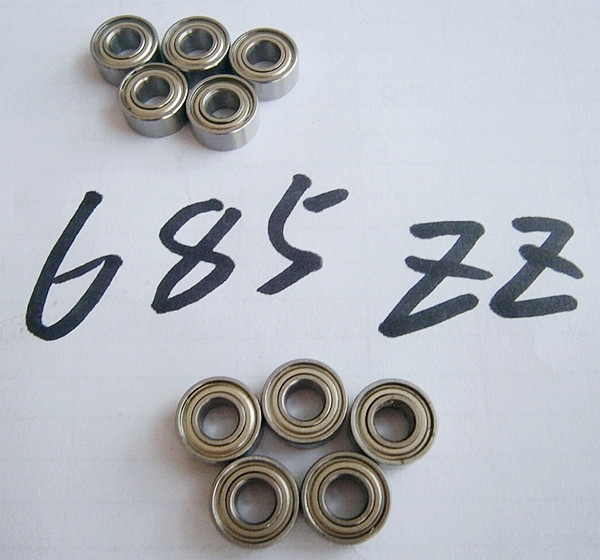

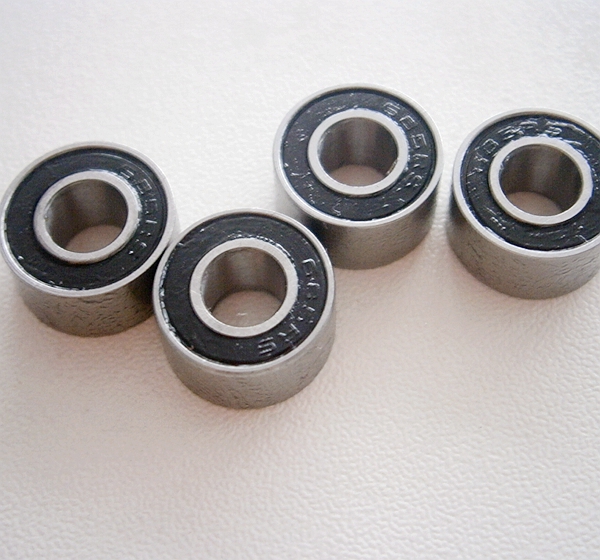

685 deep groove ball bearing 5X11X5mm
Data Sheet
Internal diameter:5mm
External diameter:11mm
Width:5mm
685 bearings are mainly used for solenoid valves, leaf springs, machine vices, shanks, package testing machines, sedimentation tanks, nailing machines, filtration equipment, colorimeter, automotive lamps and other equipment.
The 685 bearing Application: Solenoid valve, plate spring, machine vise, tool rod, packaging machine, sedimentation tank, nailing machine, filtration equipment, colorimetric instrument, automobile lamp, etc.
The 6800 series deep groove ball bearing models and sizes:
| Models | ID mm | OD mm | Width mm/open | Width mm/closed | Rsmin mm | Cr N | Cor N | Weight (kg) |
| 684 | 4 | 9 | 2.5 | 4 | 0.1 | 480 | 170 | 0.001 |
| 685 | 5 | 11 | 3 | 5 | 0.15 | 770 | 320 | 0.0019 |
| 686 | 6 | 13 | 3.5 | 5 | 0.15 | 1080 | 440 | 0.0027 |
| 687 | 7 | 14 | 3.5 | 5 | 0.15 | 1170 | 510 | 0.003 |
| 688 | 8 | 16 | 4 | 5 | 0.2 | 1250 | 590 | 0.0038 |
| 689 | 9 | 17 | 4 | 5 | 0.2 | 1330 | 660 | 0.004 |
| 6800 | 10 | 19 | 5 | 5 | 0.3 | 1590 | 750 | 0.005 |
| 6801 | 12 | 21 | 5 | 5 | 0.3 | 1910 | 1040 | 0.006 |
| 6802 | 15 | 24 | 5 | 5 | 0.3 | 2070 | 1250 | 0.007 |
| 6803 | 17 | 26 | 5 | 5 | 0.3 | 2130 | 1360 | 0.008 |
| 6804 | 20 | 32 | 7 | 7 | 0.3 | 3480 | 2230 | 0.019 |
| 6805 | 25 | 37 | 7 | 7 | 0.3 | 3680 | 2630 | 0.022 |
| 6806 | 30 | 42 | 7 | 7 | 0.3 | 4000 | 3150 | 0.026 |
| 6807 | 35 | 47 | 7 | 7 | 0.3 | 4270 | 3600 | 0.029 |
| 6808 | 40 | 52 | 7 | 7 | 0.3 | 4410 | 3890 | 0.033 |
| 6809 | 45 | 58 | 7 | 7 | 0.3 | 4590 | 4330 | 0.04 |
| 6810 | 50 | 65 | 7 | 7 | 0.3 | 6610 | 6080 | 0.052 |
| 6811 | 55 | 72 | 9 | 9 | 0.3 | 8530 | 8080 | 0.083 |
| 6812 | 60 | 78 | 10 | 10 | 0.3 | 9200 | 8760 | 0.106 |
| 6813 | 65 | 85 | 10 | 10 | 0.6 | 10510 | 9420 | 0.125 |
| 6814 | 70 | 90 | 10 | 10 | 0.6 | 10890 | 10090 | 0.135 |
| 6815 | 75 | 95 | 10 | 10 | 0.6 | 11230 | 10760 | 0.145 |
| 6816 | 80 | 100 | 10 | 10 | 0.6 | 11320 | 11080 | 0.155 |
| 6817 | 85 | 110 | 13 | 13 | 1 | 17599 | 18300 | 0.265 |
| 6818 | 90 | 115 | 13 | 13 | 1 | 17853 | 18961 | 0.28 |
| 6819 | 95 | 120 | 13 | 13 | 1 | 18089 | 19616 | 0.298 |
| 6820 | 100 | 125 | 13 | 13 | 1 | 18340 | 20266 | 0.311 |
| 6821 | 105 | 130 | 13 | 13 | 1 | 18912 | 20924 | 0.325 |
| 6822 | 110 | 140 | 16 | 16 | 1 | 28100 | 30700 | 0.51 |
| 6824 | 120 | 150 | 16 | 16 | 1 | 28900 | 32900 | 0.549 |
| 6826 | 130 | 165 | 18 | 18 | 1.1 | 37900 | 42900 | 0.79 |
| 6828 | 140 | 175 | 18 | 18 | 1.1 | 65500 | 81000 | 0.99 |
| 6830 | 150 | 190 | 20 | 20 | 1.1 | 68900 | 85000 | 1.5 |
| 6832 | 160 | 200 | 20 | 20 | 1.1 | 70400 | 88200 | 1.7 |
| 6834 | 170 | 215 | 22 | 22 | 1.1 | 74800 | 90800 | 1.9 |
| 6836 | 180 | 225 | 22 | 22 | 1.1 | 78400 | 99400 | 2 |
| 6838 | 190 | 240 | 24 | 24 | 1.5 | 109500 | 140100 | 2.03 |
| 6840 | 200 | 250 | 24 | 24 | 1.5 | 114400 | 141100 | 3.38 |
| 6844 | 220 | 270 | 24 | 24 | 1.5 | 146700 | 146500 | 2.79 |
| 6848 | 240 | 300 | 28 | 28 | 2 | 158000 | 194000 | 4.5 |
| 6852 | 260 | 320 | 28 | 28 | 2 | 159300 | 205800 | 4.85 |
| 6856 | 280 | 350 | 33 | 33 | 2 | 160500 | 216900 | 7.6 |
| 6860 | 300 | 380 | 38 | 38 | 2.1 | 162000 | 222000 | 11 |
| 6864 | 320 | 400 | 38 | 38 | 2.1 | 168000 | 235000 | 12 |
| 6872 | 360 | 440 | 38 | 38 | 2.1 | 182000 | 285000 | 12.2 |
| 6876 | 380 | 480 | 46 | 46 | 2.1 | 235000 | 348000 | 20.5 |
| 6880 | 400 | 500 | 46 | 46 | 2.1 | 247000 | 405000 | 21.7 |
| 6884 | 420 | 520 | 46 | 46 | 3 | 251000 | 425000 | 22 |
| 6888 | 440 | 540 | 46 | 46 | 3 | 255000 | 432000 | 24 |
| 6892 | 460 | 580 | 56 | 56 | 3 | 322000 | 538000 | 33.5 |
