Product Details

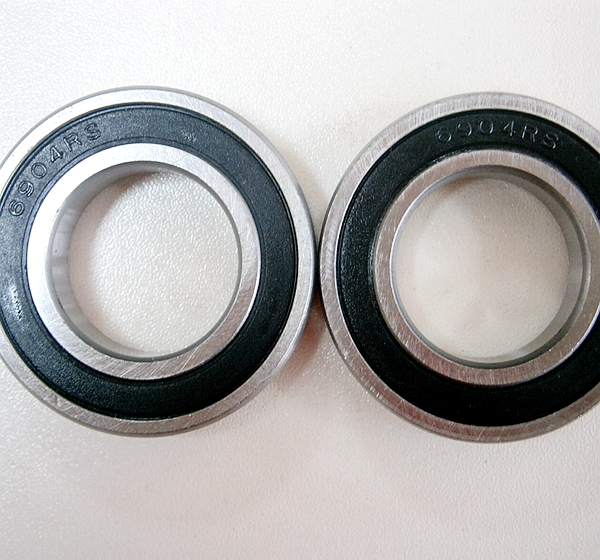

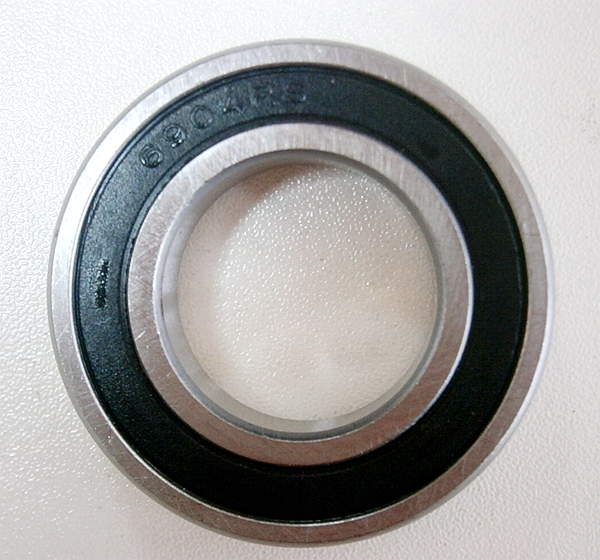

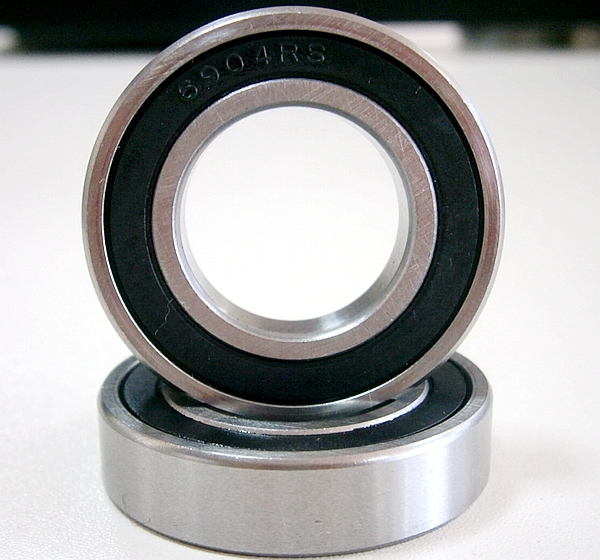

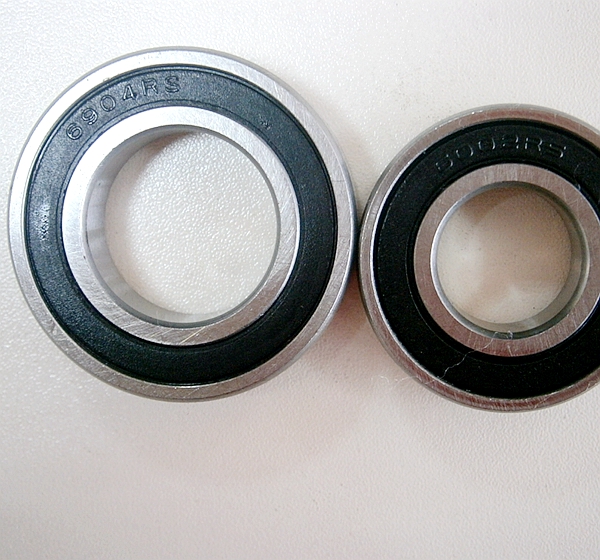

6904 deep groove ball bearing 20X37X9mm
Data Sheet
Internal diameter:20mm
External diameter:37mm
Width:9mm
Load Rating(Cor):3680 N
Load Rating(Cr):6370 N
Grease:19000rpm
Weight:0.038kg
6904ZZ bearing Can be used for: gravure printing machine, other, vulcanization tank, regenerative crusher, winch, disperser, plate making machine, disinfection and sterilization equipment, cutting equipment, square box, placement machine, wet cooling tower, water welder, quenching machine , milling machines, and so on.
The 6900 series deep groove ball bearing models and sizes:
| Models | ID mm | OD mm | Width mm/open | Width mm/closed | Rsmin mm | Cr N | Cor N | Weight (kg) |
| 693 | 3 | 8 | 3 | 4 | 0.15 | 430 | 170 | 0.0008 |
| 694 | 4 | 11 | 4 | 4 | 0.15 | 960 | 350 | 0.0017 |
| 695 | 5 | 13 | 4 | 4 | 0.2 | 1070 | 420 | 0.0023 |
| 696 | 6 | 15 | 5 | 5 | 0.2 | 1470 | 600 | 0.0036 |
| 697 | 7 | 17 | 5 | 5 | 0.3 | 1600 | 710 | 0.005 |
| 698 | 8 | 19 | 6 | 6 | 0.3 | 2230 | 910 | 0.0076 |
| 699 | 9 | 20 | 6 | 6 | 0.3 | 2480 | 1090 | 0.0085 |
| 6900 | 10 | 22 | 6 | 6 | 0.3 | 2690 | 1270 | 0.01 |
| 6901 | 12 | 24 | 6 | 6 | 0.3 | 2890 | 1460 | 0.012 |
| 6902 | 15 | 28 | 7 | 7 | 0.3 | 4320 | 2250 | 0.018 |
| 6903 | 17 | 30 | 7 | 7 | 0.3 | 4590 | 2550 | 0.019 |
| 6904 | 20 | 37 | 9 | 9 | 0.3 | 6370 | 3680 | 0.038 |
| 6905 | 25 | 42 | 9 | 9 | 0.3 | 6660 | 4180 | 0.044 |
| 6906 | 30 | 47 | 9 | 9 | 0.3 | 7240 | 5010 | 0.05 |
| 6907 | 35 | 55 | 10 | 10 | 0.6 | 10390 | 7160 | 0.075 |
| 6908 | 40 | 62 | 12 | 12 | 0.6 | 13020 | 9200 | 0.118 |
| 6909 | 45 | 68 | 12 | 12 | 0.6 | 13490 | 10130 | 0.128 |
| 6910 | 50 | 72 | 12 | 12 | 0.6 | 13900 | 10990 | 0.133 |
| 6911 | 55 | 80 | 13 | 13 | 1 | 14820 | 12690 | 0.177 |
| 6912 | 60 | 85 | 13 | 13 | 1 | 15080 | 13480 | 0.191 |
| 6913 | 65 | 90 | 13 | 13 | 1 | 19950 | 17490 | 0.2 |
| 6914 | 70 | 100 | 16 | 16 | 1 | 25950 | 21850 | 0.327 |
| 6915 | 75 | 105 | 16 | 16 | 1 | 26780 | 23560 | 0.345 |
| 6916 | 80 | 110 | 16 | 16 | 1 | 27590 | 25280 | 0.363 |
| 6917 | 85 | 120 | 18 | 18 | 1.1 | 31900 | 29700 | 0.517 |
| 6918 | 90 | 125 | 18 | 18 | 1.1 | 32800 | 31500 | 0.54 |
| 6919 | 95 | 130 | 18 | 18 | 1.1 | 33700 | 33300 | 0.567 |
| 6920 | 100 | 140 | 20 | 20 | 1.1 | 39901 | 39135 | 0.771 |
| 6921 | 105 | 145 | 20 | 20 | 1.1 | 41005 | 41410 | 0.793 |
| 6922 | 110 | 150 | 20 | 20 | 1.1 | 42090 | 43537 | 0.83 |
| 6924 | 120 | 165 | 22 | 22 | 1.1 | 55000 | 56900 | 1.129 |
| 6926 | 130 | 180 | 24 | 24 | 1.5 | 65100 | 67200 | 1.78 |
| 6928 | 140 | 190 | 24 | 24 | 1.5 | 66500 | 71000 | 1.9 |
| 6930 | 150 | 210 | 28 | 28 | 2 | 85500 | 87000 | 2.64 |
| 6932 | 160 | 220 | 28 | 28 | 2 | 87500 | 95500 | 3.01 |
| 6934 | 170 | 230 | 28 | 28 | 2 | 96000 | 105000 | 3.17 |
| 6936 | 180 | 250 | 33 | 33 | 2 | 106000 | 117000 | 4.68 |
| 6938 | 190 | 260 | 33 | 33 | 2 | 108000 | 123000 | 4.9 |
| 6940 | 200 | 280 | 38 | 38 | 2.1 | 130000 | 146000 | 6.88 |
| 6944 | 220 | 300 | 38 | 38 | 2.1 | 132000 | 154000 | 7.45 |
| 6948 | 240 | 320 | 38 | 38 | 2.1 | 154000 | 186000 | 8.02 |
| 6952 | 260 | 360 | 46 | 46 | 2.1 | 204000 | 254000 | 13.4 |
| 6956 | 280 | 380 | 46 | 46 | 2.1 | 209000 | 270000 | 14.3 |
| 6960 | 300 | 420 | 56 | 56 | 3 | 269000 | 370000 | 22.8 |
| 6964 | 320 | 440 | 56 | 56 | 3 | 276000 | 401000 | 24.1 |
| 6968 | 340 | 460 | 56 | 56 | 3 | 292000 | 418000 | 27 |
Sincerely welcome to send enquiry to us!!!
