608
YWS or OEM
OEM Customized Services
Product Details
product information:
Structure:Deep Groove
Type:Ball, ball bearing
Brand Name:YWS
Internal diameter:8mm
External diameter:22mm
Width:7mm
size:8×22×7mm
Weight:0.0012kg
Material:Chrome steel/GCr15/Stainless steel/ceramic
Sealing type: You can choose Metal seal Or Rubber seal
Is customized: Yes (Drawings required)
Related accessories: Oil seal,Circlip and housings etc.
Wholesale and freight: To provide you with accurate solutions
Product description：

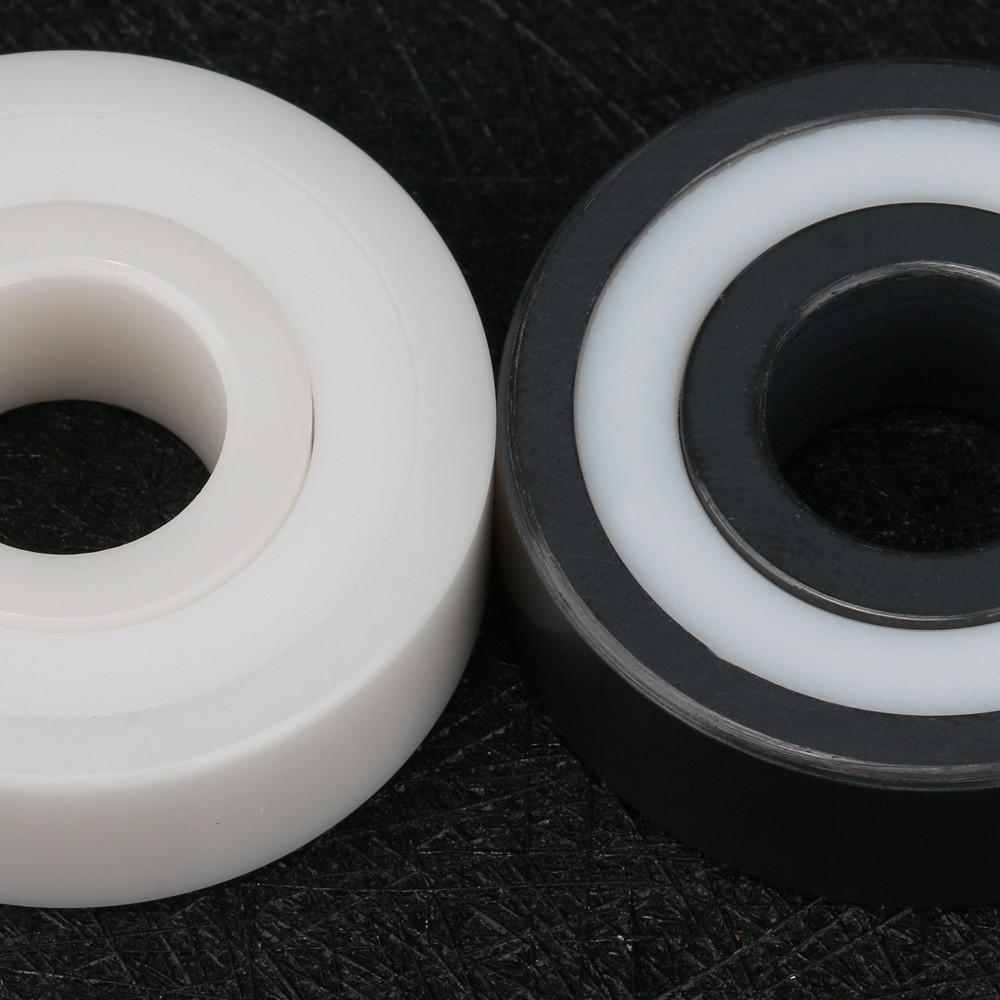

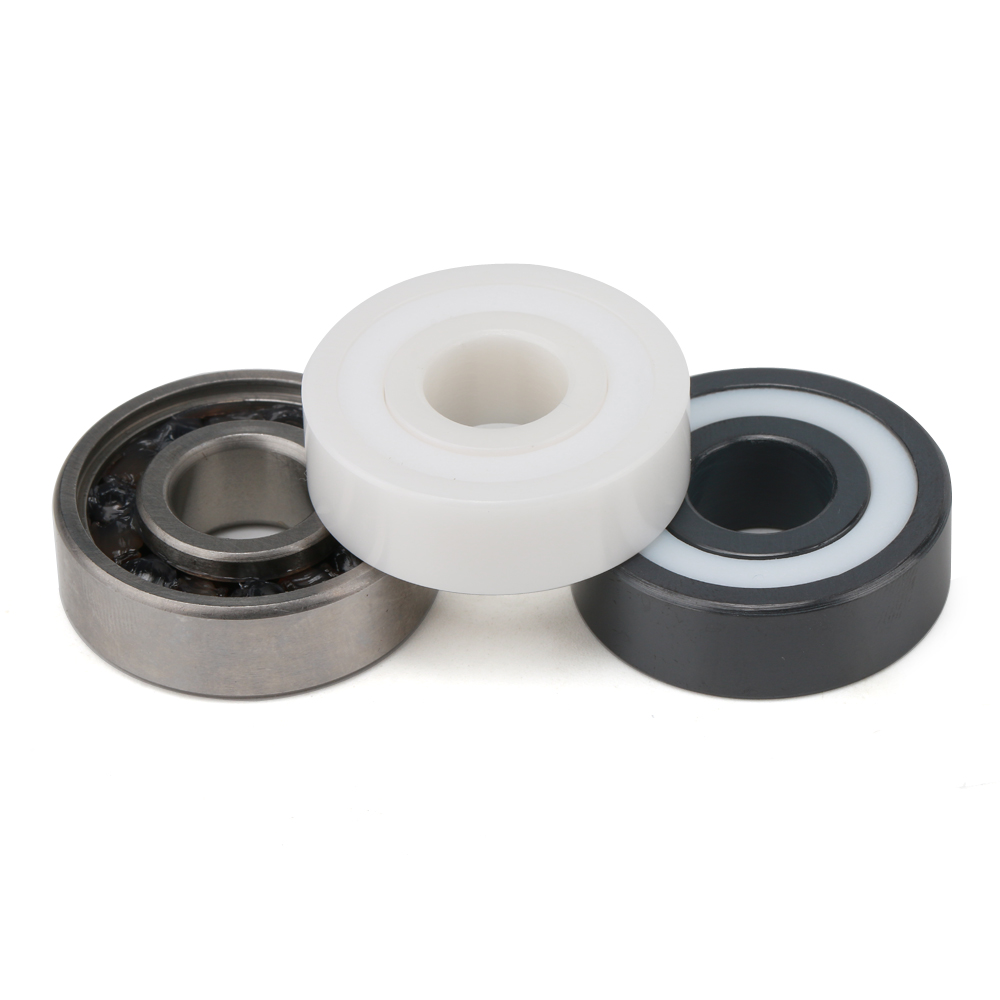

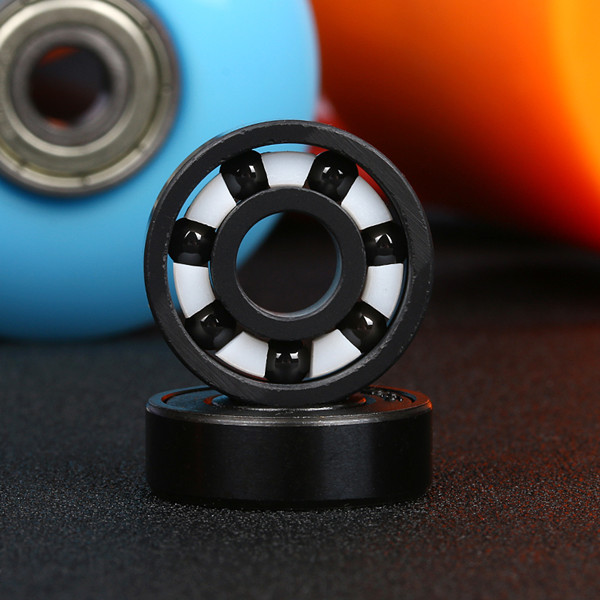

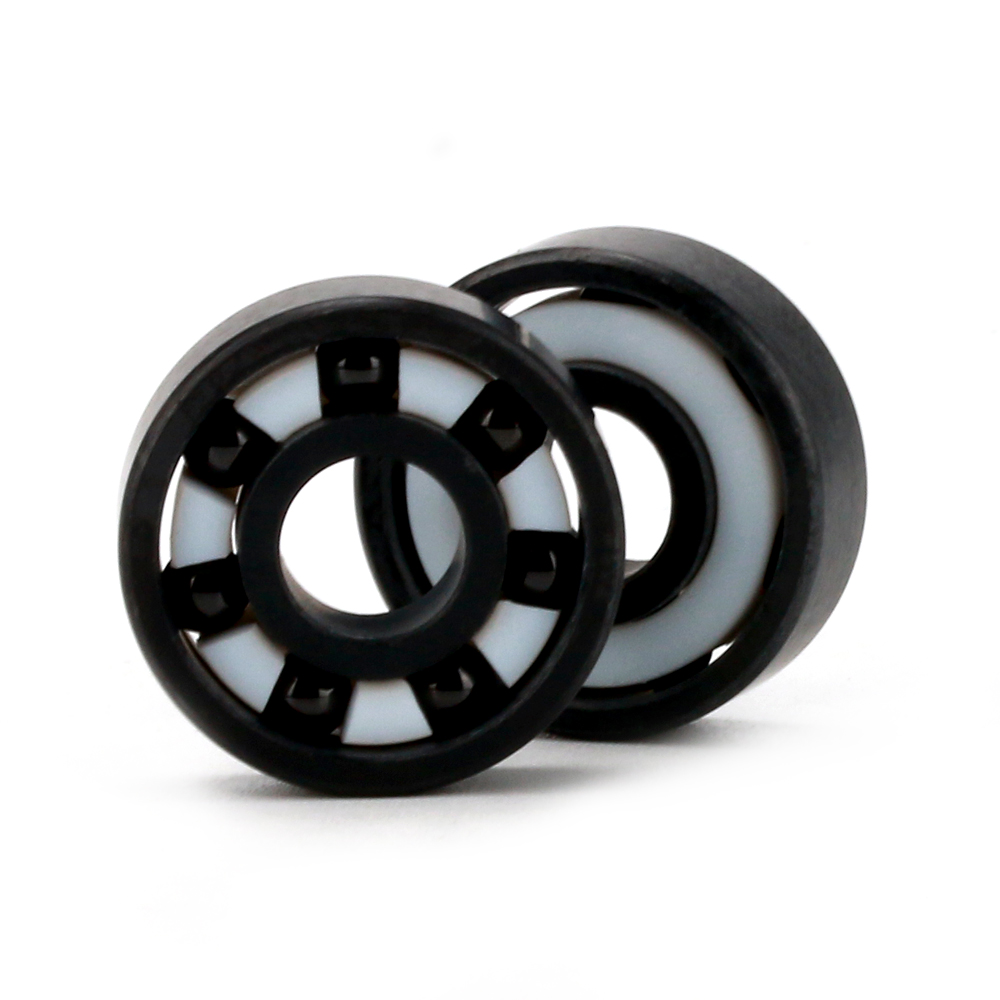

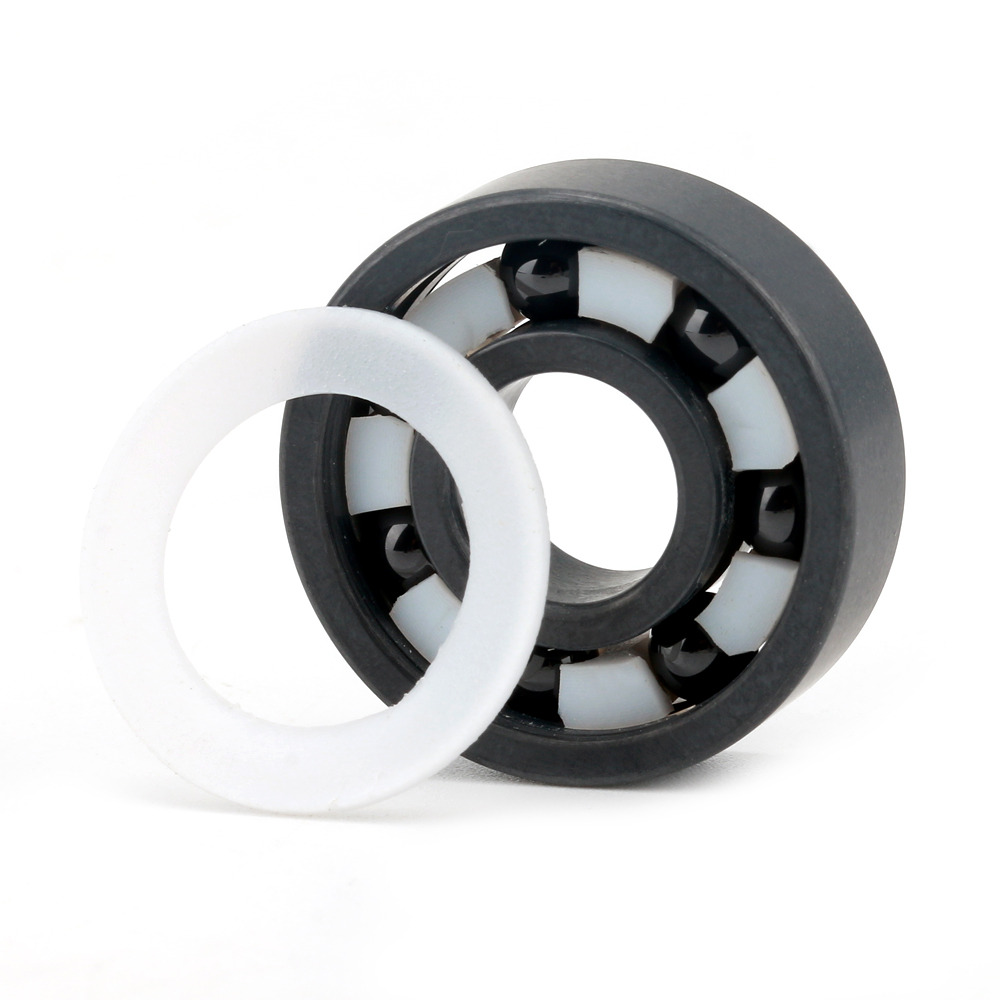

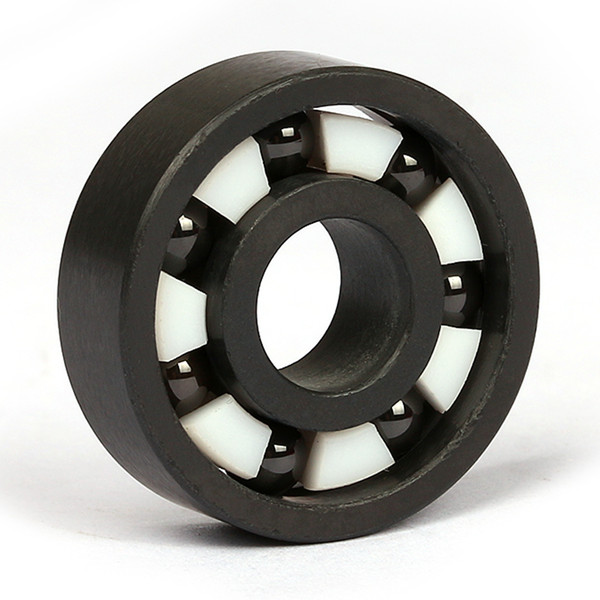

This 608 ball bearing has races made of zirconium oxide, balls made of silicon nitride ceramic, and a cage made of PTFE. It has an 8 mm inside diameter, a 22 mm outside diameter, and a 7 mm depth. The bearing has deep groove geometry for supporting both radial and axial loads and high speeds. The races are made of zirconium oxide ceramic for durability and resistance to corrosion and high temperatures. The bearing is open on both sides for lubricating in place. The ball is made of silicon nitride ceramic for resistance to shock, corrosion, and high temperatures. A one-piece polytetrafluoroethylene (PTFE) cage spaces the balls for even load distribution and prevents contact to reduce friction, vibration, and noise. This deep groove ball bearing is used in applications such as skateboards and rollerblades, among others.
Product features：
Deep groove geometry for supporting both radial and axial loads and high speeds
Zirconium oxide ceramic for durability and resistance to corrosion and high temperatures
Open on both sides for lubricating in place
Silicon nitride ceramic balls for resistance to shock, corrosion, and high temperatures
| MOD | ID(d) | OD(D) | WIDTH(B) | RSIN | WEIGHT | OEM |
| MM INCH | MM INCH | MM INCH | MM INCH | Kg/pc | ||
| 603 | 3 0.1181 | 9 0.3543 | 3 0.1181 | 0.2 0.008 | 0.0014 | available |
| 604 | 4 0.1575 | 12 0.4724 | 4 0.1575 | 0.2 0.008 | 0.0023 | available |
| 605 | 5 0.1969 | 14 0.5512 | 5 0.1969 | 0.2 0.008 | 0.0037 | available |
| 606 | 6 0.2362 | 17 0.6693 | 6 0.2362 | 0.3 0.012 | 0.0069 | available |
| 607 | 7 0.2756 | 19 0.7480 | 6 0.2362 | 0.3 0.012 | 0.0082 | available |
| 608 | 8 0.3150 | 22 0.8661 | 7 0.2756 | 0.3 0.012 | 0.0129 | available |
| 609 | 9 0.3543 | 24 0.9449 | 7 0.2756 | 0.3 0.012 | 0.016 | available |
| 6000 | 10 0.3937 | 26 1.0236 | 8 0.3150 | 0.3 0.012 | 0.019 | available |
| 6001 | 12 0.4724 | 28 1.1024 | 8 0.3150 | 0.3 0.012 | 0.021 | available |
| 6002 | 15 0.5906 | 32 1.2598 | 9 0.3543 | 0.3 0.012 | 0.03 | available |
| 6003 | 17 0.6693 | 35 1.3780 | 10 0.3937 | 0.3 0.012 | 0.039 | available |
| 6004 | 20 0.7874 | 42 1.6535 | 12 0.4724 | 0.6 0.024 | 0.069 | available |
| 6005 | 25 0.9843 | 47 1.8504 | 12 0.4724 | 0.6 0.024 | 0.08 | available |
| 6006 | 30 1.1811 | 55 2.1654 | 13 0.5118 | 1.0 0.039 | 0.116 | available |
| 6007 | 35 1.3780 | 62 2.4409 | 14 0.5512 | 1.0 0.039 | 0.155 | available |
| 6008 | 40 1.5748 | 68 2.6772 | 15 0.5906 | 1.0 0.039 | 0.185 | available |
| 6009 | 45 1.7717 | 75 2.9528 | 16 0.6299 | 1.0 0.039 | 0.231 | available |
| 6010 | 50 1.9685 | 80 3.1496 | 16 0.6299 | 1.0 0.039 | 0.25 | available |
| 6011 | 55 2.1654 | 90 3.5433 | 18 0.7087 | 1.1 0.043 | 0.362 | available |
| 6012 | 60 2.3622 | 95 3.7402 | 18 0.7087 | 1.1 0.043 | 0.385 | available |
| 6013 | 65 2.9551 | 100 3.9370 | 18 0.7087 | 1.1 0.043 | 0.44 | available |
| 6014 | 70 2.7559 | 110 4.3307 | 20 0.7874 | 1.1 0.043 | 0.6 | available |
| 6015 | 75 2.9528 | 115 4.5276 | 20 0.7874 | 1.1 0.043 | 0.64 | available |
| 6016 | 80 3.1496 | 125 4.9213 | 22 0.8681 | 1.1 0.043 | 0.854 | available |
| 6017 | 85 3.3465 | 130 5.1181 | 22 0.8681 | 1.1 0.043 | 0.89 | available |
| 6018 | 90 3.5433 | 140 5.5118 | 24 0.9449 | 1.5 0.059 | 1.02 | available |
