6001
YWS or OEM
OEM Customized Services
Product Details
Structure:Deep Groove
Type:Ball, ball bearing
Brand Name:YWS
Internal diameter:12mm
External diameter:28mm
Width:8mm
size:12×28×8mm
Dynamic Load Rating (Cr): 5.1kN
Static Load Rating (Cor): 2.38kN
Weight:0.021kg
Material:Chrome steel/GCr15/Stainless steel/ceramic
Heat Treatment:Quenching
Sealing type: You can choose Metal seal Or Rubber seal
Is customized: Yes (Drawings required)
Related accessories: Oil seal,Circlip and housings etc.
Wholesale and freight: To provide you with accurate solutions
Product description：

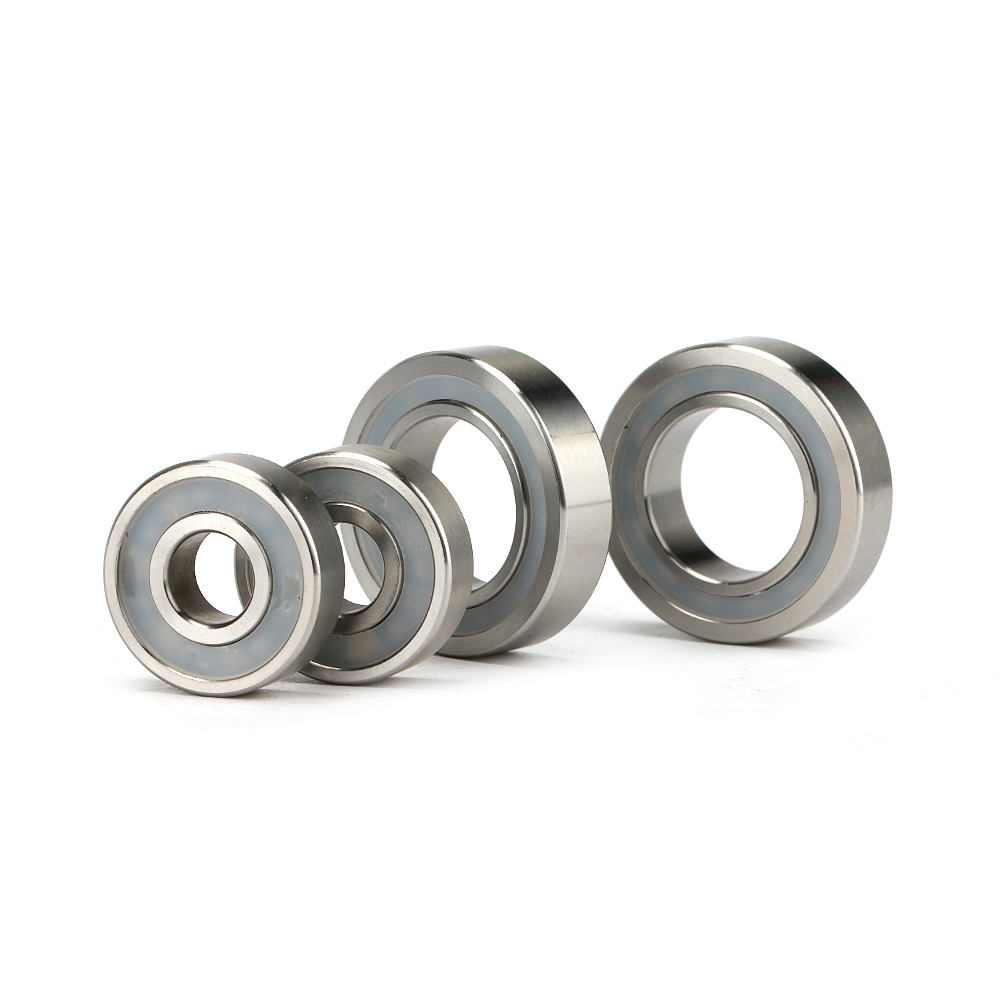

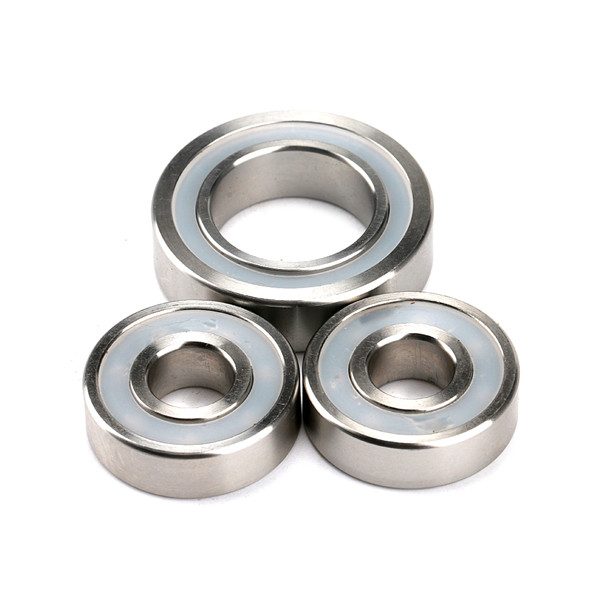

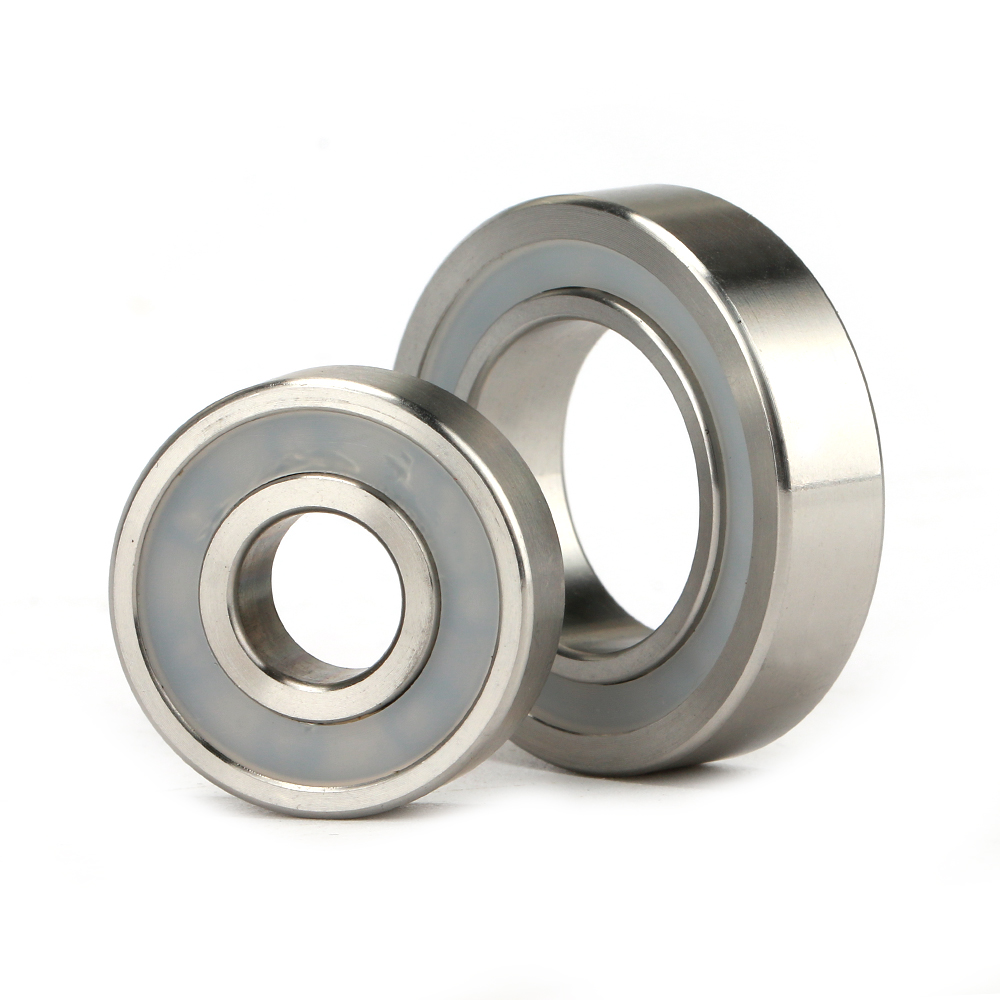

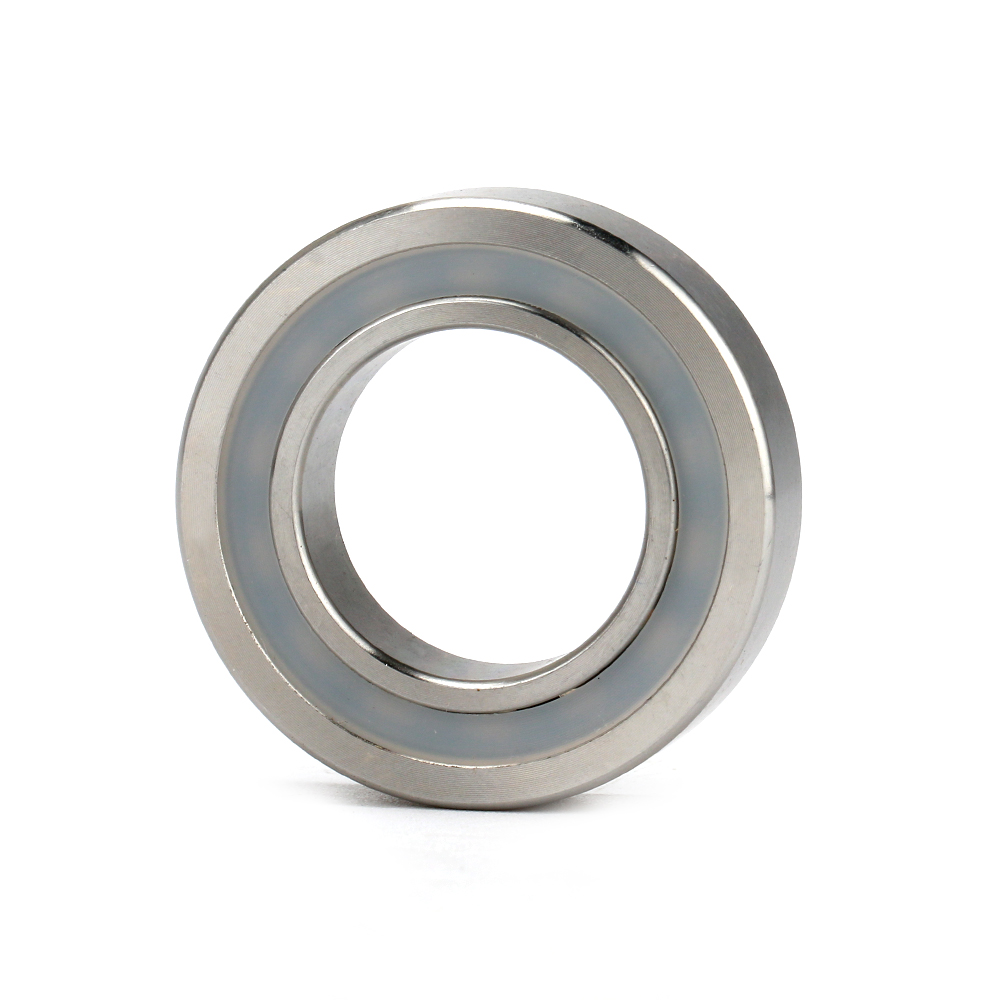

The 6001 sealed ball bearing has deep groove geometry for high speeds and supporting both radial and axial loads. The bearing is made of chrome steel for durability and resistance to deformity under heavy loads, and it has rubber seals on both sides of the bearing to keep lubricant in and contaminants out. It comes pre-lubricated from the manufacturer so that no additional lubrication is required. This deep-groove sealed ball bearing is suitable for use in applications that involve combined radial and axial loads and a need for high running accuracy at high rotational speeds. Such applications include clutches, drives, gearboxes, compressors, pumps, turbines, and printing and textile machines, among others.
Product features：
Deep groove geometry for high speeds and supporting both radial and axial loads
Chrome steel for durability and resistance to deformity under heavy loads
Rubber seals on both sides of the bearing to keep lubricant in and contaminants out
Lubricated at manufacturer for no additional lubrication required
| MOD | ID(d) | OD(D) | WIDTH(B) | RSIN | WEIGHT | OEM |
| MM INCH | MM INCH | MM INCH | MM INCH | Kg/pc | ||
| 603 | 3 0.1181 | 9 0.3543 | 3 0.1181 | 0.2 0.008 | 0.0014 | available |
| 604 | 4 0.1575 | 12 0.4724 | 4 0.1575 | 0.2 0.008 | 0.0023 | available |
| 605 | 5 0.1969 | 14 0.5512 | 5 0.1969 | 0.2 0.008 | 0.0037 | available |
| 606 | 6 0.2362 | 17 0.6693 | 6 0.2362 | 0.3 0.012 | 0.0069 | available |
| 607 | 7 0.2756 | 19 0.7480 | 6 0.2362 | 0.3 0.012 | 0.0082 | available |
| 608 | 8 0.3150 | 22 0.8661 | 7 0.2756 | 0.3 0.012 | 0.0129 | available |
| 609 | 9 0.3543 | 24 0.9449 | 7 0.2756 | 0.3 0.012 | 0.016 | available |
| 6000 | 10 0.3937 | 26 1.0236 | 8 0.3150 | 0.3 0.012 | 0.019 | available |
| 6001 | 12 0.4724 | 28 1.1024 | 8 0.3150 | 0.3 0.012 | 0.021 | available |
| 6002 | 15 0.5906 | 32 1.2598 | 9 0.3543 | 0.3 0.012 | 0.03 | available |
| 6003 | 17 0.6693 | 35 1.3780 | 10 0.3937 | 0.3 0.012 | 0.039 | available |
| 6004 | 20 0.7874 | 42 1.6535 | 12 0.4724 | 0.6 0.024 | 0.069 | available |
| 6005 | 25 0.9843 | 47 1.8504 | 12 0.4724 | 0.6 0.024 | 0.08 | available |
| 6006 | 30 1.1811 | 55 2.1654 | 13 0.5118 | 1.0 0.039 | 0.116 | available |
| 6007 | 35 1.3780 | 62 2.4409 | 14 0.5512 | 1.0 0.039 | 0.155 | available |
| 6008 | 40 1.5748 | 68 2.6772 | 15 0.5906 | 1.0 0.039 | 0.185 | available |
| 6009 | 45 1.7717 | 75 2.9528 | 16 0.6299 | 1.0 0.039 | 0.231 | available |
| 6010 | 50 1.9685 | 80 3.1496 | 16 0.6299 | 1.0 0.039 | 0.25 | available |
| 6011 | 55 2.1654 | 90 3.5433 | 18 0.7087 | 1.1 0.043 | 0.362 | available |
| 6012 | 60 2.3622 | 95 3.7402 | 18 0.7087 | 1.1 0.043 | 0.385 | available |
| 6013 | 65 2.9551 | 100 3.9370 | 18 0.7087 | 1.1 0.043 | 0.44 | available |
| 6014 | 70 2.7559 | 110 4.3307 | 20 0.7874 | 1.1 0.043 | 0.6 | available |
| 6015 | 75 2.9528 | 115 4.5276 | 20 0.7874 | 1.1 0.043 | 0.64 | available |
| 6016 | 80 3.1496 | 125 4.9213 | 22 0.8681 | 1.1 0.043 | 0.854 | available |
| 6017 | 85 3.3465 | 130 5.1181 | 22 0.8681 | 1.1 0.043 | 0.89 | available |
| 6018 | 90 3.5433 | 140 5.5118 | 24 0.9449 | 1.5 0.059 | 1.02 | available |
