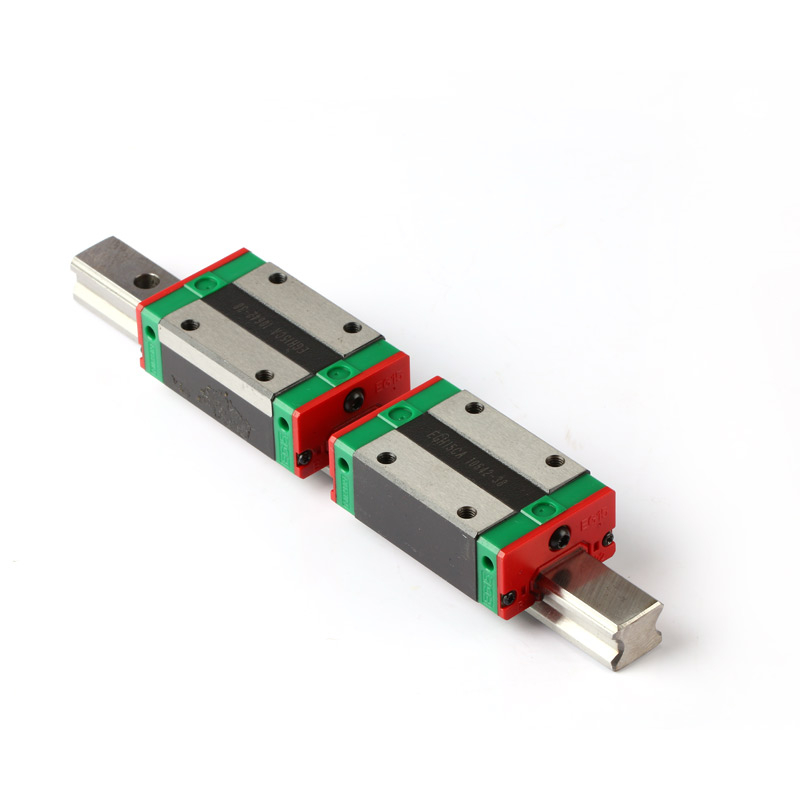

HGR15 linear guide and bearing for CNC machine

HGR15 linear guide and bearing for CNC machine

Linear guideways provide a type of linear motion that utilizes re-circulating rolling elements between a profiled rail and a bearing block. The coefficient of friction on a linear guideway is only 1/50 compared to a traditional slide and are able to take loads in all directions.

With these features, a linear guideway can achieve high precision and greatly enhanced moving accuracy. Hiwin Corporation offers multiple linear guideway series and each series features different options for sizes, loading capabilities, accuracies, and more.

Introduction

• The linear motion products and techonology are widely used for automatic mechanical facilities under the common accuracy.

• It features equal load ratings in the radial,reverse radial and lateral directions, and self-aligning to absorb installation-error.

• MG Series with tiny and light weight design is suitable for miniature equipment. All materials are special grade of stainless steel and alloy steel for anti-corrosion ability.

• Gothic arch contact design has high rigidity and accuracy characteristic in all directions. Steel balls are constrained by miniature retainer so without loosing balls when remove the block MG Series.

• The design of enlarged width, MGW Series, has increased capacity of moment load. Gothic arch contact design has high rigidity characteristic in all directions. Steel balls are constrained by miniature retainer so without loosing balls when removing the block away from the rail.

• All metal components are made of stainless steel/Chromed steel for anti-corrosion ability.




Application

• Automation devices

• High-speed transportation equipment

• Precision measuring equipment

• Semiconductor manufacturing equipment

• Woodworking machinery
