High Precision Chrome plated rod Linear Shaft 13mm
You are here: Home » Products » Linear Bearings » High Precision Chrome plated rod Linear Shaft 13mm

High Precision Chrome plated rod Linear Shaft 13mm

loading

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
Material: high quality 45 # steel or Gcr15 steel
Surface roughness: Ra0.2-0.4
Hard Chrome Thickness: 0.020-0.030mm
Surface hardness: HV700-1150
Straightness: 0.05-0.10um / m
Standard Length: 1-6 m
Another can be customized surface treatment by high waves depth 1-3mm, high waves hardness: HRC58 ℃ ~ 60 ℃
Note: Depending on the application to select
Chrome Thickness: Pressure = 0.02mm
Hydraulic = 0.02mm above
Carbon steel material/chrome steel material/stainless steel

  • SF13

  • YWS

  • 8483109000

  • linear

  • linear

  • YWS

  • 0mm

  • 13mm

  • SF12

  • P0 P6 P5

  • no

Availability:
Inquire

Product Description

High Precision Chrome plated rod Linear Shaft 13mm

Goods Description:

Material: Gcr15 steel

Model Number WCS SFC Series Solid shaft(Linear rod;Steel bar;Optical axis)
Diameter

Metric Diameter : 3mm,4mm,5mm,6mm,8mm,10mm,12mm,16mm......100mm

Inch Diameter : 6.35mm,9.525mm,12.7mm,15.875,19.05,25.4mm,31.75mm,38.1mm

Quality

 ISO9001:2008 standard
Material Steel 45#;GCR15;SUS440C
Hardness HRC:58-62
Hardened Layer Thickness 0.8-3.00mm
Precision G6
Roughness Within1.5μm

Roughness(Rmax)

 Within 3.0μm(Rmax)
Straightness Not excess 1.5μm of 100mm (Rmax)
Thickness of Chrome Plated 1-2μm,1.5μm on average
Performance Long life and low noise
Appearance Smooth,Anti-corrosion,Hardened,Chrome plated
Service  Specisl requirement onmachining,such as threading,coaxial holes drilled and tapped,radial holes drilled and tapped,reduced shaft diameter etc;We could supply OEM to our customers.
Application 3d printer machine,Machine centers,Machine tools,Precision machining machines,Heavy cutting machines,Punching machines,Marble cutting machines,Automatic equipments,Grinding machines,High speed transfer equipments,Injection molding machines,Measuring equipments

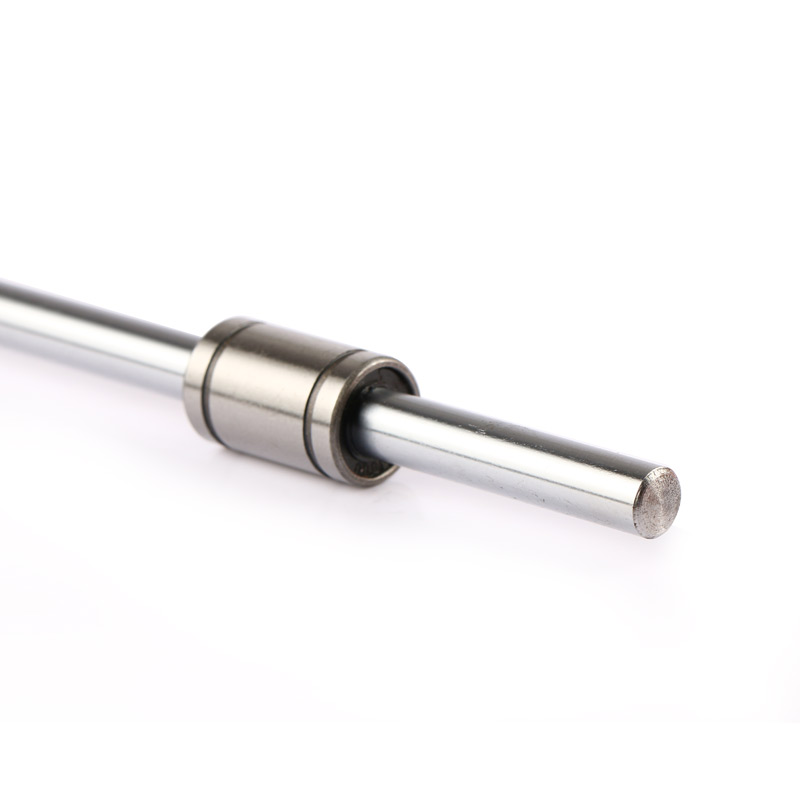

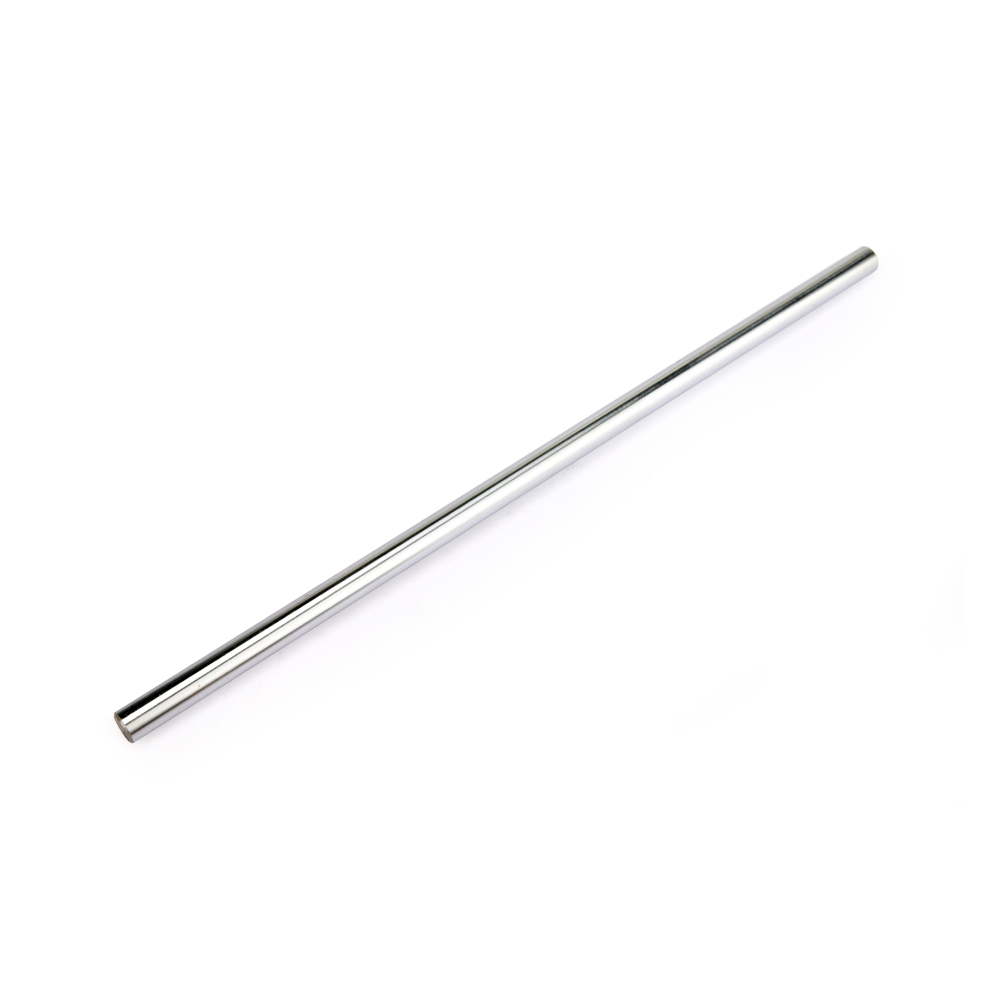

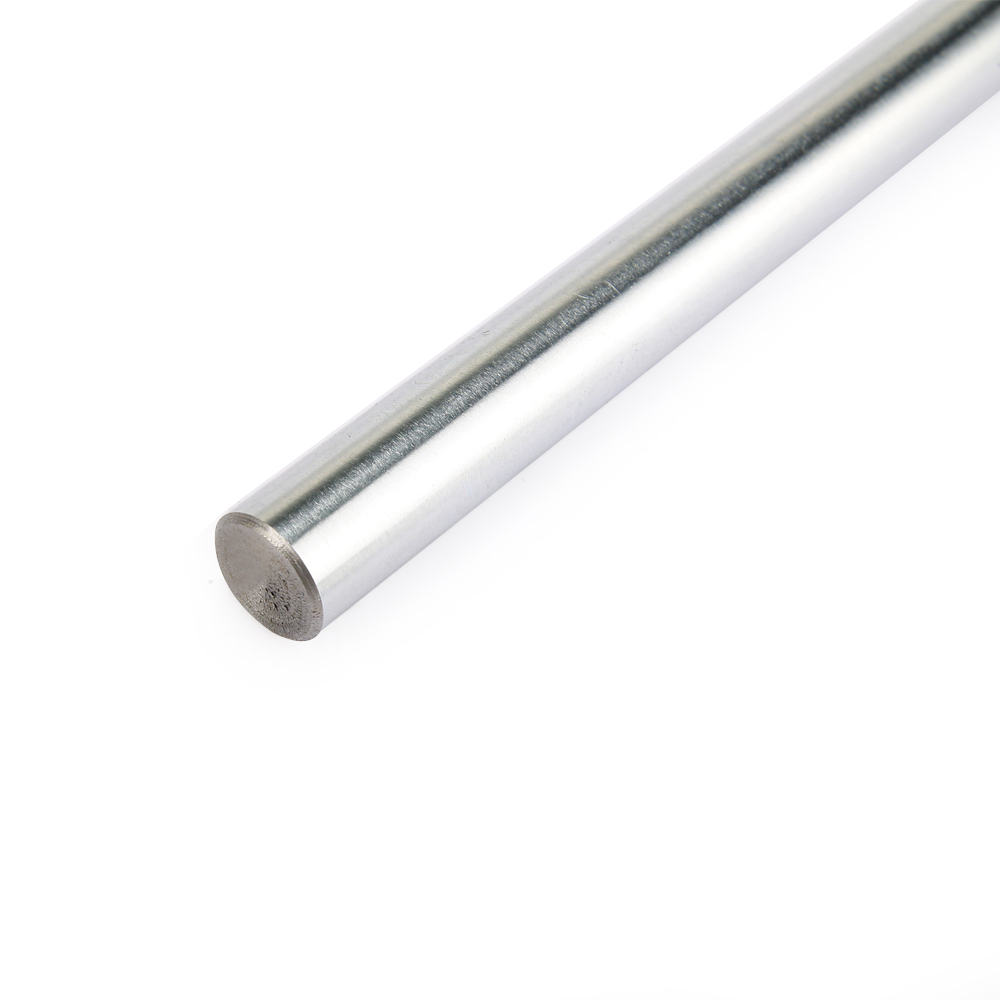

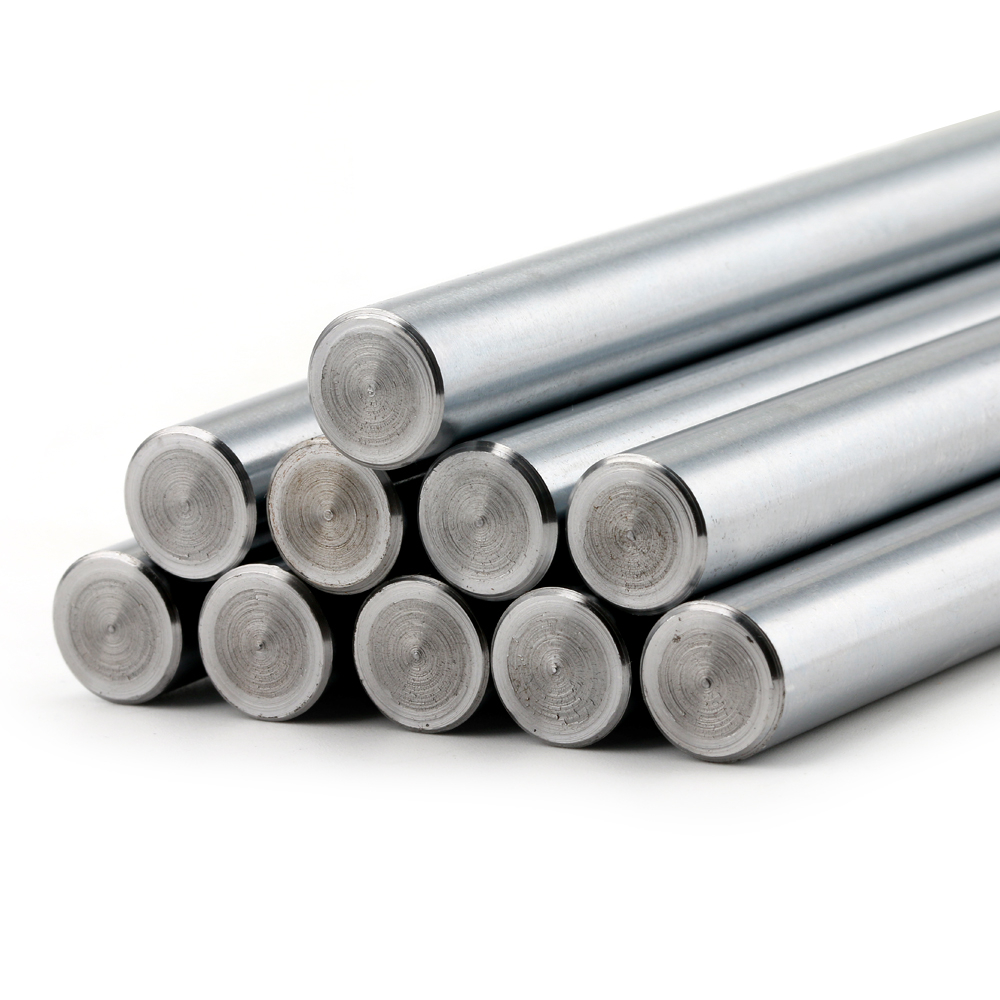

guiderod1rod 5 (2)rod 5 (1)rod 3 (1)rod 3 (2)

package

 we can use carton box or wooden case, or according to customer's demand.

package 2

company

company
