High Precision Heim Joint Rod End Bearing Joint Bearing SA25T/K
You are here: Home » Products » Rod End Joint Bearing » High Precision Heim Joint Rod End Bearing Joint Bearing SA25T/K

High Precision Heim Joint Rod End Bearing Joint Bearing SA25T/K

loading

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
A rod end bearing, also known as a heim joint (N. America) or rose joint (U.K. and elsewhere), is a mechanical articulating joint. Such joints are used on the ends of control rods, steering links, tie rods, or anywhere a precision articulating joint is required, and where a clevis end(which requires perfect 90 degree alignment between the attached shaft and the second component) is unsuitable. A ball swivel with an opening through which a bolt or other attaching hardware may pass is pressed into a circular casing with a threaded shaft attached. The threaded portion may be either male or female.

  • SA25T/K

  • YWS

  • rod end bearing ball joint bearing

  • YWS

  • 25mm

  • SA25T/K

  • China

  • steel

  • M24*2

Availability:
Inquire

Product Description

SA..T/K rod ends bearing

SA..T/K series rod ends bearings are made up of a maintenance-free radial spherical plain bearing G..PW and rod body,with male thread.

eatures

• sliding contact surface: steel/PTFE

• maintenance-free

• housing: carbon steel and zinc plated

• inner ring

   —bearing steel

   —heat treated HRC 58-62

• outer ring

   —brass

 Wholesale price Fish-eye rod end bearing SA22T/K SA25T/K SA28T/K
TEM Dimension(mm) Weight

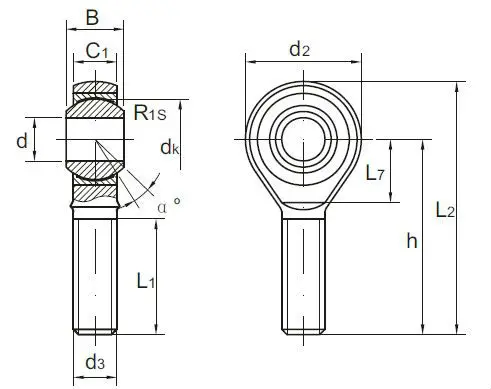

d d3 B C1 L3 W d2 h1 L4 L5 d4 d5 dk a kg


6H

min







≈
SI5T/K 5 M5x0.8 8 6 10 9 18 27 36 4 8.5 11 11.11 13 0.016
SI6T/K 6 M6x1.0 9 6.75 12 11 20 30 40 5 10 13 12.7 13 0.022
SI8T/K 8 M8x1.25 12 9 16 14 24 36 48 5 12.5 16 15.875 14 0.047
SI10T/K 10 M10x1.5 14 10.5 20 17 28 43 57 6.5 15 19 19.05 13 0.077
SI10-1T/K 10 M10x1.25 14 10.5 20 17 28 43 57 6.5 15 19 19.05 13 0.077
SI12T/K 12 M12x1.75 16 12 22 19 32 50 66 6.5 17.5 22 22.225 13 0.1
SI12-1T/K 12 M12x1.25 16 12 22 19 32 50 66 6.5 17.5 22 22.225 13 0.1
SI14T/K 14 M14x2.0 19 13.5 25 22 36 57 75 8 20 25 25.4 16 0.16
SI14-1T/K 14 M14x1.5 19 13.5 25 22 36 57 75 8 20 25 25.4 16 0.16
SI16T/K 16 M16x2.0 21 15 28 22 42 64 85 8 22 27 28.575 15 0.22
SI16-1T/K 16 M16x1.5 21 15 28 22 42 64 85 8 22 27 28.575 15 0.22
SI18T/K 18 M18x1.5 23 16.5 32 27 44 71 93 10 25 31 31.75 15 0.32
SI20T/K 20 M20x1.5 25 18 33 30 50 77 102 10 27.5 34 34.925 14 0.42
SI22T/K 22 M22x1.5 28 20 37 32 54 84 111 12 30 38 38.1 15 0.54
SI25T/K 25 M24x2.0 31 22 42 36 60 94 124 12 33.5 42 42.86 15 0.72
SI28T/K 28 M27x2.0 35 24 51 41 66 103 136 14 37 46 47.63 15 0.82
SI30T/K 30 M30x2.0 37 25 51 41 70 110 145 15 40 50 50.8 17 1.1
SI30-1T/K 30 M27x2.0 37 25 51 41 70 110 145 15 40 50 50.8 17 1.1
SI35T/K 35 M36x2.0 43 28 56 50 81 125 165.5 17 46 58 57.15 16 1.6
SI40T/K 40 M42x2.0 49 33 60 55 91 142 187.5 19 53 65 66.67 16 2.4
SI50T/K 50 M48x2.0 60 45 65 65 117 160 218.5 23 65 75 82.5 12 5
