Industrial Chrome Steel Rod end joint bearings SA8T/K
You are here: Home » Products » Rod End Joint Bearing » Industrial Chrome Steel Rod end joint bearings SA8T/K

Industrial Chrome Steel Rod end joint bearings SA8T/K

loading

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

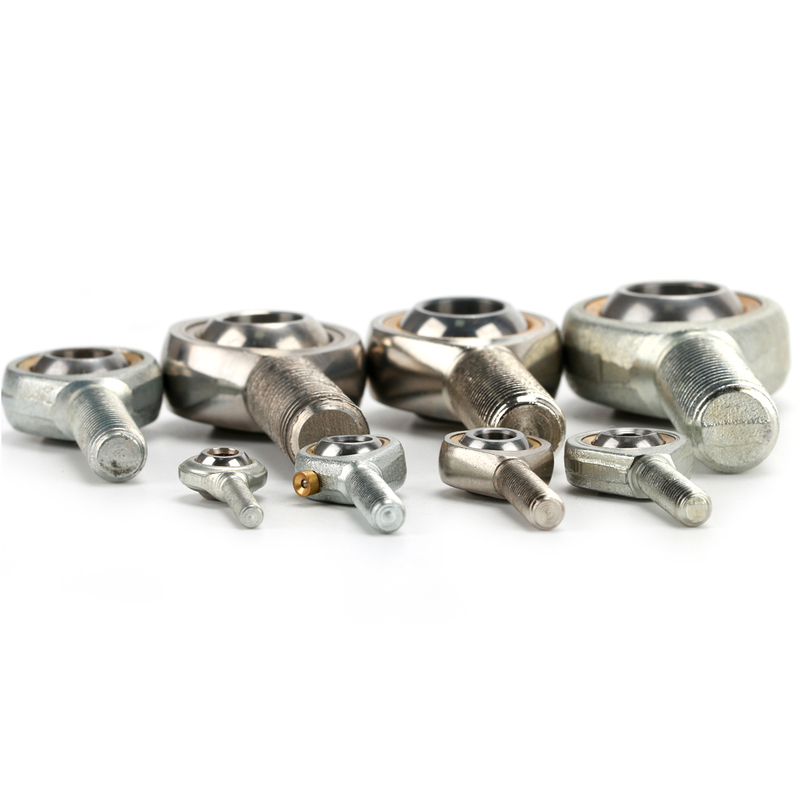

A rod end bearing, also known as a heim joint (N. America) or rose joint (U.K. and elsewhere), is a mechanical articulating joint. Such joints are used on the ends of control rods, steering links, tie rods, or anywhere a precision articulating joint is required, and where a clevis end(which requires perfect 90 degree alignment between the attached shaft and the second component) is unsuitable. A ball swivel with an opening through which a bolt or other attaching hardware may pass is pressed into a circular casing with a threaded shaft attached. The threaded portion may be either male or female.

  • SA8T/K

  • YWS

  • rod end bearing ball joint bearing

  • YWS

  • 8mm

  • SA8T/K

  • China

  • steel

  • M8*1.25

Availability:
Inquire

Product Description

1. Rod end bearing introduction

Rod end bearing consist of an eye-shaped head with integral shank forming a housing and a standard spherical plain bearing, or a spherical plain bearing inner ring, or a spherical plain bearing inner ring and a sliding layer between the bore of the head and the inner ring. As a rule, rod ends are available with left or right-hand female or male threads. Rod ends have the sliding contact surface combinations steel-on-steel, steel-on-bronze, steel-on-PTFE composite material, steel-on-PTFE fabric and steel-on-PTFE plastic



2. Rod end bearing application



Rod end bearing are widely used in hydraulic engineering, metal forming machine, construction machinery, automation equipment, automotive shock absorber, water machinery sluice gate,navigation lock, textile machinery.

Maitenance
maintenance-free, maintenance required
Body Material
stainless steel, carbon steel
Race Material
bronze, PTFE liner, plastic injection
Balls
chrome steel, stainless steel
Dimension
metric and inch ( bore 5mm - 80 mm )
Series two pieces
SI-PK, SA-PK, CF, CM, CF-T, CM-T
Series three pieces
SI-ES, SA-ES, SI-TK, SA-TK, GIR, GAR, SI-ZK, SA-ZK, JF, JM, KF, KM
Series bronze race
PHS, POS, SIZP-S, SAZP-S
Rod end with stud
CF-Y, CM-Y, SQZ-RS, SQ-RS, SQP-S, BL-D
Rod end for hydraulic
GIHR-DO, GIHR-K-DO, GIHN-K-LO, GIHO-K-DO, GK-SK
