Views: 11 Author: Site Editor Publish Time: 2019-01-18 Origin: Site
Industrial aluminium profile is apply to frame combination structure,there is a round to transition on thecorner,with anodic oxidation surface treatment,elegant,beautiful and resistant to corrosion,it normally connected from inside with specialised bolt and spring fastener.
Aluminum T-slot profiles as well as information about how each works and their respective benefits. This section also includes engineering specifications such as material strength and beam deflection calculations for T-slot profiles to aid in product selection.
T-slot aluminum profiles offer several benefits. The shape of the profile creates modularity, meaning it is easily assembled and reassembled to conform to evolving needs.
T Slot Profiles provides enables to add connection and join profiles to captive ends. This allows you to change your design without having to start from scratch and also enables easy expansion and retraction of your build for modifications down the road.
There are several advantages to T-slot aluminum profiles. Some of the biggest are:
*Strong
*Lightweight
*High strength-to-weight ratio
*Resilient
*Modularity
*Easily machined
| T Slot Symbol | Cross Section (mm) | Core Hole (Φ) | Slot Width (mm) | Slot Depth (mm) | Wall Thickness (mm) | Profile Group |
 |  | 5.0 | 6.2 | 6.0 | 2.0 | PG15 PG20 |
PG20 20x20 R90 2 slots | PG20 20x20 4 slot | PG20 20x40 6 slots |
| |  |
PG20 20x60 8 slots | PG20 20x80 10 slots | PG20 40x40 4 slots |
 |  |  |
| Description | Moment of Inertia lx(cm4) | Moment of Inertia ly(cm4) | Moment of Resistance Wx(cm3) | Moment of Resistance Wy(cm3) | Mass (kg/m) | Part No. |

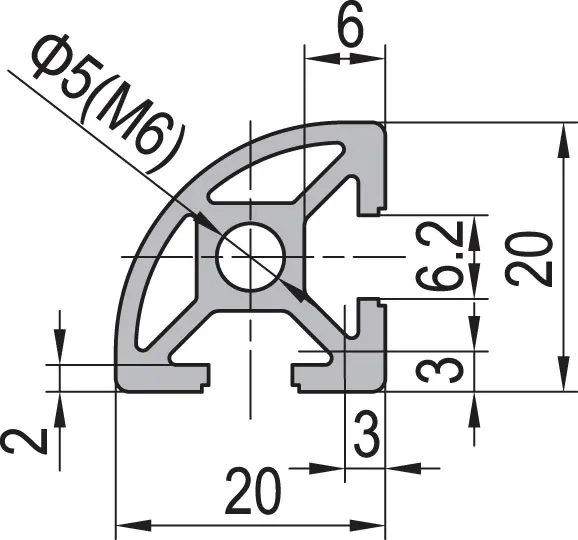

| Strut Profile PG20 20x20 R90 2 slots | 0.6 | 0.6 | 0.5 | 0.5 | 0.45 | 1.11.20.020020.R90.02 |
| Strut Profile PG20 20x20 4 slots | 0.8 | 0.8 | 0.8 | 0.8 | 0.5 | 1.11.20.020020.04 |
| Strut Profile PG20 20x40 6 slots | 1.4 | 5.1 | 1.4 | 2.5 | 0.9 | 1.11.20.020040.06 |
| Strut Profile PG20 20x60 8 slots | 2.0 | 15.8 | 2.0 | 5.3 | 1.3 | 1.11.20.020060.08 |
| Strut Profile PG20 20x80 10 slots | 2.6 | 35.9 | 2.6 | 9.0 | 1.7 | 1.11.20.020080.10 |
| Strut Profile PG20 40x40 8 slots | 8.9 | 8.9 | 4.5 | 4.5 | 1.3 | 1.11.20.040040.08 |
