LMKUU/LMKLUU Square Flange Linear Bearing

             Products Details of  Linear Bearings

Linear motion bearings have the characterized of smooth movement,low friction,high rigidity and long life span,economical and easy to maintain or replace

Motorized linear slides such as machine slides, XY tables, roller tables and some dovetail slides are bearings moved by drive mechanisms. Not all linear slides are motorized, and non-motorized dovetail slides, ball bearing slides and roller slides provide low-friction linear movement for equipment powered by inertia or by hand. All linear slides provide linear motion based on bearings, whether they are ball bearings, dovetail bearings or linear roller bearings. XY Tables, linear stages, machine slides and other advanced slides use linear motion bearings to provide movement along both X and Y multiple axis.

Flange slide bearing has the features of Low friction coefficients and long usage spans, High temperature, self-lubricated, anti-corrosion.Using feature:  Linear bearings are used widely in electronic equipment, pull tester and digital three-dimensional coordinate measuring device. Such as precision equipment, as well as multi-axis machine tools, press tool, grinder automatic gas cutting machine, printer, card sorting machine, food packaging machine and other industrial machinery sliding components...

(1)Features:

Linear bearing is a kind of metal at low cost production of linear motion system, used for unlimited travel used with cylindrical shaft.

Because point contact ball bearing with shaft, so using the load is small.

Steel ball to the smallest friction spinning, thus can get high precision of smooth movement.

(2)Types:

Type 1: straight (shapes such as cylinders, spring is commonly used in installation, for special occasions requiring small installation size)

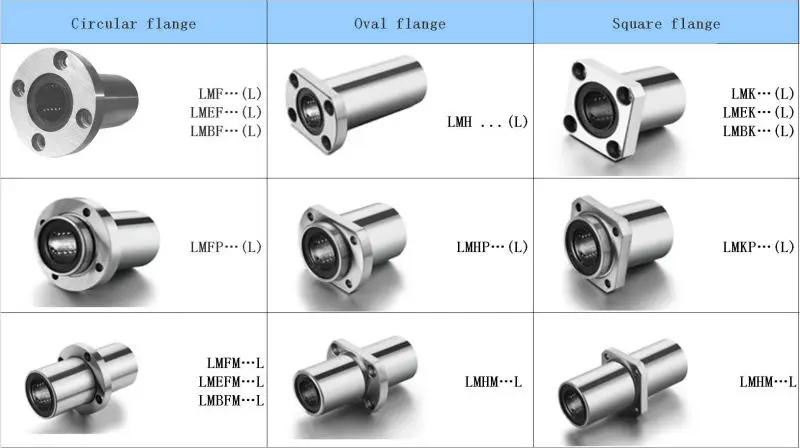

Type 2: flange (end or middle flange, with installation can use screw to install, flange general round, square and trimming type three)

Type 3: open (shape, such as straight, appearance has axial slitting, gap adjustment, is applied to large openings and small openings)

High precision flange linear bearing

Linear Motion Ball Bearing

Flanged Linear Motion Ball Bearing

Application:

Linear bearings are widely used in electronic equipment, tensile testing machine and the digital three-dimensional coordinate measuring equipment, precision equipment,and multi axis machine tools, presses, tool grinder, automatic gas cutting machine,printer, card sorting machine, food packing machines and other industrial machinery sliding components
