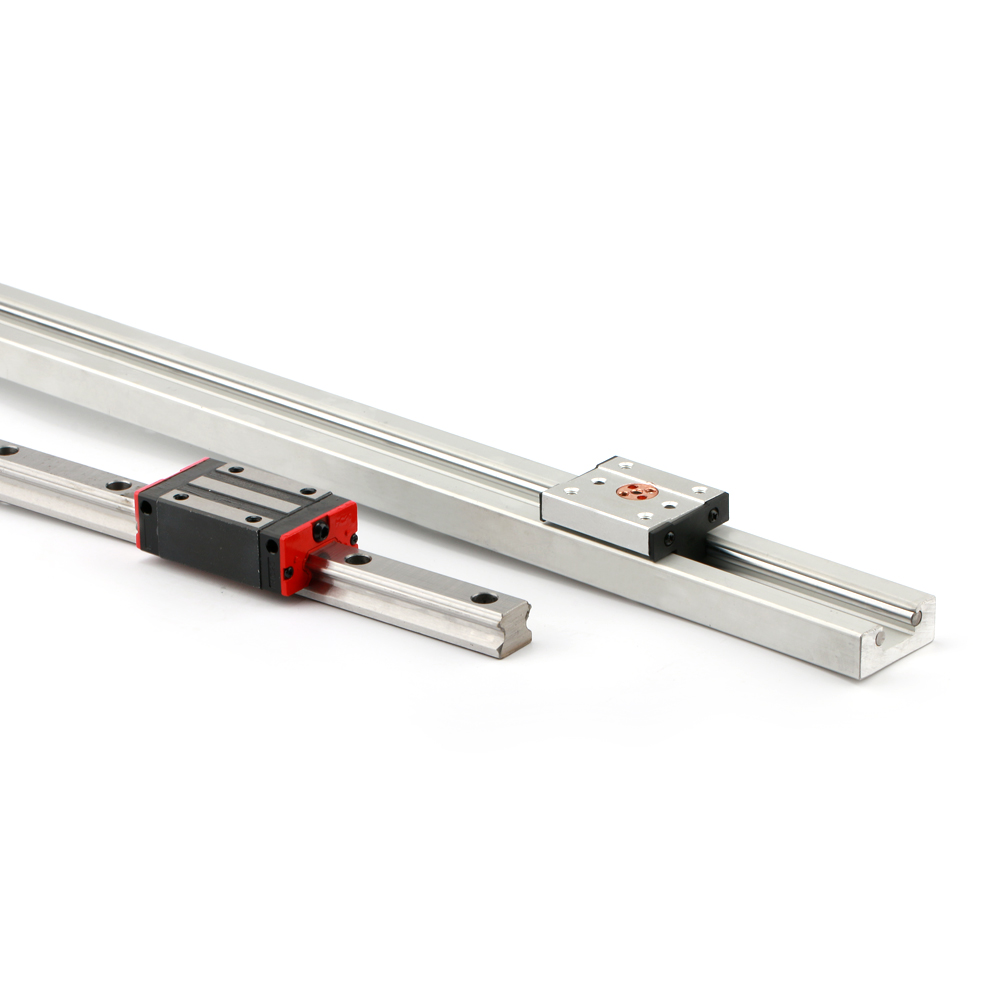

Linear Guide HGR35 Rail With HGW35 HGH35 Carriage

HG Serie: High assembly

EG Serie:Low assembly

RG Serie:Roller type

MGN Serie:Small small-sized

MGW serie:Small small-sized

Application

Grinding machine, milling machines, lathes, drilling machine, and comprehensive processing machines, discharge manufacturing machine, boring machine, line cutting machine, precise measurement instrument, woodworking machinery, handling machine, and the shipping device

linear guide advantages:

A. High rigidity and high load;
B.Smooth running, low noise and non-pollution;
C.High accurancy & easy setting up;
D.Trial order is accpetable;
E. Dynamic and static friction resistance difference is small, which is helpful to improve the response speed and sensitivity of CNC system;
F. The driving power is small, which reduces the energy consumption;
G. High positioning accuracy and repeat positioning accuracy;
H. By increasing the preload, the rigidity is greatly enhanced;
I. Using paired guide rais, it has the effect of homogenizing error;
J. Can withstand the load from up and down or so;
K.The end and the side can be manual or automatic lubricated through oil cup;
L. It has simplified the design and manufacture of mechanical structure, theref ore reduced the manufacturing cost
