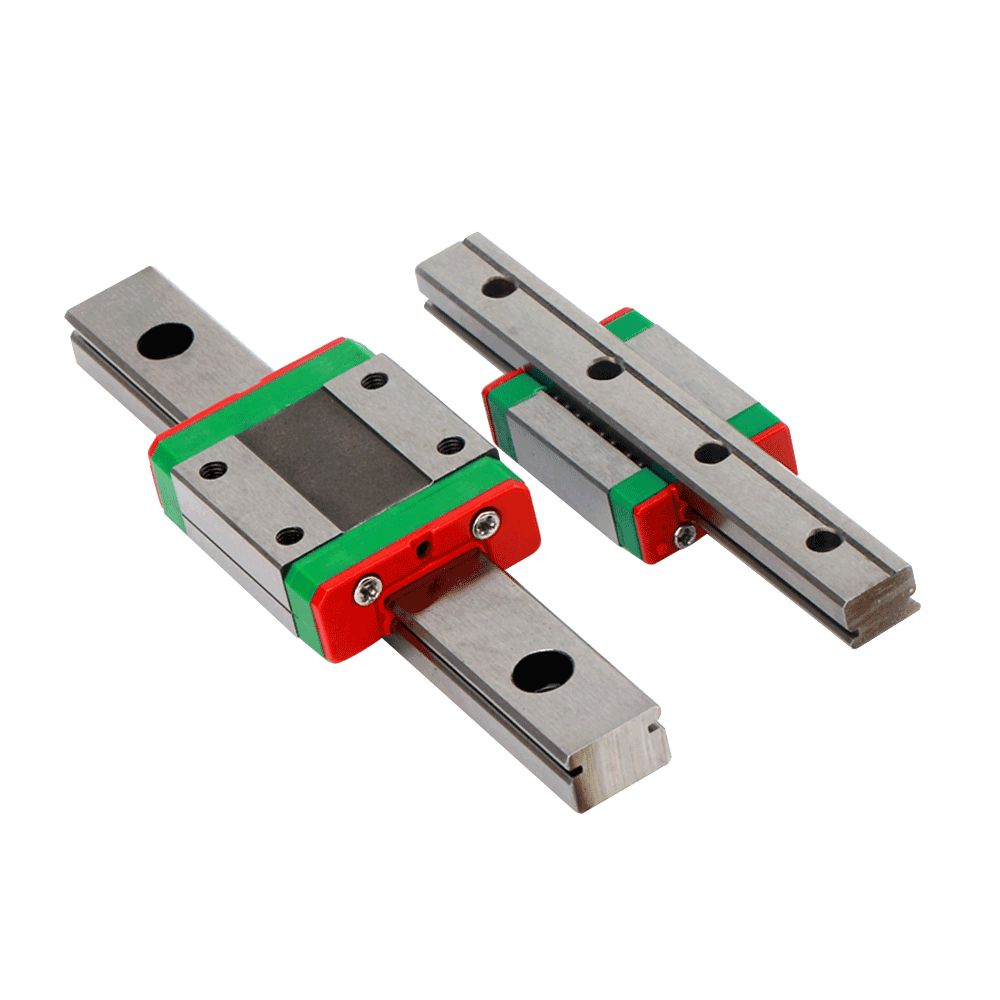

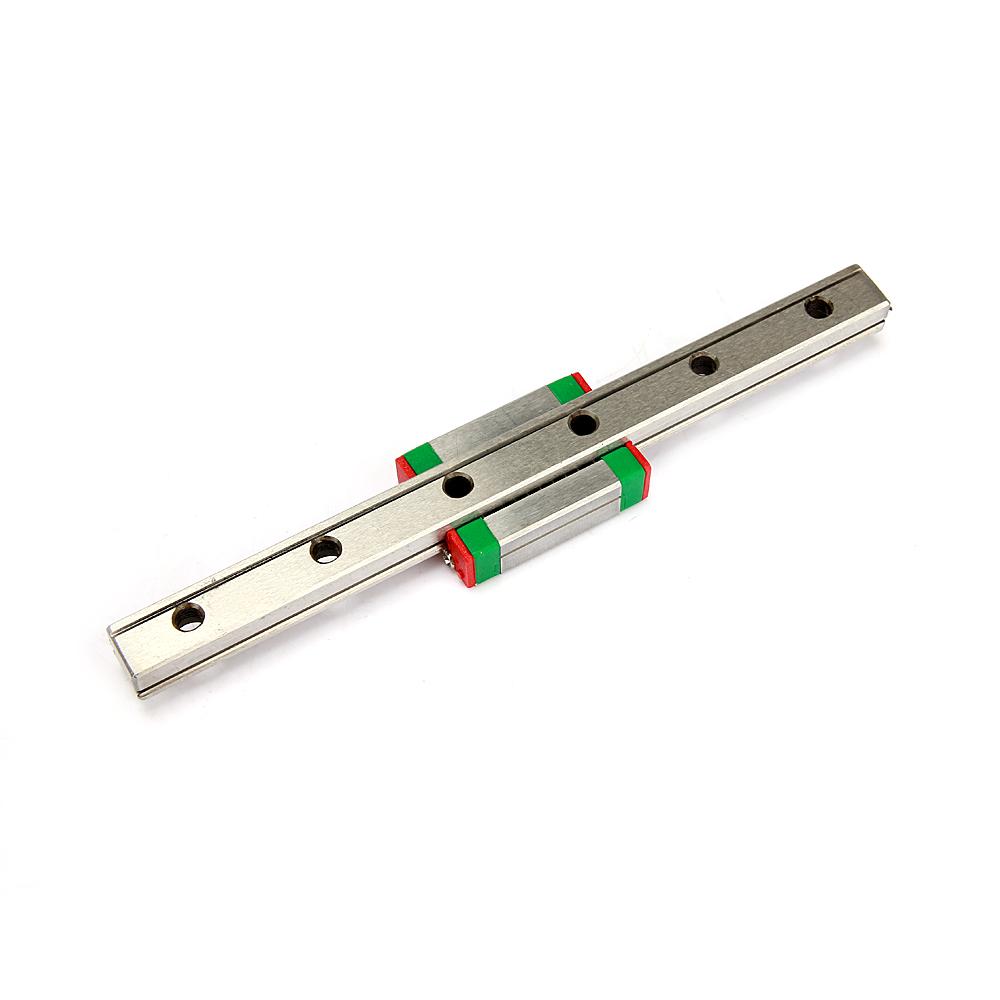

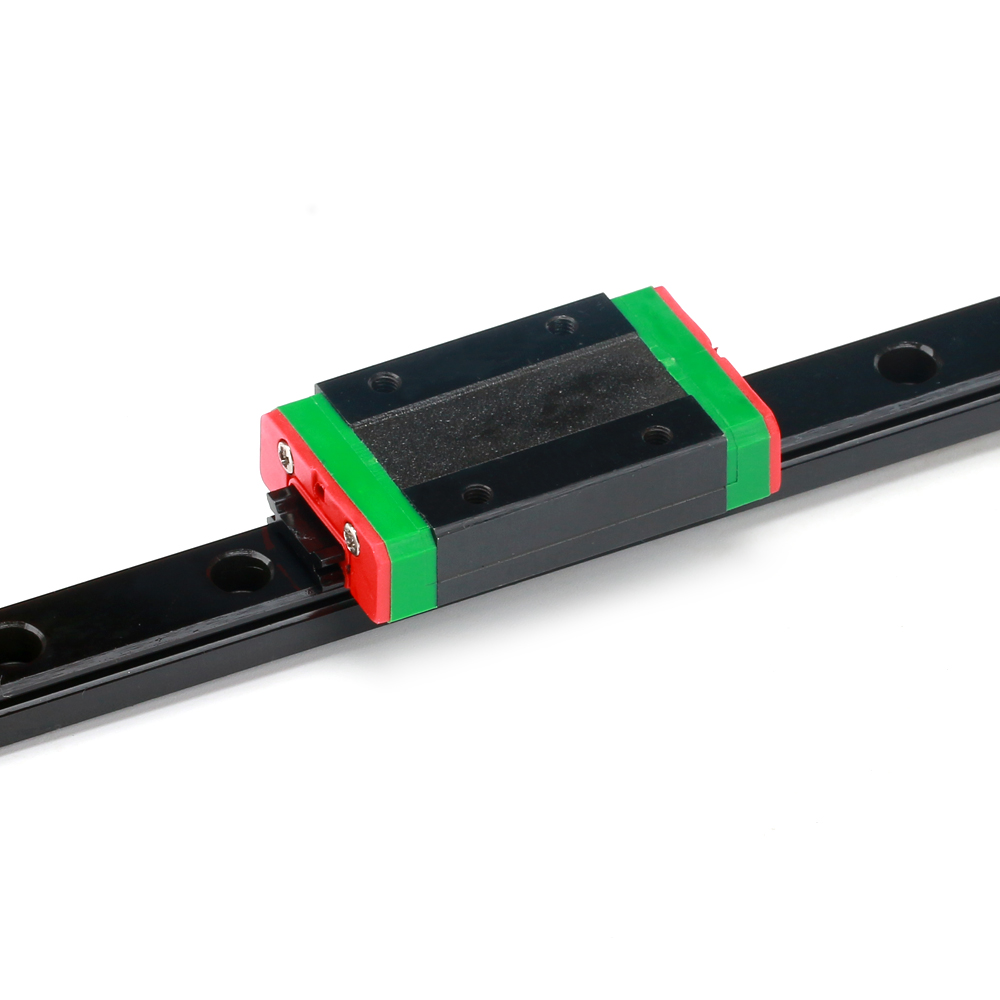

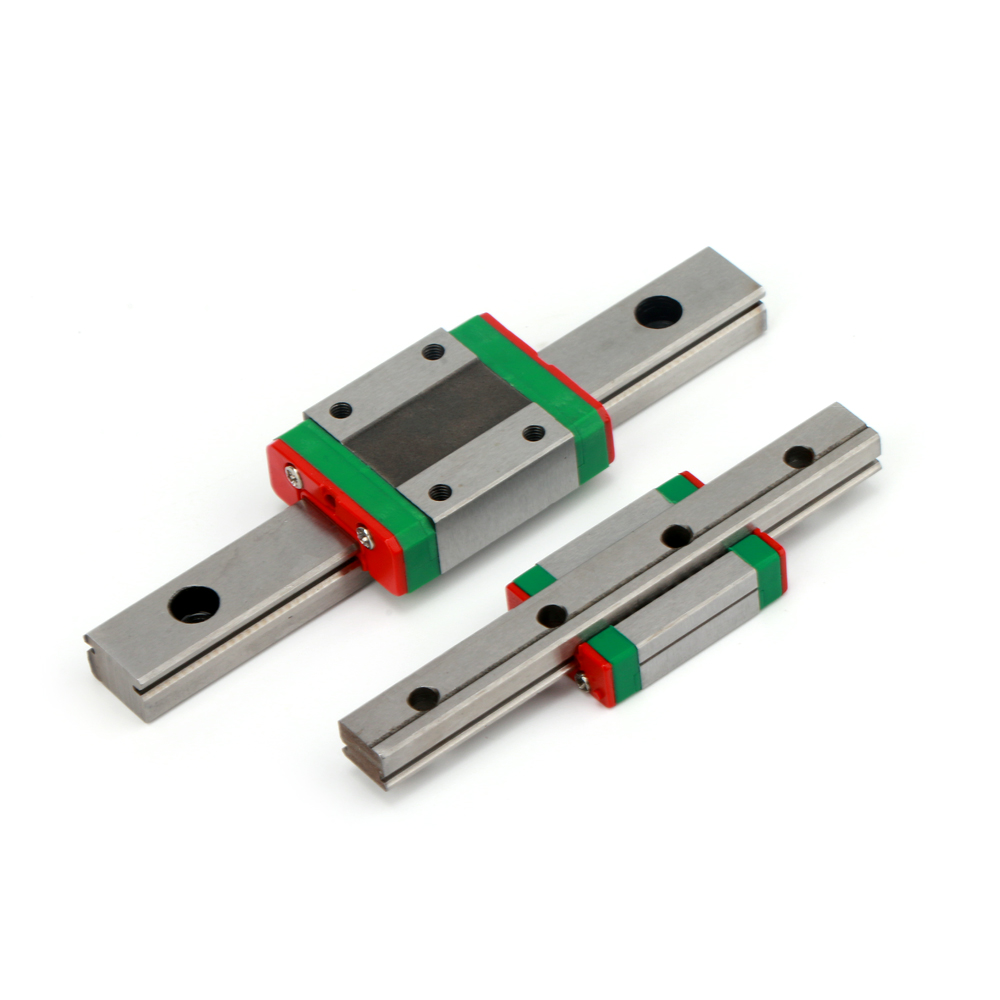

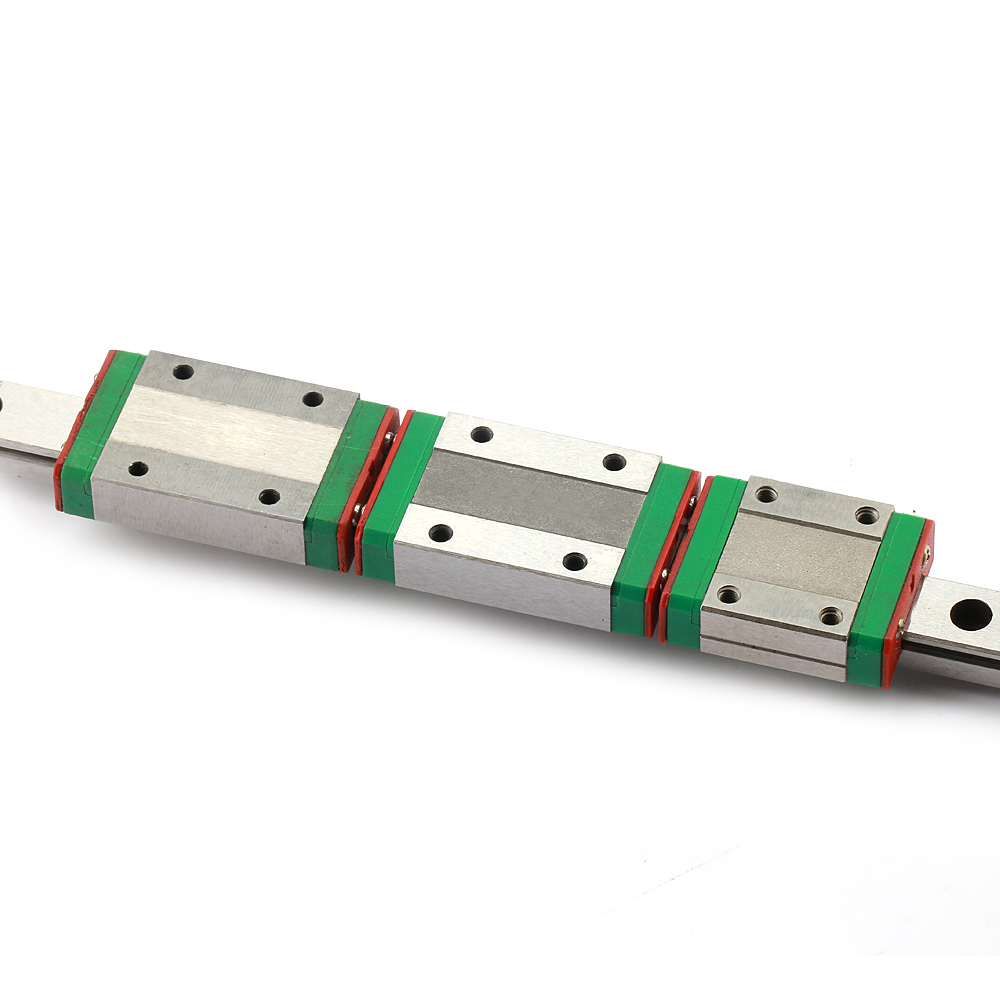

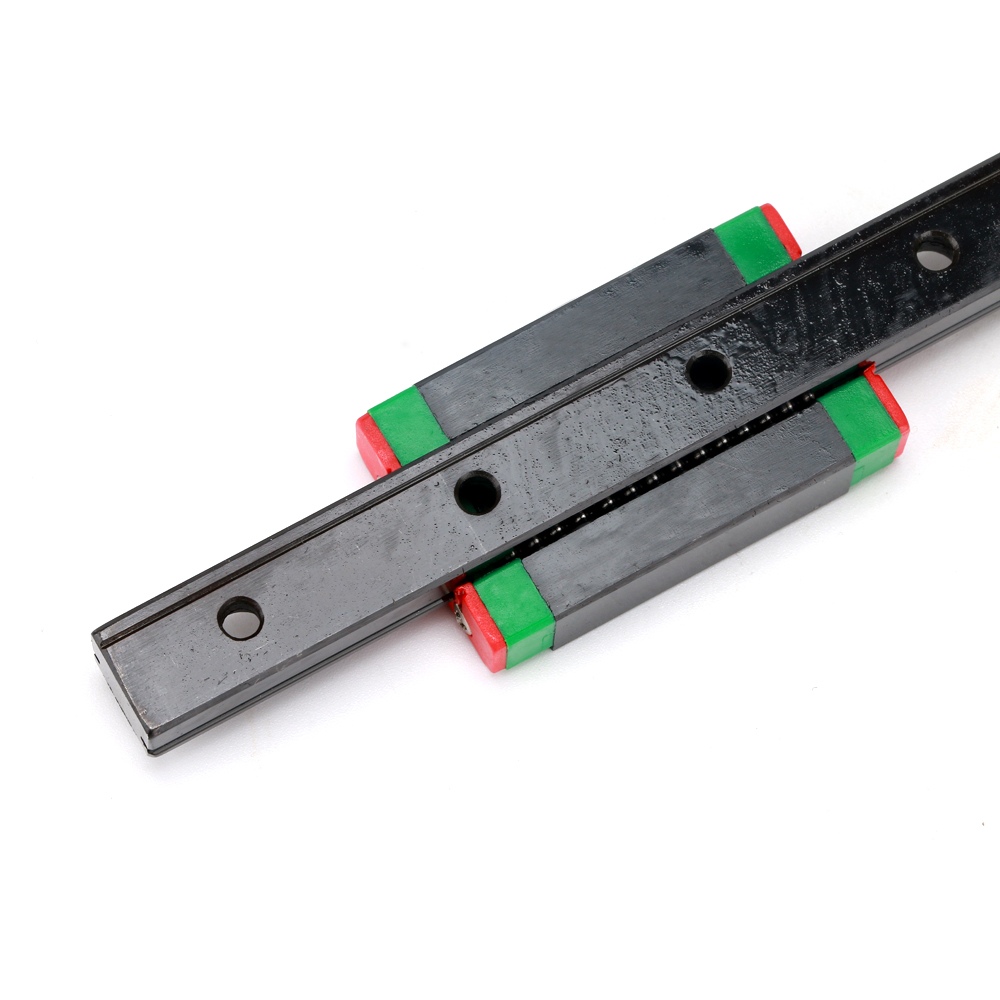

linear guide 3D printer linear rail MGN12 MGN12C MGN12H

product information:

Brand:YWS

Material:Bearing Steel

Miniature Linear Guide Rail

Fixed bolt:M3x8

Bore Diameter:6mm/0.24inch

Pitch of Holes:25mm/0.98inch

Overall Dimensions:400 x 12 x 8mm/15.75 x 0.47 x 0.31inch (L x W x T)

Guide Rail Sliding Block

Slider length:34.7mm

Slider width:27mm

Slider thickness:10mm

Fixing screw size:M3x3.5

Sliding Block Size:34.7 x 27 x 10mm/1.37 x 1.06 x 0.39""(L x W x T)

Wholesale and freight: To provide you with accurate solutions

Tips: Please contact us for details of the required products.

Custom lengths

We can cut any length that you want, and please let us know for what length are suitable for you then we will check the total costs for you as soon as possible

Product features：

1.Applied in semiconductor manufacturing equipment, printed circuit boards, IC assembly equipment, medical equipment, robotic arms, precision measurement machine and other small linear motion device.

2.Made of Bearing Steel with low friction coefficients

3.the system works beautifully for both slider motion as well as panning

4.it worked great and had no resistance in the bearings when put on a rail.

Sincerely welcome to send enquiry to us!!!
