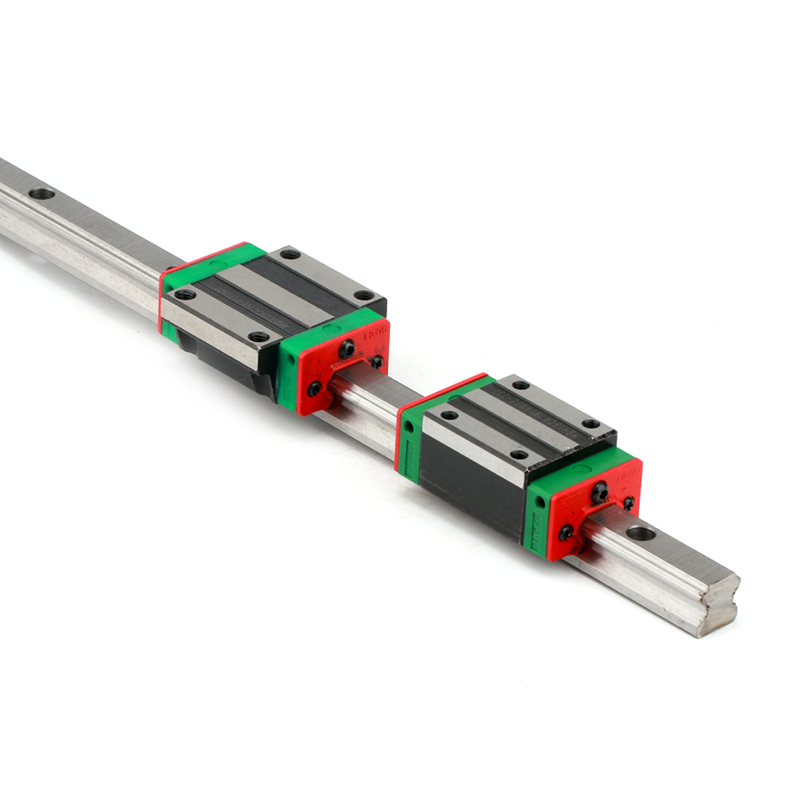

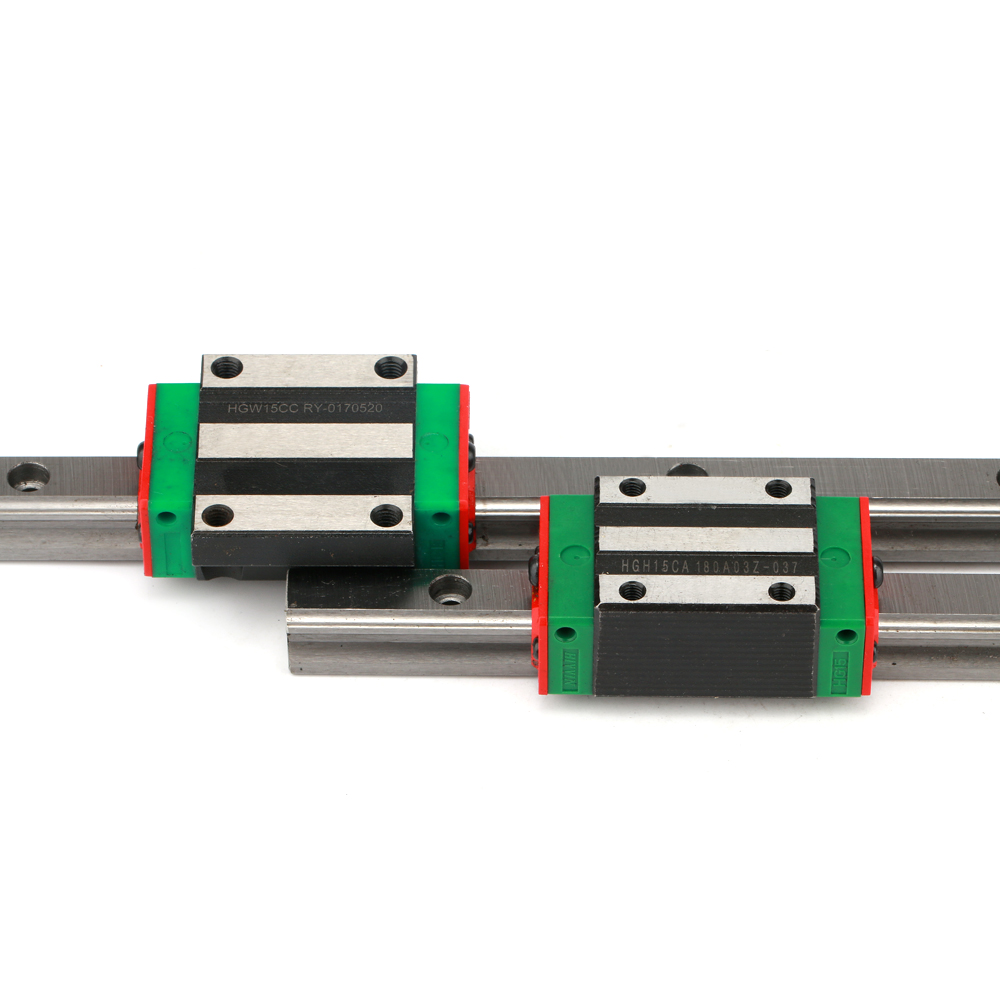

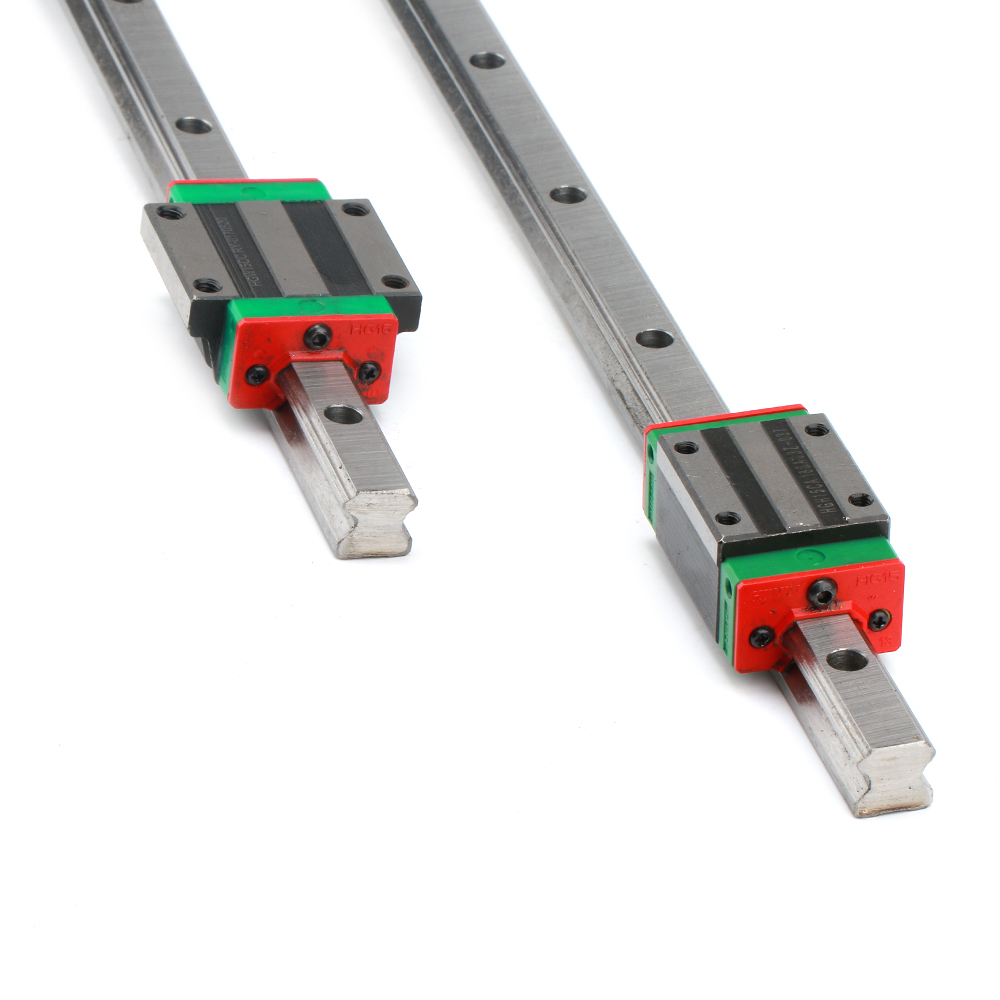

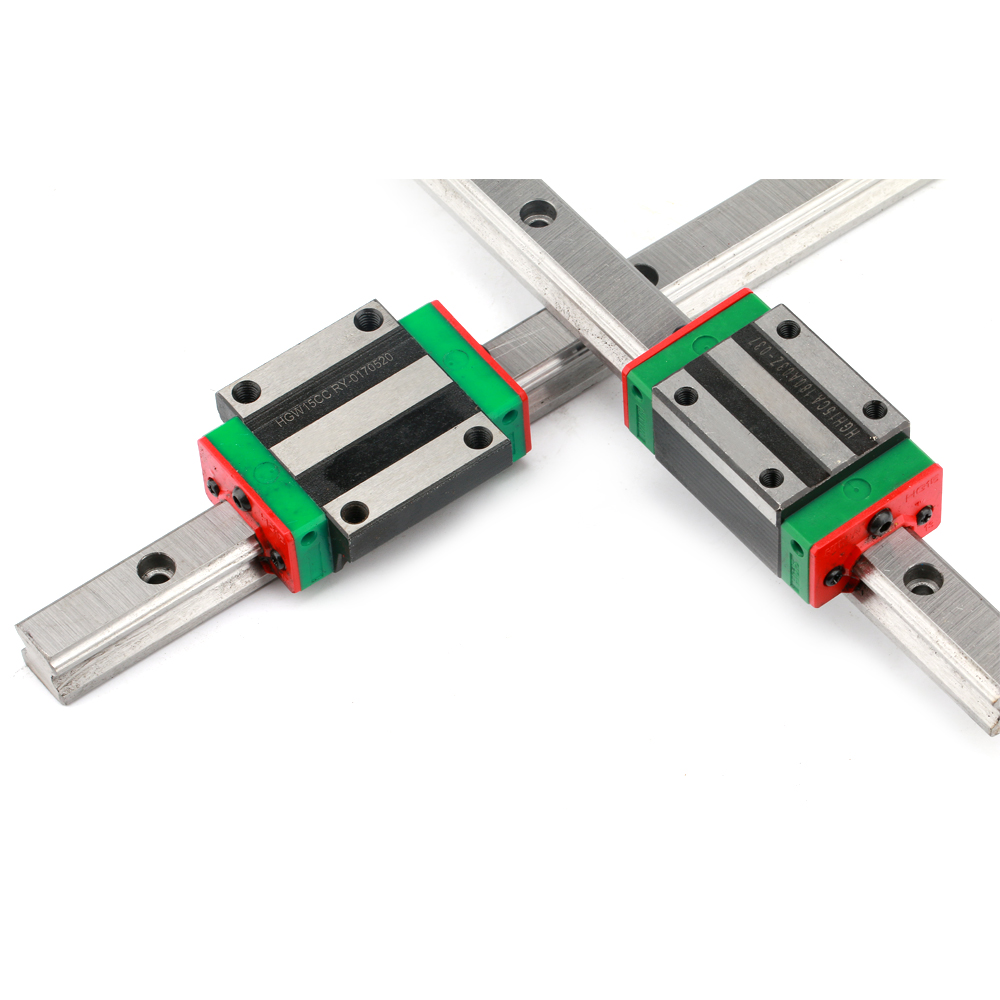

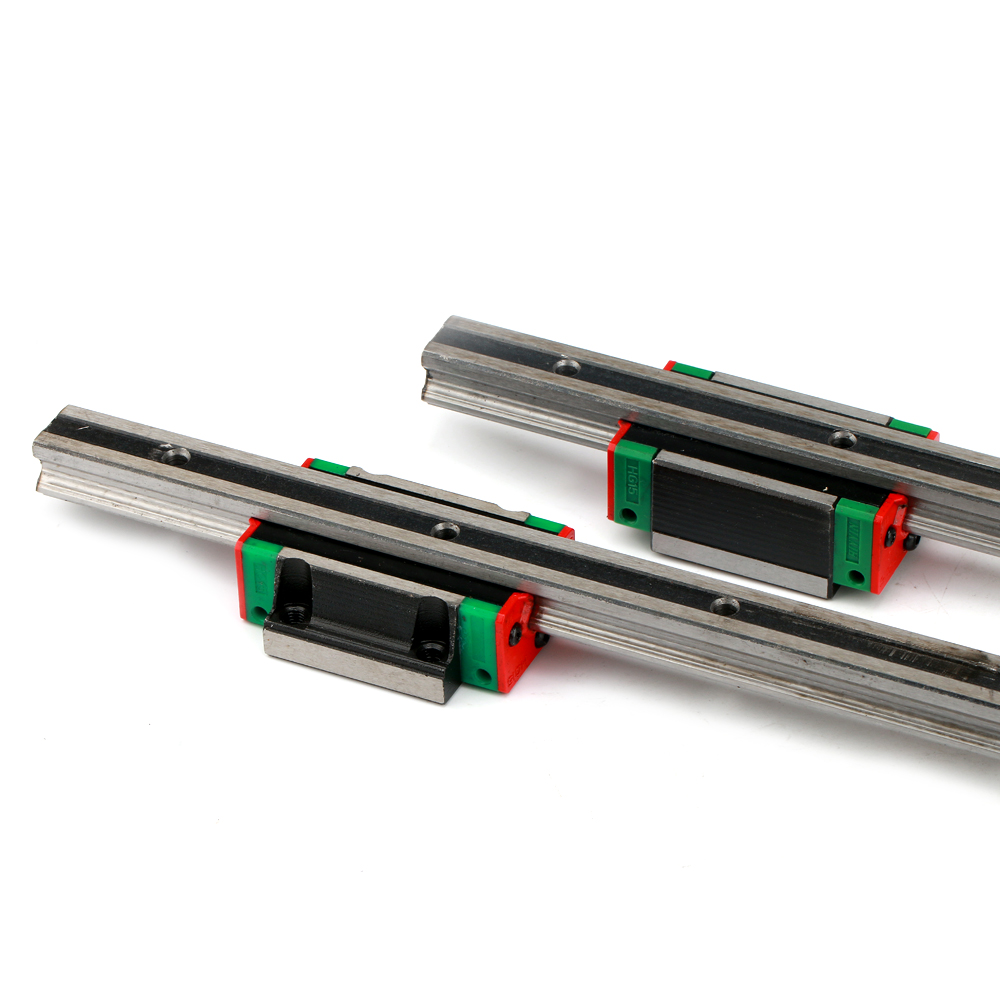

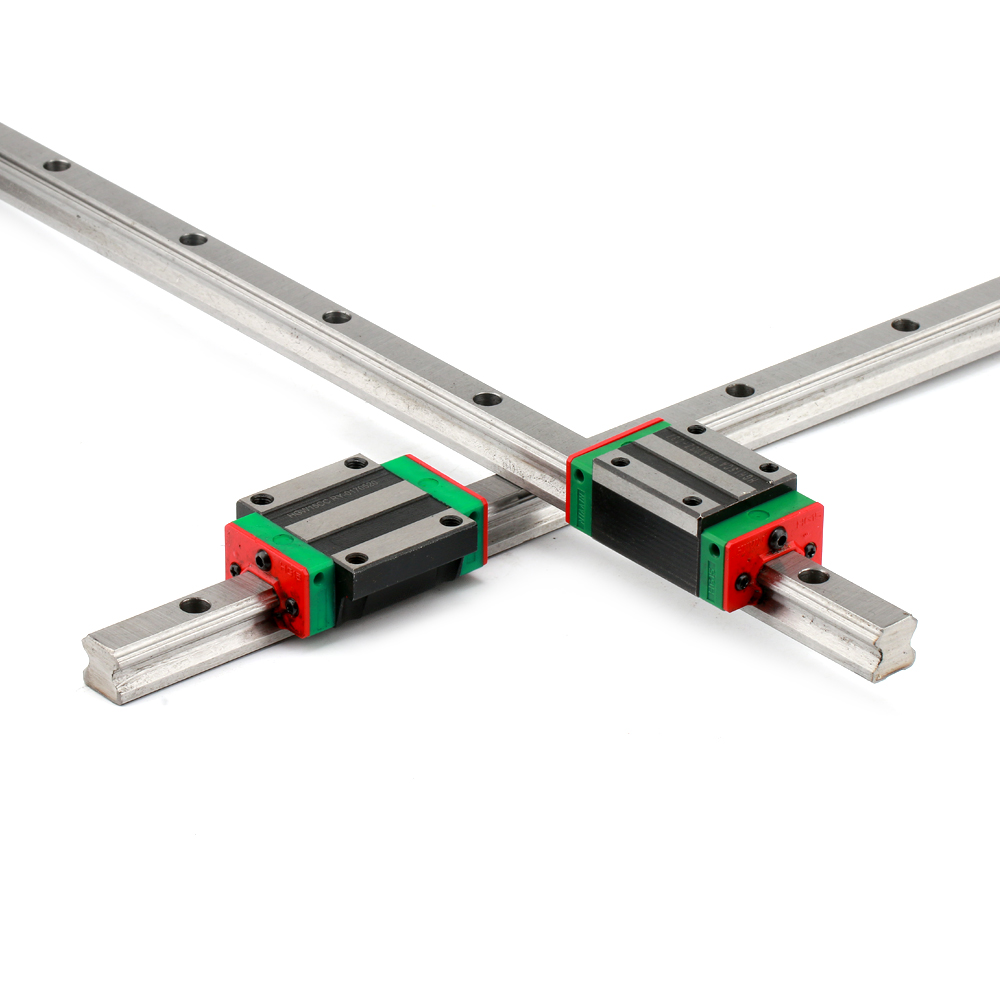

high precision HGR series linear guide rail bearing price HGR25

product information:

Brand:YWS

Material:Chrome Steel/AISL 52100/DIN100Cr6/JISSUJ2

Miniature Linear Guide Rail

Model: HGR25

Rail type: interchangeable types

Block type: square Type

Size:25mm

Load Type: Heavy Load

Block Mounting: Mounting from Top

Accuracy: C

Wholesale and freight: To provide you with accurate solutions

Tips: Please contact us for details of the required products.

Custom lengths

We can cut any length that you want, and please let us know for what length are suitable for you then we will check the total costs for you as soon as possible

Product description：

HG series linear guideways are designed with load capacity and rigidity higher than other similar products with circular-arc groove and structure optimization. It features equal load ratings in the radial, reverse radial and lateral directions, and self-aligning to absorb installation-error.

(1) Self-aligning capability

By design, the circular-arc groove has contact points at 45 degrees. HG series can absorb most installation errors due to surface irregularities and provide smooth linear motion through the elastic deformation of rolling elements and the shift of contact points. self-aligning capability, high accuracy and smooth operation can be obtained with an easy installation.

(2) Interchangeability

Because of precision dimensional control, the dimensional tolerance of HG series can be kept in a reasonable range, which means that any blocks and any rails in a specific series can be used together while maintaining dimensional tolerance.

(3) High rigidity in all four directions

Because of the four-row design, the HG series linear guideway has equal load ratings in the radial, reverse radial and lateral directions.

Sincerely welcome to send enquiry to us!!!
