M10 with nipple male POS10 polished left right thread Bolt rod end bearing
You are here: Home » Products » Rod End Joint Bearing » M10 with nipple male POS10 polished left right thread Bolt rod end bearing

M10 with nipple male POS10 polished left right thread Bolt rod end bearing

loading

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
A rod end bearing, also known as a heim joint (N. America) or rose joint (U.K. and elsewhere), is a mechanical articulating joint. Such joints are used on the ends of control rods, steering links, tie rods, or anywhere a precision articulating joint is required, and where a clevis end(which requires perfect 90 degree alignment between the attached shaft and the second component) is unsuitable. A ball swivel with an opening through which a bolt or other attaching hardware may pass is pressed into a circular casing with a threaded shaft attached. The threaded portion may be either male or female.

  • POS10

  • YWS

  • rod end bearing ball joint bearing

  • YWS

  • 10mm

  • China

  • steel

  • M10*1.5

Availability:
Inquire

Product Description

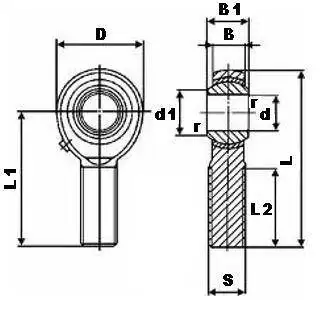

Dimensions (mm)
d Thread
S		 D B B1 d1 L L1 L2
10 M10x1.5 26 10.5 14 12.9 61 48 29





* Features:   High carrying capacity and rigidity
                     High precision, good stability
                     Long service life, low noise

*.Wide Applications
 Our joint bearings are particularly suitable for hydraulic engineering, metal forming machine tools, engineering machinery.

*Certificate:ISO9001: 2000
*Service: OEM service acceptable



 Number Pillo..BallPOS Dimensions (mm)

d Threads D B B1 d1 L L1 L2
 POS 5 5  M5×0.8 16 6 8 7.7 41 33 20
 POS 6 6  M6×1 18 6.75 9 9 45 36 22
 POS 8 8  M8×1.25 22 9 12 10.4 53 42 25
 POS 10 10  M10×1.5 26 10.5 14 12.9 61 48 29
 POS 10 10  M10×1.25 26 10.5 14 12.9 61 48 29
 POS 12 12  M12×1.75 30 12 16 15.4 69 54 33
 POS 12 12  M12×1.50 30 12 16 15.4 69 54 33
 POS 12 12  M12×1.25 30 12 16 15.4 69 54 33
 POS 14 14  M14×2 34 13.5 19 16.9 77 60 36
 POS 14 14  M14×1.50 34 13.5 19 16.9 77 60 36
 POS 14 14  M14×1.25 34 13.5 19 16.9 77 60 36
 POS 16 16  M16×2 38 15 21 19.4 85 66 40
 POS 16 16  M16×1.5 38 15 21 19.4 85 66 40
 POS 18 18  M18×1.5 42 16.5 23 21.9 93 72 44
 POS 20 20  M20×1.5 46 18 25 24.4 101 78 47
 POS 20 20  M20×2.5 46 18 25 24.4 101 78 47
 POS 22 22  M22×1.5 50 20 28 25.8 109 84 51
 POS 25 25  M24×2 60 22 31 29.6 124 94 57
 POS 28 28  M27×2 66 25 35 32.3 136 103 62
 POS 30 30  M30×2 70 25 37 34.8 137 110 66
 POS 35 35  M36×2 80 28 43 39.2 165 125 60
 POS 40 40  M42×2 90 33 49 45.4 190 142 62
 POS 50 50  M48×2 116 45 60 55.8 220 160 65
 POS 60 60  M58×2 130 50 70 66.7 240 170 70
