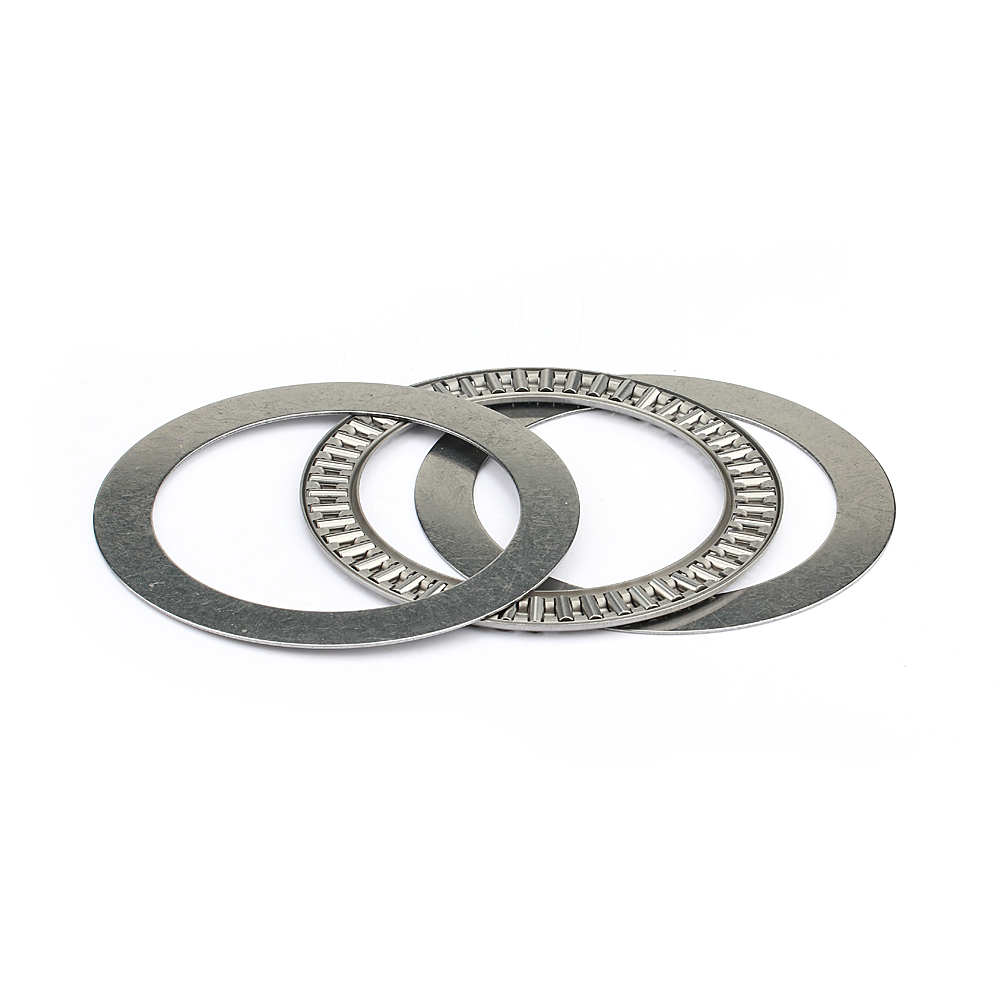

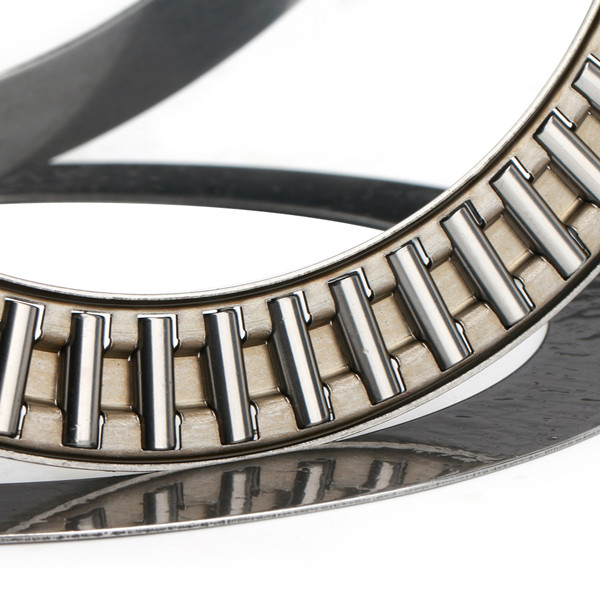

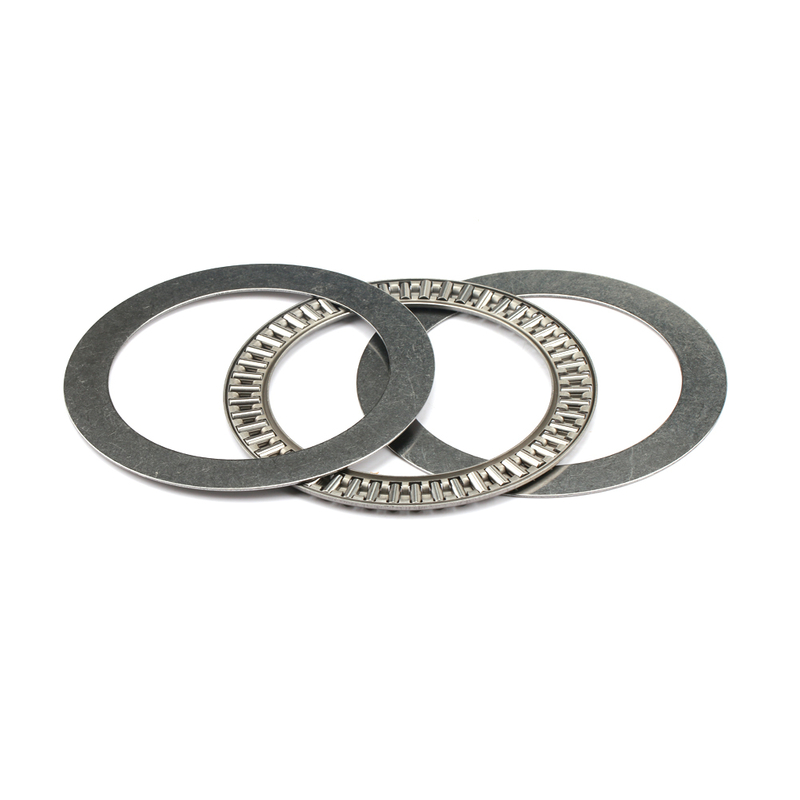

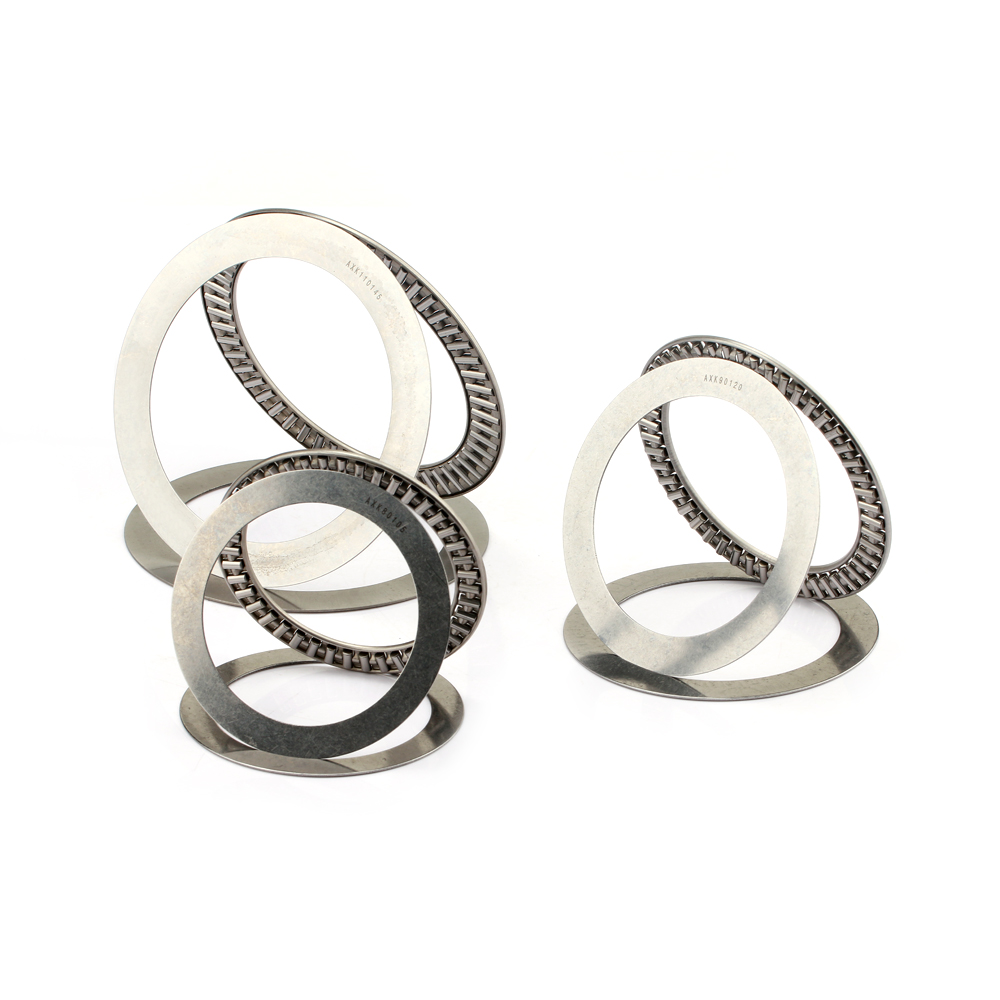

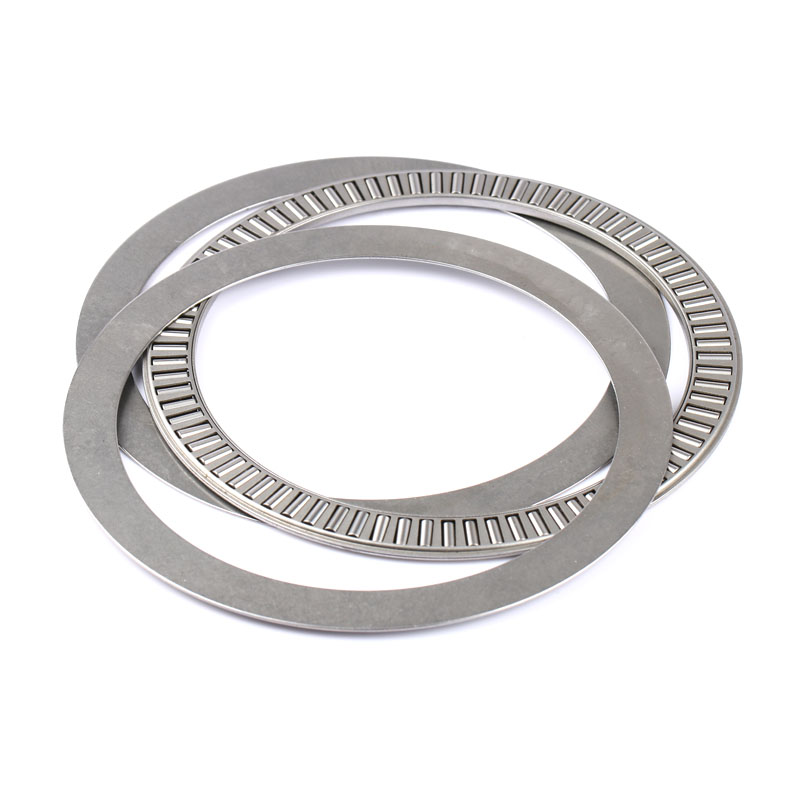

AXK series flat thrust needle roller bearing AXK3047 AXK3552 AXK 3552 AXK4060

product information:

Structure:thrust needle roller bearing

Type:needle roller bearing

Brand Name:YWS

Internal diameter:30mm

External diameter:47mm

width：2mm

size:30×47×2mm

weight：0.022kg

Dynamic Load Capacity (Cr): 11.2kN

Static Load Capacity (Cor): 35.5kN

Maximum Rotational Speed (Oil): 11000rpm

Material:Chrome steel/GCr15/Stainless steel/ceramic

Sealing type: You can choose Metal seal Or Rubber seal

Is customized: Yes (Drawings required)

Related accessories: Oil seal,Circlip and housings etc.

Wholesale and freight: To provide you with accurate solutions

Product description：

1.This Needle Roller Thrust Bearings provide a high degree of stiffness within a minimum axial space. It has a smaller cross-section than a standard thrust bearing for use in restricted spaces.

2.These bearings to accommodate heavy axial loads and peak loads due to small diameter deviation of the rollers within one assembly.

3.AXK Thrust Bearings can be combined with washers in the AS series in applications where adjacent components cannot serve as raceways.

4.Made of hardened spring steel, both faces of the washers are polished and can be used as raceways.

5.Rolling bearings are used in a range of applications from agricultural machinery to conveying equipment, robotics, elevators, rolling mills, ship rudder shafts, and aggregate crushers, among others.

Sincerely welcome to send enquiry to us!!!
