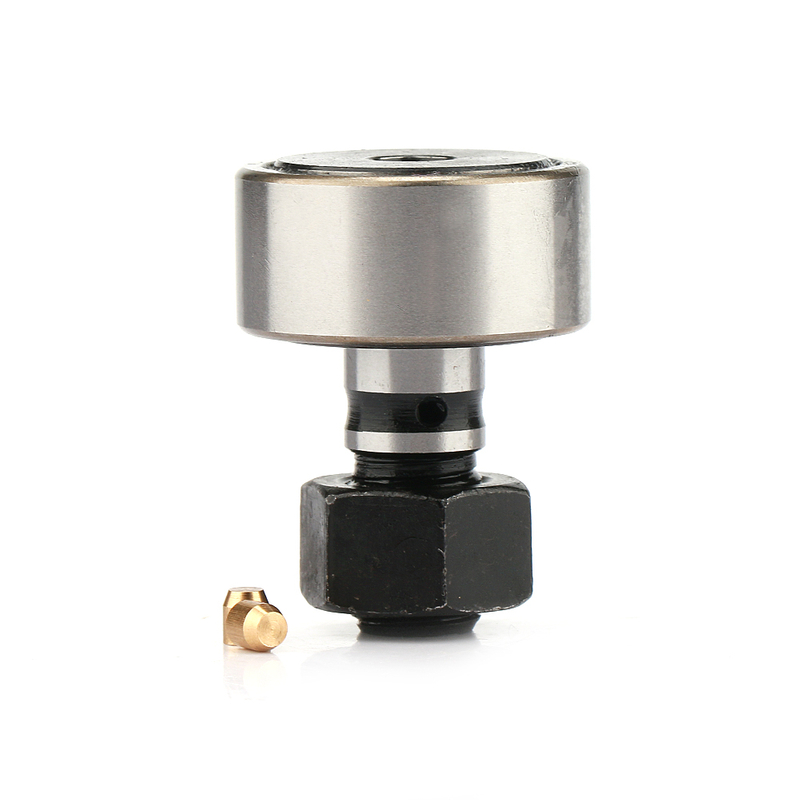

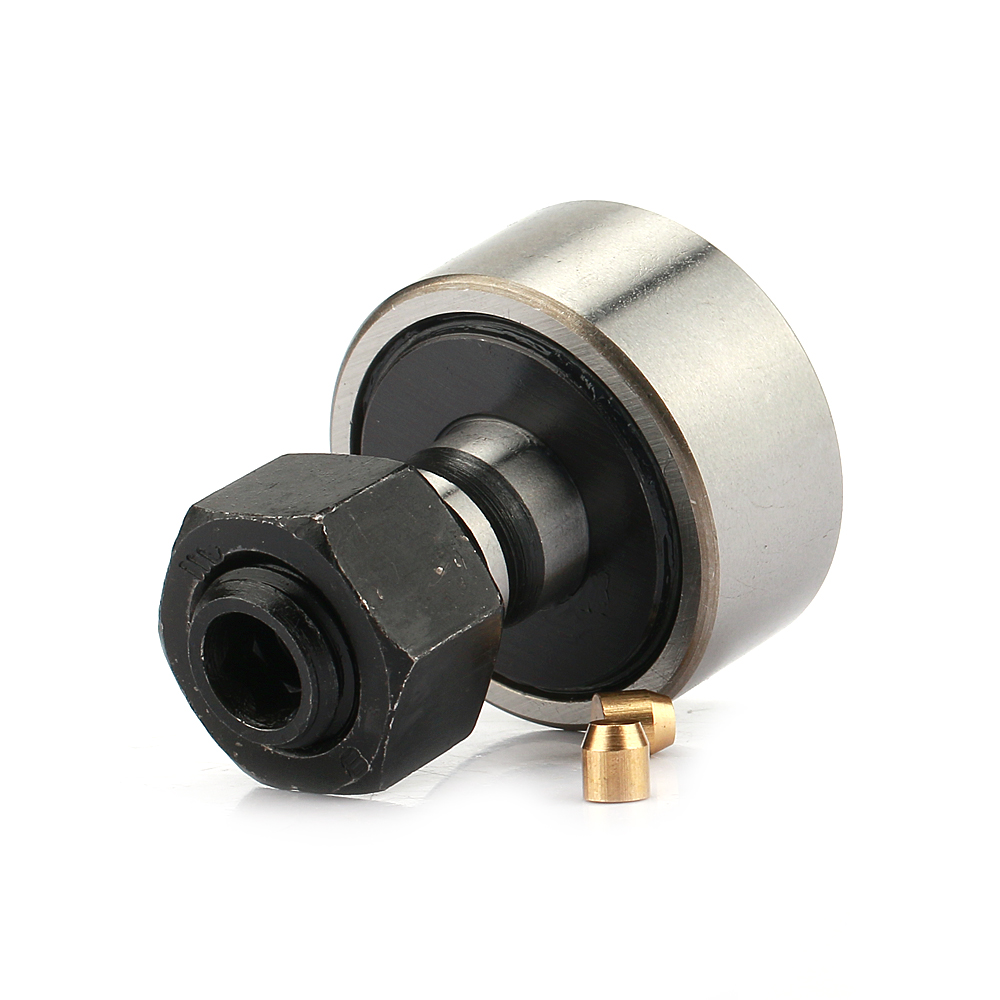

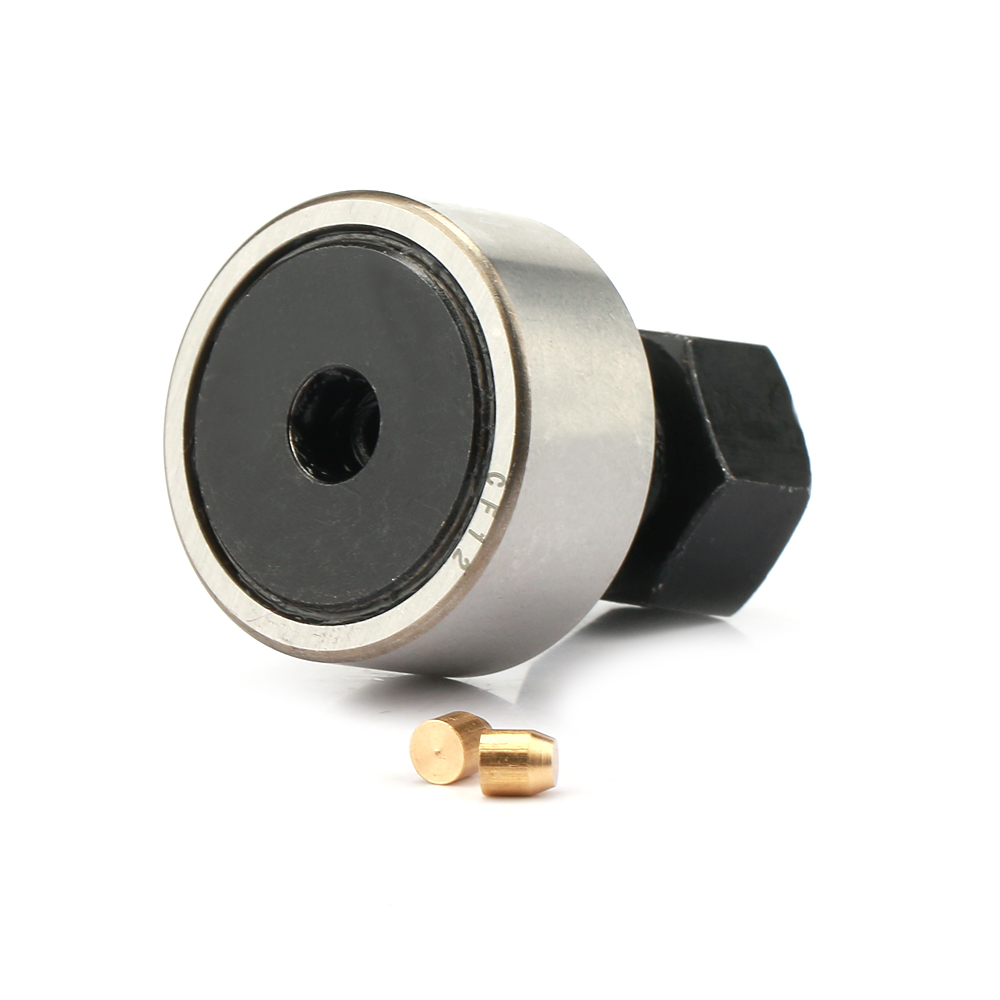

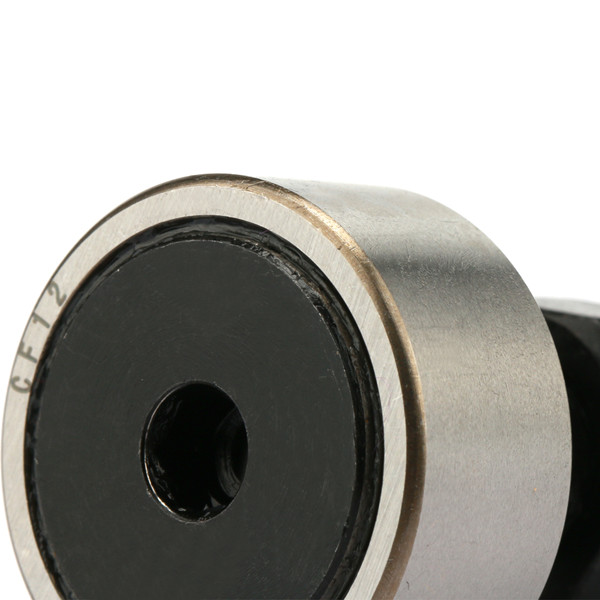

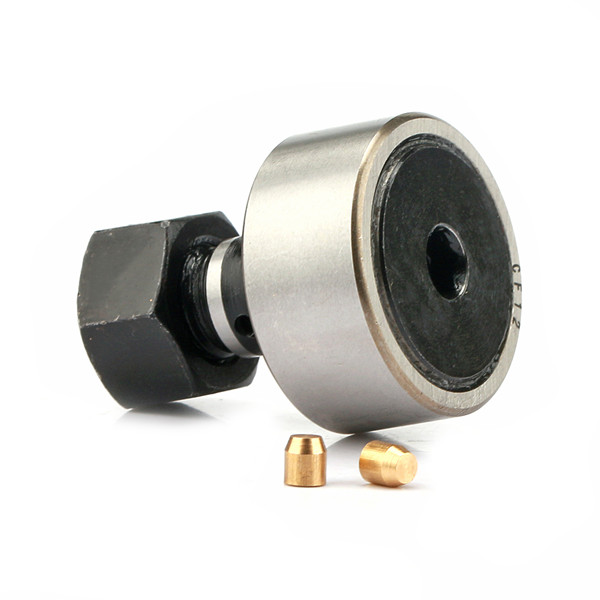

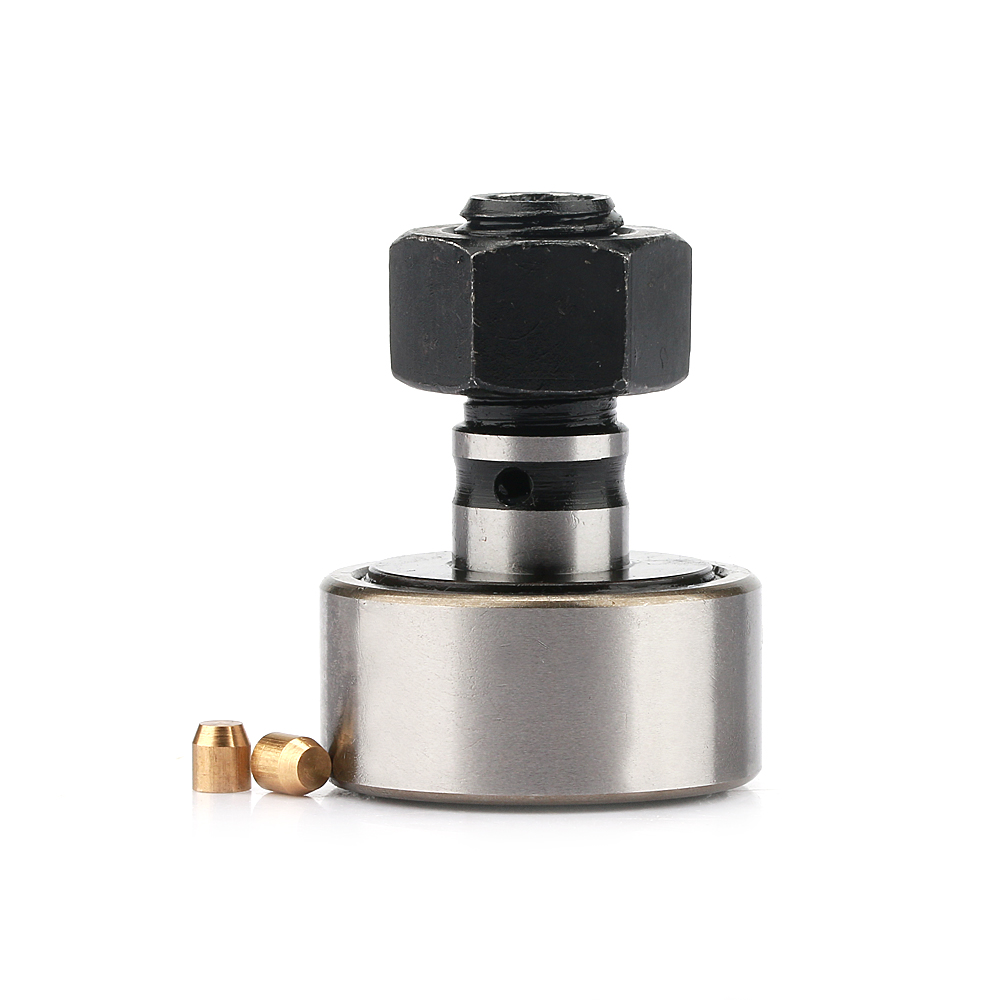

CF12
YWS or OEM
OEM Customized Services
Product Details
product information:
Structure:Needle roller bearing
Type:Needle, Needle roller bearing
Brand Name:YWS
Roller Diameter：30mm
Roller Thickness：13mm
Screw Thread：M12
Hex Nut Thickness：9mm
Shank Diameter：12mm
Size：37mm x 30mm(L x Dia)
weight：0.1kg
Material:Chrome steel/GCr15/Stainless steel/ceramic
Is customized: Yes (Drawings required)
Wholesale and freight: To provide you with accurate solutions
Product description：
Cam follower with needle rollers supports high static and dynamic loads in cam- and track-type applications.
Stud-type design with a hexagonal socket for through-hole or threaded mounting.
Full complement of rollers for higher radial load capacity than caged rollers.
Nylon lip seals help retain lubricant and prevent contamination.
Black oxide- treated bearing steel for durability and corrosion resistance.
Product features：
Full complement of rollers for higher radial load capacity than caged rollers.
Black oxide- treated bearing steel for durability and corrosion resistance.
Nylon lip seals help retain lubricant and prevent contamination.
Stud-type design with a hexagonal socket for through-hole or threaded mounting.
Cam follower with needle rollers supports high static and dynamic loads in cam- and track-type applications.
| Bearing No. | Boundary dimensions(mm) | Basic load ratings(N) | Limiting speeds(rpm) | ||||||||
| d | B | B1 | B2 | B3 | G1 | S | H | Cr | Cor | Greas | |
| CF6 | 16 | 11 | 12 | 28 | 9 | 1 | 3 | 270 | 170 | 25000 | |
| CF8 | 19 | 11 | 12 | 32 | 11 | 1.25 | 4 | 300 | 210 | 20000 | |
| CF10 | 22 | 12 | 13 | 36 | 13 | 1.25 | 4 | 410 | 320 | 17000 | |
| CF10-1 | 26 | 12 | 13 | 36 | 13 | 1.25 | 4 | 410 | 320 | 17000 | |
| CF12 | 30 | 14 | 15 | 6 | 40 | 14 | 1.5 | 6 | 590 | 450 | 14000 |
| CF12-1 | 32 | 14 | 15 | 6 | 40 | 14 | 1.5 | 6 | 590 | 450 | 14000 |
| CF16 | 35 | 18 | 19.5 | 8 | 52 | 18 | 1.5 | 6 | 850 | 760 | 10000 |
| CF18 | 40 | 20 | 21.5 | 10 | 58 | 20 | 1.5 | 8 | 1180 | 1220 | 8500 |
| CF20 | 52 | 24 | 25.5 | 12 | 66 | 22 | 1.5 | 8 | 1630 | 1690 | 7000 |
| CF20-1 | 47 | 24 | 25.5 | 12 | 66 | 22 | 1.5 | 8 | 1630 | 1690 | 7000 |
| CF24 | 62 | 29 | 30.5 | 12 | 80 | 25 | 1.5 | 8 | 2160 | 2210 | 6500 |
| CF24-1 | 72 | 29 | 30.5 | 12 | 80 | 25 | 1.5 | 8 | 2160 | 2210 | 6500 |
| CF30 | 80 | 35 | 37 | 15 | 100 | 32 | 1.5 | 8 | 2160 | 2210 | 6500 |
| CF30-1 | 85 | 35 | 37 | 15 | 100 | 32 | 1.5 | 8 | 2830 | 3700 | 5000 |
| CF30-2 | 90 | 35 | 37 | 15 | 100 | 32 | 1.5 | 8 | 2830 | 3700 | 5000 |
