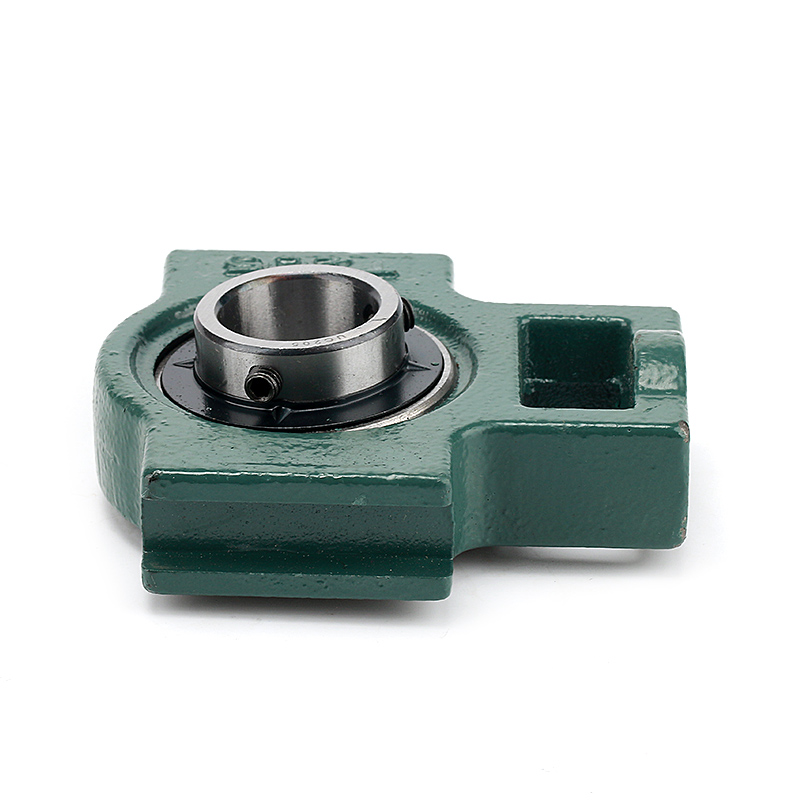

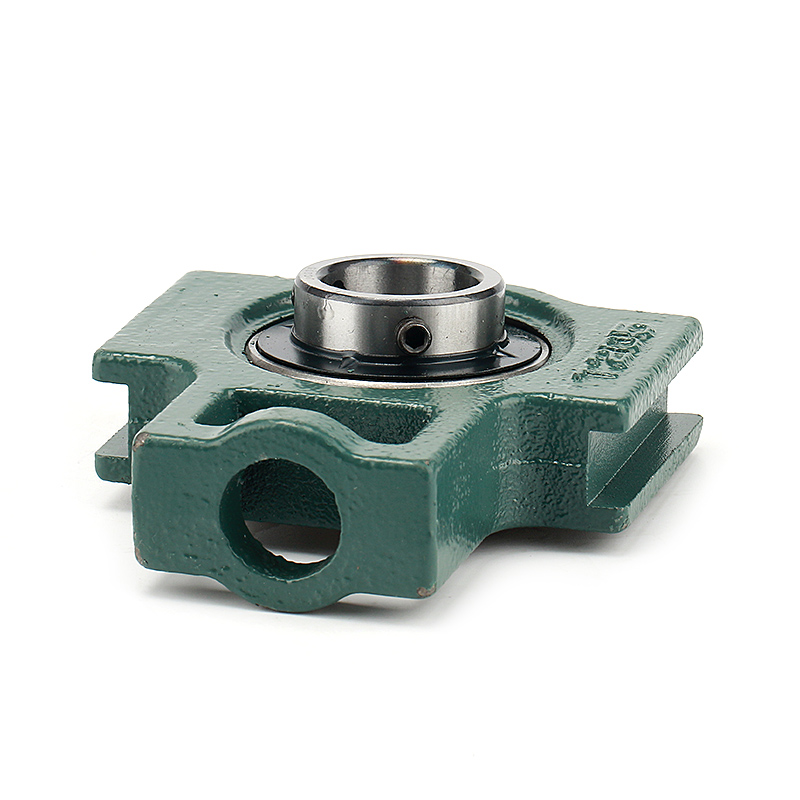

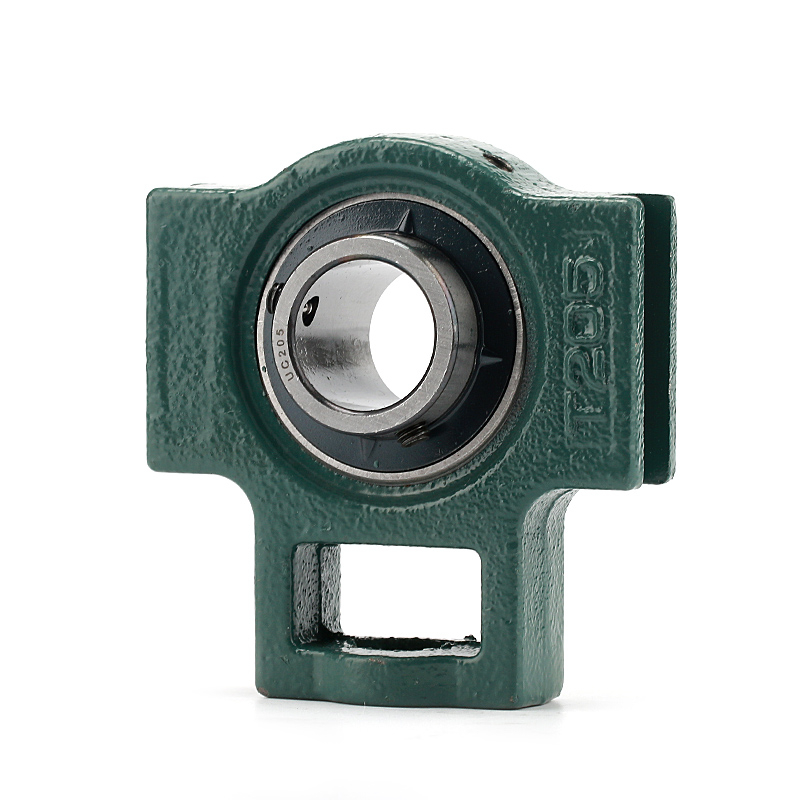

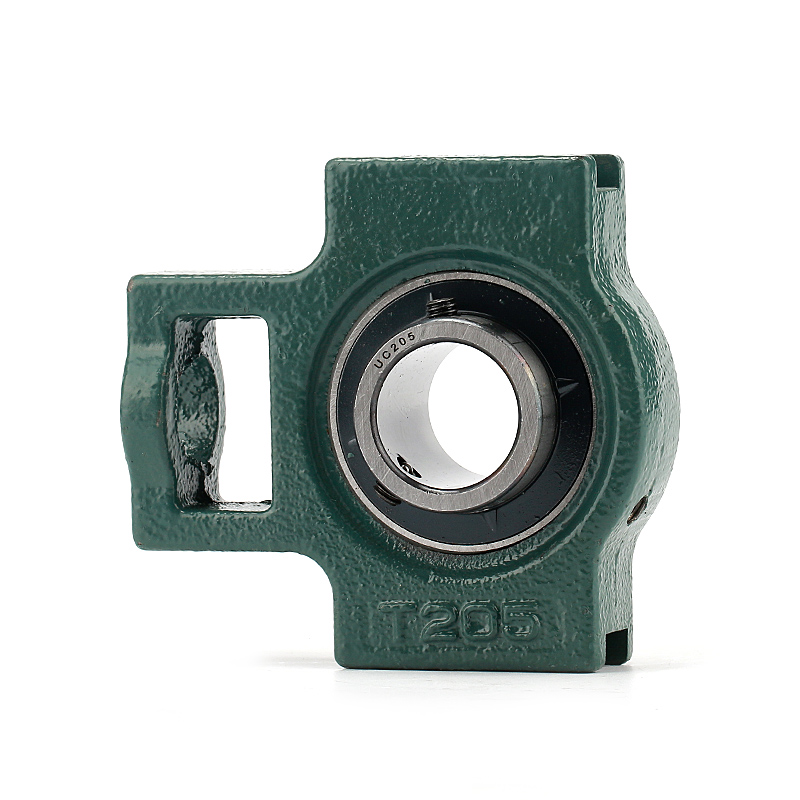

UCT cast iron pillow block/insert bearing with housing UCT205

product information:

• Brand: YWS OEM

• Model: UCT201

• Old Model: 90501

• Type: spherical ball bearings

• Inside diameter: 25 (mm)

• Outer diameter: 97 (mm)

• Thickness: 89 (mm)

• Weight:  (kg)

• Cage material: F1 Carbon

• Use characteristics: high temperature

• Uses: General

• Rolling out a few: single

• Roller type: Spherical roller

• Sample or spot: spot

• Bearing material: high carbon chromium bearing steel (full hardenability type) (GCr15)

Product description：

1.A pillow block contains a housing and an double sealed insert self-alignment bearing that avoid any misalignment.

2.Bearing housings are made of Cast Iron while bearings are made of Chromium Steel (GCr15), giving them low friction, vibration and noise.

3.Pillow block Bearings have two bolt holes for installation. It is easy to replace.

4.The set screws enable the shaft to be fixed to the inner ring of the bearing and preventing slippage.

Product features：

Chromium Steel insert bearing, long-life, smooth and low noise

Slot Mounted Pillow Block Bearing. Cast Iron housing, rust-proof and durable

Self-alignment bearing can correct its own alignment once it begins to rotate

Designed for mounting onto surfaces vertical to the shaft axis
