Professional Manufacturer High Quality Linear Shaft 6mm for 3D printer
You are here: Home » Products » Linear Bearings » Professional Manufacturer High Quality Linear Shaft 6mm for 3D printer

Professional Manufacturer High Quality Linear Shaft 6mm for 3D printer

loading

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
linear shaft have 45# steel material and Gcr15 steel material.
Linear shaft are widely used on CNC, 3D printer,Cylinder rods, automatic precision printers, automatic cutting machines and industrial robots and many other linear motion systems.

  • SF6

  • YWS

  • 8483109000

  • linear

  • linear

  • YWS

  • 6mm

  • SF6

  • 45# steel or Gcr15 steel

Availability:
Inquire

Product Description

 Professional Manufacturer High Quality Linear Shaft 6mm for 3D printer


Material: 45# steel and Gcr15 steel


Application: CNC, 3D printer,Cylinder rods, automatic precision printers, automatic cutting machines and industrial robots, etc.


we also can supply LM series, Such as 6mm linear shaft with LM6UU


Goods Description:


Model Number WCS SFC Series Solid shaft(Linear rod;Steel bar;Optical axis),hollow shaft as demand
Diameter

Metric Diameter : 3mm,4mm,5mm,6mm,8mm,10mm,12mm,16mm......100mm

Inch Diameter : 6.35mm,9.525mm,12.7mm,15.875,19.05,25.4mm,31.75mm,38.1mm

Quality

 ISO9001:2008 standard
Material Steel 45#;GCR15;SUS440C
Hardness HRC:58-62
Hardened Layer Thickness 0.8-3.00mm
Precision G6
Roughness Within1.5μm

Roughness(Rmax)

 Within 3.0μm(Rmax)
Straightness Not excess 1.5μm of 100mm (Rmax)
Thickness of Chrome Plated 1-2μm,1.5μm on average
Performance Long life and low noise
Appearance Smooth,Anti-corrosion,Hardened,Chrome plate
Service  Specisl requirement onmachining,such as threading,coaxial holes drilled and tapped,radial holes drilled and tapped,reduced shaft diameter etc;We could supply OEM to our customers.
Application Machine centers,Machine tools,Precision machining machines,Heavy cutting machines,Punching machines,Marble cutting machines,Automatic equipments,Grinding machines,High speed transfer equipments,Injection molding machines,Measuring equipments


Feature:

High Reliability
 linear shaft has very stringent quality control standards covering every production process. With proper lubrication and use,trouble-free operation for an extended period of time is possible.
Smooth Operation
The high efficiency of linear shaft is vastly superior to conventional shaft. The torque required is less than 30%. Linear motion can be easily changed from rotary motion.
High Durability
Rigidly selected materials, intensive heat treating and processing techniques, backed by years of experience,have resulted in the most durable linear shaft manufactured.



8mm rod SCS8UU LM8UU 2

Package

we can pack by carton box or wooden case.

If small parcel, we usually carton box,

If heavy goods, we usually use wooden case or pallet.

package 2package1package 3package 2

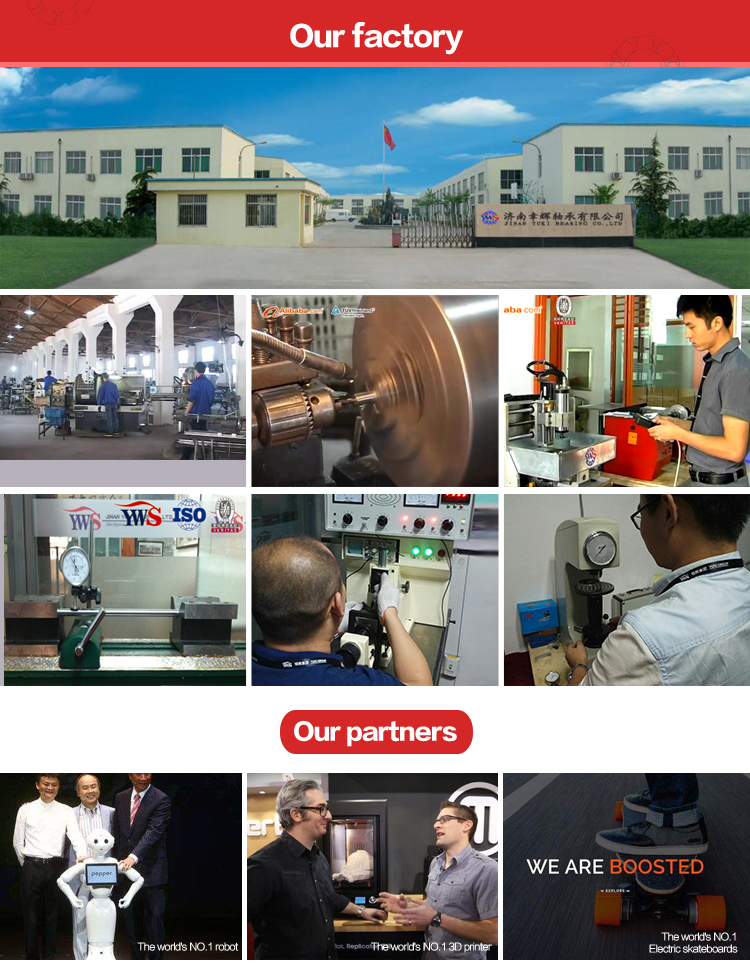

Company information

J
inan Henghui Bearing Co., Ltd. is a company specializing in designing, manufacturing, trading of a wide range of bearings. The company has rich experience in the industry of bearing production and export.

Henghui Bearing focuses not only the domestic market, but also the international market. Our company has established a marketing and service network covering ten major cities across China. For international market, the bearings from Henghui have been exported to more than 50 countries and regions around the globe. In the market of Japan, Korea, Italy, Iran, Switzerland, France, US as well as many other countries, you can see our high quality bearings. They enjoy a good reputation both domestic and internationally.

The products of Henghui cover a big range. Our products include deep groove ball bearings, spherical insert bearings, tapered roller bearings, angular contact ball bearings, thrust ball bearings, self-aligning ball bearings and many other bearings. For the detailed information about our product line, you can contact our customer service team.

Henghui bearings can be applied in many fields, such as agricultural, textile production, mining, printing, packing and many other industries, here just name a few.

Henghui Bearing adheres to the principle of "Best Quality, Best Credit and Best Service" and is looking forward to cooperate with worldwide customers.
