Product Description

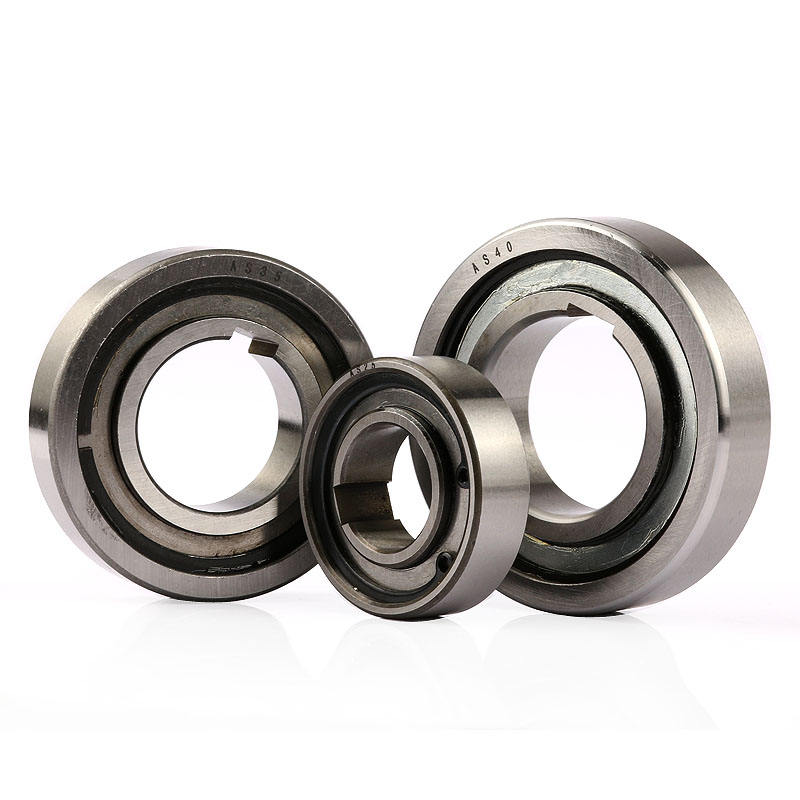

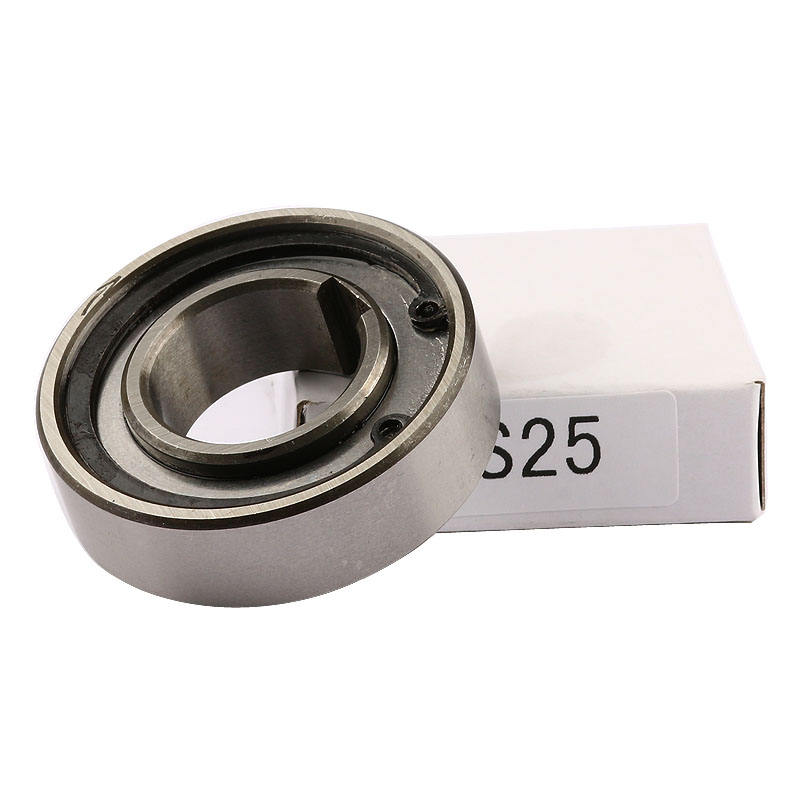

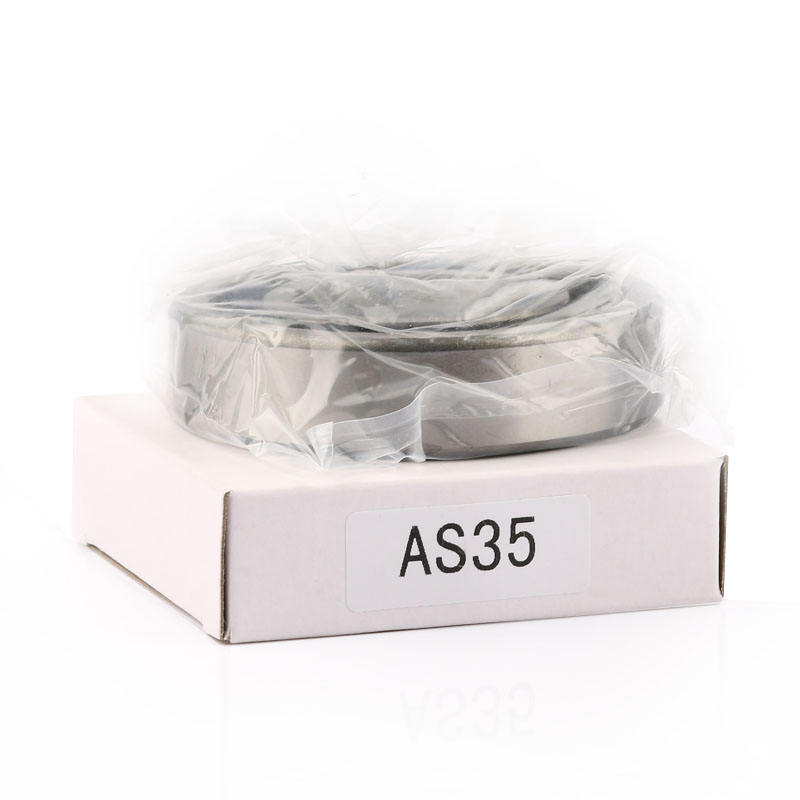

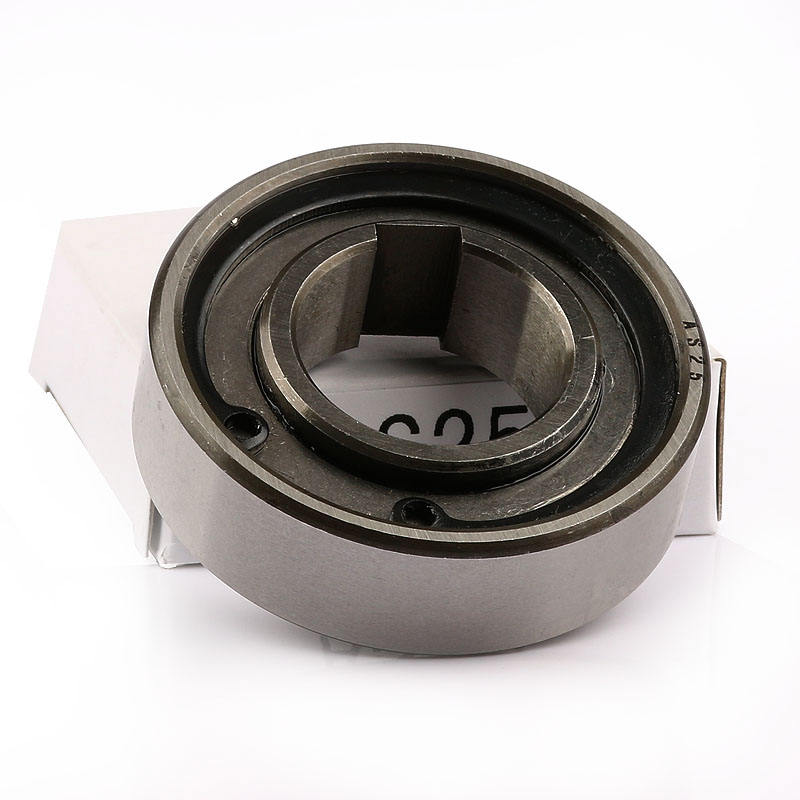

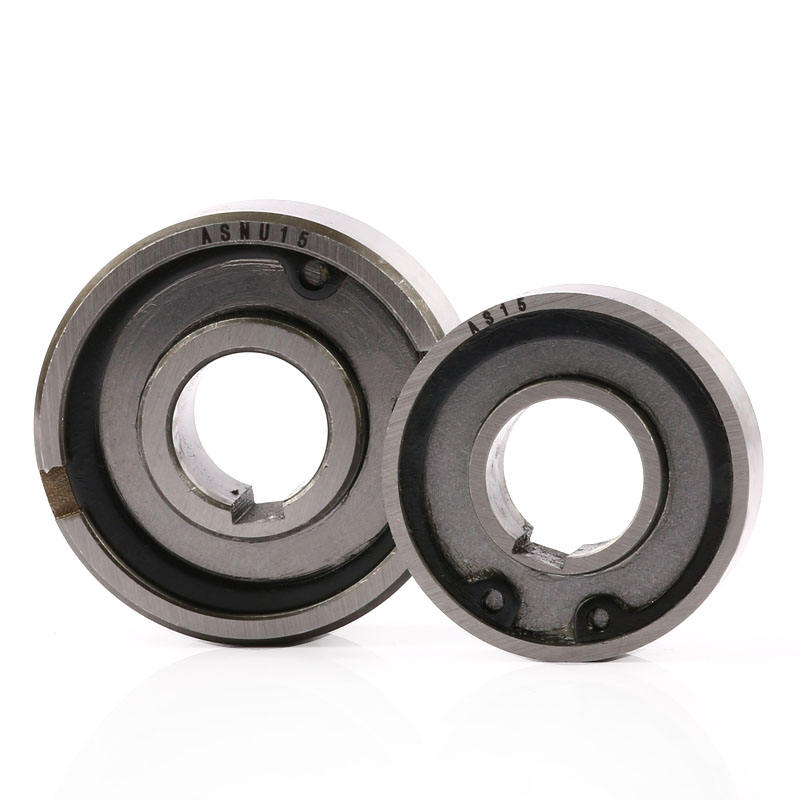

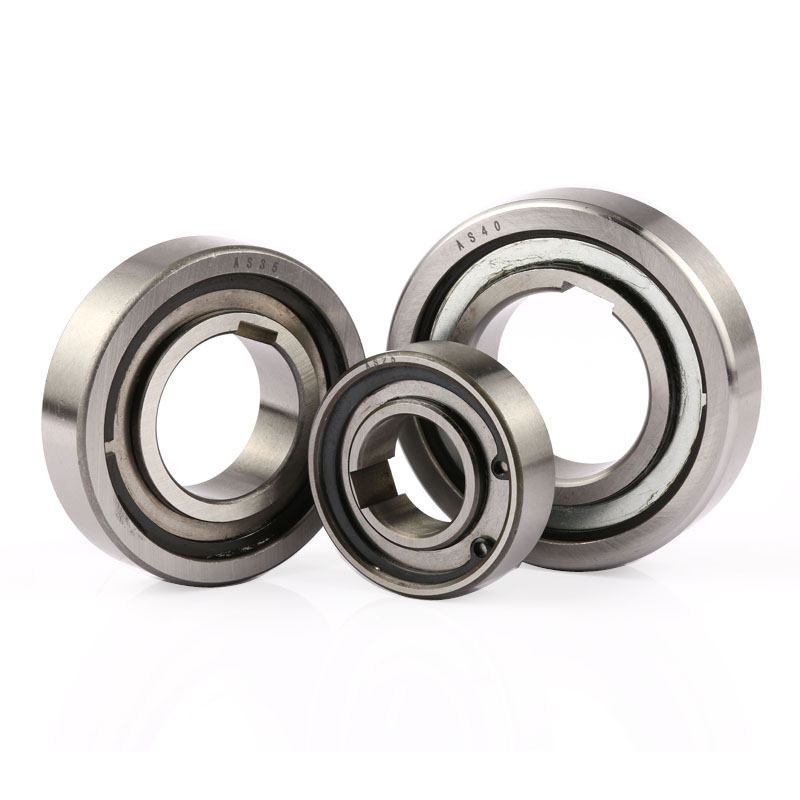

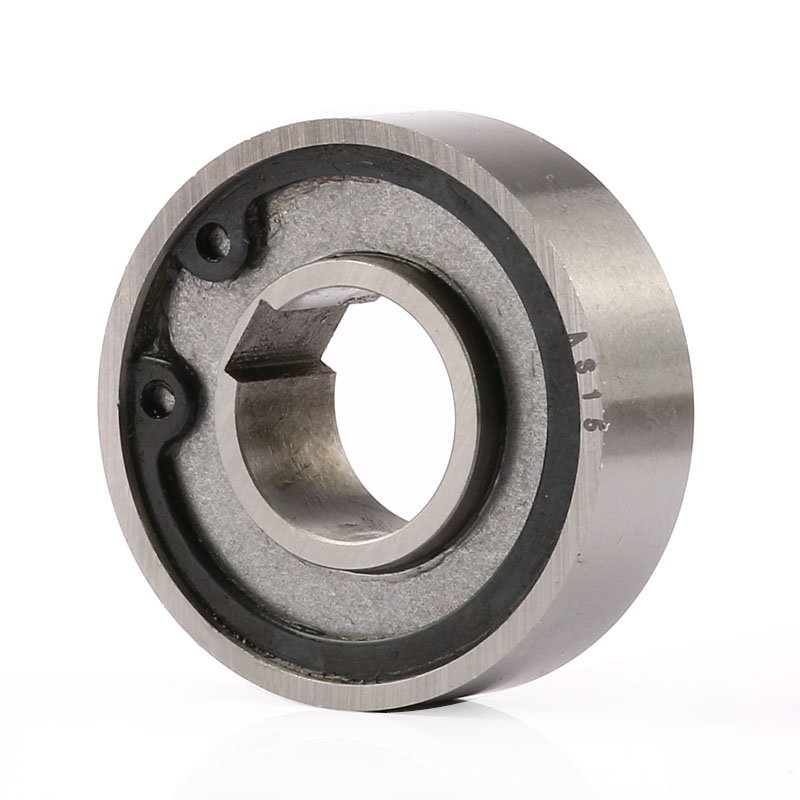

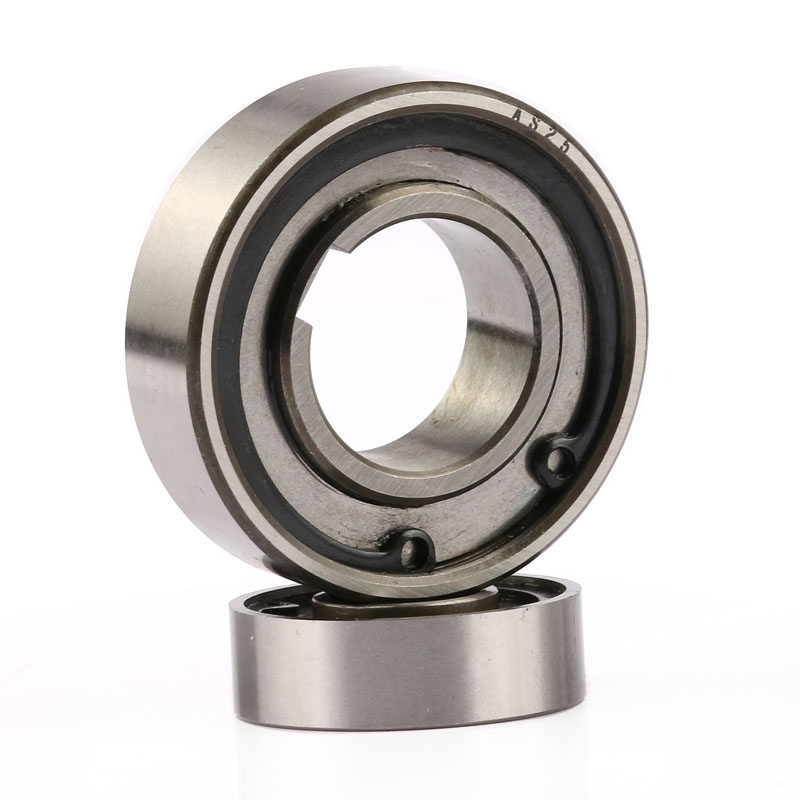

Roller Type Freewheel One Way Clutch Bearing FCN15 TSS15 NSS15 AS15

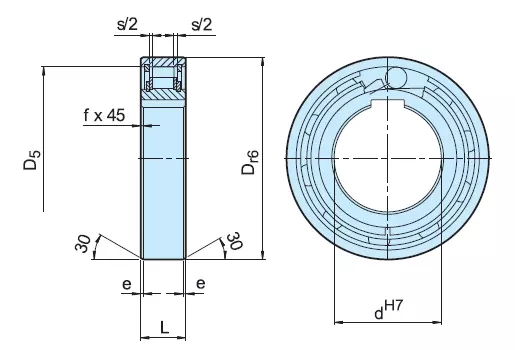

Type | Size |
| Overrunning speeds |
| Weight | Drag torque | ||||||
AS (TSS) | dH7 | TKN1) | nimax2) | namax3) | Dr6 | D5 | L | s | e | f |
| TR |
[mm] | [Nm] | [min-1] | [min-1] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [kg] | [Ncm] | |
6 | 2.1 | 5000 | 7500 | 19 | 15.8 | 6 | 0.3 | 0.6 | 0.3 | 0.01 | 0.18 | |
8 | 3.8 | 4300 | 6500 | 24 | 20 | 8 | 1.3 | 0.6 | 0.6 | 0.02 | 0.24 | |
10 | 6.8 | 3500 | 5200 | 30 | 25.9 | 9 | 1.3 | 0.6 | 0.6 | 0.03 | 0.36 | |
12 | 13 | 3200 | 4800 | 32 | 28 | 10 | 1.3 | 0.6 | 0.6 | 0.04 | 0.48 | |
15 | 14 | 2800 | 4300 | 35 | 31 | 11 | 1.4 | 0.6 | 0.6 | 0.05 | 0.7 | |
20 | 40 | 2200 | 3300 | 47 | 40 | 14 | 2.4 | 0.8 | 0.8 | 0.12 | 1.4 | |
25 | 56 | 1900 | 2900 | 52 | 45.9 | 15 | 2.4 | 0.8 | 0.8 | 0.14 | 2.4 | |
30 | 90 | 1600 | 2400 | 62 | 55 | 16 | 2.4 | 0.8 | 1 | 0.22 | 7.8 | |
35 | 143 | 1300 | 2000 | 72 | 64 | 17 | 2.5 | 0.8 | 1 | 0.31 | 9 | |
40 | 185 | 1200 | 1800 | 80 | 72 | 18 | 2.5 | 0.8 | 1 | 0.39 | 10 | |
45 | 218 | 1000 | 1600 | 85 | 77 | 19 | 2.5 | 1.2 | 1 | 0.44 | 11 | |
50 | 230 | 950 | 1500 | 90 | 82 | 20 | 2.5 | 1.2 | 1 | 0.49 | 13 | |
55 | 308 | 800 | 1300 | 100 | 90 | 21 | 2.5 | 1.2 | 1 | 0.66 | 14 | |
60 | 508 | 700 | 1100 | 110 | 100 | 22 | 2.5 | 1.2 | 1.5 | 0.81 | 26 | |
80 | 1063 | 600 | 900 | 140 | 128 | 26 | 2.5 | 1.2 | 1.5 | 1.41 | 58 | |
♥1.Your inquiry will be reply within 2 hours.
♥2.Fast delivery,within 7 working days.
♥3.Packing: you will receive a Perfect product with strong outside packing.
♥4.With advanced first-level facilities and testing equipment,to insure no mistake on the dimension of the bearings.
♥5.No M.O.Q, Because we are manufacture.
♥6.24 hours on line,no limited to talk to us.
♥7.Return Policy:We gladly accept returns for item purchased within a 30 day period, provided it is still in the original package, not used nor damaged.
♥8.Warranty Claims :The Warranty covers any Defect of the product for a period of 12 months. It does not cover items that are not correctly installed or over tightened which may cause premature failure. Installation or any other fee's are not refundable.
