Self-lubricating Male Rod End Bearing SA30T/K Spherical Plain Bearing SA30T/K For Sewing Machine
You are here: Home » Products » Rod End Joint Bearing » Self-lubricating Male Rod End Bearing SA30T/K Spherical Plain Bearing SA30T/K For Sewing Machine

Self-lubricating Male Rod End Bearing SA30T/K Spherical Plain Bearing SA30T/K For Sewing Machine

loading

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

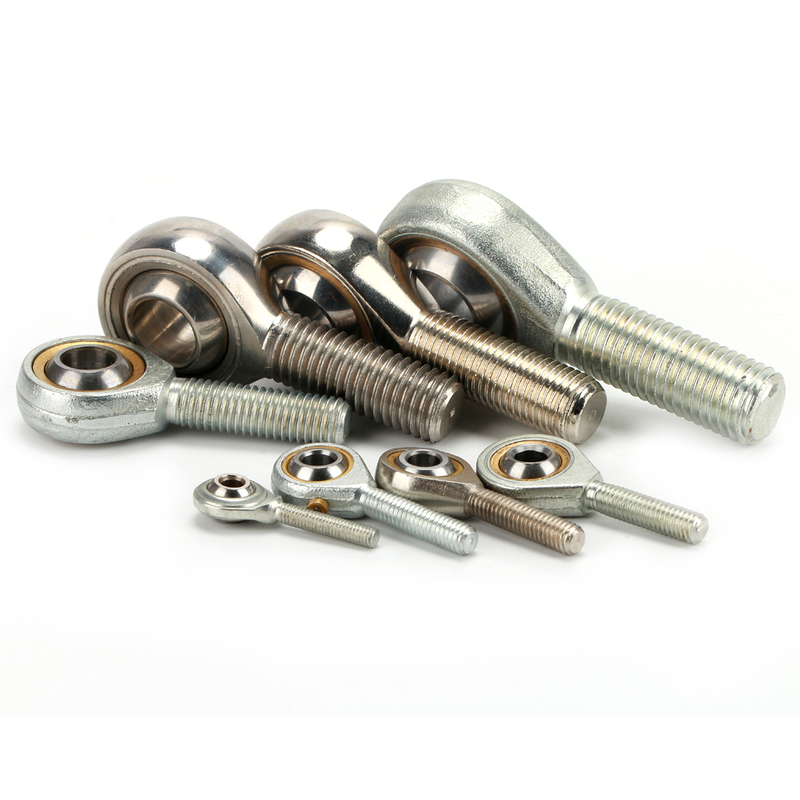

A rod end bearing, also known as a heim joint (N. America) or rose joint (U.K. and elsewhere), is a mechanical articulating joint. Such joints are used on the ends of control rods, steering links, tie rods, or anywhere a precision articulating joint is required, and where a clevis end(which requires perfect 90 degree alignment between the attached shaft and the second component) is unsuitable. A ball swivel with an opening through which a bolt or other attaching hardware may pass is pressed into a circular casing with a threaded shaft attached. The threaded portion may be either male or female.

  • SA30T/K

  • YWS

  • rod end bearing ball joint bearing

  • YWS

  • 30mm

  • SA30T/K

  • China

  • steel

  • M30*2

Availability:
Inquire

Product Description

Features

  • Self-Lubrication

  • Housing:  carbon steel and white zinc plated

  • Steel Ball:  52100 chrome steel, precision ground hardened and chrome plated

  • Liner:  PTFE-Strong & flexible bronze mesh spread with fluorine resin

  • Race:  Bronze

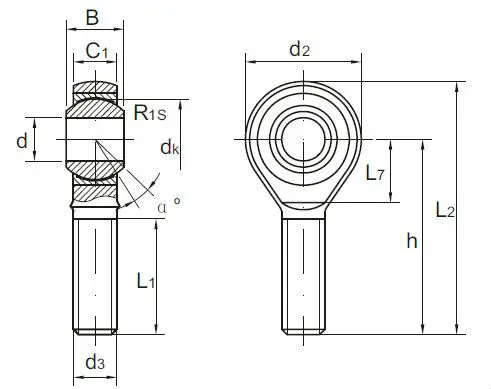

Dimensions

  • Inside Diameter(Bore): 30mm

  • Outside Diameter(Head): 70mm

  • Thread: M30x2.0(Right Hand)

  • Total Length: 145mm

  • Maximum Angular Misalignment: 17 Degree

  • Center of Ball to Bottom of Shank: 110mm

  • Length Through Bore: 37mm

  • Thread Length: 66mm



SA..T/K rod ends bearing

SA..T/K series rod ends bearings are made up of a maintenance-free radial spherical plain bearing G..PW and rod body,with male thread.

Features

• Sliding contact surface: steel/PTFE

• Lubricating: Maintenance-free

• Housing: carbon steel and zinc plated

• Inner ring: chrome steel,hardened,chrome-plated

• Race: brass

• Liner: PTFE



 SA30T/K 30mm Bore Economy Male Right Hand Rod End Bearing
