Sprag freewheels CSK...P CSK...PP CSK...2RS series one way clutch bearing

Sprag freewheels CSK...P, CSK...PP, CSK...2RS series one way clutch bearing

Description

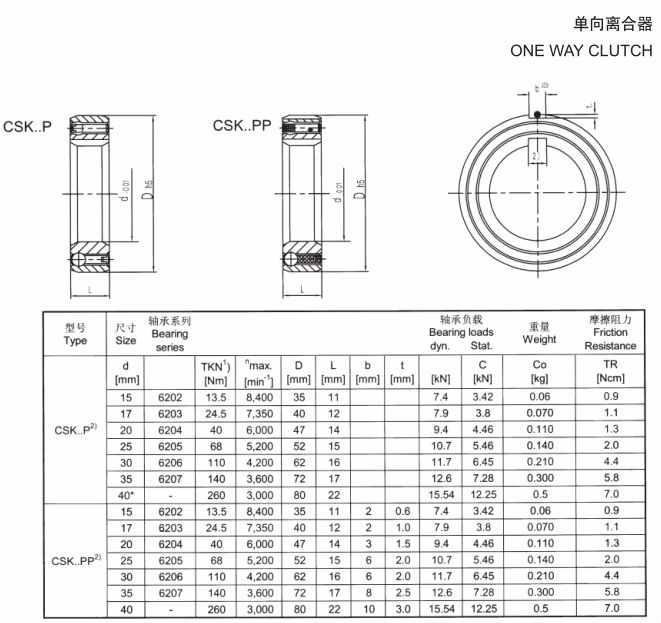

  Types CSK...P, CSKP...2RS and CSK...PP are sprag type freewheel integrated into a 62..series ball bearing(expect size 40). They are bearing supported, delivered grease lubricated and protected against dust of more than 0.3mm. The use of additional "nylon" type seals is recommended especially when the working temperature exceeds 50℃.

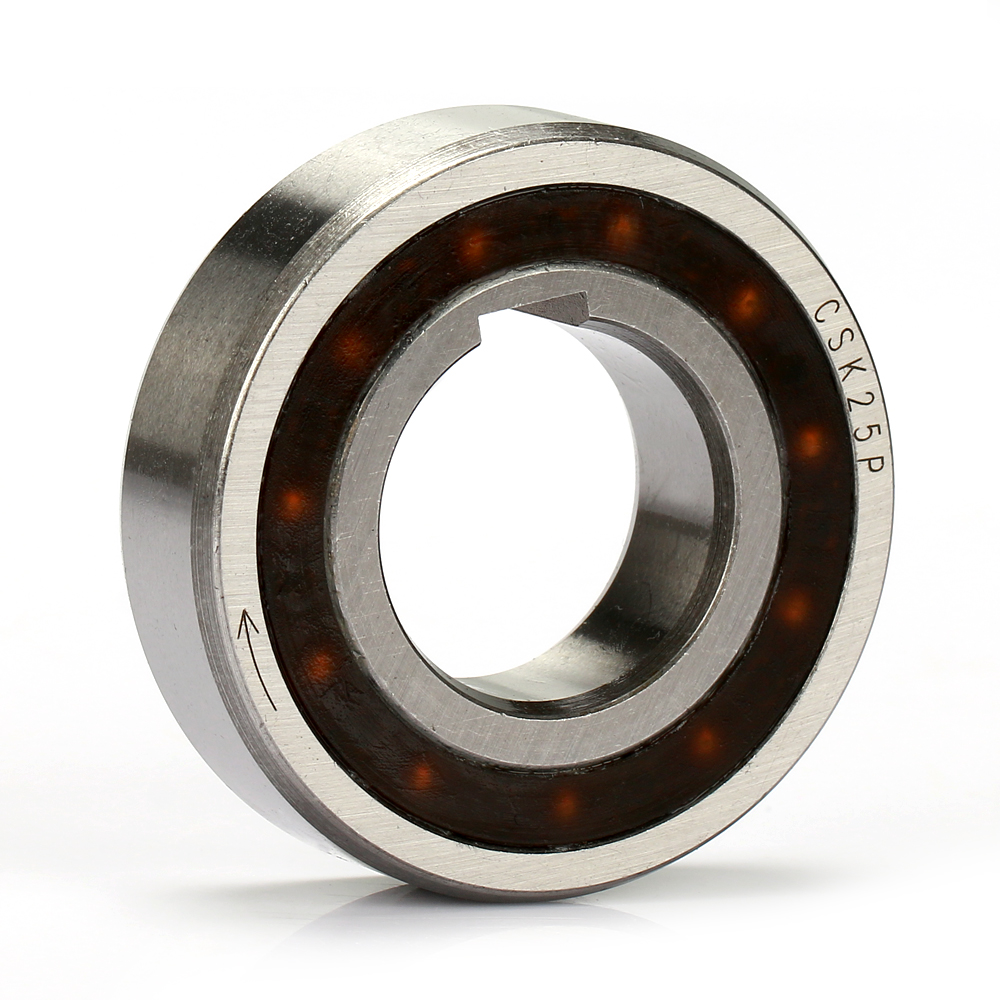

  In addition to the basic CSK model, type CSK...P, CSKP...2RS features a keyway on the inner race. For this reason it can be keyed to a shaft to K6 tolerance. The outer race must still be pressed into a rigid housing to N6 tolerance.

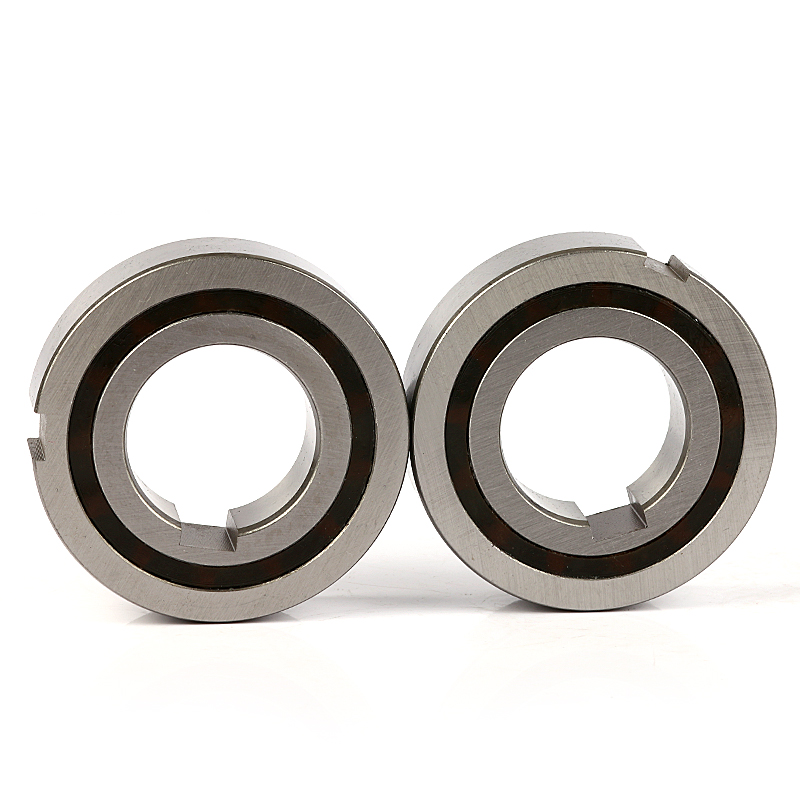

  CSK...PP features a keyway on both the inner and outer race. The recommended mounting tolerance are K6 on the shaft and K6 in a rigid housing. A H6 tolerance on the shaft or H6 in the housing are also acceptable for a slight fit assembly.

  Operating temperature range: -40℃ to +100℃, peaks up to +120℃ are acceptable for short periods.
