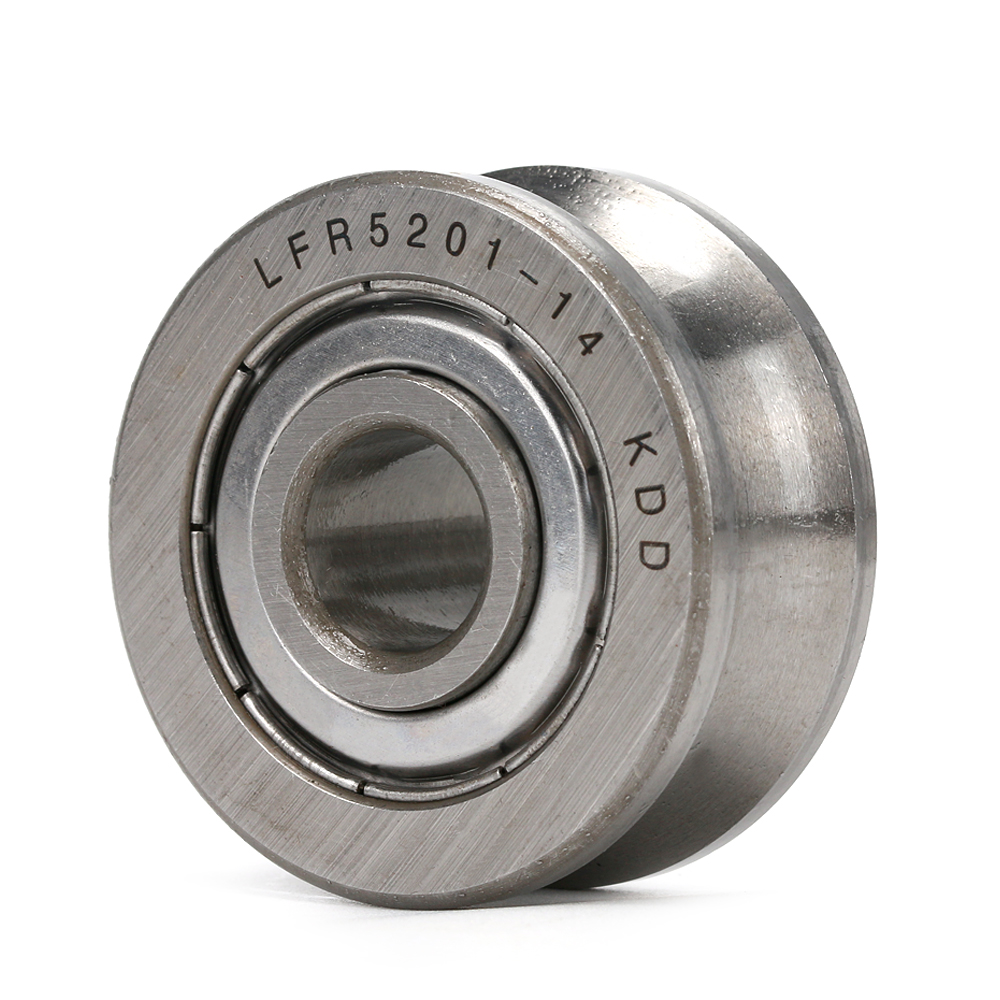

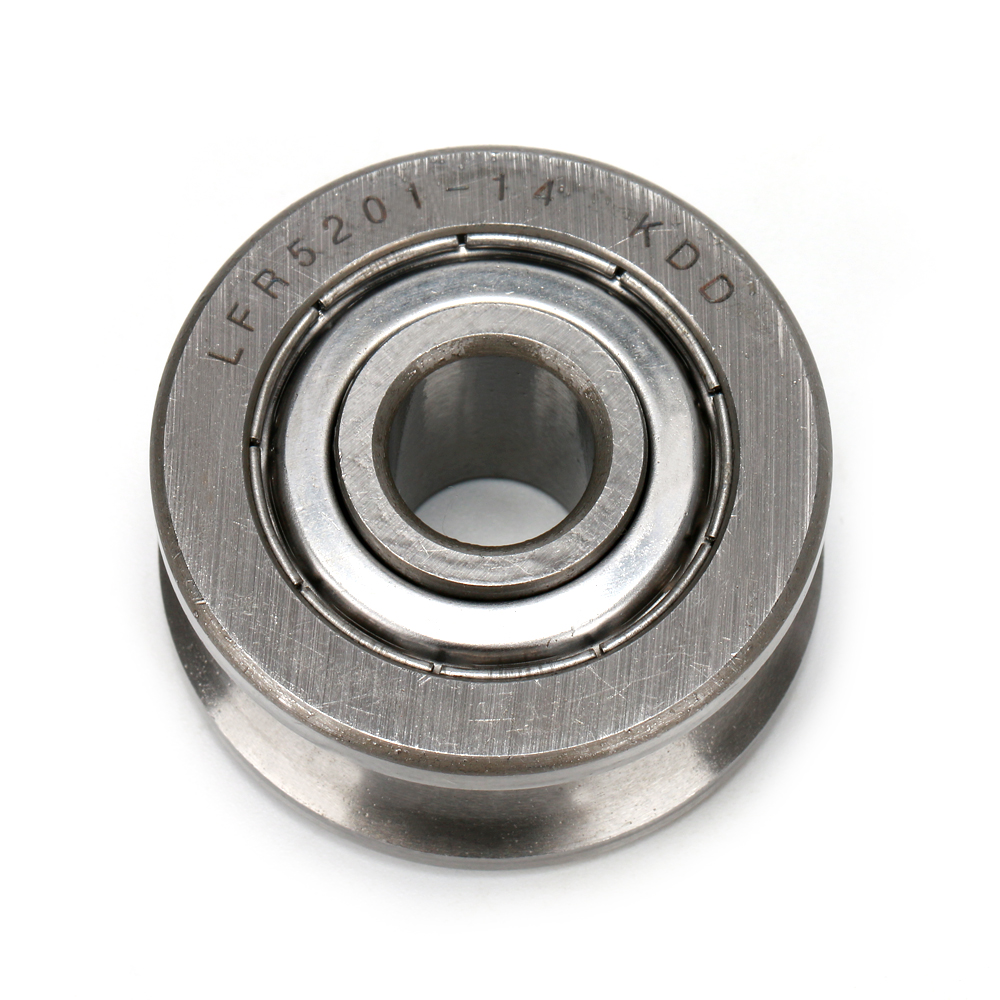

U groove double row ball track guide roller bearing LFR5201-14 KDD

loading

•
•
•
•
•
•

Share to:

Availability:
Inquire

• Product Description

Product Description

Products Description

Type	Guide roller bearings
Model No.	LFR5201-14KDD
Seal	ZZ

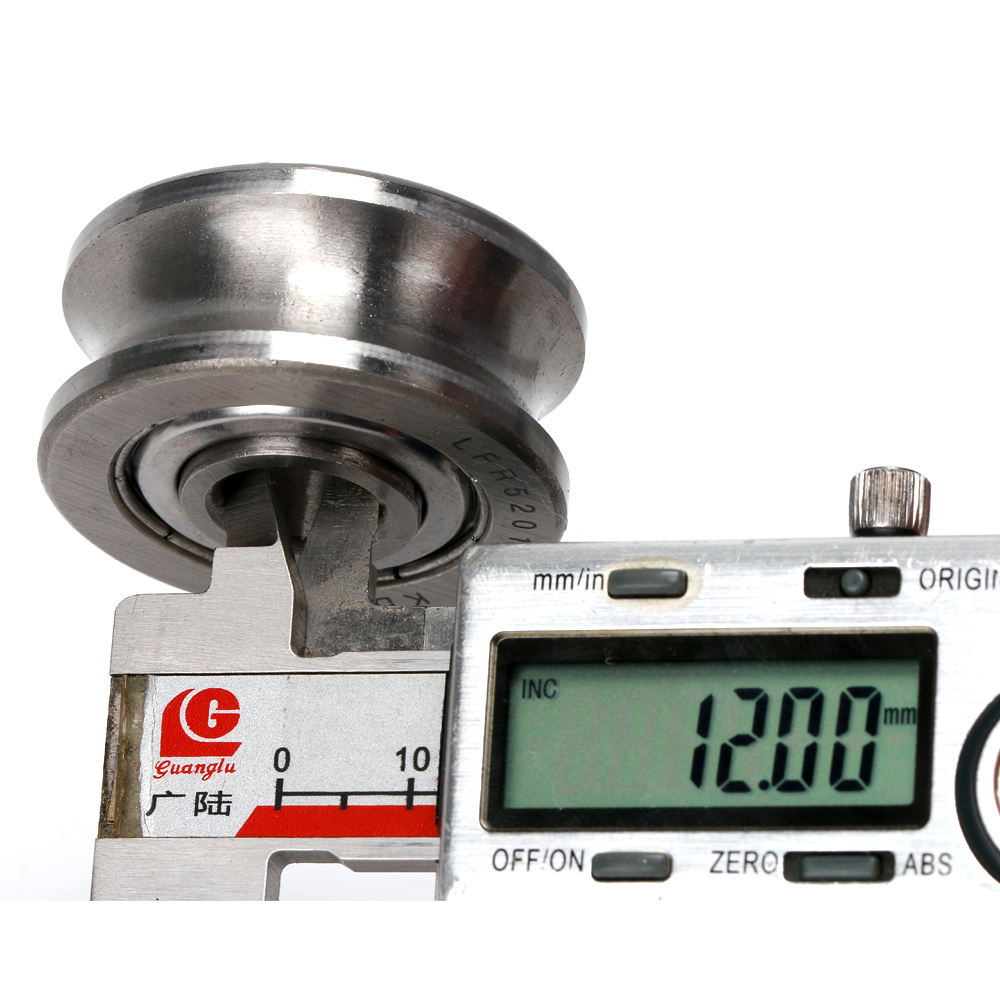

d	12mm

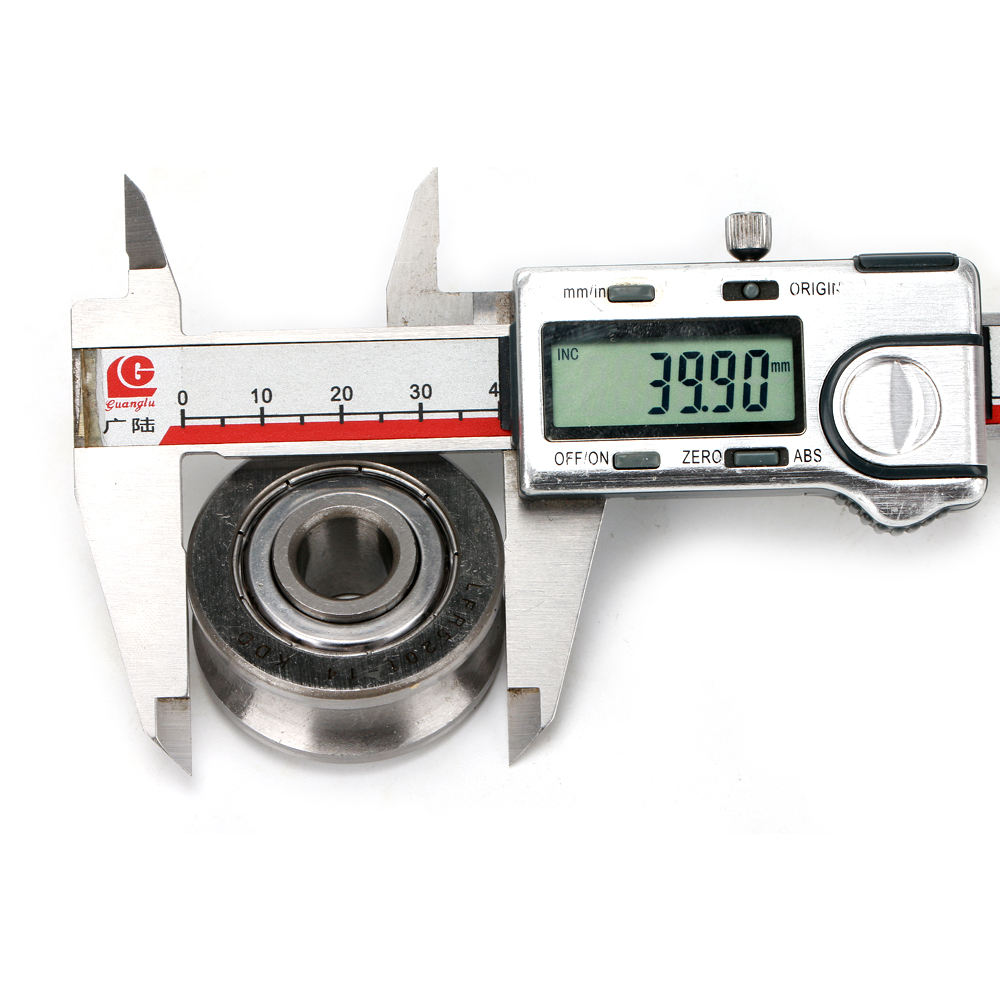

D	39.9mm
B	20mm
dw	14mm
rs	0.3
A	24
Weight	107g
Cw(KN)	8.9
Cow(KN)	5

NPP rubber seal type

Also have V groove type bearing

LFR series guide roller bearing is the most widely used, economical and practical product in linear guide roller. It can be adapted to cylindrical guide rail, with stable operation, small error, low operation noise and high operation speed. ● the contact between the roller and the guide rail is two-point 60 degree contact, which has good contact performance and small running resistance, so as to achieve a relatively long service life. ● the roller adopts the internal structure design of double row angular contact ball bearing and thickened outer ring, so that the roller has higher bearing capacity. The roller bearing is simple to install after being equipped with eccentric wheel and concentric shaft. The roller is made of high-quality bearing steel or stainless steel, and is processed by heat treatment and precision grinding, and filled with long-life high-quality multi-purpose grease. Metal dust cover (KDD) or rubber sealing ring (NPP) are used for roller dust control.

Company Profile

Our office

Our Customer

Packaging & Shipping

Packing Details : Plastic tube, Pallet, Box, Container, Sea, Air. Delivery Details : Delivery time is 7-15 workdays.

Plastic tube Pallet Box

Container Sea Air

Our Service

FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 3-5 days if the goods are in stock. Or it is 7-15 days if not. Also it is according to
quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: Paypal/TT/WU/Alibaba order link/Alipay

Usually, Payment 100% in advance.

If big amount, 30% in advance ,balance before shippment.
